High-Precision ROS IMU
Inertial Navigation Module
Adopts Self-Developed Attitude Estimation Algorithm
Strong Real-Time Performance | High-Precision | Stable & Drift-Free

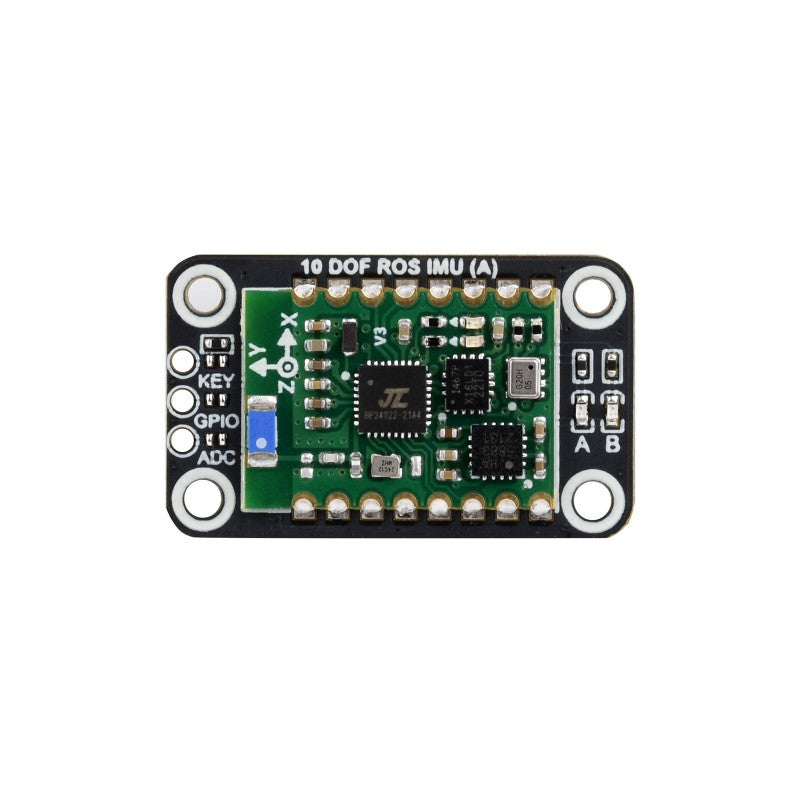

This product is a 10-axis IMU sensor, integrated with an ARM 32-bit DSP processor, BLE 5.3 Bluetooth, high-precision accelerometer, gyroscope, magnetometer, and temperature & pressure sensor.
- Adopts self-developed attitude estimation algorithm, offering strong real-time performance and high precision, stable, and drift-free operation
- Supports UART and BLE 5.3 Bluetooth communication to assist motion attitude and orientation detection of robot
- Supports using with Bluetooth devices with Android, iOS, Windows, and Linux systems
Rich Data Output
Specifications
| PRODUCT | 10 DOF ROS IMU (A) | |
|---|---|---|
| POWER SUPPLY | 3.3V~5V | |
| BAUD RATE | 115200 | |
| INTERFACE PACKAGE | ZH1.5-4A | |
| COMMUNICATION FORMAT | 8 data bits, 1 stop bit, no parity bit | |
| DATA PACKET FORMAT | Preamble + Start Code + Address + Length + Data Body + Checksum + End Code | |
| DATA OUTPUT | Acceleration, angular velocity, magnetic field vector, temperature, atmospheric pressure, Euler angles, quaternion | |
| ACCELEROMETER | RANGE | ±16g |
| RESOLUTION | 0.00048g | |
| GYROSCOPE | RANGE | ±2000°/s |
| RESOLUTION | 0.061°/s | |
| MAGNETOMETER | RANGE | ±8Guass |
| RESOLUTION | 0.12uT | |
| TEMPERATURE SENSOR | RANGE | -45℃~85℃ |
| RESOLUTION | 0.01°C (onboard temperature) | |
| BAROMETER | RANGE | 300hPa~1200hPa |
| RESOLUTION | 0.006hPa | |
Bluetooth And UART Communication
Comes With UART Connection Cable, Plug And Play
* for reference only, the USB TO UART Module is NOT included.

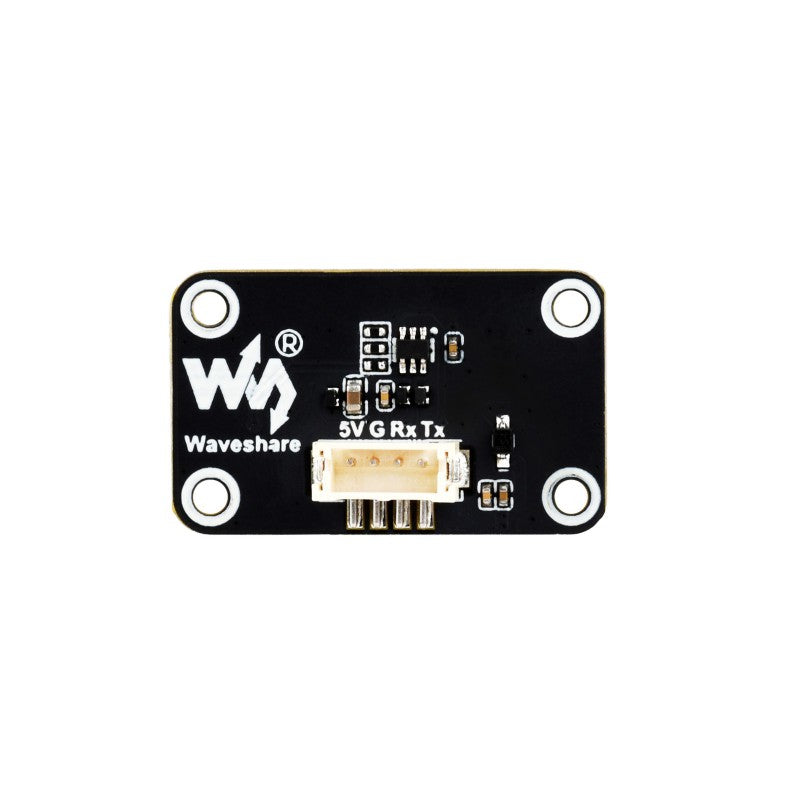

Interface Introduction
Compatible With ROS1 / ROS2 Systems
Provides IMU Data Estimation Demo For Quick And Easy Start-Up
Application Examples - ROS2 Robotic Car
* for reference only, please check the Package Content for the detailed part list.

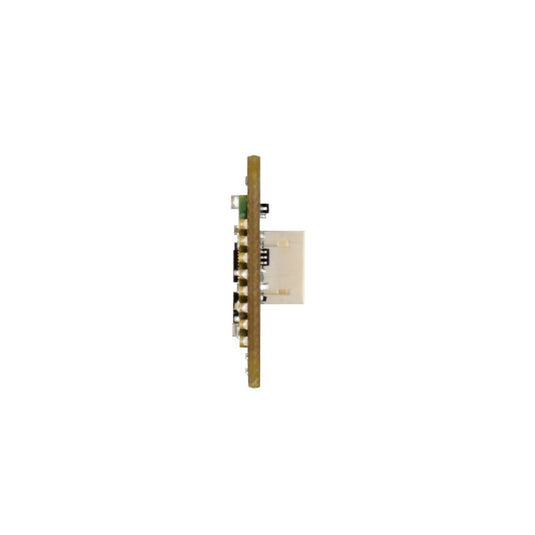

Outline Dimensions
Resources
Wiki: www.waveshare.com/wiki/10_DOF_ROS_IMU_(A)
Package Contents:
Weight: 0.038 kg
- 10 DOF ROS IMU (A) x1

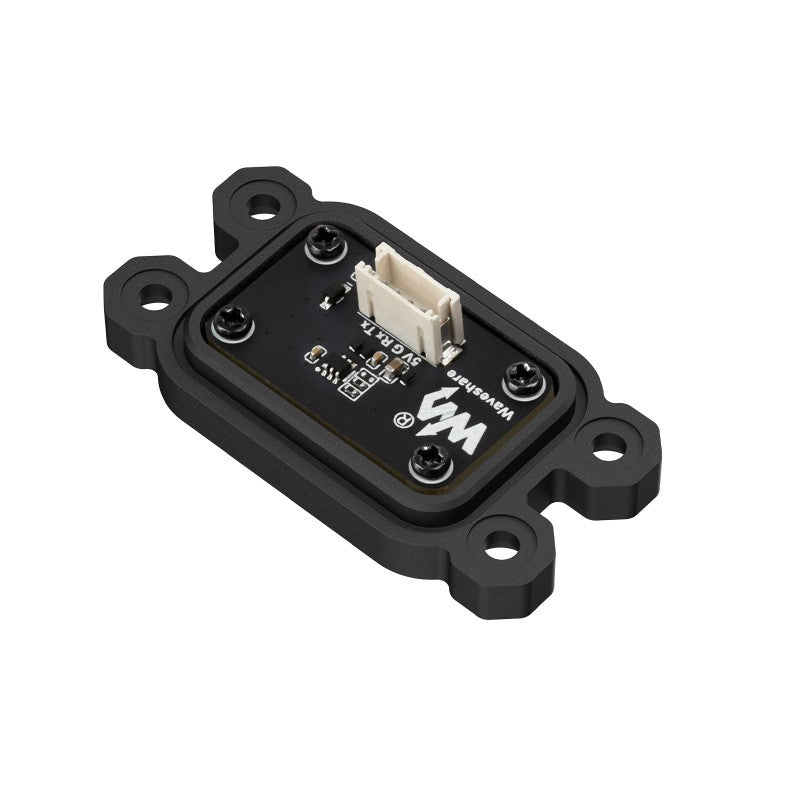

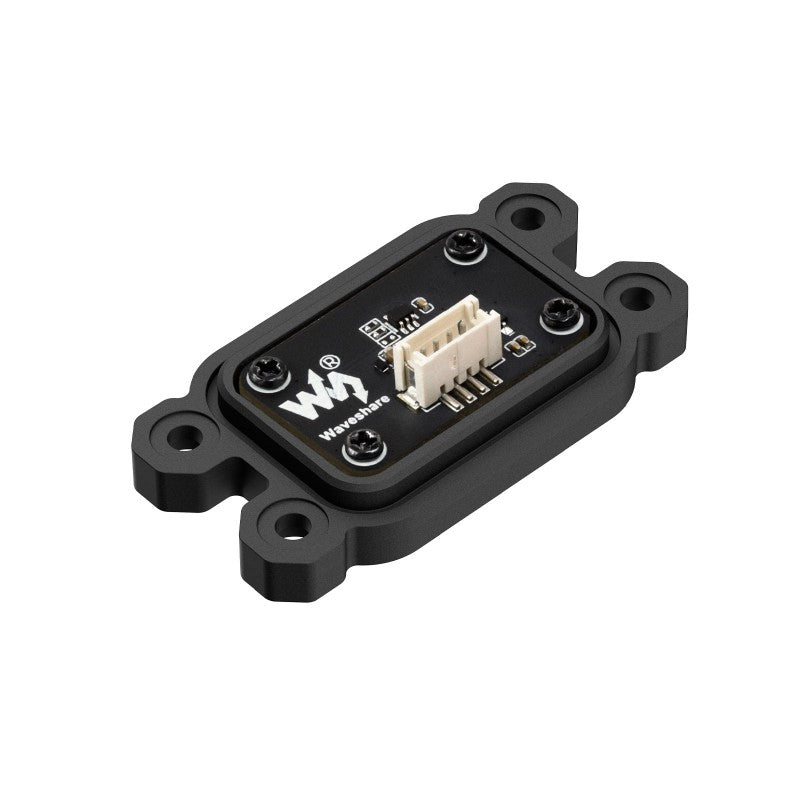

- Nylon case x1
- ZH1.5 4PIN cable ~300mm x1
- Screwdriver x1
- Screwspack x1
