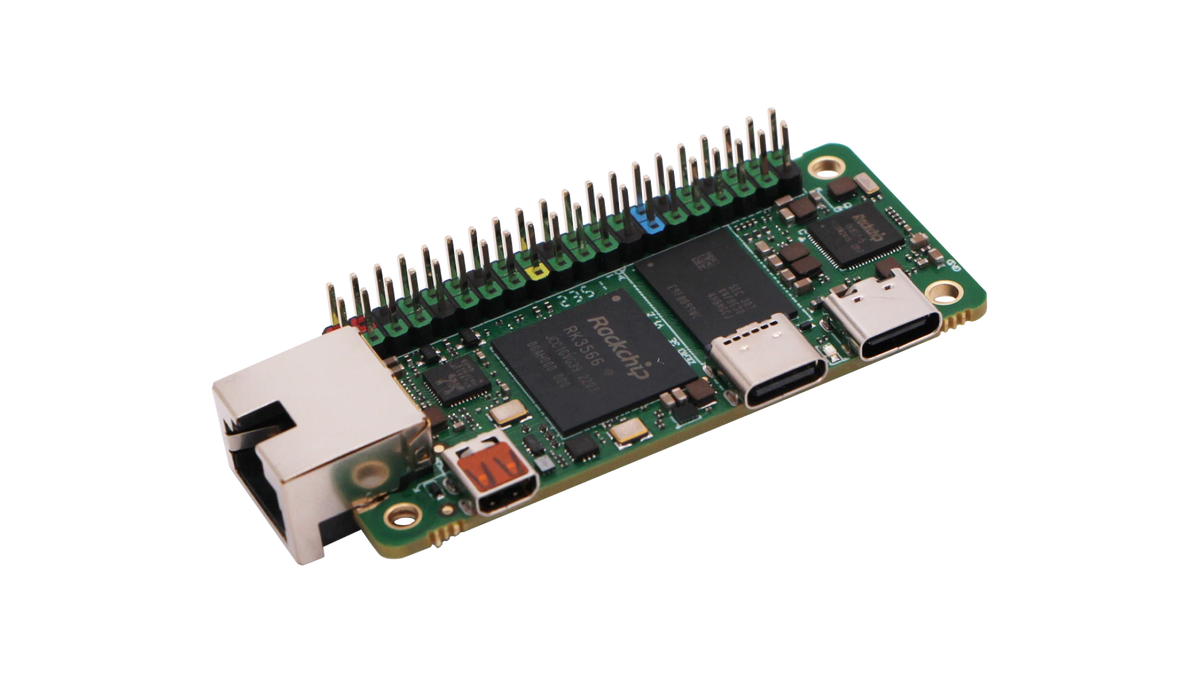

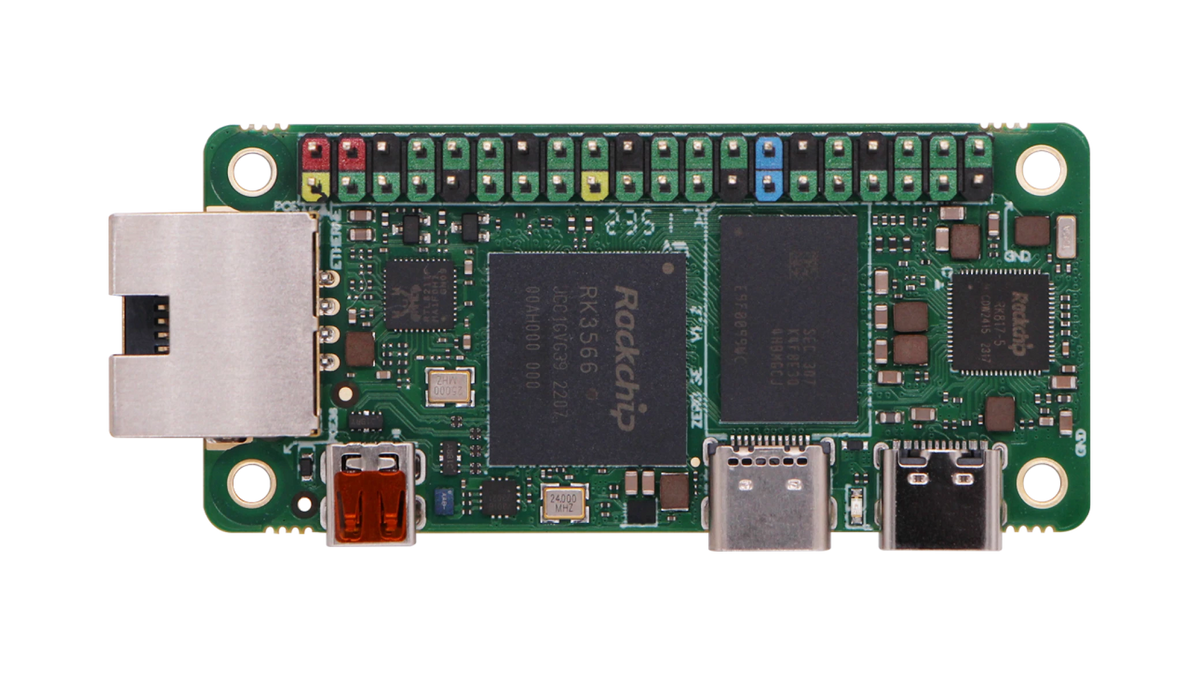

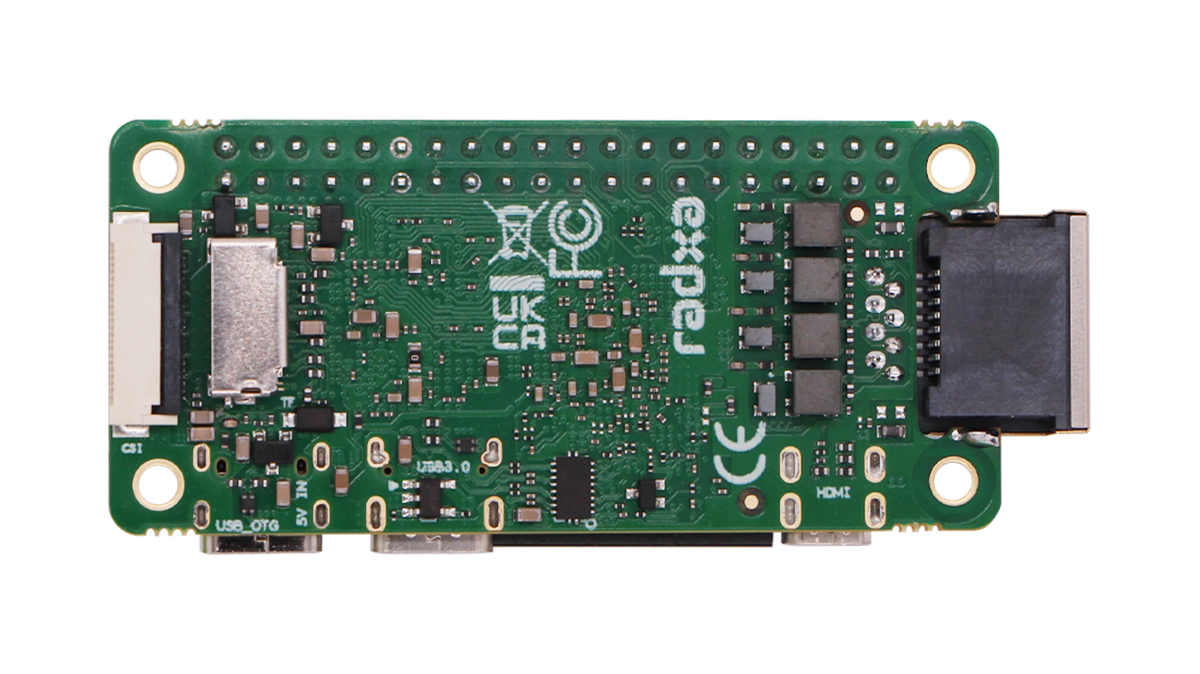

Radxa ZERO 3E is a powerful and energy-efficient single-board computer designed for embedded and industrial applications. Built around the Rockchip RK3566 quad-core 64-bit ARM Cortex-A55 processor, it delivers reliable performance for a wide range of use cases. It features onboard LPDDR4 RAM, optional eMMC storage, and supports high-speed interfaces including USB 3.0 and Gigabit Ethernet for fast data transfer and network connectivity.
High performance and low power consumption
H.264/H.265 decoder up to 4K@60fps
H.264/H.265 encoder up to 1080P@60fps
1080P@60fps via Micro HDMI
More Stable and Low Latency
Gigabit Ethernet Port with PoE Support(Additional PoE Support)
Bringing Every Photo to Life!
> 22-Pin MIPI CSI with 0.5mm Pitch
| Specifications - Radxa ZERO 3E | |
|---|---|
| SoC | Rockchip RK3566 |
| CPU | Quad‑core Arm® Cortex®‑A55 (Armv8) 64‑bit @ 1.6GHz |
| GPU | Arm® Mali™‑G52‑2EE - OpenGL® ES1.1 / 2.0 / 3.0 / 3.1 / 3.2 - Vulkan® 1.1, OpenCL™ 2.0 |
| RAM | 1GB / 2GB / 4GB / 8GB LPDDR4 |
| Storage | 1 x Micro SD Card Slot |
| Ethernet | 1x Gigabit Ethernet with Power over Ethernet (PoE) support, powered by PoE with an additional PoE HAT required |
| USB | 1x USB 2.0 OTG Type C Port 1x USB 3.0 Host Type C Port |
| Display | 1x Micro HDMI support 1080P@60fps |
| Camera | 1 x MIPI CSI camera port |
| Connectivity | 40 x color user GPIO supporting various interface options: - up to 5 x UART - 1 x SPI bus - up to 2 x I2C bus - 1 x PCM/I2S - up to 6 x PWM - up to 28 x GPIO - 2 x 5V DC power in - 2 x 3.3V power pin |
| Operating Conditions |
Recommended temp: 0 ~ 50°C Radxa ZERO 3E has a temperature limit of 80°C, beyond which it throttles clock speeds for reliability For continuous high-performance use, external cooling methods like heat sinks or fans can maintain maximum clock speed below the 80°C limit |
| Software | Support Debian / Linux |
| Dimensions | 72 mm × 30 mm |
| Compliance | CE / FCC |
Documentation
| Overview - Radxa ZERO 3E | Download >> |
| Getting Started Guide - Radxa ZERO 3E | Download >> |
| Radxa OS - Radxa ZERO 3E | Download >> |
| Configuration setting - Radxa ZERO 3E | Download >> |
| Accessories - Radxa ZERO 3E | Download >> |
| App Deployment - Radxa ZERO 3E | Download >> |
| Low-Level Dev - Radxa ZERO 3E | Download >> |
| Android - Radxa ZERO 3E | Download >> |
Official Images
| Debian OS - Radxa ZERO 3E | Download >> |
Product Information
| Radxa ZERO 3E - Product Brief | Download >> |
| Radxa ZERO 3E - Schematic V1.2 | Download >> |
| Radxa ZERO 3E - Components Placement Map (SMD V1.2) | Download >> |
| Radxa ZERO 3E - 2D Drawings V1.2 | Download >> |
| Radxa ZERO 3E - 3D Drawings | Download >> |
> Radxa Camera 8M 219
IMX 219
> Radxa Heatsink 5519A
Specialized for Radxa ZERO 3W / 3E
> Radxa Power PD 30W
5A High Current Super-Fast Charge
> Radxa ZERO 3E PoE HAT
Designed for Radxa ZERO 3E
No reviews yet. Be the first to share your experience!
For more discussion Click Here
