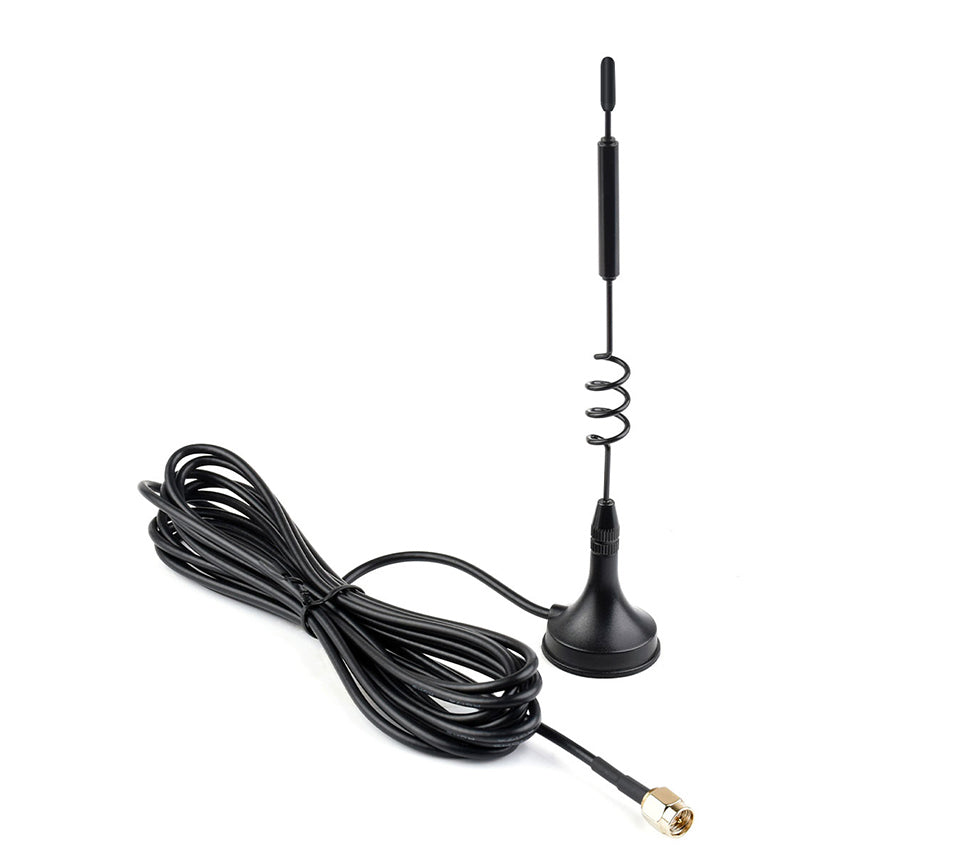

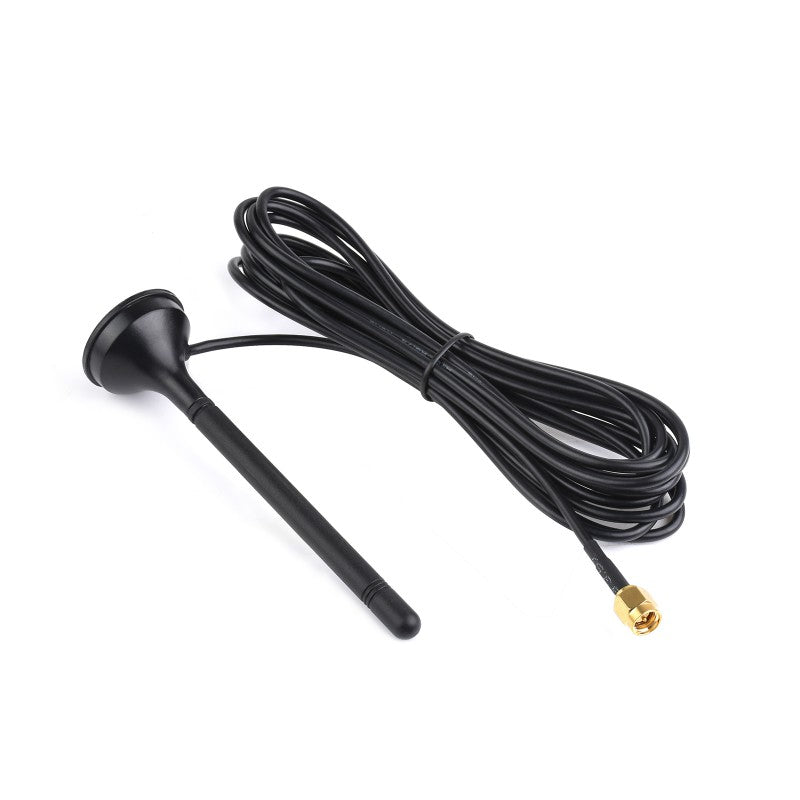

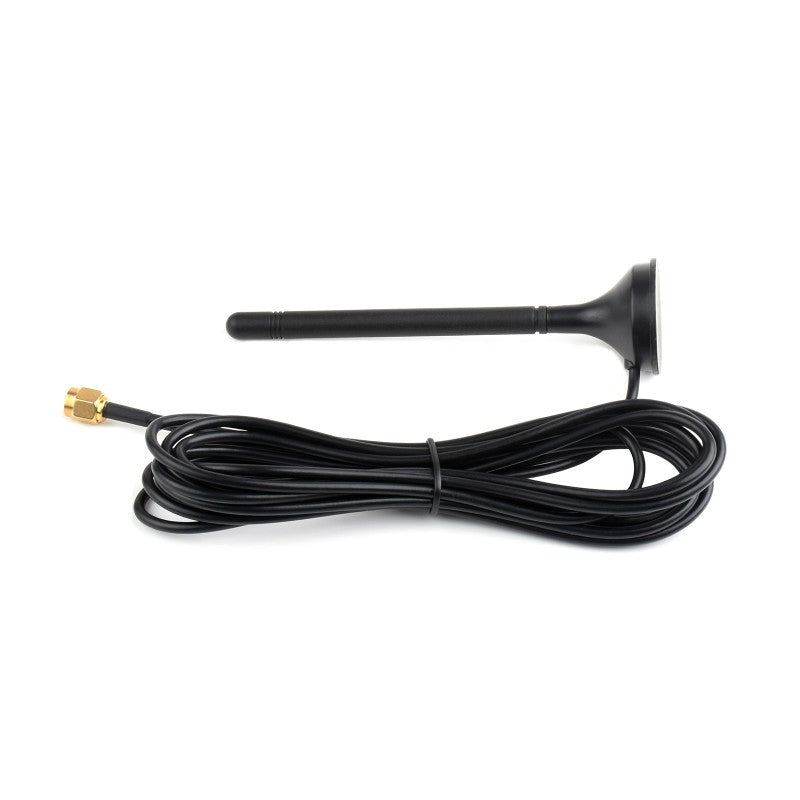

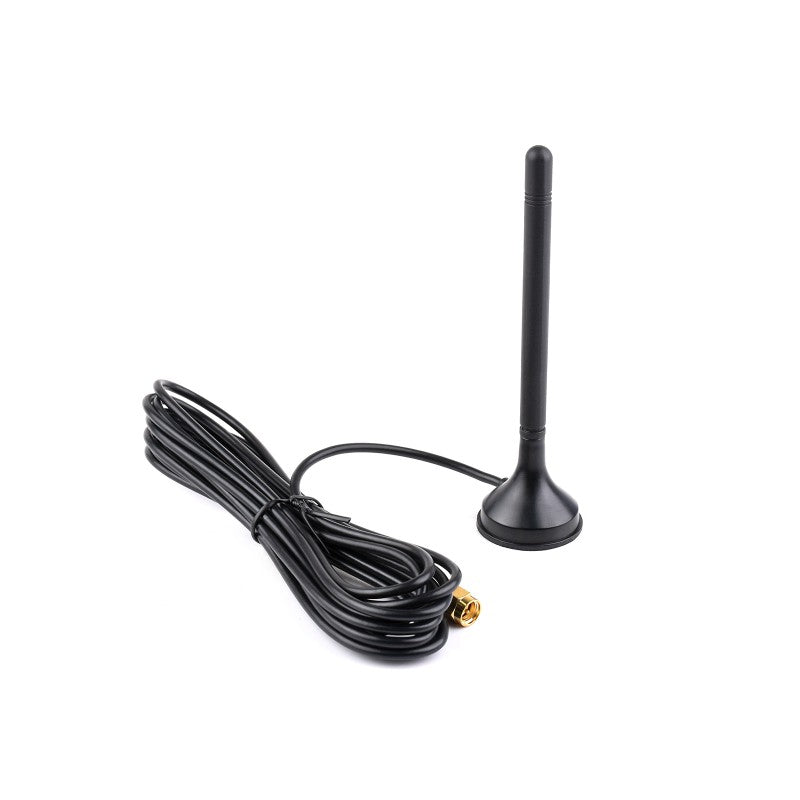

LPWA Magnet Mount Outdoor Antenna
LPWA Outdoor Waterproof Antenna
High Gain, Outdoor Waterproof, With Magnetic Base
Version Options
433/470M version
868/915M version
Specifications
NETWORK SUPPORT
4G/3G/2G/LPWA
GAIN
5dBi
FREQUENCY RANGE
315~500MHz 690~2700MHz
CONNECTOR
SMA male connector
POWER INPUT
10W MAX
OUTPUT IMPEDANCE
50Ω
SWR
≤2.0
POLARIZATION
Vertical
ANTENNA HEIGHT
433/470M version: ~15cm 868/915M version: ~11cm
CABLE LENGTH
3m
COLOR
Black
WATERPROOF
IP65
Design Details
Exchangeable antenna design
Magnetic base, firm attaching

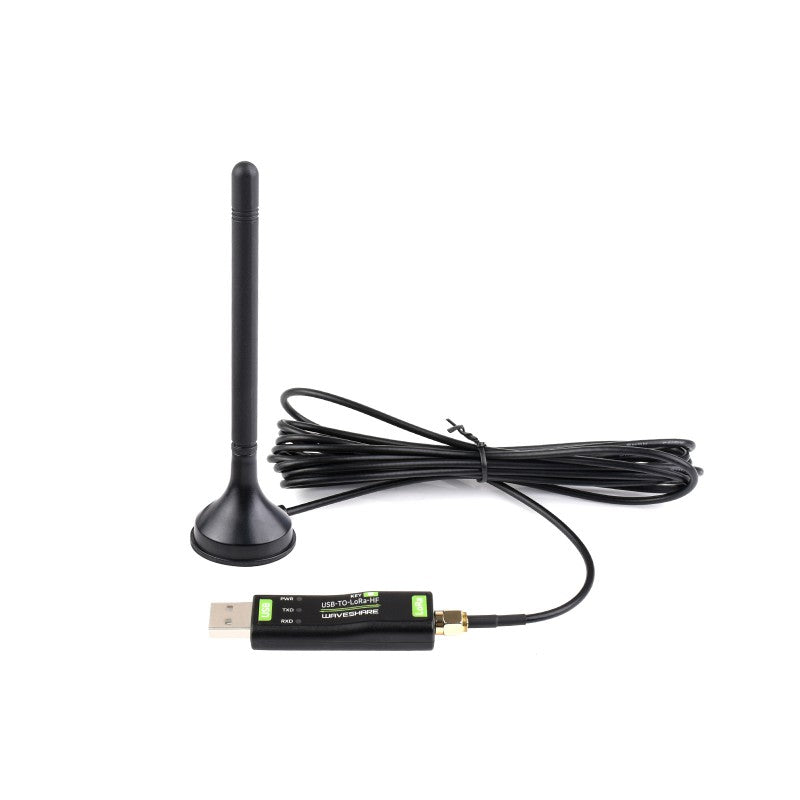

Application Examples
for reference only, please refer to the part list for detailed package content
Outline Dimensions
