0.85inch LCD Display Module, IPS Panel, 128×128 Resolution
0.85inch LCD Display Module
Embedded GC9107 Driver, Using SPI Bus
Comes with examples for Raspberry Pi/Arduino/STM32/ESP32/RP2040/Jetson series
Size 0.85"
Resolution 128×128
Display Color 65K RGB
Interface SPI
Features at a glance
128×128 resolution, 65K RGB colors, clear and colorful displaying effect
SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32/ESP32/RP2040/Jetson series
Comes with development resources (examples for Raspberry Pi/Arduino/STM32/ESP32/RP2040/Jetson series)
Specifications
Specification Details
Operating Voltage
3.3V
Resolution
128 × 128 pixels
Communication Interface
4-wire SPI
Display Size
15.21 × 15.21 mm
Display Panel
IPS
Pixel Pitch
39.6 × 118.8 µm
Driver
GC9107
Dimensions
19.0 × 22.5 mm
Controlled via SPI Bus
supports controller boards like Raspberry Pi/Arduino/STM32/ESP32/RP2040/Jetson series
Hardware Connection

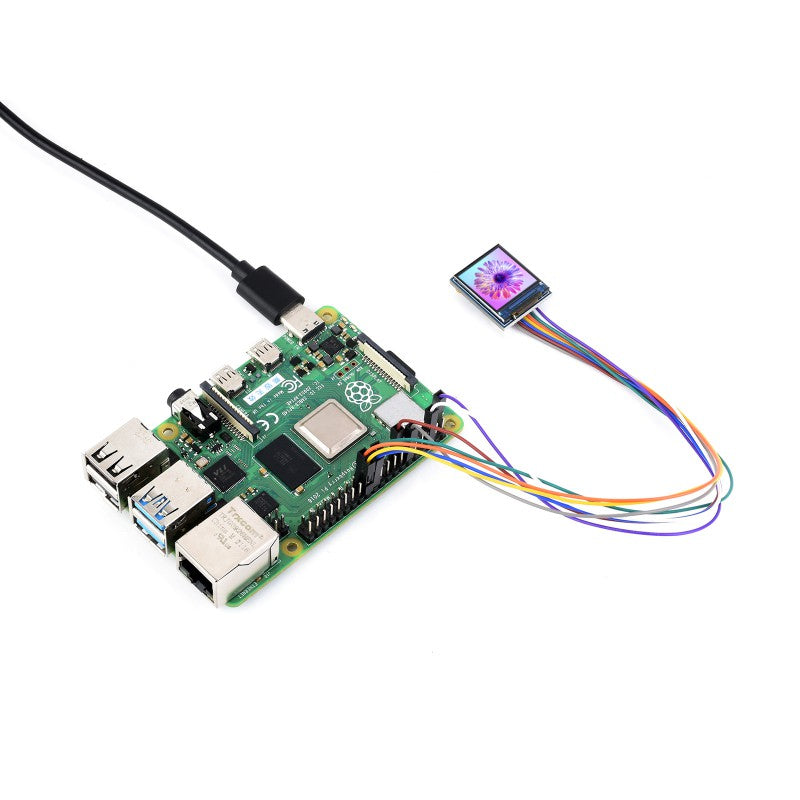

connecting with Raspberry Pi
connecting with Arduino board
connecting with STM32
Usage Example
* For reference only, please refer to the Package Content for the detailed part list.

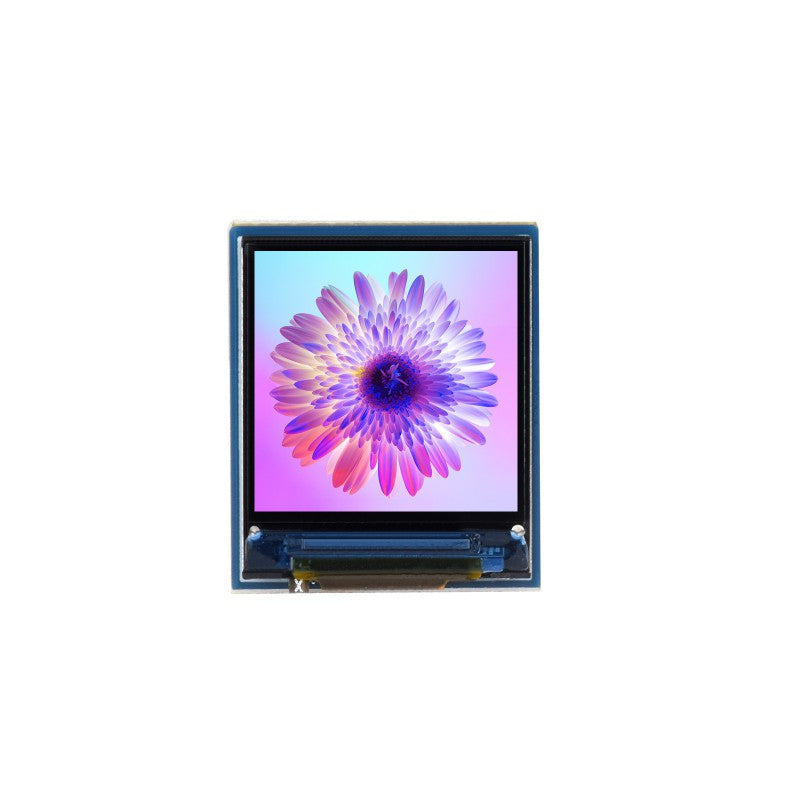

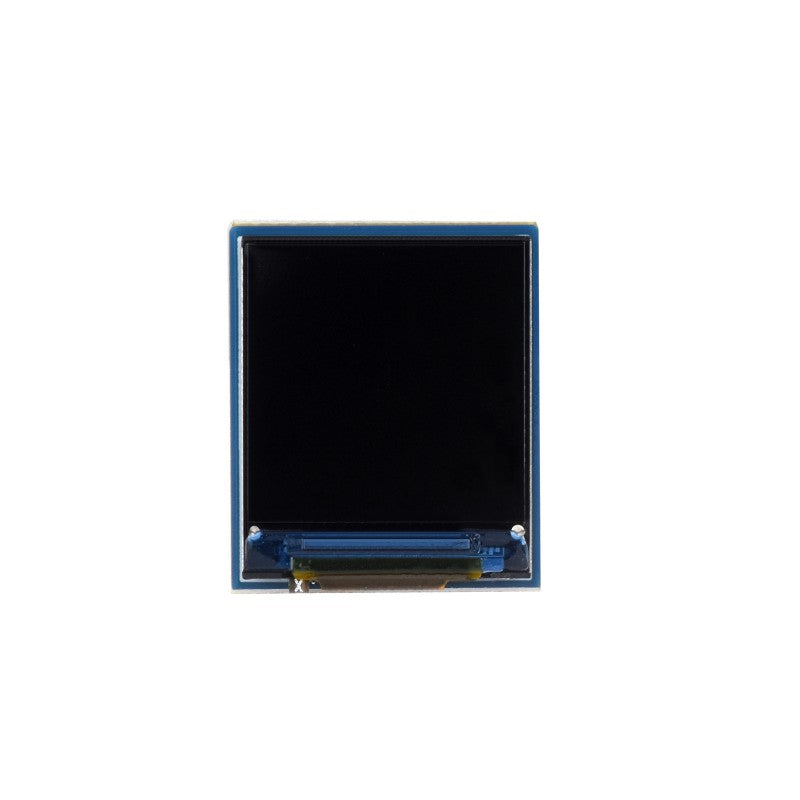

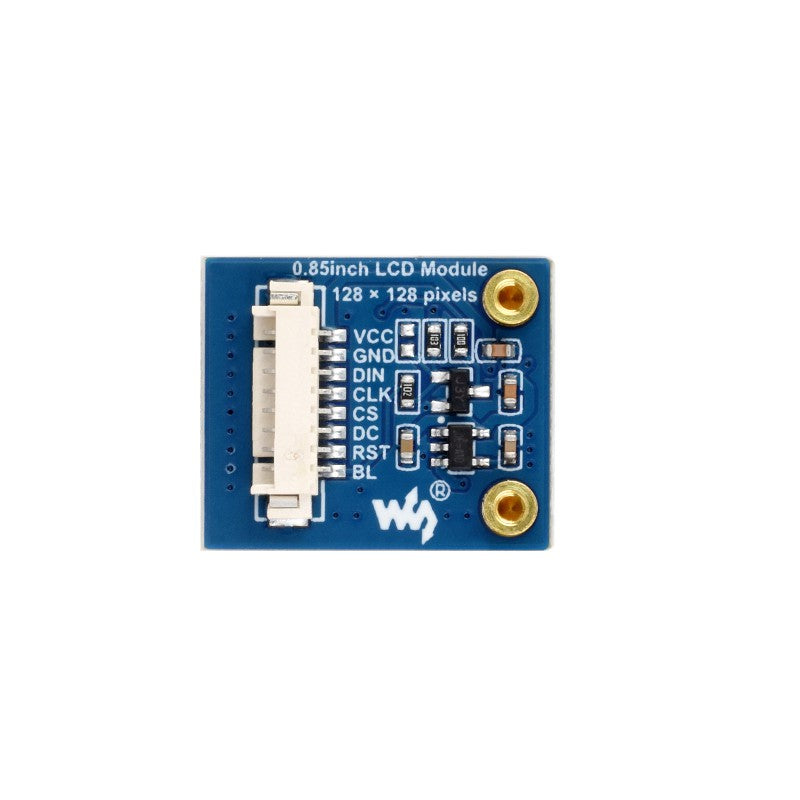

Product Show
Outline Dimensions
Resources
Wiki: www.waveshare.com/wiki/0.85inch_LCD_Module
Package Content
Weight: 0.013 kg
0.85inch LCD Module x1
