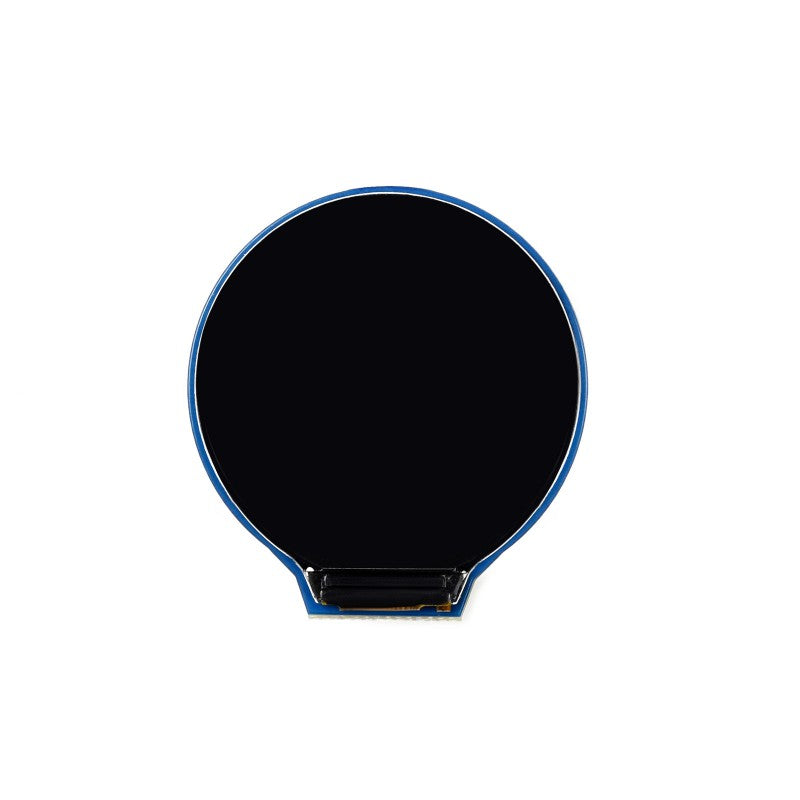

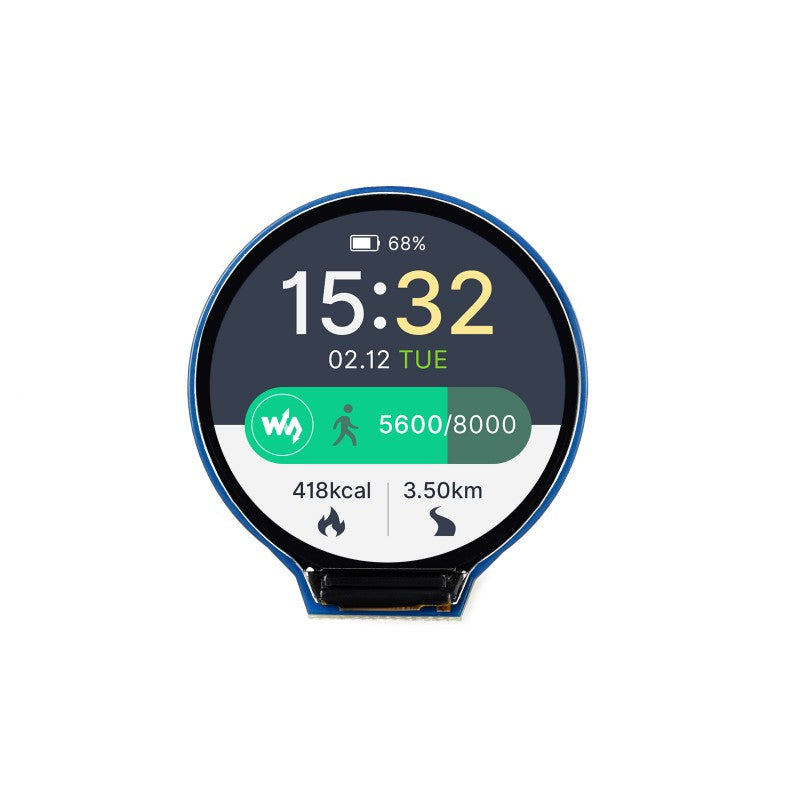

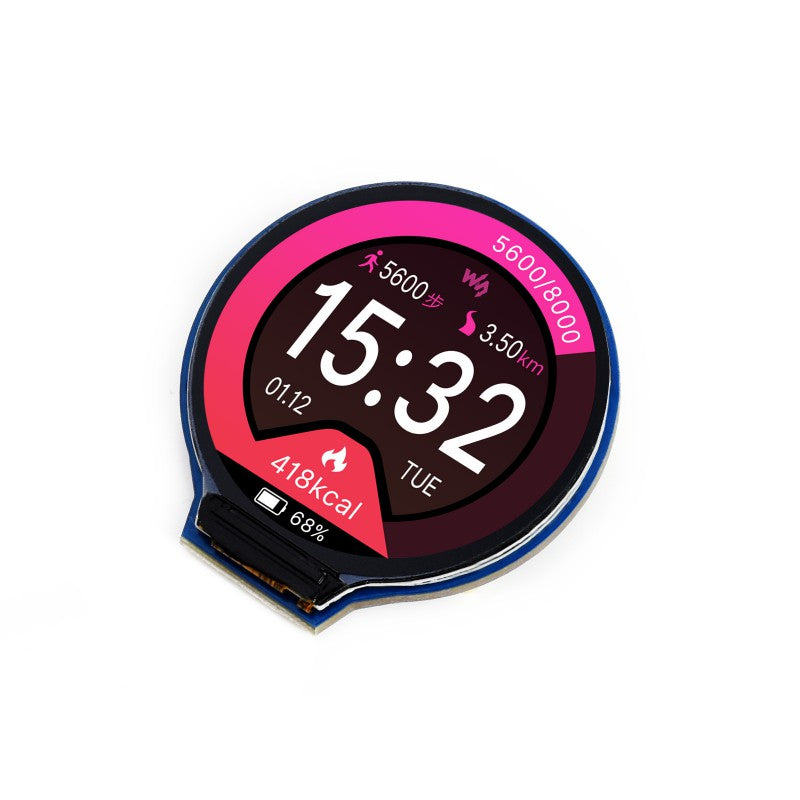

1.28" ROUND LCD DISPLAY MODULE
Embedded GC9A01 Driver, Using SPI Bus
Comes with examples for Raspberry Pi, Arduino, STM32, etc.
Features:
- 240×240 resolution, 65K RGB colors, clear and colorful displaying effect
- SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32
- Comes with development resources (examples for Raspberry Pi/Arduino/STM32)
Specifications:
- Operating voltage: 3.3V / 5V
- Interface: 3-wire SPI, 4-wire SPI
- Display Panel: IPS
- Driver: GC9A01
- Resolution: 240 × 240 pixels
- Display Size: Φ32.4mm
- Pixel Size: 0.135 × 0.135mm
- Dimensions: 40.4 × 37.5mm Φ37.5mm
Controlled Via SPI Bus
Supports Controller Boards Like Raspberry Pi/Jetson Nano/Arduino/STM32

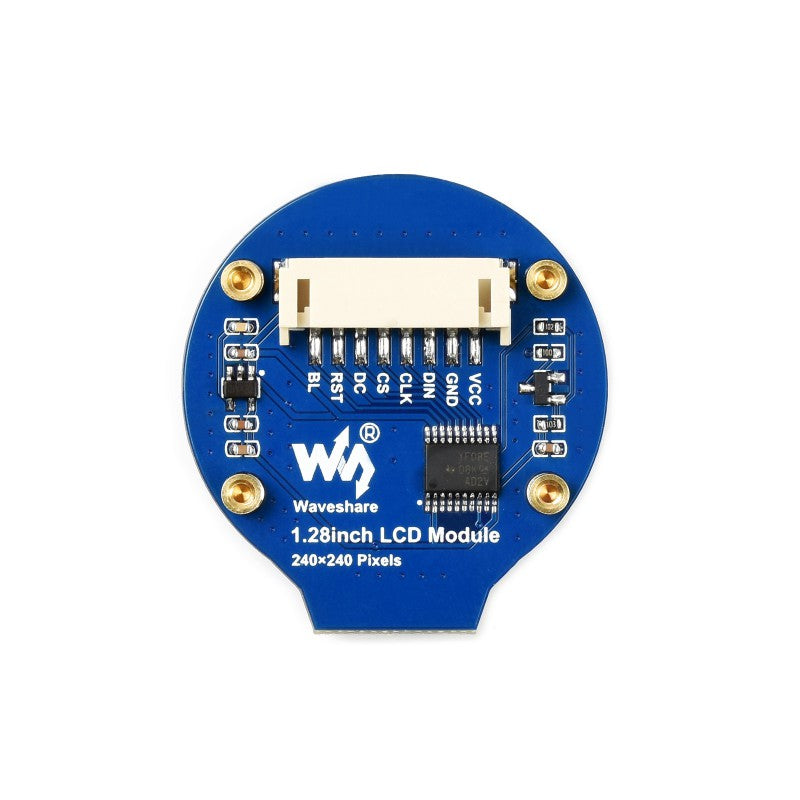

Interface
- VCC - 3.3V / 5V power input
- GND - Ground
- DIN - SPI MOSI pin
- CLK - SPI SCK pin
- CS - SPI chip selection, low active
- DC - Data/Command selection (high for data, low for command)
- RST - External reset, low active
- BL - Backlight

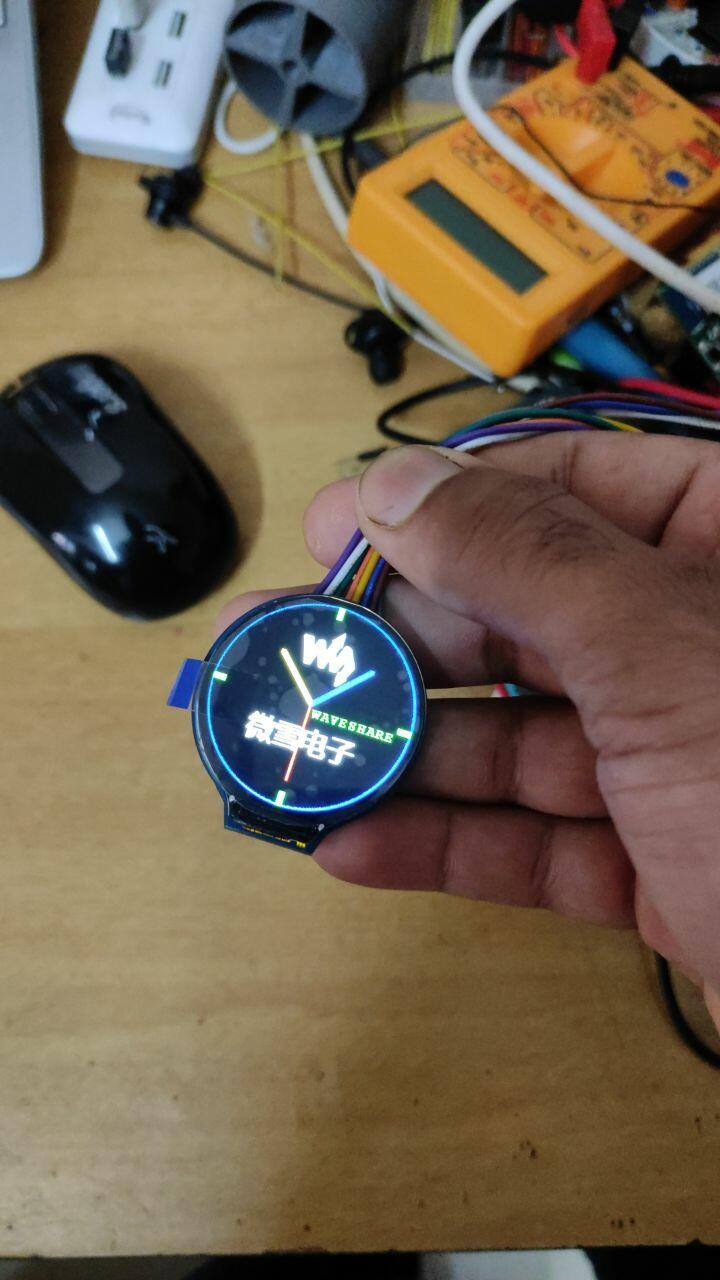

Hardware Connection

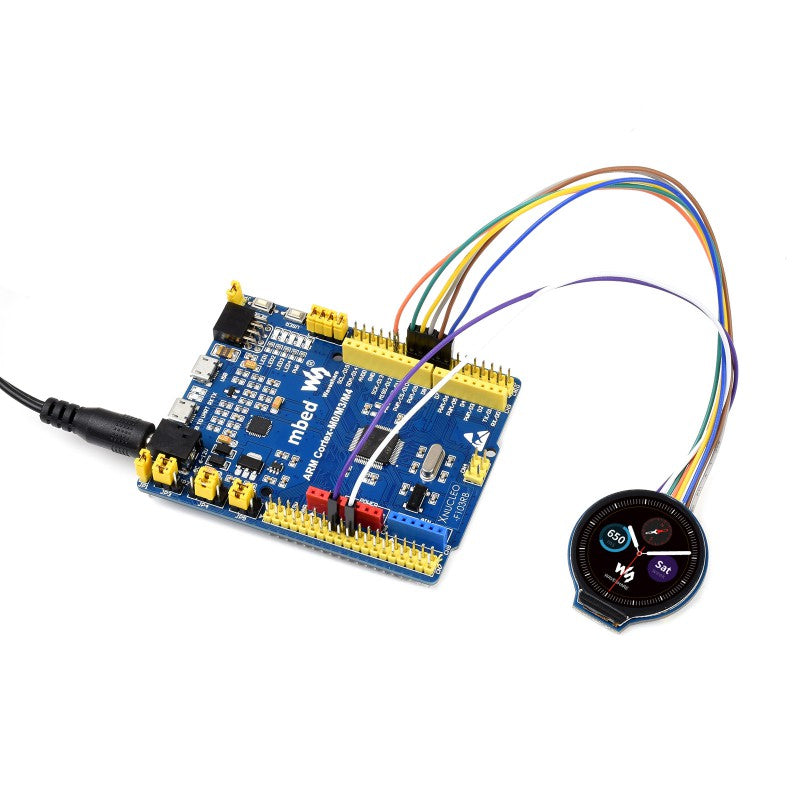

Connecting With Raspberry Pi
Connecting With Arduino Board
Outline Dimensions
Resources
Wiki: 1.28inch_LCD_Module
