Seeed Studio XIAO ESP32S3 leverages dual-core ESP32S3 chip, supporting both Wi-Fi and BLE wireless connectivities, which allows battery charge. It integrates built-in camera sensor, digital microphone. It offers 8MB PSRAM, 8MB FLASH, and external SD card slot. All of these make it suitable for embedded ML, like intelligent voice and vision AI.
NOTE: For enhanced performance, we have upgraded to the OV3660 camera sensor, which operates at lower power consumption and reduced temperature. During this transition, devices with either OV2640 or OV3660 sensors may be shipped.

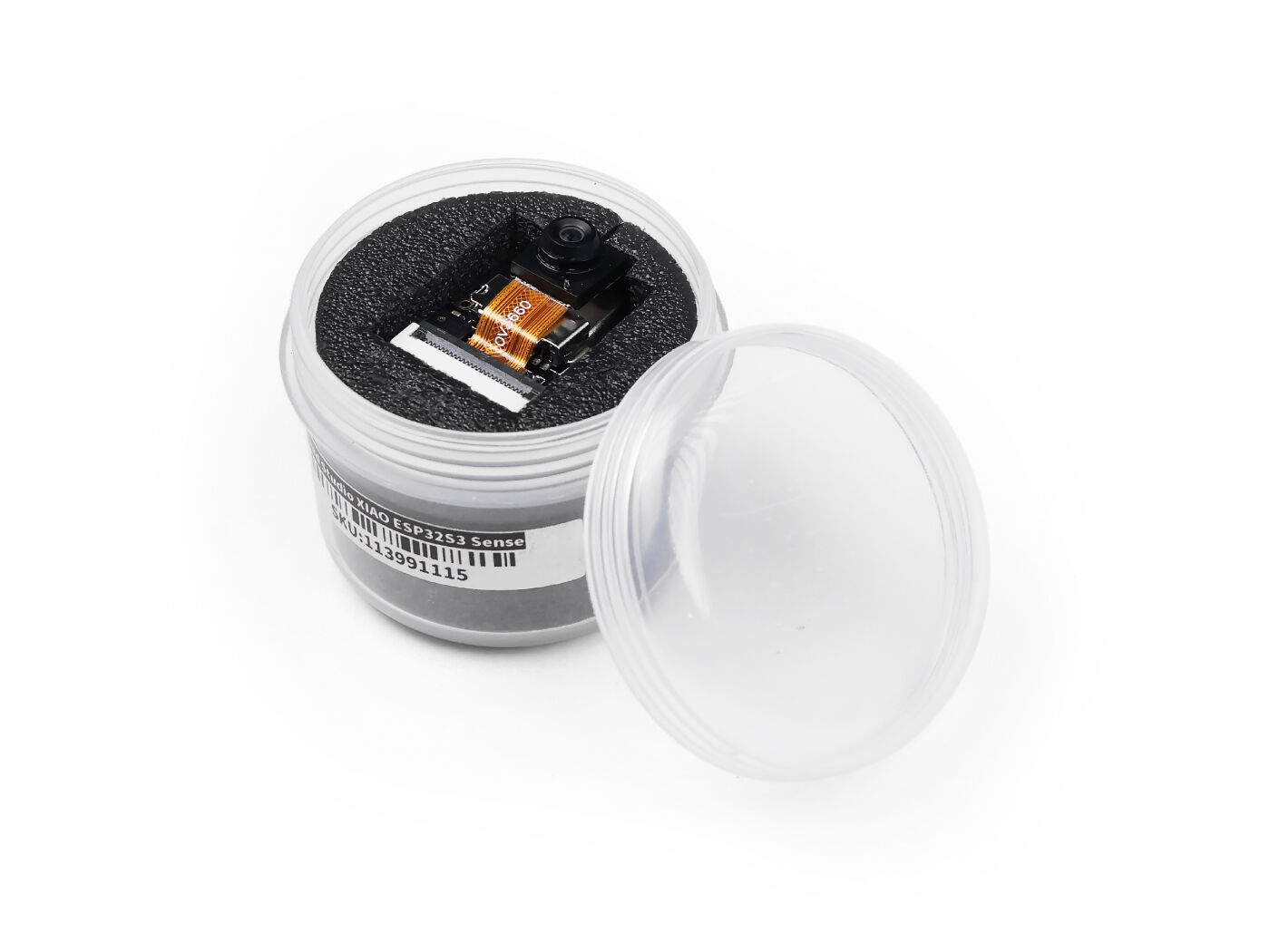

We are introducing a new more durable packaging for all Seeed Studio XIAO boards (Un-Soldered, Pre-Soldered and Plus). During the transition period, you may receive XIAO boards in either the current or new packaging, while the product quality remains identical. Thanks for your understanding.
- Powerful MCU Board: Incorporate the ESP32S3 32-bit, dual-core, Xtensa processor chip operating up to 240 MHz, mounted multiple development ports, Arduino / MicroPython supported

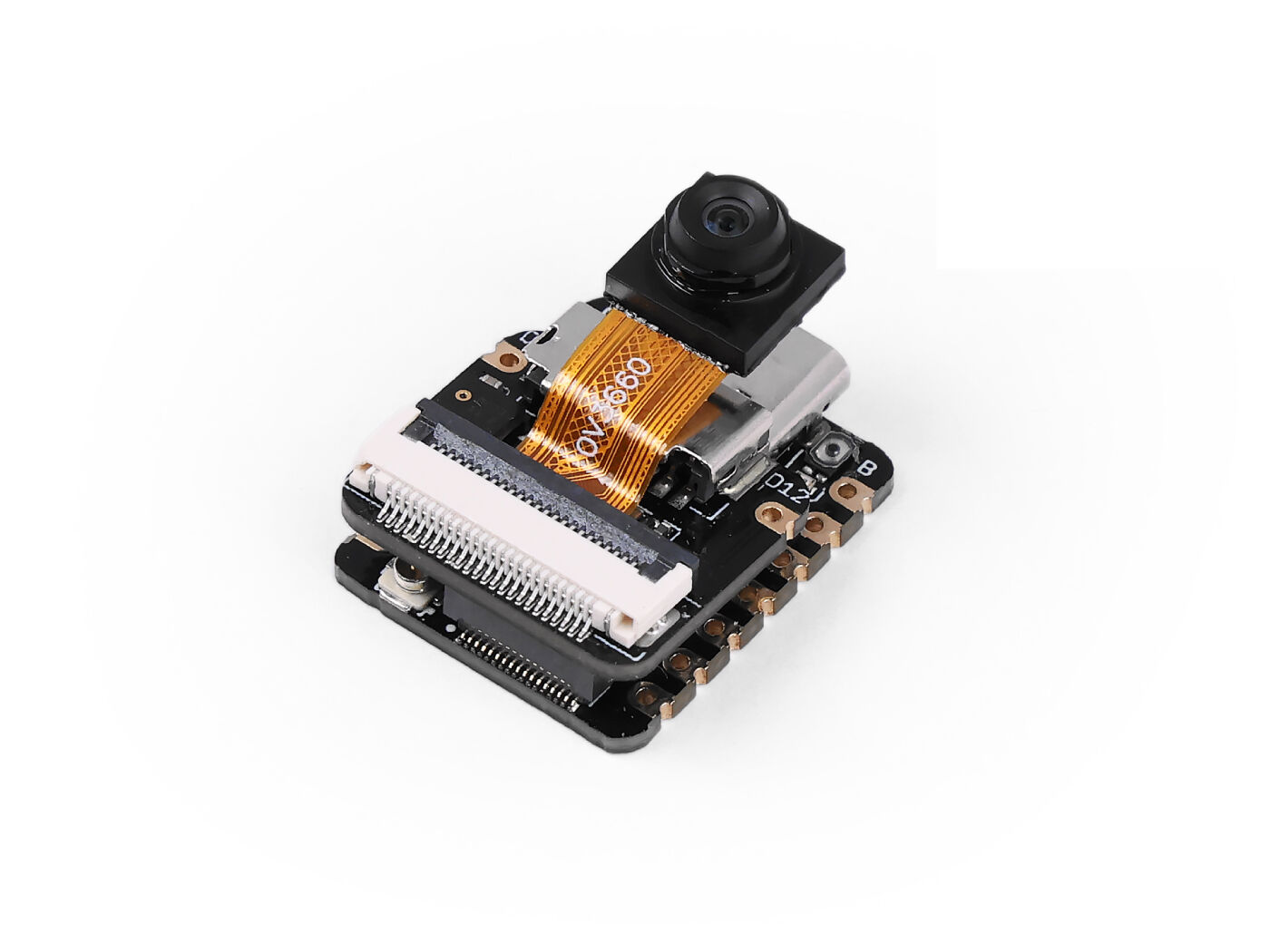

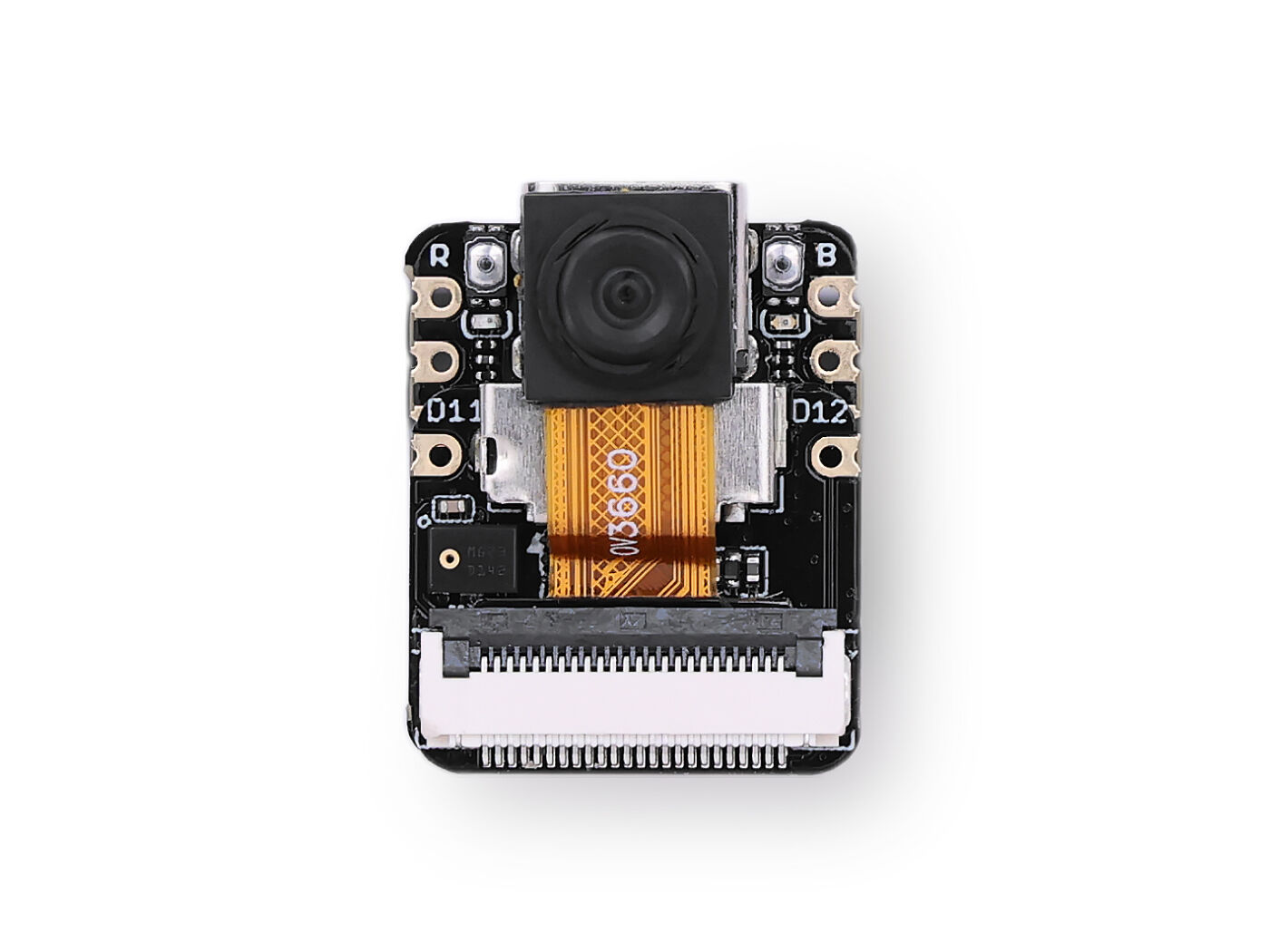

- Advanced Functionality: Detachable OV3660 camera sensor for 2048*1536 resolution, compatible with OV5640 camera sensor, integrating additional digital microphone
- Great Memory for more Possibilities: Offer 8MB PSRAM and 8MB FLASH, supporting SD card slot for external 32GB FAT memory
- Outstanding RF performance: Support 2.4GHz Wi-Fi and BLE dual wireless communication, support 100m+ remote communication when connected with U.FL antenna

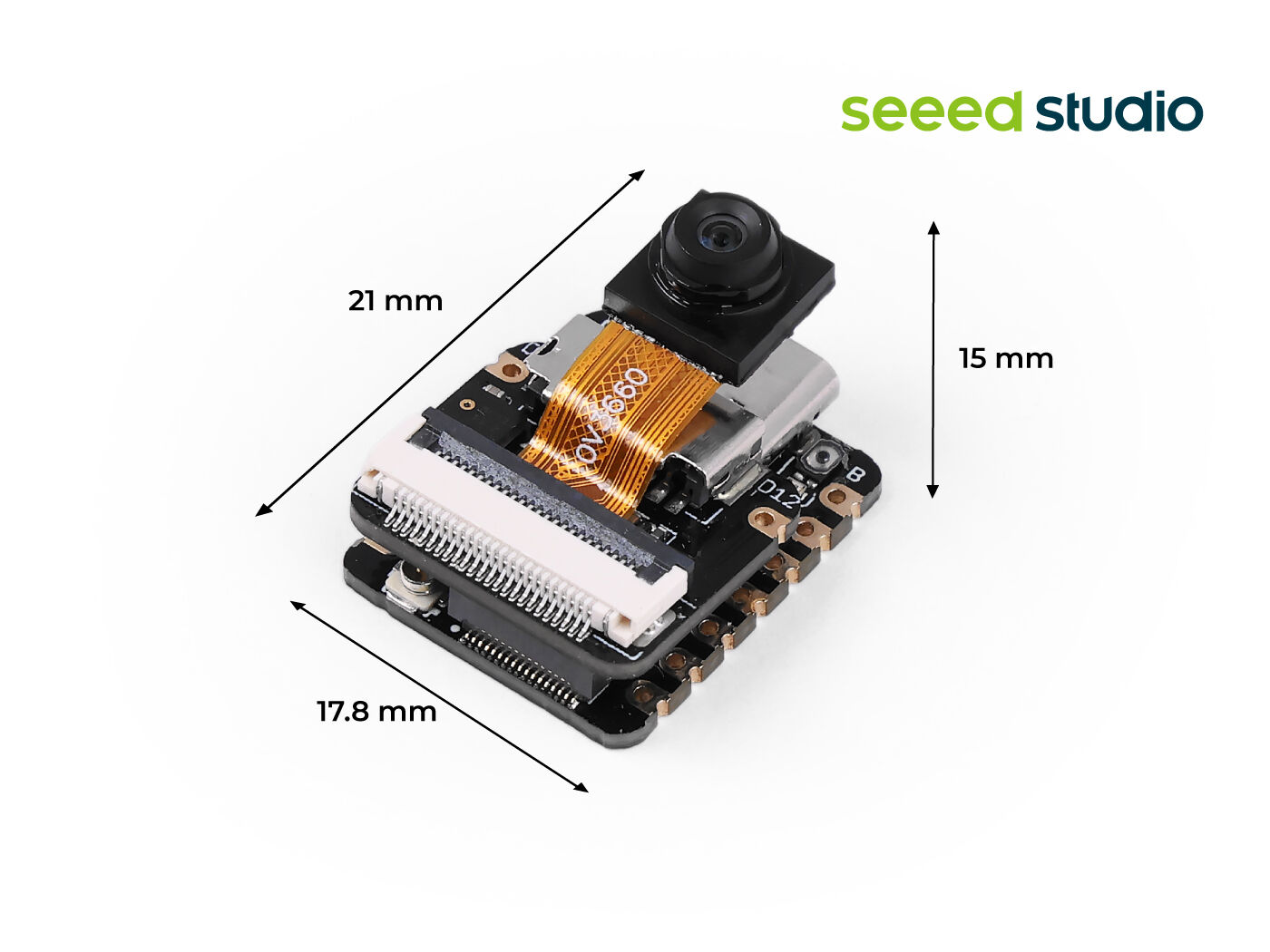

- Thumb-sized Compact Design: 21 x 17.8mm, adopting the classic form factor of XIAO, suitable for space-limited projects like wearable devices
- Pretrained Al model from SenseCraft AI for no-code deployment
Note: XIAO SoM User Manual open-sources all hardware and software materials of XIAO, providing professional product design guidelines to help you accelerate ideas off the ground, streamline product design, providing a seamless experience from module selection to mass production. You can check here to see more info.
Specification
|
Item |
Seeed Studio XIAO ESP32S3 |
|
|
Processor |
ESP32-S3R8 Xtensa LX7 dual-core,32-bit processor that operates at up to 240 MHZ |
|
|
Wireless |
Complete 2.4GHz Wi-Fi subsystem BLE: Bluetooth 5.0, Bluetooth mesh |
|
|
Built-in Sensors |
/ |
OV3660 camera sensor Digital Microphone
|
|
Memory |
On-chip 8M PSRAM & 8MB Flash |
On-chip 8M PSRAM & 8MB Flash Onboard SD Card Slot, supporting 32GB FAT
|
|
lnterface |
1x UART,1x IIC,1x llS,1x SPl,11xGPIOs (PWM)，9x ADC,1x User LED,1x Charge LED 1x Reset button,1x Boot button |
1x UART,1x lIC,1x lIS,1x SPI,11x GPIOs (PWM),9xADC，1x User LED, 1x Charge LED,1x B2B Connector(with 2 additional GPIOs) 1x Reset button, 1x Boot button |
|
Dimensions |
21 x 17.8mm |
21 x 17.8 x 15mm (with expansion board) |
|
Power
|
Input voltage (Type-C): 5V lnput voltage (BAT): 4.2V |
|
|
Circuit operating Voltage (ready to operate): - Type-C:5V@19mA - BAT: 3.8V@22mA |
Circuit operating Voltage (ready to operate): -Type-C: 5V@38.3mA - BAT: 3.8V@43.2mA (with expansion board) |
|
|
/ |
Webcam Web application: - Type-C: - - Average power consumption: 5V/138mA - - Photo moment: 5V/341mA - Battery: - - Average power consumption: 3.8V/154mA - - Photo moment: 3.8V/304mA |
|
|
/ |
Microphone recording & SD card writing:- Type-C: - - Average power consumption: 5V/46.5mA - - Peak power consumption: 5V/89.6mA - Battery: - - Average power consumption: 3.8V/54.4mA - - Peak power consumption: 3.8V/108mA |
|
|
Charging battery current：100mA |
Charging battery current：100mA |
|
|
Low Power Consumption Model (Supply Power: 3.8V) |
Modem-sleep Model:~ 25mA Light-sleep Model: ~ 2 mA Deep Sleep Model:~14 μA |
Modem-sleep Model: ~44mA Light-sleep Model: ~5mA Deep Sleep Model: ~3mA |
|
Wi-Fi Enabled Power Consumption |
Active Model: ~ 100 mA |
Active Model: ~ 110 mA (with expansion board) |
|
BLE Enabled Power Consumption |
Active Model: ~85 mA |
Active Model: ~ 102 mA (with expansion board) |
|
Working Temperature |
-40°C ~65°C |
|
Hardware Overview
Note: There are two additional GPIO on the plug-in camera sensor board linking to the microphone. If you want to apply these two external IO, the microphone should not be used at the same time.
Onboard
PinOut
Application
- Image processing
- Speech Recognition
- Video Monitoring
- Wearable devices
- Smart Homes
- Health monitoring
- Education
- Low-Power(LP) networking
- Rapid prototyping
Documents
- OV2640 Camera Datasheet
- OV3660 Camera Datasheet
- ESP32-S3 Datasheet
- TinyML Case Studies
- XIAO Reference Design
- 3D Printing "Case" Studies
- 3D Printing Purple shell (top)
- 3D Printing Purple shell (bottom)
- 3D Casing for Seeed Studio XIAO ESP32S3 Sense with Heatsink
- PCN-XIAO Series Packaging Upgrade
- PCN XIAO ESP32-S3 Sense Series Camera Upgrade

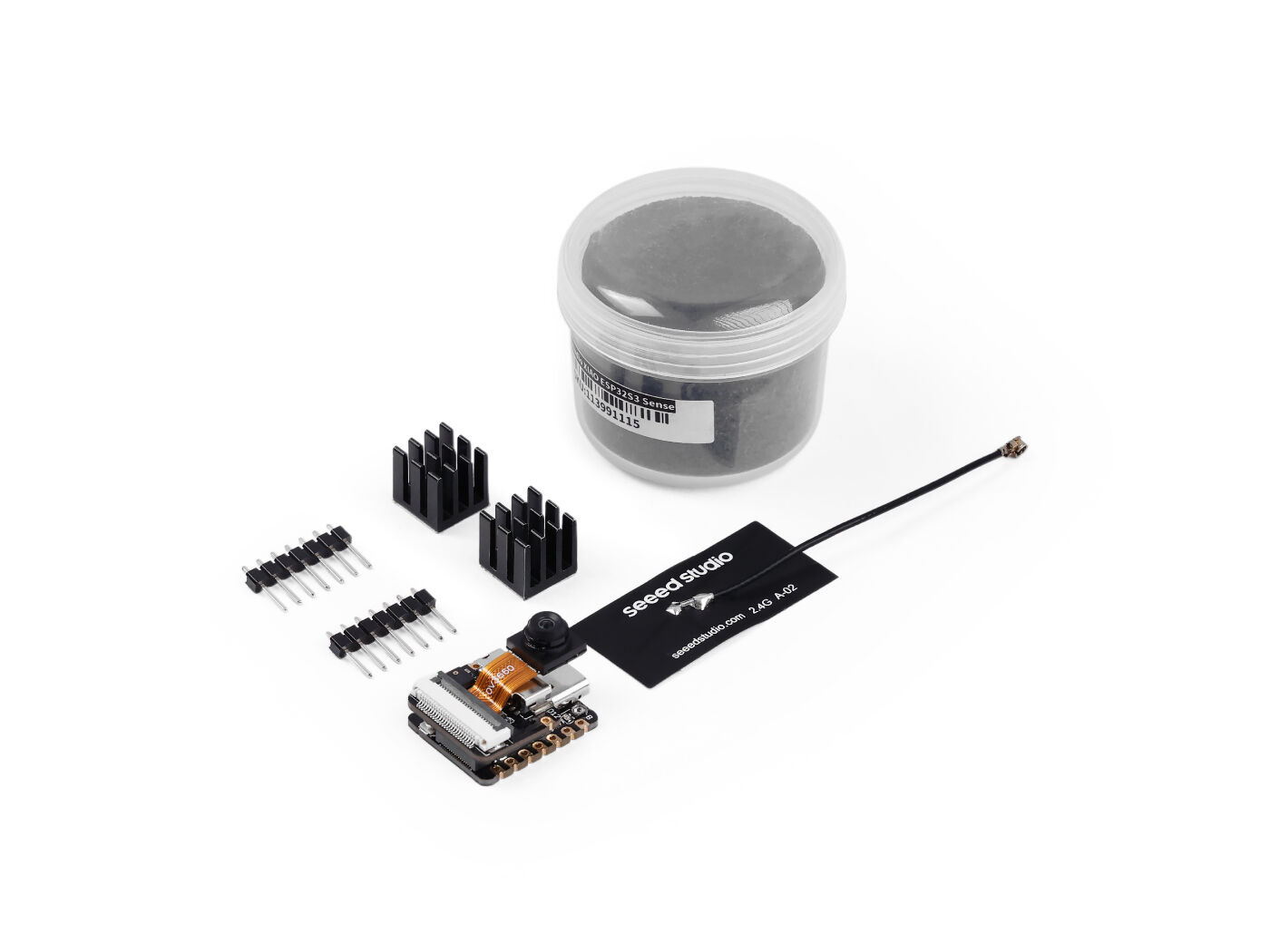

Part List
- XIAO ESP32-S3 x1
- Plug-in camera sensor board x1
- Aluminum Heat Sink for XIAO x2
- 7 Pin Header x2
- Antenna x1
What are the main features of this board and what is its form factor?
It uses the ESP32S3 dual core up to 240 MHz, supports 2.4 GHz WiFi and BLE 5.0, and includes a detachable OV3660 camera sensor, digital microphone, 8 MB PSRAM, 8 MB Flash, and an onboard SD card slot in a thumb sized 21 by 17.8 mm form factor.
Can I use WiFi and BLE at the same time and what is the typical power usage?
Yes, the module supports both WiFi and BLE wireless communication. Power consumption varies by mode, with active operation around 100 to 110 mA and low power sleep modes down to about 2 mA or lower, depending on configuration.
How does the camera sensor work and are there sensor variants I should know about?
The camera is a detachable OV3660 sensor offering 2048 by 1536 resolution and is compatible with OV5640 sensors. During transition, some units may ship with OV2640 or OV3660 depending on inventory.
What packaging options should I expect and are the boards identical across packaging?
Seeed Studio is upgrading packaging for XIAO boards; during the transition you may receive boards in either current or new packaging, but the product quality and functionality are identical.
Is there a pretrained AI model available for no code deployment on this board?
Yes, a pretrained SenseCraft AI model is available for no code deployment to enable AI workloads without extensive coding.
