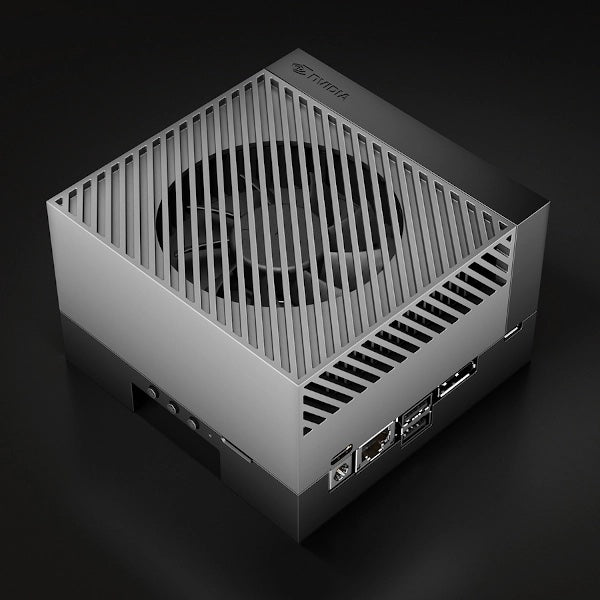

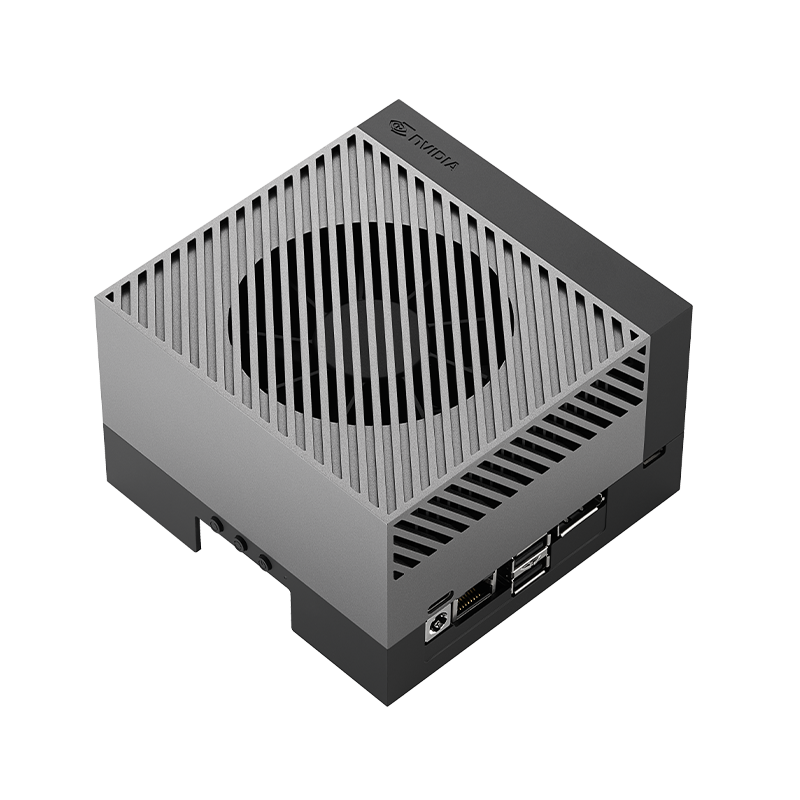

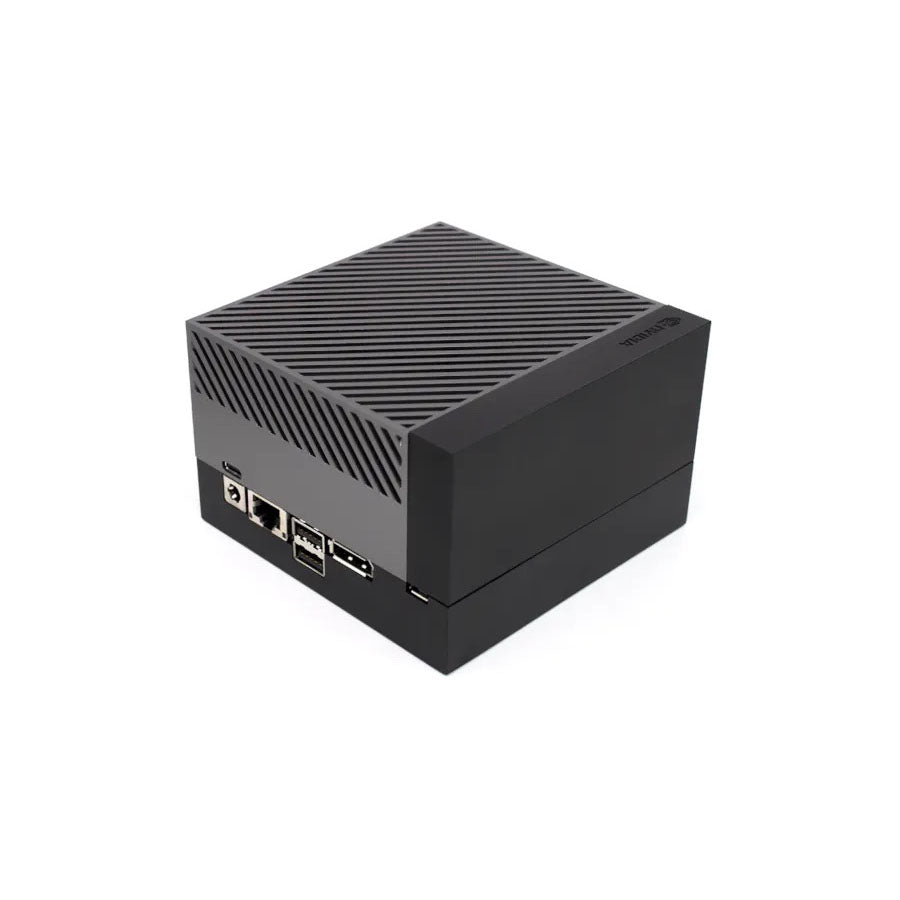

NVIDIA Jetson AGX Orin Developer Kit (64GB)

SKU: SBC1105-DEV

Regular price ₹ 207,499.99
Sale price ₹ 207,499.99 Regular price ₹ 229,999.99
Sale Sold out
Unit price
/per
Tax included. Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.

The NVIDIA® Jetson AGX Orin™ Developer Kit includes includes a high-performance, power-efficient Jetson AGX Orin module, and can emulate the other Jetson Orin modules. You now have up to 275 TOPS and 8X the performance of NVIDIA® Jetson AGX Xavier™ in the same compact form-factor for developing advanced robots and other autonomous machine products.

Supported by NVIDIA JetPack™ and use-case specific software platforms including Isaac for robotics, and Metropolis for smart cities, this developer kit provides everything you need to get started right away.

Developer Kit Contents

  • Jetson AGX Orin module with heat sink and reference carrier board
  • 802.11ac/abgn wireless Network Interface Controller
  • USB-C power adapter and cord
  • Quick Start and Support Guide
  • NOTE: There is a 5 day lead time after order is placed.



The Tech Specs


JETSON AGX ORIN MODULE
GPU NVIDIA Ampere architecture with 2048 NVIDIA® CUDA® cores and
64 Tensor cores
CPU 12-core Arm Cortex-A78AE v8.2 64-bit CPU
3MB L2 + 6MB L3
DL Accelerator 2x NVDLA v2.0
Vision Accelerator PVA v2.0
Memory 64GB 256-bit LPDDR5
204.8 GB/s
Storage 64GB eMMC 5.1
Video Encode 2x 4K60 | 4x 4K30 | 8x 1080p60 | 16x 1080p30 (H.265)
Video Decode 1x 8K30 | 3x 4K60 | 6x 4K30 | 12x 1080p60 | 24x 1080p30 (H.265)

Refer to the Software Features section of the latest NVIDIA Jetson Linux Developer Guide for a list of supported features.


REFERENCE CARRIER BOARD
Camera 16 lane MIPI CSI-2 connector
PCIe x16 PCIe slot supporting x8 PCIe Gen4
RJ45 Up to 10 GbE
M.2 Key M x4 PCIe Gen 4
M.2 Key E x1 PCIe Gen 4, USB 2.0, UART, I2S
USB Type-C 2x USB 3.2 Gen2 with USB-PD support
USB Type-A 2x USB 3.2 Gen2, 2x USB 3.2 Gen1
USB Micro-B USB 2.0
DisplayPort DisplayPort 1.4a (+MST)
microSD slot UHS-1 cards up to SDR104 mode
Other 40-pin header (I2C, GPIO, SPI, CAN, I2S, UART, DMIC)
12-pin automation header
10-pin audio panel header
10-pin JTAG header
4-pin fan header
2-pin RTC battery backup connector
DC power jack
Power, Force Recovery, and Reset buttons
Dimensions 110mm x 110mm x 71.65mm
(Height includes feet, carrier board, module, and thermal solution)
