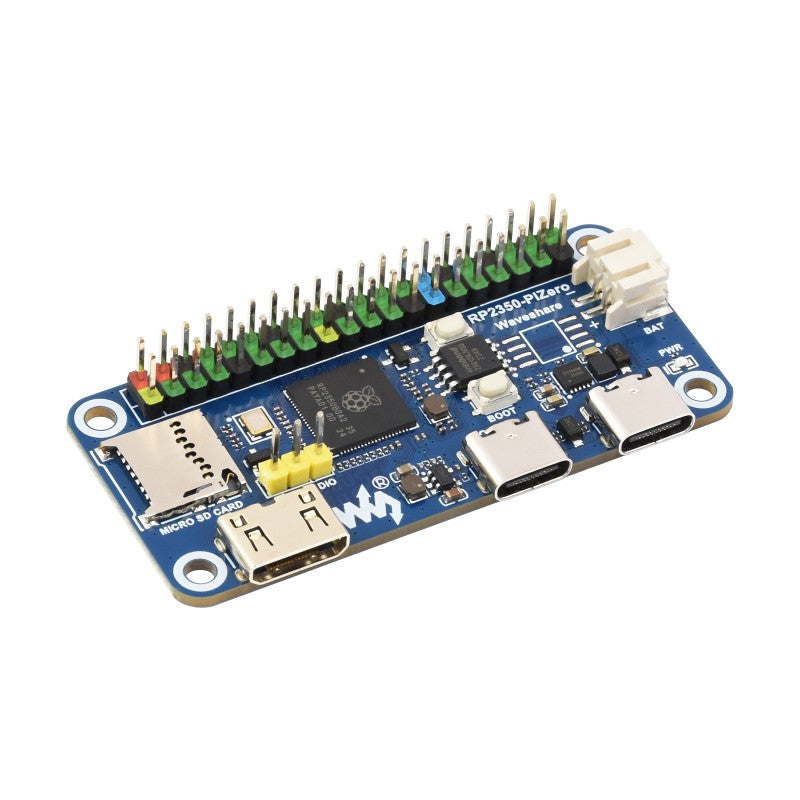

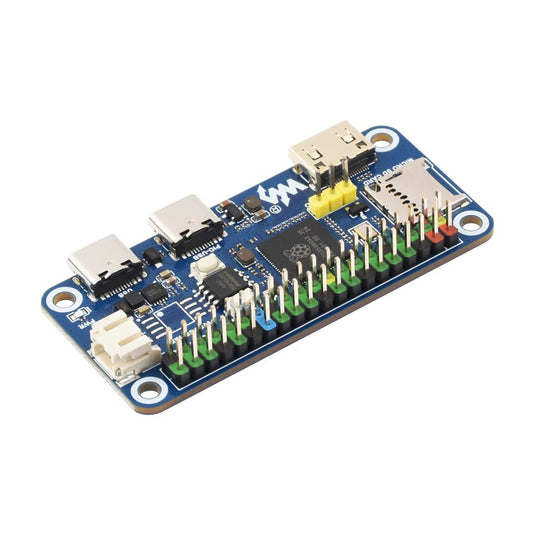

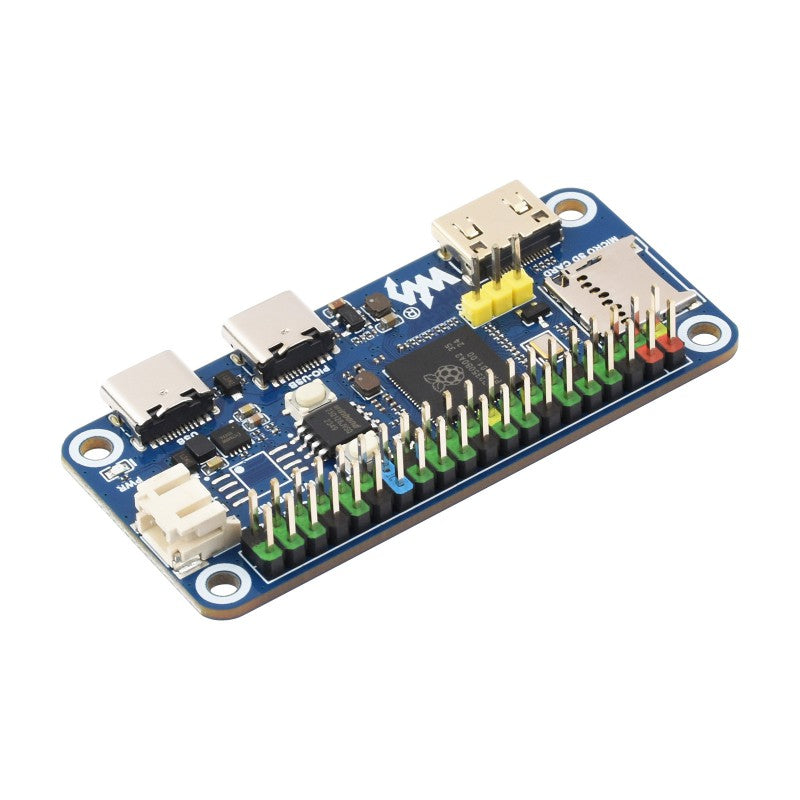

RP2350-PiZero Development Board
Based On Raspberry Pi RP2350
Onboard DVI interface, TF card slot and PIO-USB port
Board Specifications
RP2350-PiZero is a high-performance and cost-effective microcontroller board designed by Waveshare, onboard DVI interface, TF card slot and PIO-USB port, compatible with Raspberry Pi 40PIN GPIO header, with reserved solder pads for PSRAM chip expansion, easy to develop and integrate into products.
| 1. RP2350B microcontroller chip designed by Raspberry Pi in the United Kingdom |
| 2. Adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz |
| 3. 520KB of SRAM, and 16MB of onboard Flash memory, with reserved solder pads for PSRAM chip expansion |
| 4. Type-C connector for easier use |
| 5. Onboard DVI interface can drive most HDMI screens (DVI compatibility required) |
| 6. Supports using as a USB host or device via onboard PIO-USB port |
| 7. Onboard TF card slot for reading and writing TF card |
| 8. Onboard Lithium battery recharge/discharge header, suitable for mobile scenarios |
| 9. USB 1.1 with device and host support |
| 10. Low-power sleep and dormant modes |
| 11. Drag-and-drop programming using mass storage over USB |
| 12. Adapting 5 × multi-function GPIO pins |
| 13. 2 × SPI, 2 × I2C, 2 × UART, 16 × controllable PWM channels |
| 14. Accurate clock and timer on-chip |
| 15. Temperature sensor |
| 16. Accelerated floating-point libraries on-chip |
| 17. 12 × Programmable I/O (PIO) state machines for custom peripheral support |

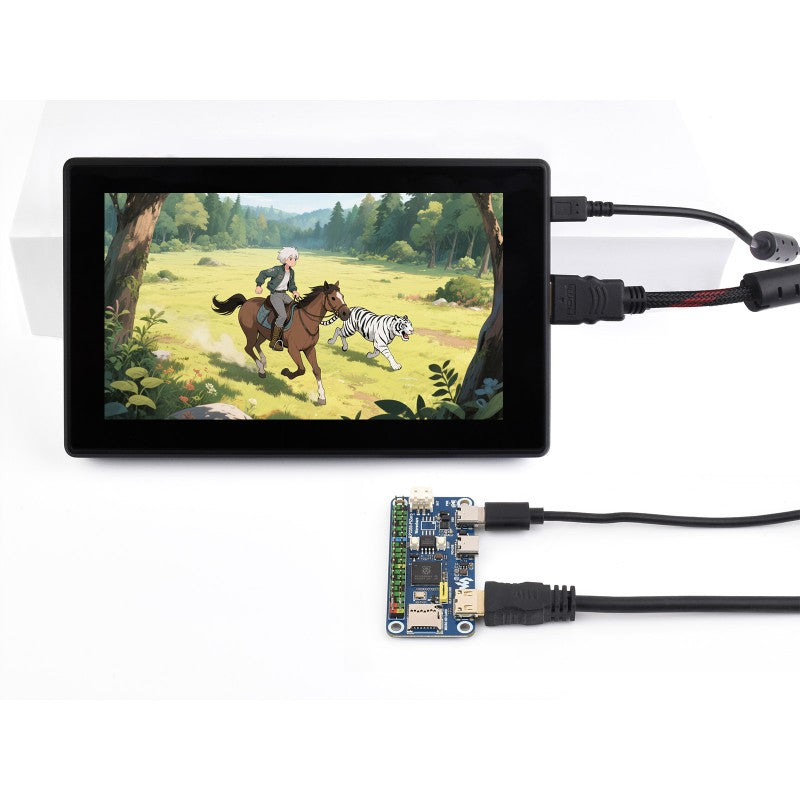

Integrates Multiple Interfaces
Onboard DVI interface, PIO-USB port and TF card slot for more possibilities
for reference only, the 1.3inch LCD HAT and 7inch HDMI LCD (H) are Not included
Support C/C++, MicroPython, Arduino IDE
Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started
* the DVI and PIO-USB functions are only supported in C environment and cannot be used at the same time
Dual-Core, Dual-Architecture
The unique dual-core, dual-architecture capability of RP2350B allows users to choose between a pair of industry-standard Arm Cortex-M33 cores, and a pair of open-hardware Hazard3 cores, giving developers a chance to experiment with the RISC-V architecture in a stable, well-supported environment

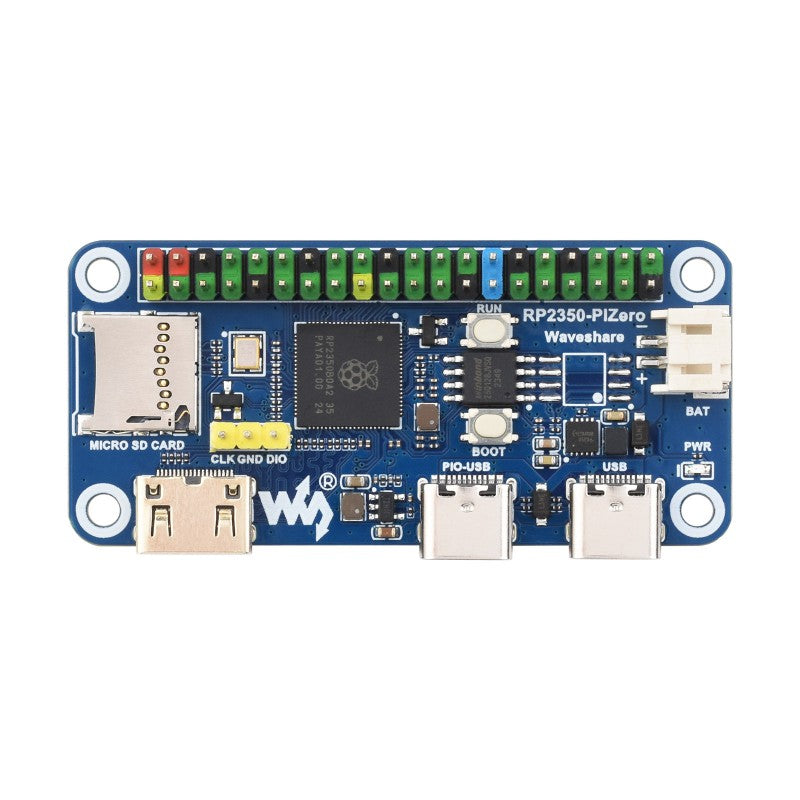

What's On Board
|
1. RP2350B Dual-core and dual-architecture design, up to 150 MHz operating frequency |
2. USB Type-C Connector For programming, USB 1.1 with device and host support |
|
3. PIO-USB Port For using as a USB host or device via PIO |
4. DVI Interface (Mini HDMI Connector) For driving DVI screen with HDMI cable |
|
5. TF Card Slot Supports SPI and SDIO interface communication |
6. 16MB NOR-Flash Onboard flash memory for program and data storage |
|
7. PSRAM Chip Solder Pads Compatible with mainstream PSRAM chips for user expansion (soldering required) |
8. RUN Button RESET Button |
|
9. BOOT Button Press it when resetting to enter download mode |
10. Lithium Battery Header PH2.0 connector for 3.7 V lithium battery, supports charging and discharging |
|

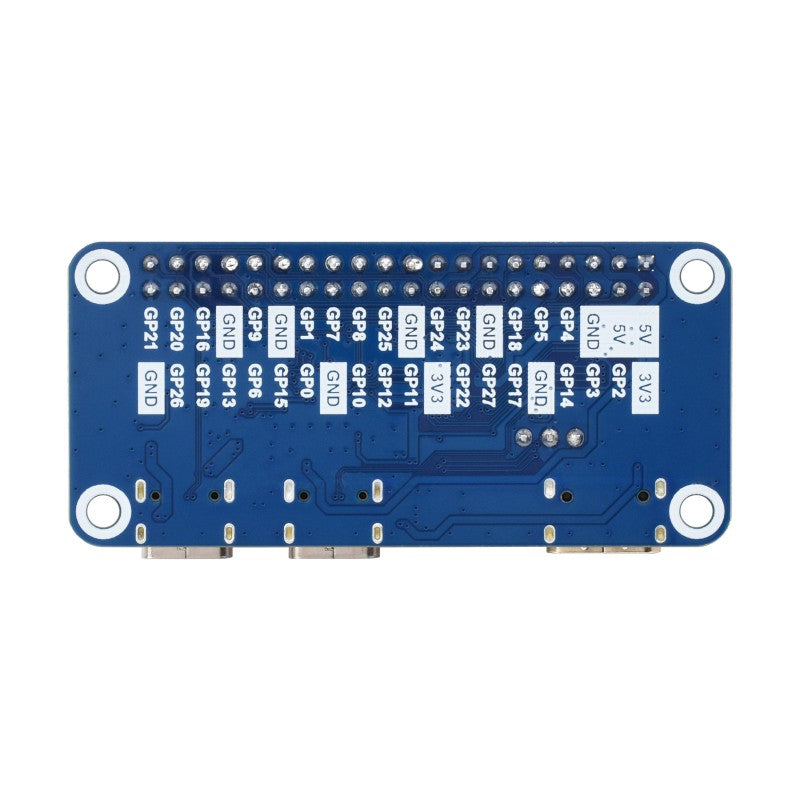

11. 40PIN GPIO Header Compatible with Raspberry Pi HATs for peripheral expansion |
12. Debug Interface For firmware debugging and development |
Outline Dimensions
Resources
Wiki: www.waveshare.com/wiki/RP2350-PiZero
Package Content
Weight: 0.013 kg
RP2350-PiZero x1
