Supports high-speed CAN FD and CAN2.0A/B data communication
Features At A Glance

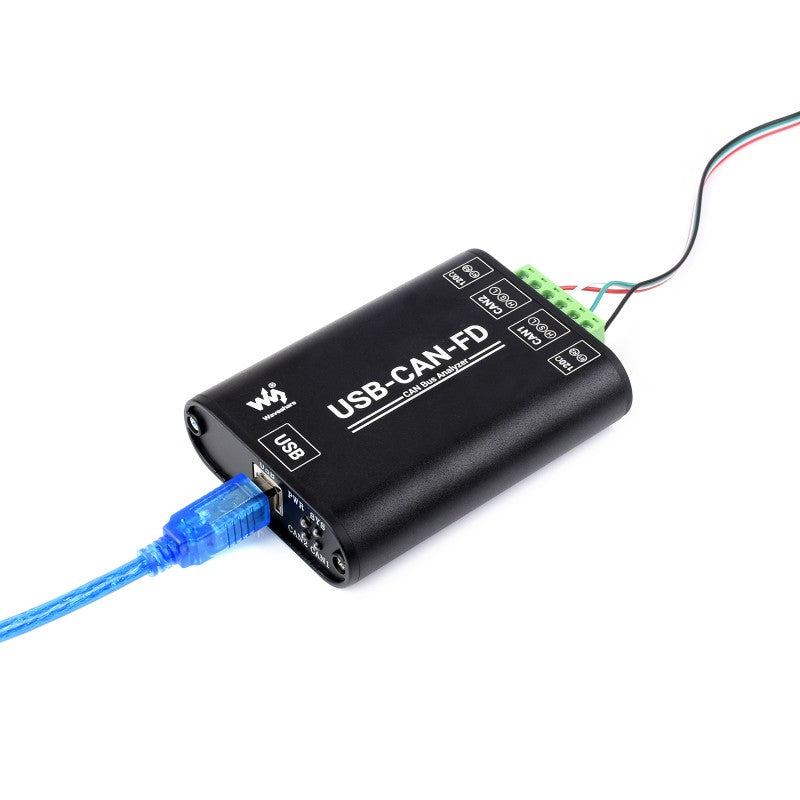

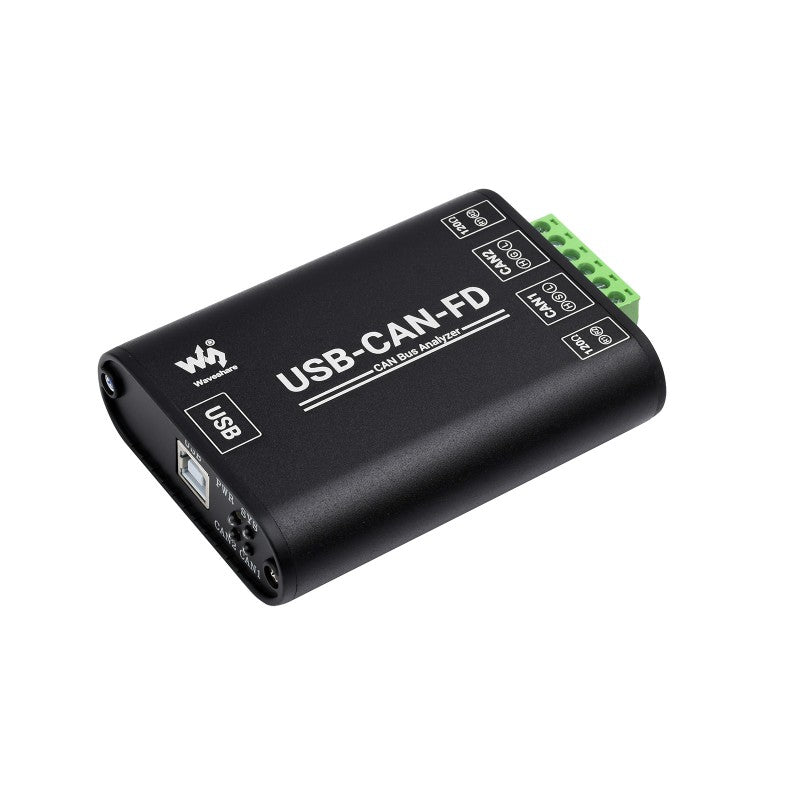

The USB-CAN-FD is an industrial-grade high-performance USB to CAN FD adapter, CAN/CAN-FD bus communication interface card, and CAN/CAN-FD protocol data analyzer. Onboard dual independent CAN FD interfaces with electrical isolation and multiple protection circuits. Supports Windows XP/7/8/10/11 system, comes with drivers, CAN FD Tools related software, secondary development examples, and tutorials.
It can be connected to the PC or industrial control host via a USB port to realize transceiver control, data analysis, collection and monitoring of CAN/CAN FD bus network. It is compact in size and easy to use, which can be used for learning and debugging of CAN/CAN FD bus, as well as for secondary development and integration into various industrial, power communication, and intelligent control applications that require CAN/CAN FD bus communication.
Specifications
PRODUCT TYPE
Industrial grade: USB to CAN FD interface converter, CAN/CAN FD bus communication interface card, CAN/CAN FD protocol data analyzer
USB
Operating voltage
5V (directly powered by USB port without external power supply)
Connector
USB-B

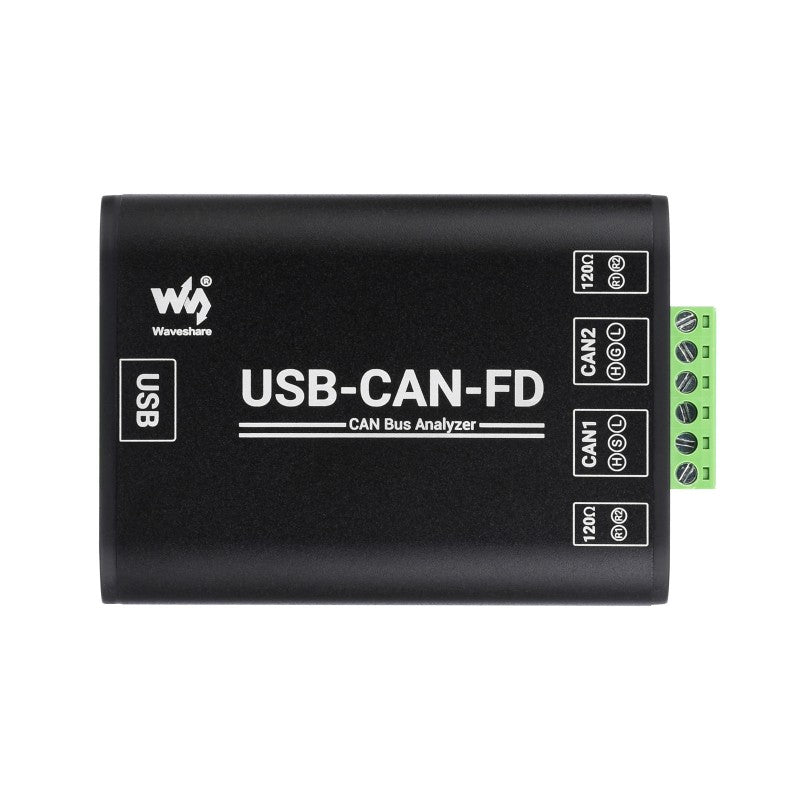

CAN/CAN FD INTERFACE
CAN/CAN FD channel
Dual-channel: CAN1 and CAN2 (independent and full-isolated, isolated voltage: 3000V DC)
Connector
CAN bus screw terminal (OPEN6 5.08mm pitch)

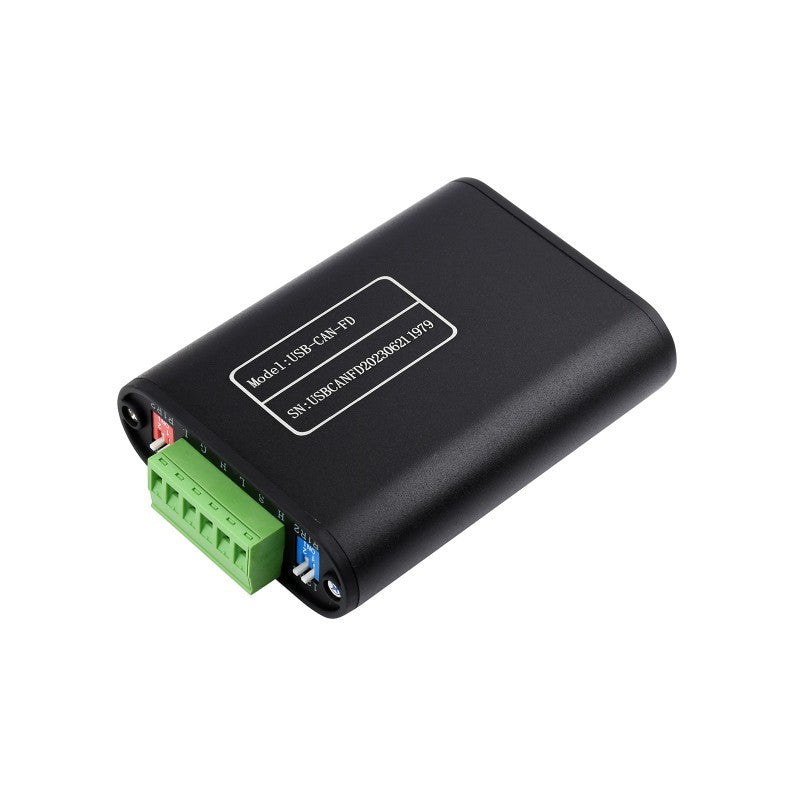

Terminal resistor

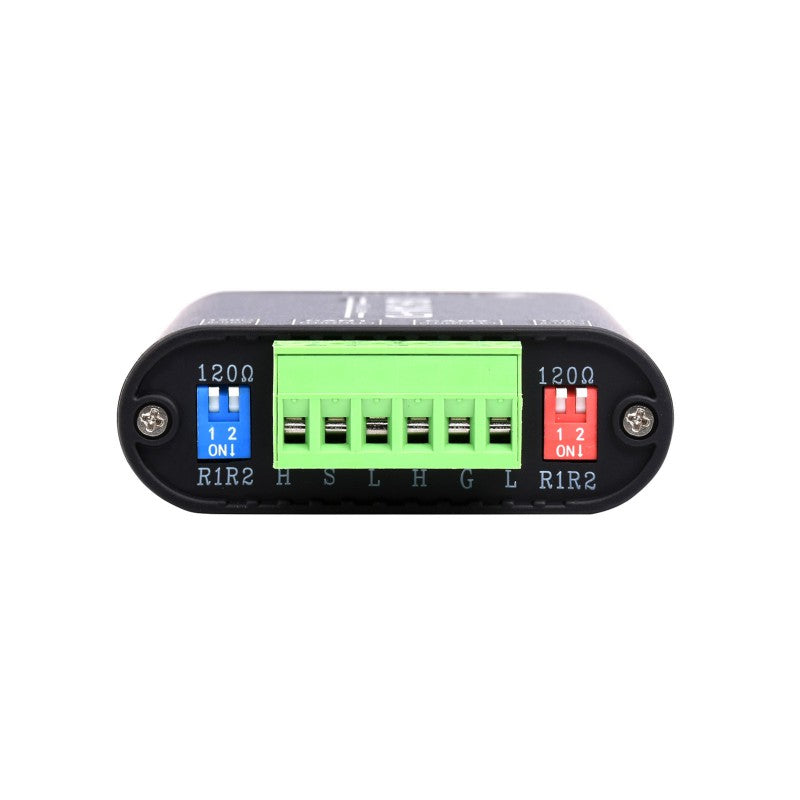

Each CAN/CAN FD channel has two built-in 120Ω terminal resistors, which can be enabled by switch
Baud Rate
100Kbps~5Mbps (Configurable via software)
Protocol Support
CAN2.0A, CAN2.0B, and ISO 11898-1 CAN FD protocol V.1.0
Transfer speed
The receiving and sending speed of each CAN/CAN FD channel can reach 20000 frames/s and 5000 frames/s
Transmit buffer
1500 frames receiving buffer and 64 frames sending buffer per channel (automatically retransmit when the transmission fails)

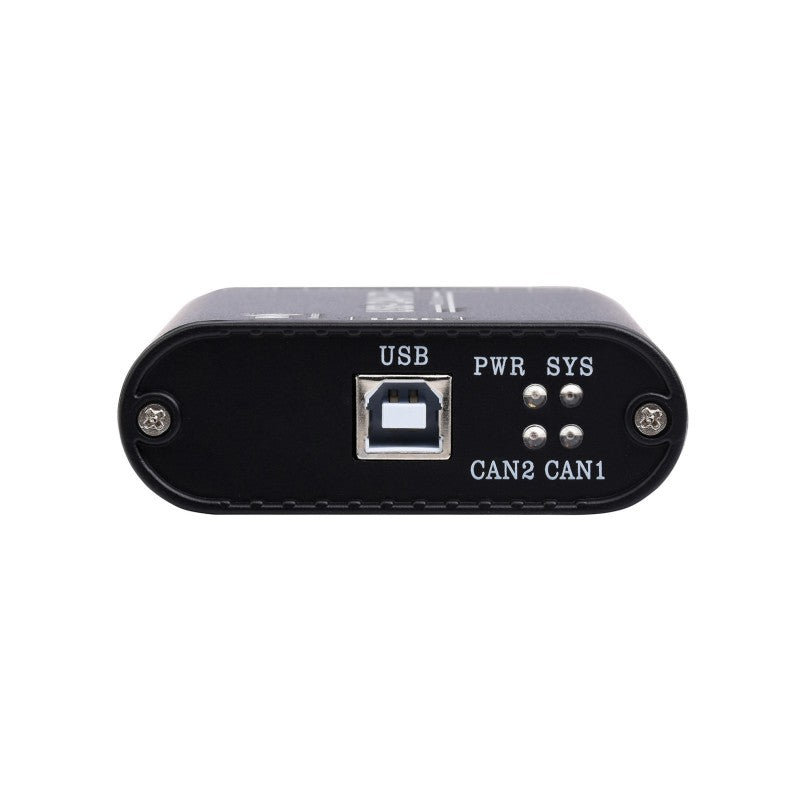

INDICATORS
PWR
Power indicator
SYS
System status indicator, normally off; keeps on when there is a bus error
CAN1
CAN1 channel indicator (blinking when sending and receiving data)
CAN2
CAN2 channel indicator (blinking when sending and receiving data)
SYSTEM SUPPORT
Windows
Windows XP/7/8/10/11 (32/64 bits); Does Not support the Linux system now, and the related drivers are under development.
OPERATING TEMPERATURE
-40~85℃
CASE MATERIAL
Aluminum alloy case + 3D flame-retardant insulating sheets on both sides (This design can provide better protection against metal tip discharge, also improves product safety, and extends service life)
DIMENSIONS
104 × 70 × 25 mm
Supports Protocol Conversion Between USB And CAN/CAN FD Bus
Onboard High-Speed USB2.0 Interface And 2-Ch CAN/CAN FD Bus Interfaces, Support Bi-Directional Transmission, Can Work Independently Without Interfering With Each Other
Programmable Baud Rate, Automatic Detection
CAN Baud Rate Is Configurable In The Range Of 100Kbps~5Mbps Supports Baud Rate Calculation, Auto-Detection, And Setting Via The Configuration Tool
Supports Decoding And Analyzing For Multiple CAN Protocols
Supports CAN 2.0A, CAN 2.0B, ISO11898-1, And CAN FD Protocol Specification V.1.0, Supports Standard And Extended Frames
Supports Multi Development Environments
Provides Examples For Secondary Development Projects On Various Mainstream Development Platforms: C#, VC, Delphi, Qt, LabVIEW, Python/Python-Can
High-Performance Hardware Solution
Adopts Microchip Original Controller And 32-Bit MIPS M4K® Core, Up To 80MHz Frequency. High Performance, Stable And Reliable
With Electrical Isolation And Multiple Protection Circuits
Adopts High-Speed Signal Isolators, DC-DC Dual Power Isolation, USB, CAN1 And CAN2 Three-Terminal Full Isolation, Higher Communication Security And Stability
One PC With Multiple Devices
Supports one PC to run multiple CAN FD analyzers at the same time without interfering with each other, up to 128 devices after testing. It is suitable for monitoring multiple CAN networks at the same time with one monitoring device, or for data comparison and verification and so on.
Interface
Applications
Application Example

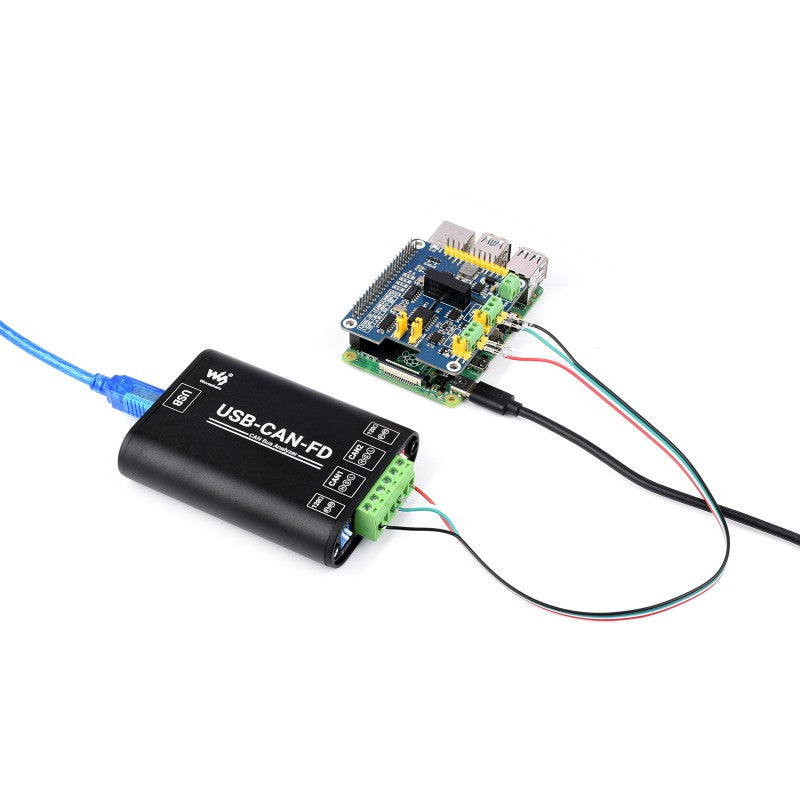

* for reference only, the Raspberry Pi 4B and 2-CH CAN FD HAT are Not included.
