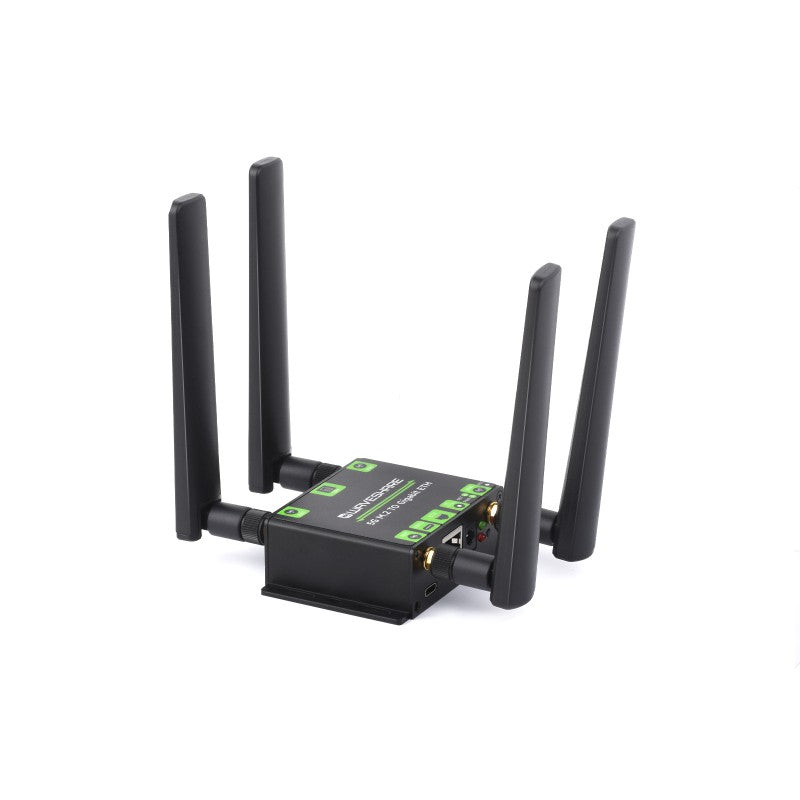

Name: 5G M.2 to Gigabit Ethernet Converter
Brand: Waveshare
SKU: ELC8093
Price: 4199.99 INR
Availability: InStock

{"id":9597984276797,"title":"5G M.2 to Gigabit Ethernet Converter","handle":"5g-m-2-to-gigabit-ethernet-converter","description":"\u003ch1 class=\"richTitle\" style=\"text-align: center;\"\u003e5G M.2 to Gigabit Ethernet Converter\u003c\/h1\u003e\n\u003ch3 class=\"hilitBlock2 round1234\" style=\"text-align: center;\"\u003e\u003cspan style=\"color: rgb(194, 0, 0);\"\u003e5G M.2 to Gigabit Ethernet + 5G M.2 to USB3.1\u003c\/span\u003e\u003c\/h3\u003e\n\u003ch4 class=\"richDesc\" style=\"text-align: center;\"\u003eSupports SIMCom \/ Quectel \/ Fibocom mainstream 5G M.2 modules\u003cbr\u003eCompatible with 3042 \/ 3052 packages\u003c\/h4\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\u003cimg style=\"float: none;\" alt=\"\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/5G-M.2-TO-Gigabit-ETH\/5G-M.2-TO-Gigabit-ETH-details-1.jpg\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"pdT\"\u003e\n\u003cp class=\"note\"\u003e\u003cspan style=\"color: rgb(194, 0, 1);\"\u003e\u003cem\u003e* Note: the 5G module is NOT included in the 5G M.2 TO Gigabit ETH kit and needs be purchased separately. It is recommended to select the kits with 5G module, please refer to the Kit Selection table for more details.\u003c\/em\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"pdT\"\u003e\n\u003ch2 class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\"\u003eFeatures\u003c\/h2\u003e\n\u003cdiv class=\"alignl pdTRBL\"\u003e\n\u003cul\u003e\n\u003cli\u003eSupports 5G modules with M.2 (NGFF) Key B interface, compatible with mainstream 5G modules from the brands such as SIMCom, Quectel, and Fibocom\u003c\/li\u003e\n\u003cli\u003eSupports 5G modules in 3042\/3052 packages such as SIM82XX, RM5XX and FM160XX series\u003c\/li\u003e\n\u003cli\u003eOnboard RTL8125 Ethernet chip, supports 5G to Gigabit Ethernet for high speed 5G networking via the Gigabit Ethernet port\u003c\/li\u003e\n\u003cli\u003eOnboard USB 3.1 Type-A port for connecting to PC, Raspberry Pi, or Jetson series motherboards for high-speed 5G networking or debugging\u003c\/li\u003e\n\u003cli\u003eOnboard voltage translator circuit, supports 9-12V power supply via DC 5.5mm jack, or 5V\/2A power supply via USB 3.1 port\u003c\/li\u003e\n\u003cli\u003eOnboard standard SIM card slot\u003c\/li\u003e\n\u003cli\u003eOnboard power supply and network indicator, reset button, for checking the working status of the module and 5G debugging\u003c\/li\u003e\n\u003cli\u003eAluminum alloy enclosure with oxidation dull-polish surface, CNC process opening, solid and durable, desktop or wall-mount support\u003c\/li\u003e\n\u003cli\u003eComes with 4× 5G omnidirectional high-gain antennas and 12V power supply adapter, easy to use directly with 5G module\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cdiv id=\"Compatible 5G modules\"\u003e\n\u003ch2 class=\"richTitle\"\u003eCompatible 5G modules\u003c\/h2\u003e\n\u003ctable class=\"tabSty-2 mgnTB subBlock alignl\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003cth\u003eModel\u003c\/th\u003e\n\u003cth\u003e\u003ca href=\"https:\/\/www.waveshare.com\/sim8202x-m2.htm\" target=\"_blank\"\u003eSIM8202G-M2\u003c\/a\u003e\u003c\/th\u003e\n\u003cth\u003e\u003ca href=\"https:\/\/www.waveshare.com\/sim8262e-m2.htm\" target=\"_blank\"\u003eSIM8262E-M2\u003c\/a\u003e\u003c\/th\u003e\n\u003cth\u003e\u003ca href=\"https:\/\/www.waveshare.com\/sim8262a-m2.htm\" target=\"_blank\"\u003eSIM8262A-M2\u003c\/a\u003e\u003c\/th\u003e\n\u003cth\u003eRM500U-CNV\u003c\/th\u003e\n\u003cth\u003e\u003ca href=\"https:\/\/www.waveshare.com\/rm50x-series.htm?sku=23215\" target=\"_blank\"\u003eRM502Q-AE\u003c\/a\u003e\u003c\/th\u003e\n\u003cth\u003e\u003ca href=\"https:\/\/www.waveshare.com\/rm520n-gl.htm\" target=\"_blank\"\u003eRM520N-GL\u003c\/a\u003e\u003c\/th\u003e\n\u003cth\u003eFM160-EAU\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth\u003e5G Standard\u003c\/th\u003e\n\u003ctd\u003e3GPP R15\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003e3GPP R16\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003e3GPP R15\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003e3GPP R16\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth\u003eApplicable regions\u003c\/th\u003e\n\u003ctd colspan=\"2\"\u003eexcept Americas\u003c\/td\u003e\n\u003ctd\u003eAmericas\u003c\/td\u003e\n\u003ctd\u003eChina, EMEA, Asia-Pacific\u003c\/td\u003e\n\u003ctd\u003eGlobal (except China)\u003c\/td\u003e\n\u003ctd\u003eGlobal\u003c\/td\u003e\n\u003ctd\u003eEMEA, Australia\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth\u003eChip\u003c\/th\u003e\n\u003ctd\u003eQualcomm Snapdragon X55\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003eQualcomm Snapdragon X62\u003c\/td\u003e\n\u003ctd\u003eUNISOC\u003c\/td\u003e\n\u003ctd\u003eQualcomm Snapdragon X55\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003eQualcomm Snapdragon X62\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth colspan=\"8\"\u003e\u003cstrong\u003eFrequency band\u003c\/strong\u003e\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"2\"\u003eSub-6G\u003c\/td\u003e\n\u003ctd rowspan=\"2\"\u003en1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n66, n71, n77, n78, n79\u003c\/td\u003e\n\u003ctd rowspan=\"2\"\u003en1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78, n79\u003c\/td\u003e\n\u003ctd rowspan=\"2\"\u003en2, n5, n7, n12, n13, n14, n25, n30, n41, n48, n66, n71, n77, n78, n79\u003c\/td\u003e\n\u003ctd\u003e5G NR NSA: n41, n78, n79\u003c\/td\u003e\n\u003ctd\u003e5G NR NSA: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79\u003c\/td\u003e\n\u003ctd\u003e5G NR NSA: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79\u003c\/td\u003e\n\u003ctd rowspan=\"2\"\u003en1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n75, n77, n78\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e5G NR SA: n1, n2, n3, n5, n8, n28, n41, n77, n78, n79\u003c\/td\u003e\n\u003ctd\u003e5G NR SA: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79\u003c\/td\u003e\n\u003ctd\u003e5G NR SA: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eLTE-FDD\u003c\/td\u003e\n\u003ctd\u003eB1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71\u003c\/td\u003e\n\u003ctd\u003eB1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32\u003c\/td\u003e\n\u003ctd\u003eB2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66, B71\u003c\/td\u003e\n\u003ctd\u003eB1, B3, B5, B8\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003eB1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71\u003c\/td\u003e\n\u003ctd\u003eB1, B3, B5, B7, B8, B20, B28, B32\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eLTE-TDD\u003c\/td\u003e\n\u003ctd\u003eB34, B38, B39, B40, B41, B42, B43, B48\u003c\/td\u003e\n\u003ctd\u003eB38, B39, B40, B41, B42, B43\u003c\/td\u003e\n\u003ctd\u003eB41, B46, B48\u003c\/td\u003e\n\u003ctd\u003eB34, B38, B39, B40, B41\u003c\/td\u003e\n\u003ctd colspan=\"3\"\u003eB38, B40, B42, B43\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eLAA\u003c\/td\u003e\n\u003ctd colspan=\"4\"\u003e-\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003eB46\u003c\/td\u003e\n\u003ctd\u003e-\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eWCDMA\u003c\/td\u003e\n\u003ctd\u003eB1, B2, B3, B4, B5, B8\u003c\/td\u003e\n\u003ctd\u003eB1, B5, B8\u003c\/td\u003e\n\u003ctd\u003eB2, B4, B5\u003c\/td\u003e\n\u003ctd\u003eB1, B5, B8\u003c\/td\u003e\n\u003ctd\u003eB1, B2, B3, B4, B5, B6, B8, B19\u003c\/td\u003e\n\u003ctd\u003eB1, B2, B4, B5, B8, B19\u003c\/td\u003e\n\u003ctd\u003eB1, B5, B8\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eGNSS\u003c\/td\u003e\n\u003ctd colspan=\"7\"\u003eGPS \/ GLONASS \/ BeiDou(Compass) \/ Galileo \/ QZSS (RM500Q-GL and RM502Q-AE do not support)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth colspan=\"8\"\u003e\u003cstrong\u003eData rate\u003c\/strong\u003e\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"2\"\u003eSub-6G\u003c\/td\u003e\n\u003ctd colspan=\"3\" rowspan=\"2\"\u003e2.4Gbps (DL) \/ 500Mbps (UL)\u003c\/td\u003e\n\u003ctd\u003e5G NR SA: 2Gbps (DL) \/ 1Gbps (UL)\u003c\/td\u003e\n\u003ctd\u003e5G NR SA: 4.2Gbps (DL) \/ 450Mbps (UL)\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003e5G NR SA: 2.4Gbps (DL) \/ 900Mbps (UL)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e5G NR NSA: 2.5Gbps (DL) \/ 575Mbps (UL)\u003c\/td\u003e\n\u003ctd\u003e5G NR NSA: 5.0Gbps (DL) \/ 650Mbps (UL)\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003e5G NR NSA: 3.4Gbps (DL) \/ 550Mbps (UL)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eLTE\u003c\/td\u003e\n\u003ctd colspan=\"3\"\u003e1.0Gbps (DL) \/ 200Mbps (UL)\u003c\/td\u003e\n\u003ctd\u003e600Mbps (DL) \/ 150Mbps (UL)\u003c\/td\u003e\n\u003ctd\u003e2.0Gbps (DL) \/ 200Mbps (UL)\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003e1.6Gbps (DL) \/ 200Mbps (UL)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eUMTS\u003c\/td\u003e\n\u003ctd colspan=\"7\"\u003e42Mbps (DL) \/ 5.76Mbps (UL)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eDimensions\u003c\/td\u003e\n\u003ctd colspan=\"3\"\u003e42.0 × 30.0 × 2.3mm\u003c\/td\u003e\n\u003ctd colspan=\"4\"\u003e52.0 × 30.0 × 2.3mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"8\"\u003e\n\u003cstrong\u003eNote\u003c\/strong\u003e: 5G module is optonal. This table only lists some supported models after actual testing, and the pin compatibility should be tested if used with other models.\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cdiv class=\"pdT\" style=\"text-align: center;\"\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\"\u003eSupports Multiple Operating Modes\u003c\/h2\u003e\n\u003ch3 style=\"text-align: center;\" class=\"hilitBlock2 round1234 richDesc\"\u003e\u003cspan style=\"color: rgb(194, 0, 0);\"\u003eUSB3.1 Port Direct Connection Mode\u003c\/span\u003e\u003c\/h3\u003e\n\u003cp style=\"text-align: center;\" class=\"richDesc\"\u003eEnabling 5G High Speed networking For PC \/ Raspberry Pi \/Jetson series \/ industrial control host via USB3.1 port\u003c\/p\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/5G-M.2-TO-Gigabit-ETH\/5G-M.2-TO-Gigabit-ETH-details-3.jpg\"\u003e\n\u003ch2 class=\"hilitBlock2 round1234 richDesc\"\u003e \u003c\/h2\u003e\n\u003ch3 class=\"hilitBlock2 round1234 richDesc\"\u003e\u003cspan style=\"color: rgb(194, 0, 0);\"\u003eGigabit Ethernet port direct connection mode\u003c\/span\u003e\u003c\/h3\u003e\n\u003cp class=\"richDesc\"\u003e\u003cspan style=\"color: rgb(0, 0, 0);\"\u003eEnabling 5G High Speed networking For PC \/ Raspberry Pi \/Jetson series \/ industrial control host via Gigabit Ethernet port\u003c\/span\u003e\u003c\/p\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/5G-M.2-TO-Gigabit-ETH\/5G-M.2-TO-Gigabit-ETH-details-5.jpg\"\u003e\n\u003ch2 class=\"hilitBlock2 round1234 richDesc\"\u003e \u003c\/h2\u003e\n\u003ch3 class=\"hilitBlock2 round1234 richDesc\"\u003e\u003cspan style=\"color: rgb(194, 0, 1);\"\u003eRouter mode\u003c\/span\u003e\u003c\/h3\u003e\n\u003cp class=\"richDesc\"\u003e\u003cspan style=\"color: rgb(0, 0, 0);\"\u003eThe router accesses the 5G network via Gigabit Ethernet port, and then distributes To All Devices Connected For The 5G Networking\u003c\/span\u003e\u003c\/p\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/5G-M.2-TO-Gigabit-ETH\/5G-M.2-TO-Gigabit-ETH-details-7.jpg\"\u003e\n\u003ch3 class=\"hilitBlock2 round1234 richDesc\"\u003e\u003cspan style=\"color: rgb(194, 0, 0);\"\u003e \u003c\/span\u003e\u003c\/h3\u003e\n\u003ch3 class=\"hilitBlock2 round1234 richDesc\"\u003e\u003cspan style=\"color: rgb(194, 0, 0);\"\u003eUSB 3.1 port and Gigabit Ethernet Port Simultaneous Networking Mode*\u003c\/span\u003e\u003c\/h3\u003e\n\u003cp class=\"richDesc\"\u003eProvides 5G network for two devices separately via USB3.1 port and Gigabit Ethernet port.\u003c\/p\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/5G-M.2-TO-Gigabit-ETH\/5G-M.2-TO-Gigabit-ETH-details-9.jpg\" style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cblockquote\u003e\n\u003cdiv class=\"msg msg_warning\"\u003e\u003cspan style=\"color: rgb(194, 0, 1);\"\u003e\u003cem\u003e* Note: The 5G module needs to support the simultaneous conversion of USB port and Gigabit Ethernet port for networking. All 5G modules in the \u003ca href=\"https:\/\/www.waveshare.com\/5g-m.2-to-gigabit-eth.htm#Compatible%205G%20modules\" style=\"color: rgb(194, 0, 1);\"\u003eCompatible 5G Modules\u003c\/a\u003e table can support this function, except for \u003ca href=\"https:\/\/www.waveshare.com\/rm50x-series.htm?sku=23215\" style=\"color: rgb(194, 0, 1);\" target=\"_blank\"\u003eRM502Q-AE\u003c\/a\u003e and \u003ca href=\"https:\/\/www.waveshare.com\/rm520n-gl.htm\" style=\"color: rgb(194, 0, 1);\" target=\"_blank\"\u003eRM520N-GL\u003c\/a\u003e, which can only support one channel at a time.\u003c\/em\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/blockquote\u003e\n\u003cdiv style=\"text-align: center;\" class=\"pdT\"\u003e\n\u003ch2 class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003eNetworking Example\u003c\/h2\u003e\n\u003ch4 style=\"text-align: center;\" class=\"richDesc\"\u003eSupports 5G networking via USB 3.1 interface and Gigabit Ethernet port at the same time*\u003c\/h4\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/5G-M.2-TO-Gigabit-ETH\/5G-M.2-TO-Gigabit-ETH-details-11.jpg\"\u003e\n\u003cp class=\"note\"\u003e\u003cem\u003eNote: the 5G network speed will be shared if using laptop and Raspberry Pi to access 5G network at the same time\u003c\/em\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\"\u003eMultiple Size Compatible\u003c\/h2\u003e\n\u003ch4 style=\"text-align: center;\" class=\"richDesc\"\u003e\u003cspan style=\"color: rgb(194, 0, 0);\"\u003eSupport 3042\/3052 package\u003c\/span\u003e\u003c\/h4\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/5G-M.2-TO-Gigabit-ETH\/5G-M.2-TO-Gigabit-ETH-details-13.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003eIndustrial Grade Aluminium Alloy Enclosure\u003c\/h2\u003e\n\u003cp class=\"richDesc\" style=\"text-align: center;\"\u003e\u003cstrong\u003e\u003cspan style=\"color: rgb(194, 0, 1);\"\u003eAluminum alloy enclosure with oxidation dull-polish surface, solid and durable, desktop or wall-mount support\u003c\/span\u003e\u003c\/strong\u003e\u003c\/p\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/5G-M.2-TO-Gigabit-ETH\/5G-M.2-TO-Gigabit-ETH-details-15.jpg\" style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003eInterface Introduction\u003c\/h2\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/5G-M.2-TO-Gigabit-ETH\/5G-M.2-TO-Gigabit-ETH-details-19.jpg\" style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003cdiv class=\"msg msg_warning\"\u003e\u003cspan style=\"color: rgb(194, 0, 0);\"\u003e\u003cem\u003e* Note: USB Type-C port is enabled via jumper by default for power supply and communication, requires 5V\/2A or more power. And the jumper cap should be removed if powered separately via the DC power port.\u003c\/em\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003eOutline Dimensions\u003c\/h2\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/5G-M.2-TO-Gigabit-ETH\/5G-M.2-TO-Gigabit-ETH-details-size.jpg\" style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003cdiv class=\"note\"\u003e\u003cspan style=\"color: rgb(194, 0, 1);\"\u003e\u003cem\u003e* Note: The above dimensions are measured manually, there is a certain error\u003c\/em\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003e5G module installation Introduction\u003c\/h2\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/5G-M.2-TO-Gigabit-ETH\/5G-M.2-TO-Gigabit-ETH-details-23.jpg\" style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003cp class=\"note\"\u003e\u003cspan style=\"color: rgb(194, 0, 0);\"\u003e\u003cem\u003e* Note: the 5G module is NOT included in the 5G M.2 TO Gigabit ETH kit and needs be purchased separately. It is recommended to select the kits with 5G module, please refer to the \u003ca href=\"https:\/\/www.waveshare.com\/5g-m.2-to-gigabit-eth.htm#Kit%20Selection\" style=\"color: rgb(194, 0, 0);\"\u003eKit Selection\u003c\/a\u003e table for more details.\u003c\/em\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cp\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003ch2\u003ePackage Contains:\u003c\/h2\u003e\n\u003cdiv class=\"richTitle\"\u003e\n\u003cmeta charset=\"utf-8\"\u003e\n\u003ch4\u003e5G M.2 TO Gigabit ETH\u003c\/h4\u003e\n\u003col\u003e\n\u003cli\u003e5G M.2 TO Gigabit ETH x1\u003c\/li\u003e\n\u003cli\u003e5G antenna x4\u003c\/li\u003e\n\u003cli\u003e12V Power Supply x1\u003c\/li\u003e\n\u003cli\u003eUSB Type-A to Type-C cable ~1m x1\u003c\/li\u003e\n\u003cli\u003eOptional 5G Module\u003c\/li\u003e\n\u003c\/ol\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/5G-M.2-TO-Gigabit-ETH\/5G-M.2-TO-Gigabit-ETH-details-pack.jpg\"\u003e\n\u003c\/div\u003e\n\u003ch2 class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\"\u003eResources\u003c\/h2\u003e\n\u003cp\u003e\u003cstrong\u003eWiki:\u003cspan\u003e \u003c\/span\u003e\u003c\/strong\u003e\u003ca href=\"http:\/\/www.waveshare.com\/wiki\/5G_M.2_TO_Gigabit_ETH\" target=\"_blank\"\u003ewww.waveshare.com\/wiki\/5G_M.2_TO_Gigabit_ETH\u003c\/a\u003e\u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cdiv id=\"Kit Selection\"\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003eKit Selection\u003c\/h2\u003e\n\u003ctable class=\"tabSty-2 mgnTB alignl\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003cth\u003eModel\u003c\/th\u003e\n\u003cth\u003ePackage\u003c\/th\u003e\n\u003cth\u003eDescription\u003c\/th\u003e\n\u003cth\u003eApplication\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003ca href=\"https:\/\/www.waveshare.com\/5g-m.2-to-gigabit-eth.htm?sku=25829\" target=\"_blank\"\u003e5G M.2 TO Gigabit ETH\u003c\/a\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/5G-M.2-TO-Gigabit-ETH\/5G-M.2-TO-Gigabit-ETH-details-25-1.jpg\"\u003e\u003c\/td\u003e\n\u003ctd\u003eSupports 5G to USB3.1 \u0026amp; Gigabit Ethernet, 5G module is NOT included and needs to be purchased separately\u003c\/td\u003e\n\u003ctd\u003eThe 5G module needs to be purchased separately. Compatible with SIMCom\/Quectel\/Fibocom 5G modules in the\u003cspan\u003e \u003c\/span\u003e\u003ca href=\"https:\/\/www.waveshare.com\/5g-m.2-to-gigabit-eth.htm#Compatible%205G%20modules\"\u003etable\u003c\/a\u003e\u003cspan\u003e \u003c\/span\u003eabove\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003ca href=\"https:\/\/www.waveshare.com\/5g-m.2-to-gigabit-eth.htm?sku=25832\" target=\"_blank\"\u003eRM500U-CNV 5G M.2 TO ETH\u003c\/a\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/5G-M.2-TO-Gigabit-ETH\/5G-M.2-TO-Gigabit-ETH-details-25-2.jpg\"\u003e\u003c\/td\u003e\n\u003ctd\u003eSupports 5G to USB3.1 \u0026amp; Gigabit Ethernet, includes RM500U-CNV 5G module\u003c\/td\u003e\n\u003ctd\u003eComes with the UNISOC RM500U-CNV 5G module, applicable for the countries or regions such as China, EMEA, and the Asia-Pacific\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003ca href=\"https:\/\/www.waveshare.com\/5g-m.2-to-gigabit-eth.htm?sku=25831\" target=\"_blank\"\u003eSIM8262E-M2 5G M.2 TO ETH\u003c\/a\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/5G-M.2-TO-Gigabit-ETH\/5G-M.2-TO-Gigabit-ETH-details-25-3.jpg\"\u003e\u003c\/td\u003e\n\u003ctd\u003eSupports 5G to USB3.1 \u0026amp; Gigabit Ethernet, includes\u003cspan\u003e \u003c\/span\u003e\u003ca href=\"https:\/\/www.waveshare.com\/sim8262e-m2.htm\" target=\"_blank\"\u003eSIM8262E-M2\u003c\/a\u003e\u003cspan\u003e \u003c\/span\u003e5G module\u003c\/td\u003e\n\u003ctd\u003eComes with a Qualcomm Snapdragon X62 SIM8262E-M2 5G module, applicable for the countries or regions except the Americas\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003ca href=\"https:\/\/www.waveshare.com\/5g-m.2-to-gigabit-eth.htm?sku=25830\" target=\"_blank\"\u003eRM520N-GL 5G M.2 TO ETH\u003c\/a\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/5G-M.2-TO-Gigabit-ETH\/5G-M.2-TO-Gigabit-ETH-details-25-4.jpg\"\u003e\u003c\/td\u003e\n\u003ctd\u003eSupports 5G to USB3.1 \u0026amp; Gigabit Ethernet, includes\u003cspan\u003e \u003c\/span\u003e\u003ca href=\"https:\/\/www.waveshare.com\/rm520n-gl.htm\" target=\"_blank\"\u003eRM520N-GL\u003c\/a\u003e\u003cspan\u003e \u003c\/span\u003e5G module\u003c\/td\u003e\n\u003ctd\u003eComes with Qualcomm Snapdragon X62 RM520N-GL 5G module, global band support\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e\n\u003c!----\u003e","published_at":"2024-08-09T04:04:57+05:30","created_at":"2024-08-09T01:19:08+05:30","vendor":"Waveshare","type":"","tags":["26159","4G Dongle","5g","5G module","5G-MOD","5G\/4G","5G\/4G\/3G","5gbps","5Ghz","ELC8","GPS-MOD","INDSTRL","Industrial","IOT-MOD","quectel","RM502Q","RM502Q-AE","SIM7600G-H 4g","SIM8200EA","SIM8200EA-M2","SIM8202G","SIM8202G-M2","SIM8262","SIM8262A","SIM8262A-M2","SIM8262E","SIM8262E-M2","Simcom","Snapdragon X55","Waveshare","WVSH"],"price":419999,"price_min":419999,"price_max":2899999,"available":true,"price_varies":true,"compare_at_price":3299999,"compare_at_price_min":3299999,"compare_at_price_max":3299999,"compare_at_price_varies":false,"variants":[{"id":49219359736125,"title":"None","option1":"None","option2":null,"option3":null,"sku":"ELC8093","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"5G M.2 to Gigabit Ethernet Converter - None","public_title":"None","options":["None"],"price":419999,"weight":400,"compare_at_price":3299999,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":49219359768893,"title":"RM520N-GL","option1":"RM520N-GL","option2":null,"option3":null,"sku":"ELC8093 + ELC8089","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"5G M.2 to Gigabit Ethernet Converter - RM520N-GL","public_title":"RM520N-GL","options":["RM520N-GL"],"price":2899999,"weight":400,"compare_at_price":3299999,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":49219359801661,"title":"SIM8262E-M2","option1":"SIM8262E-M2","option2":null,"option3":null,"sku":"ELC8093 + ELC8069","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"5G M.2 to Gigabit Ethernet Converter - SIM8262E-M2","public_title":"SIM8262E-M2","options":["SIM8262E-M2"],"price":2899999,"weight":400,"compare_at_price":3299999,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/thinkrobotics.com\/cdn\/shop\/files\/5g-m.2-to-gigabit-eth-1.jpg?v=1723156387","\/\/thinkrobotics.com\/cdn\/shop\/files\/5g-m.2-to-gigabit-eth-3.jpg?v=1723156387","\/\/thinkrobotics.com\/cdn\/shop\/files\/5g-m.2-to-gigabit-eth-4.jpg?v=1723156387","\/\/thinkrobotics.com\/cdn\/shop\/files\/5g-m.2-to-gigabit-eth-2.jpg?v=1723156387","\/\/thinkrobotics.com\/cdn\/shop\/files\/5g-m.2-to-gigabit-eth-5.jpg?v=1723156387"],"featured_image":"\/\/thinkrobotics.com\/cdn\/shop\/files\/5g-m.2-to-gigabit-eth-1.jpg?v=1723156387","options":["5G Module"],"media":[{"alt":null,"id":39914608132413,"position":1,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/5g-m.2-to-gigabit-eth-1.jpg?v=1723156387"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/5g-m.2-to-gigabit-eth-1.jpg?v=1723156387","width":800},{"alt":null,"id":39914608263485,"position":2,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/5g-m.2-to-gigabit-eth-3.jpg?v=1723156387"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/5g-m.2-to-gigabit-eth-3.jpg?v=1723156387","width":800},{"alt":null,"id":39914608197949,"position":3,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/5g-m.2-to-gigabit-eth-4.jpg?v=1723156387"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/5g-m.2-to-gigabit-eth-4.jpg?v=1723156387","width":800},{"alt":null,"id":39914608230717,"position":4,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/5g-m.2-to-gigabit-eth-2.jpg?v=1723156387"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/5g-m.2-to-gigabit-eth-2.jpg?v=1723156387","width":800},{"alt":null,"id":39914608165181,"position":5,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/5g-m.2-to-gigabit-eth-5.jpg?v=1723156387"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/5g-m.2-to-gigabit-eth-5.jpg?v=1723156387","width":800}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch1 class=\"richTitle\" style=\"text-align: center;\"\u003e5G M.2 to Gigabit Ethernet Converter\u003c\/h1\u003e\n\u003ch3 class=\"hilitBlock2 round1234\" style=\"text-align: center;\"\u003e\u003cspan style=\"color: rgb(194, 0, 0);\"\u003e5G M.2 to Gigabit Ethernet + 5G M.2 to USB3.1\u003c\/span\u003e\u003c\/h3\u003e\n\u003ch4 class=\"richDesc\" style=\"text-align: center;\"\u003eSupports SIMCom \/ Quectel \/ Fibocom mainstream 5G M.2 modules\u003cbr\u003eCompatible with 3042 \/ 3052 packages\u003c\/h4\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\u003cimg style=\"float: none;\" alt=\"\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/5G-M.2-TO-Gigabit-ETH\/5G-M.2-TO-Gigabit-ETH-details-1.jpg\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"pdT\"\u003e\n\u003cp class=\"note\"\u003e\u003cspan style=\"color: rgb(194, 0, 1);\"\u003e\u003cem\u003e* Note: the 5G module is NOT included in the 5G M.2 TO Gigabit ETH kit and needs be purchased separately. It is recommended to select the kits with 5G module, please refer to the Kit Selection table for more details.\u003c\/em\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"pdT\"\u003e\n\u003ch2 class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\"\u003eFeatures\u003c\/h2\u003e\n\u003cdiv class=\"alignl pdTRBL\"\u003e\n\u003cul\u003e\n\u003cli\u003eSupports 5G modules with M.2 (NGFF) Key B interface, compatible with mainstream 5G modules from the brands such as SIMCom, Quectel, and Fibocom\u003c\/li\u003e\n\u003cli\u003eSupports 5G modules in 3042\/3052 packages such as SIM82XX, RM5XX and FM160XX series\u003c\/li\u003e\n\u003cli\u003eOnboard RTL8125 Ethernet chip, supports 5G to Gigabit Ethernet for high speed 5G networking via the Gigabit Ethernet port\u003c\/li\u003e\n\u003cli\u003eOnboard USB 3.1 Type-A port for connecting to PC, Raspberry Pi, or Jetson series motherboards for high-speed 5G networking or debugging\u003c\/li\u003e\n\u003cli\u003eOnboard voltage translator circuit, supports 9-12V power supply via DC 5.5mm jack, or 5V\/2A power supply via USB 3.1 port\u003c\/li\u003e\n\u003cli\u003eOnboard standard SIM card slot\u003c\/li\u003e\n\u003cli\u003eOnboard power supply and network indicator, reset button, for checking the working status of the module and 5G debugging\u003c\/li\u003e\n\u003cli\u003eAluminum alloy enclosure with oxidation dull-polish surface, CNC process opening, solid and durable, desktop or wall-mount support\u003c\/li\u003e\n\u003cli\u003eComes with 4× 5G omnidirectional high-gain antennas and 12V power supply adapter, easy to use directly with 5G module\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cdiv id=\"Compatible 5G modules\"\u003e\n\u003ch2 class=\"richTitle\"\u003eCompatible 5G modules\u003c\/h2\u003e\n\u003ctable class=\"tabSty-2 mgnTB subBlock alignl\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003cth\u003eModel\u003c\/th\u003e\n\u003cth\u003e\u003ca href=\"https:\/\/www.waveshare.com\/sim8202x-m2.htm\" target=\"_blank\"\u003eSIM8202G-M2\u003c\/a\u003e\u003c\/th\u003e\n\u003cth\u003e\u003ca href=\"https:\/\/www.waveshare.com\/sim8262e-m2.htm\" target=\"_blank\"\u003eSIM8262E-M2\u003c\/a\u003e\u003c\/th\u003e\n\u003cth\u003e\u003ca href=\"https:\/\/www.waveshare.com\/sim8262a-m2.htm\" target=\"_blank\"\u003eSIM8262A-M2\u003c\/a\u003e\u003c\/th\u003e\n\u003cth\u003eRM500U-CNV\u003c\/th\u003e\n\u003cth\u003e\u003ca href=\"https:\/\/www.waveshare.com\/rm50x-series.htm?sku=23215\" target=\"_blank\"\u003eRM502Q-AE\u003c\/a\u003e\u003c\/th\u003e\n\u003cth\u003e\u003ca href=\"https:\/\/www.waveshare.com\/rm520n-gl.htm\" target=\"_blank\"\u003eRM520N-GL\u003c\/a\u003e\u003c\/th\u003e\n\u003cth\u003eFM160-EAU\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth\u003e5G Standard\u003c\/th\u003e\n\u003ctd\u003e3GPP R15\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003e3GPP R16\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003e3GPP R15\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003e3GPP R16\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth\u003eApplicable regions\u003c\/th\u003e\n\u003ctd colspan=\"2\"\u003eexcept Americas\u003c\/td\u003e\n\u003ctd\u003eAmericas\u003c\/td\u003e\n\u003ctd\u003eChina, EMEA, Asia-Pacific\u003c\/td\u003e\n\u003ctd\u003eGlobal (except China)\u003c\/td\u003e\n\u003ctd\u003eGlobal\u003c\/td\u003e\n\u003ctd\u003eEMEA, Australia\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth\u003eChip\u003c\/th\u003e\n\u003ctd\u003eQualcomm Snapdragon X55\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003eQualcomm Snapdragon X62\u003c\/td\u003e\n\u003ctd\u003eUNISOC\u003c\/td\u003e\n\u003ctd\u003eQualcomm Snapdragon X55\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003eQualcomm Snapdragon X62\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth colspan=\"8\"\u003e\u003cstrong\u003eFrequency band\u003c\/strong\u003e\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"2\"\u003eSub-6G\u003c\/td\u003e\n\u003ctd rowspan=\"2\"\u003en1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n66, n71, n77, n78, n79\u003c\/td\u003e\n\u003ctd rowspan=\"2\"\u003en1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78, n79\u003c\/td\u003e\n\u003ctd rowspan=\"2\"\u003en2, n5, n7, n12, n13, n14, n25, n30, n41, n48, n66, n71, n77, n78, n79\u003c\/td\u003e\n\u003ctd\u003e5G NR NSA: n41, n78, n79\u003c\/td\u003e\n\u003ctd\u003e5G NR NSA: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79\u003c\/td\u003e\n\u003ctd\u003e5G NR NSA: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79\u003c\/td\u003e\n\u003ctd rowspan=\"2\"\u003en1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n75, n77, n78\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e5G NR SA: n1, n2, n3, n5, n8, n28, n41, n77, n78, n79\u003c\/td\u003e\n\u003ctd\u003e5G NR SA: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79\u003c\/td\u003e\n\u003ctd\u003e5G NR SA: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eLTE-FDD\u003c\/td\u003e\n\u003ctd\u003eB1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71\u003c\/td\u003e\n\u003ctd\u003eB1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32\u003c\/td\u003e\n\u003ctd\u003eB2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66, B71\u003c\/td\u003e\n\u003ctd\u003eB1, B3, B5, B8\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003eB1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71\u003c\/td\u003e\n\u003ctd\u003eB1, B3, B5, B7, B8, B20, B28, B32\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eLTE-TDD\u003c\/td\u003e\n\u003ctd\u003eB34, B38, B39, B40, B41, B42, B43, B48\u003c\/td\u003e\n\u003ctd\u003eB38, B39, B40, B41, B42, B43\u003c\/td\u003e\n\u003ctd\u003eB41, B46, B48\u003c\/td\u003e\n\u003ctd\u003eB34, B38, B39, B40, B41\u003c\/td\u003e\n\u003ctd colspan=\"3\"\u003eB38, B40, B42, B43\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eLAA\u003c\/td\u003e\n\u003ctd colspan=\"4\"\u003e-\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003eB46\u003c\/td\u003e\n\u003ctd\u003e-\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eWCDMA\u003c\/td\u003e\n\u003ctd\u003eB1, B2, B3, B4, B5, B8\u003c\/td\u003e\n\u003ctd\u003eB1, B5, B8\u003c\/td\u003e\n\u003ctd\u003eB2, B4, B5\u003c\/td\u003e\n\u003ctd\u003eB1, B5, B8\u003c\/td\u003e\n\u003ctd\u003eB1, B2, B3, B4, B5, B6, B8, B19\u003c\/td\u003e\n\u003ctd\u003eB1, B2, B4, B5, B8, B19\u003c\/td\u003e\n\u003ctd\u003eB1, B5, B8\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eGNSS\u003c\/td\u003e\n\u003ctd colspan=\"7\"\u003eGPS \/ GLONASS \/ BeiDou(Compass) \/ Galileo \/ QZSS (RM500Q-GL and RM502Q-AE do not support)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth colspan=\"8\"\u003e\u003cstrong\u003eData rate\u003c\/strong\u003e\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"2\"\u003eSub-6G\u003c\/td\u003e\n\u003ctd colspan=\"3\" rowspan=\"2\"\u003e2.4Gbps (DL) \/ 500Mbps (UL)\u003c\/td\u003e\n\u003ctd\u003e5G NR SA: 2Gbps (DL) \/ 1Gbps (UL)\u003c\/td\u003e\n\u003ctd\u003e5G NR SA: 4.2Gbps (DL) \/ 450Mbps (UL)\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003e5G NR SA: 2.4Gbps (DL) \/ 900Mbps (UL)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e5G NR NSA: 2.5Gbps (DL) \/ 575Mbps (UL)\u003c\/td\u003e\n\u003ctd\u003e5G NR NSA: 5.0Gbps (DL) \/ 650Mbps (UL)\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003e5G NR NSA: 3.4Gbps (DL) \/ 550Mbps (UL)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eLTE\u003c\/td\u003e\n\u003ctd colspan=\"3\"\u003e1.0Gbps (DL) \/ 200Mbps (UL)\u003c\/td\u003e\n\u003ctd\u003e600Mbps (DL) \/ 150Mbps (UL)\u003c\/td\u003e\n\u003ctd\u003e2.0Gbps (DL) \/ 200Mbps (UL)\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003e1.6Gbps (DL) \/ 200Mbps (UL)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eUMTS\u003c\/td\u003e\n\u003ctd colspan=\"7\"\u003e42Mbps (DL) \/ 5.76Mbps (UL)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eDimensions\u003c\/td\u003e\n\u003ctd colspan=\"3\"\u003e42.0 × 30.0 × 2.3mm\u003c\/td\u003e\n\u003ctd colspan=\"4\"\u003e52.0 × 30.0 × 2.3mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"8\"\u003e\n\u003cstrong\u003eNote\u003c\/strong\u003e: 5G module is optonal. This table only lists some supported models after actual testing, and the pin compatibility should be tested if used with other models.\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cdiv class=\"pdT\" style=\"text-align: center;\"\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\"\u003eSupports Multiple Operating Modes\u003c\/h2\u003e\n\u003ch3 style=\"text-align: center;\" class=\"hilitBlock2 round1234 richDesc\"\u003e\u003cspan style=\"color: rgb(194, 0, 0);\"\u003eUSB3.1 Port Direct Connection Mode\u003c\/span\u003e\u003c\/h3\u003e\n\u003cp style=\"text-align: center;\" class=\"richDesc\"\u003eEnabling 5G High Speed networking For PC \/ Raspberry Pi \/Jetson series \/ industrial control host via USB3.1 port\u003c\/p\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/5G-M.2-TO-Gigabit-ETH\/5G-M.2-TO-Gigabit-ETH-details-3.jpg\"\u003e\n\u003ch2 class=\"hilitBlock2 round1234 richDesc\"\u003e \u003c\/h2\u003e\n\u003ch3 class=\"hilitBlock2 round1234 richDesc\"\u003e\u003cspan style=\"color: rgb(194, 0, 0);\"\u003eGigabit Ethernet port direct connection mode\u003c\/span\u003e\u003c\/h3\u003e\n\u003cp class=\"richDesc\"\u003e\u003cspan style=\"color: rgb(0, 0, 0);\"\u003eEnabling 5G High Speed networking For PC \/ Raspberry Pi \/Jetson series \/ industrial control host via Gigabit Ethernet port\u003c\/span\u003e\u003c\/p\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/5G-M.2-TO-Gigabit-ETH\/5G-M.2-TO-Gigabit-ETH-details-5.jpg\"\u003e\n\u003ch2 class=\"hilitBlock2 round1234 richDesc\"\u003e \u003c\/h2\u003e\n\u003ch3 class=\"hilitBlock2 round1234 richDesc\"\u003e\u003cspan style=\"color: rgb(194, 0, 1);\"\u003eRouter mode\u003c\/span\u003e\u003c\/h3\u003e\n\u003cp class=\"richDesc\"\u003e\u003cspan style=\"color: rgb(0, 0, 0);\"\u003eThe router accesses the 5G network via Gigabit Ethernet port, and then distributes To All Devices Connected For The 5G Networking\u003c\/span\u003e\u003c\/p\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/5G-M.2-TO-Gigabit-ETH\/5G-M.2-TO-Gigabit-ETH-details-7.jpg\"\u003e\n\u003ch3 class=\"hilitBlock2 round1234 richDesc\"\u003e\u003cspan style=\"color: rgb(194, 0, 0);\"\u003e \u003c\/span\u003e\u003c\/h3\u003e\n\u003ch3 class=\"hilitBlock2 round1234 richDesc\"\u003e\u003cspan style=\"color: rgb(194, 0, 0);\"\u003eUSB 3.1 port and Gigabit Ethernet Port Simultaneous Networking Mode*\u003c\/span\u003e\u003c\/h3\u003e\n\u003cp class=\"richDesc\"\u003eProvides 5G network for two devices separately via USB3.1 port and Gigabit Ethernet port.\u003c\/p\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/5G-M.2-TO-Gigabit-ETH\/5G-M.2-TO-Gigabit-ETH-details-9.jpg\" style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cblockquote\u003e\n\u003cdiv class=\"msg msg_warning\"\u003e\u003cspan style=\"color: rgb(194, 0, 1);\"\u003e\u003cem\u003e* Note: The 5G module needs to support the simultaneous conversion of USB port and Gigabit Ethernet port for networking. All 5G modules in the \u003ca href=\"https:\/\/www.waveshare.com\/5g-m.2-to-gigabit-eth.htm#Compatible%205G%20modules\" style=\"color: rgb(194, 0, 1);\"\u003eCompatible 5G Modules\u003c\/a\u003e table can support this function, except for \u003ca href=\"https:\/\/www.waveshare.com\/rm50x-series.htm?sku=23215\" style=\"color: rgb(194, 0, 1);\" target=\"_blank\"\u003eRM502Q-AE\u003c\/a\u003e and \u003ca href=\"https:\/\/www.waveshare.com\/rm520n-gl.htm\" style=\"color: rgb(194, 0, 1);\" target=\"_blank\"\u003eRM520N-GL\u003c\/a\u003e, which can only support one channel at a time.\u003c\/em\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/blockquote\u003e\n\u003cdiv style=\"text-align: center;\" class=\"pdT\"\u003e\n\u003ch2 class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003eNetworking Example\u003c\/h2\u003e\n\u003ch4 style=\"text-align: center;\" class=\"richDesc\"\u003eSupports 5G networking via USB 3.1 interface and Gigabit Ethernet port at the same time*\u003c\/h4\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/5G-M.2-TO-Gigabit-ETH\/5G-M.2-TO-Gigabit-ETH-details-11.jpg\"\u003e\n\u003cp class=\"note\"\u003e\u003cem\u003eNote: the 5G network speed will be shared if using laptop and Raspberry Pi to access 5G network at the same time\u003c\/em\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\"\u003eMultiple Size Compatible\u003c\/h2\u003e\n\u003ch4 style=\"text-align: center;\" class=\"richDesc\"\u003e\u003cspan style=\"color: rgb(194, 0, 0);\"\u003eSupport 3042\/3052 package\u003c\/span\u003e\u003c\/h4\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/5G-M.2-TO-Gigabit-ETH\/5G-M.2-TO-Gigabit-ETH-details-13.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003eIndustrial Grade Aluminium Alloy Enclosure\u003c\/h2\u003e\n\u003cp class=\"richDesc\" style=\"text-align: center;\"\u003e\u003cstrong\u003e\u003cspan style=\"color: rgb(194, 0, 1);\"\u003eAluminum alloy enclosure with oxidation dull-polish surface, solid and durable, desktop or wall-mount support\u003c\/span\u003e\u003c\/strong\u003e\u003c\/p\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/5G-M.2-TO-Gigabit-ETH\/5G-M.2-TO-Gigabit-ETH-details-15.jpg\" style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003eInterface Introduction\u003c\/h2\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/5G-M.2-TO-Gigabit-ETH\/5G-M.2-TO-Gigabit-ETH-details-19.jpg\" style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003cdiv class=\"msg msg_warning\"\u003e\u003cspan style=\"color: rgb(194, 0, 0);\"\u003e\u003cem\u003e* Note: USB Type-C port is enabled via jumper by default for power supply and communication, requires 5V\/2A or more power. And the jumper cap should be removed if powered separately via the DC power port.\u003c\/em\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003eOutline Dimensions\u003c\/h2\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/5G-M.2-TO-Gigabit-ETH\/5G-M.2-TO-Gigabit-ETH-details-size.jpg\" style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003cdiv class=\"note\"\u003e\u003cspan style=\"color: rgb(194, 0, 1);\"\u003e\u003cem\u003e* Note: The above dimensions are measured manually, there is a certain error\u003c\/em\u003e\u003c\/span\u003e\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003e5G module installation Introduction\u003c\/h2\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/5G-M.2-TO-Gigabit-ETH\/5G-M.2-TO-Gigabit-ETH-details-23.jpg\" style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003cp class=\"note\"\u003e\u003cspan style=\"color: rgb(194, 0, 0);\"\u003e\u003cem\u003e* Note: the 5G module is NOT included in the 5G M.2 TO Gigabit ETH kit and needs be purchased separately. It is recommended to select the kits with 5G module, please refer to the \u003ca href=\"https:\/\/www.waveshare.com\/5g-m.2-to-gigabit-eth.htm#Kit%20Selection\" style=\"color: rgb(194, 0, 0);\"\u003eKit Selection\u003c\/a\u003e table for more details.\u003c\/em\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cp\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003ch2\u003ePackage Contains:\u003c\/h2\u003e\n\u003cdiv class=\"richTitle\"\u003e\n\u003cmeta charset=\"utf-8\"\u003e\n\u003ch4\u003e5G M.2 TO Gigabit ETH\u003c\/h4\u003e\n\u003col\u003e\n\u003cli\u003e5G M.2 TO Gigabit ETH x1\u003c\/li\u003e\n\u003cli\u003e5G antenna x4\u003c\/li\u003e\n\u003cli\u003e12V Power Supply x1\u003c\/li\u003e\n\u003cli\u003eUSB Type-A to Type-C cable ~1m x1\u003c\/li\u003e\n\u003cli\u003eOptional 5G Module\u003c\/li\u003e\n\u003c\/ol\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/5G-M.2-TO-Gigabit-ETH\/5G-M.2-TO-Gigabit-ETH-details-pack.jpg\"\u003e\n\u003c\/div\u003e\n\u003ch2 class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\"\u003eResources\u003c\/h2\u003e\n\u003cp\u003e\u003cstrong\u003eWiki:\u003cspan\u003e \u003c\/span\u003e\u003c\/strong\u003e\u003ca href=\"http:\/\/www.waveshare.com\/wiki\/5G_M.2_TO_Gigabit_ETH\" target=\"_blank\"\u003ewww.waveshare.com\/wiki\/5G_M.2_TO_Gigabit_ETH\u003c\/a\u003e\u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cdiv id=\"Kit Selection\"\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003eKit Selection\u003c\/h2\u003e\n\u003ctable class=\"tabSty-2 mgnTB alignl\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003cth\u003eModel\u003c\/th\u003e\n\u003cth\u003ePackage\u003c\/th\u003e\n\u003cth\u003eDescription\u003c\/th\u003e\n\u003cth\u003eApplication\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003ca href=\"https:\/\/www.waveshare.com\/5g-m.2-to-gigabit-eth.htm?sku=25829\" target=\"_blank\"\u003e5G M.2 TO Gigabit ETH\u003c\/a\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/5G-M.2-TO-Gigabit-ETH\/5G-M.2-TO-Gigabit-ETH-details-25-1.jpg\"\u003e\u003c\/td\u003e\n\u003ctd\u003eSupports 5G to USB3.1 \u0026amp; Gigabit Ethernet, 5G module is NOT included and needs to be purchased separately\u003c\/td\u003e\n\u003ctd\u003eThe 5G module needs to be purchased separately. Compatible with SIMCom\/Quectel\/Fibocom 5G modules in the\u003cspan\u003e \u003c\/span\u003e\u003ca href=\"https:\/\/www.waveshare.com\/5g-m.2-to-gigabit-eth.htm#Compatible%205G%20modules\"\u003etable\u003c\/a\u003e\u003cspan\u003e \u003c\/span\u003eabove\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003ca href=\"https:\/\/www.waveshare.com\/5g-m.2-to-gigabit-eth.htm?sku=25832\" target=\"_blank\"\u003eRM500U-CNV 5G M.2 TO ETH\u003c\/a\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/5G-M.2-TO-Gigabit-ETH\/5G-M.2-TO-Gigabit-ETH-details-25-2.jpg\"\u003e\u003c\/td\u003e\n\u003ctd\u003eSupports 5G to USB3.1 \u0026amp; Gigabit Ethernet, includes RM500U-CNV 5G module\u003c\/td\u003e\n\u003ctd\u003eComes with the UNISOC RM500U-CNV 5G module, applicable for the countries or regions such as China, EMEA, and the Asia-Pacific\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003ca href=\"https:\/\/www.waveshare.com\/5g-m.2-to-gigabit-eth.htm?sku=25831\" target=\"_blank\"\u003eSIM8262E-M2 5G M.2 TO ETH\u003c\/a\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/5G-M.2-TO-Gigabit-ETH\/5G-M.2-TO-Gigabit-ETH-details-25-3.jpg\"\u003e\u003c\/td\u003e\n\u003ctd\u003eSupports 5G to USB3.1 \u0026amp; Gigabit Ethernet, includes\u003cspan\u003e \u003c\/span\u003e\u003ca href=\"https:\/\/www.waveshare.com\/sim8262e-m2.htm\" target=\"_blank\"\u003eSIM8262E-M2\u003c\/a\u003e\u003cspan\u003e \u003c\/span\u003e5G module\u003c\/td\u003e\n\u003ctd\u003eComes with a Qualcomm Snapdragon X62 SIM8262E-M2 5G module, applicable for the countries or regions except the Americas\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003ca href=\"https:\/\/www.waveshare.com\/5g-m.2-to-gigabit-eth.htm?sku=25830\" target=\"_blank\"\u003eRM520N-GL 5G M.2 TO ETH\u003c\/a\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/5G-M.2-TO-Gigabit-ETH\/5G-M.2-TO-Gigabit-ETH-details-25-4.jpg\"\u003e\u003c\/td\u003e\n\u003ctd\u003eSupports 5G to USB3.1 \u0026amp; Gigabit Ethernet, includes\u003cspan\u003e \u003c\/span\u003e\u003ca href=\"https:\/\/www.waveshare.com\/rm520n-gl.htm\" target=\"_blank\"\u003eRM520N-GL\u003c\/a\u003e\u003cspan\u003e \u003c\/span\u003e5G module\u003c\/td\u003e\n\u003ctd\u003eComes with Qualcomm Snapdragon X62 RM520N-GL 5G module, global band support\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e\n\u003c!----\u003e"}

5G M.2 to Gigabit Ethernet Converter

5G M.2 to Gigabit Ethernet Converter

5G M.2 to Gigabit Ethernet + 5G M.2 to USB3.1

Supports SIMCom / Quectel / Fibocom mainstream 5G M.2 modules
Compatible with 3042 / 3052 packages

Features

Compatible 5G modules

Supports Multiple Operating Modes

USB3.1 Port Direct Connection Mode

Gigabit Ethernet port direct connection mode

Router mode

USB 3.1 port and Gigabit Ethernet Port Simultaneous Networking Mode*

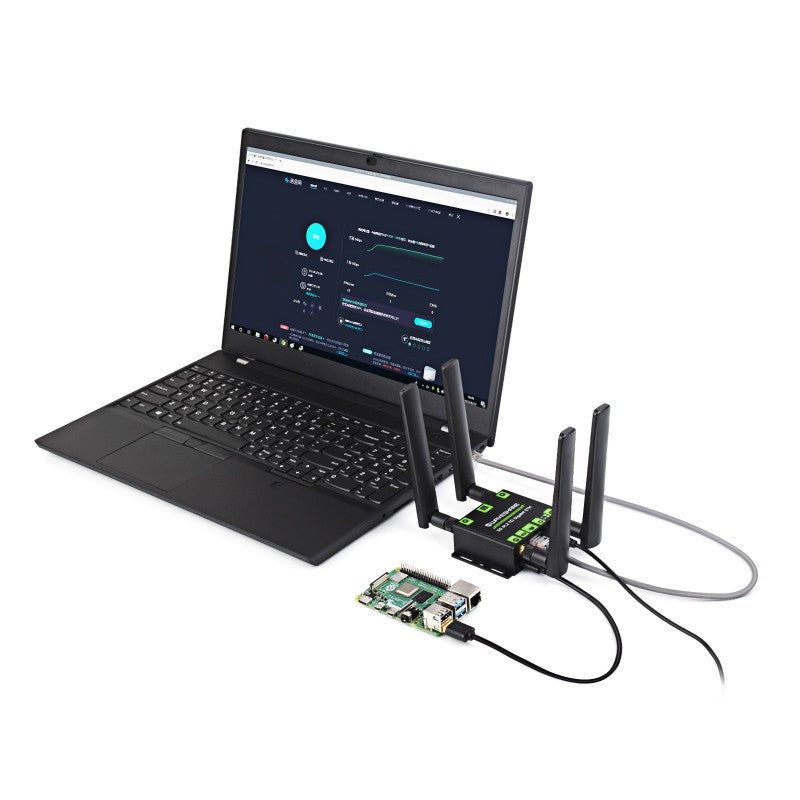

Networking Example

Supports 5G networking via USB 3.1 interface and Gigabit Ethernet port at the same time*

Multiple Size Compatible

Support 3042/3052 package

Industrial Grade Aluminium Alloy Enclosure

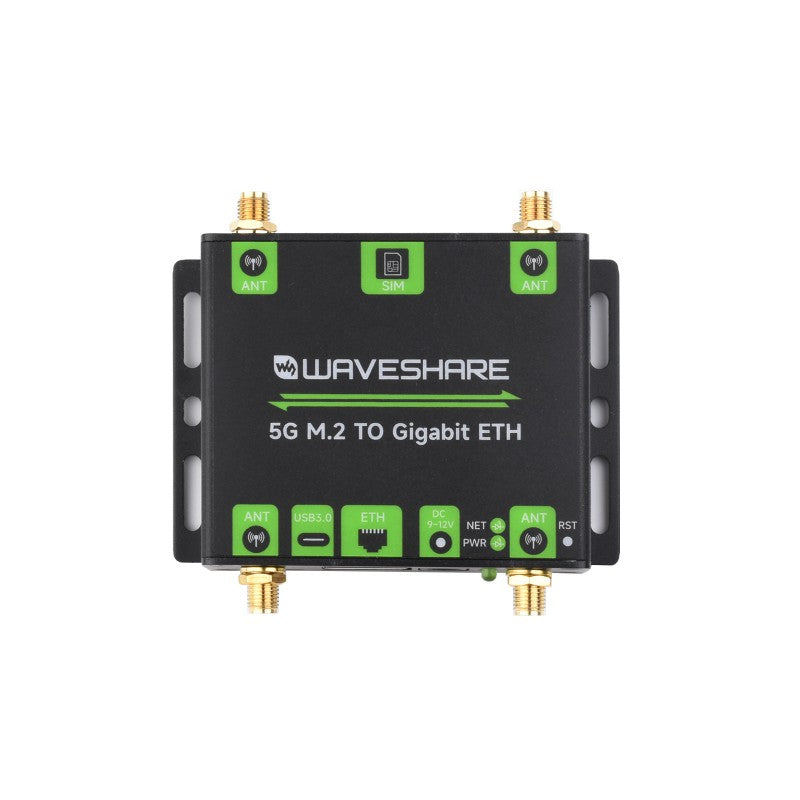

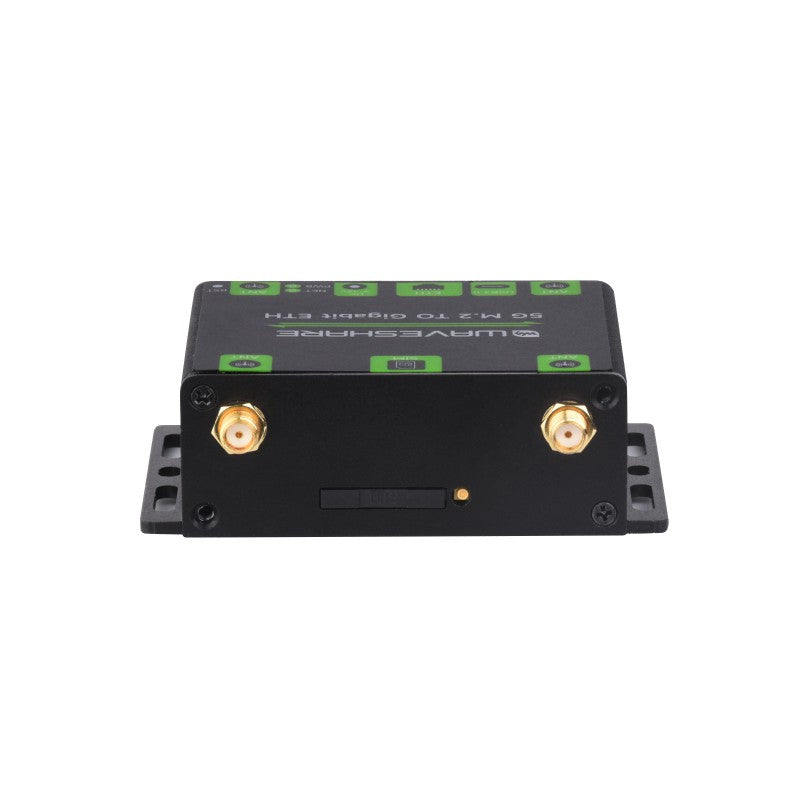

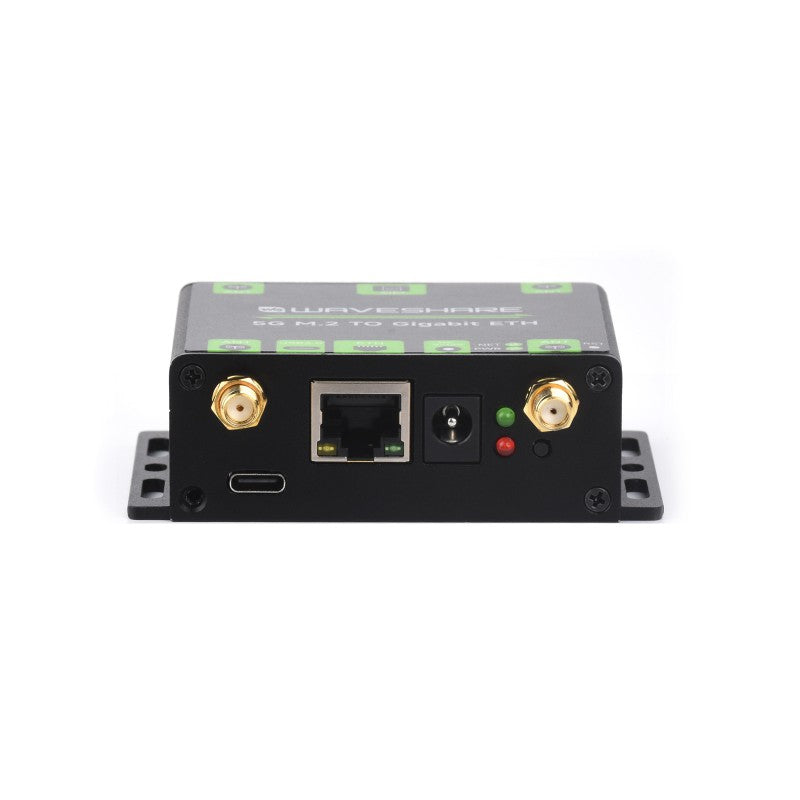

Interface Introduction

Outline Dimensions

5G module installation Introduction

Package Contains:

5G M.2 TO Gigabit ETH

Resources

Kit Selection

Want to buy in bulk?

Customer Reviews

Custom Requirements?

Download the ThinkRobotics Mobile App

We are here to serve you! Reach us at:

Popular Links

Shopping Cart

Let customers speak for us

Model	SIM8202G-M2	SIM8262E-M2	SIM8262A-M2	RM500U-CNV	RM502Q-AE	RM520N-GL	FM160-EAU
5G Standard	3GPP R15	3GPP R16		3GPP R15		3GPP R16
Applicable regions	except Americas		Americas	China, EMEA, Asia-Pacific	Global (except China)	Global	EMEA, Australia
Chip	Qualcomm Snapdragon X55	Qualcomm Snapdragon X62		UNISOC	Qualcomm Snapdragon X55	Qualcomm Snapdragon X62
Frequency band
Sub-6G	n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n66, n71, n77, n78, n79	n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78, n79	n2, n5, n7, n12, n13, n14, n25, n30, n41, n48, n66, n71, n77, n78, n79	5G NR NSA: n41, n78, n79	5G NR NSA: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79	5G NR NSA: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79	n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n75, n77, n78
Sub-6G		n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78, n79		5G NR SA: n1, n2, n3, n5, n8, n28, n41, n77, n78, n79	5G NR SA: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79	5G NR SA: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79	n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n75, n77, n78
LTE-FDD	B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71	B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32	B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66, B71	B1, B3, B5, B8	B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71		B1, B3, B5, B7, B8, B20, B28, B32
LTE-TDD	B34, B38, B39, B40, B41, B42, B43, B48	B38, B39, B40, B41, B42, B43	B41, B46, B48	B34, B38, B39, B40, B41	B38, B40, B42, B43
LAA	-				B46		-
WCDMA	B1, B2, B3, B4, B5, B8	B1, B5, B8	B2, B4, B5	B1, B5, B8	B1, B2, B3, B4, B5, B6, B8, B19	B1, B2, B4, B5, B8, B19	B1, B5, B8
GNSS	GPS / GLONASS / BeiDou(Compass) / Galileo / QZSS (RM500Q-GL and RM502Q-AE do not support)
Data rate
Sub-6G	2.4Gbps (DL) / 500Mbps (UL)			5G NR SA: 2Gbps (DL) / 1Gbps (UL)	5G NR SA: 4.2Gbps (DL) / 450Mbps (UL)	5G NR SA: 2.4Gbps (DL) / 900Mbps (UL)
Sub-6G	2.4Gbps (DL) / 500Mbps (UL)			5G NR NSA: 2.5Gbps (DL) / 575Mbps (UL)	5G NR NSA: 5.0Gbps (DL) / 650Mbps (UL)	5G NR NSA: 3.4Gbps (DL) / 550Mbps (UL)
LTE	1.0Gbps (DL) / 200Mbps (UL)			600Mbps (DL) / 150Mbps (UL)	2.0Gbps (DL) / 200Mbps (UL)	1.6Gbps (DL) / 200Mbps (UL)
UMTS	42Mbps (DL) / 5.76Mbps (UL)
Dimensions	42.0 × 30.0 × 2.3mm			52.0 × 30.0 × 2.3mm
Note: 5G module is optonal. This table only lists some supported models after actual testing, and the pin compatibility should be tested if used with other models.

Model	Description	Application
5G M.2 TO Gigabit ETH	Supports 5G to USB3.1 & Gigabit Ethernet, 5G module is NOT included and needs to be purchased separately	The 5G module needs to be purchased separately. Compatible with SIMCom/Quectel/Fibocom 5G modules in the table above
RM500U-CNV 5G M.2 TO ETH	Supports 5G to USB3.1 & Gigabit Ethernet, includes RM500U-CNV 5G module	Comes with the UNISOC RM500U-CNV 5G module, applicable for the countries or regions such as China, EMEA, and the Asia-Pacific
SIM8262E-M2 5G M.2 TO ETH	Supports 5G to USB3.1 & Gigabit Ethernet, includes SIM8262E-M2 5G module	Comes with a Qualcomm Snapdragon X62 SIM8262E-M2 5G module, applicable for the countries or regions except the Americas
RM520N-GL 5G M.2 TO ETH	Supports 5G to USB3.1 & Gigabit Ethernet, includes RM520N-GL 5G module	Comes with Qualcomm Snapdragon X62 RM520N-GL 5G module, global band support
