0.71inch Double Eye Round LCD Display Module, 160x160 Resolution

SKU: WVSH0117

ā‚¹ 1,799.99

Out of stock

šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
ā± This is a pre-order item. We'll ship it as soon as it's back in stock.
0.71inch Double Eye Round LCD Display Module, 160x160 Resolutionā‚¹ 1,799.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

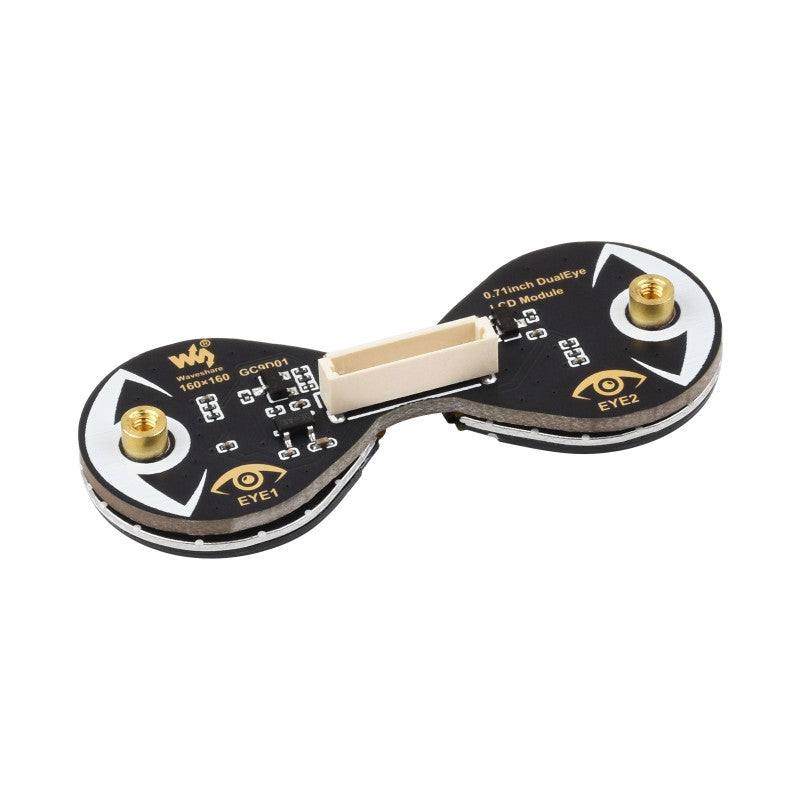

0.71inch Double Eye LCD Module

IPS Panel, 160Ɨ160 Resolution, Embedded GC9D01 Driver, Using SPI Bus


Size 0.71"

Resolution 160Ɨ160

Display Color 65K colors

Display Panel IPS

Interface SPI

Driver GC9D01

Ā

Features at a glance

The double eye LCD module consists of two 0.71inch round LCD displays, IPS panel, wide viewing angle

160Ɨ160 resolution, 65K colors, clear and colorful displaying effect

SPI interface, minimizes required IO pins, supports controller boards like ESP32 / Arduino

Ā

Specifications

Specification Details
Operating Voltage 3.3V / 5V
Resolution 160 Ɨ 160 pixels
Communication Interface SPI
Display Size 18 Ɨ 18 mm
Display Panel IPS
Pixel Pitch 37.5 Ɨ 112.5 Ī¼m
Driver GC9D01
Module Dimensions 20.00 Ɨ 51.00 mm

Ā

Controlled via SPI Bus

Supports Controller Boards like ESP32 / Arduino

Ā

Outline Dimensions

Ā

Resources

Wiki:Ā www.waveshare.com/wiki/0.71inch_DualEye_LCD_Module

Ā

Package Content

Weight: 0.011 kg

0.71inch DualEye LCD Module x1
SH1.0 11PIN cable x1
Convex lens (2pcs) x1

What is the display setup and resolution of this module?
It consists of two 0.71 inch round IPS displays with 160x160 resolution and 65K colors, driven by GC9D01 via SPI.
Which microcontroller boards are compatible?
It uses the SPI interface and is compatible with ESP32 and Arduino boards.
What is included in the package?
The kit includes the 0.71 inch DualEye LCD Module, SH1.0 11PIN cable, and two convex lenses.
What voltages does the module support?
The module operates at 3.3V or 5V and uses SPI for communication.
Is there a warranty or return policy for this item?
Warranty and returns depend on the seller; please review the product listing or seller policy for terms.
