IMX219 Camera Module For Raspberry Pi 5

SKU: WVSH0437

ā‚¹ 1,699.99 ā‚¹ 2,999.99

In stock | Ready to ship

Select variant

79.3Ā°
āš  Only a few left in stock. Order soon.
ā± High demand right now.
šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
IMX219 Camera Module For Raspberry Pi 579.3Ā°ā‚¹ 1,699.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

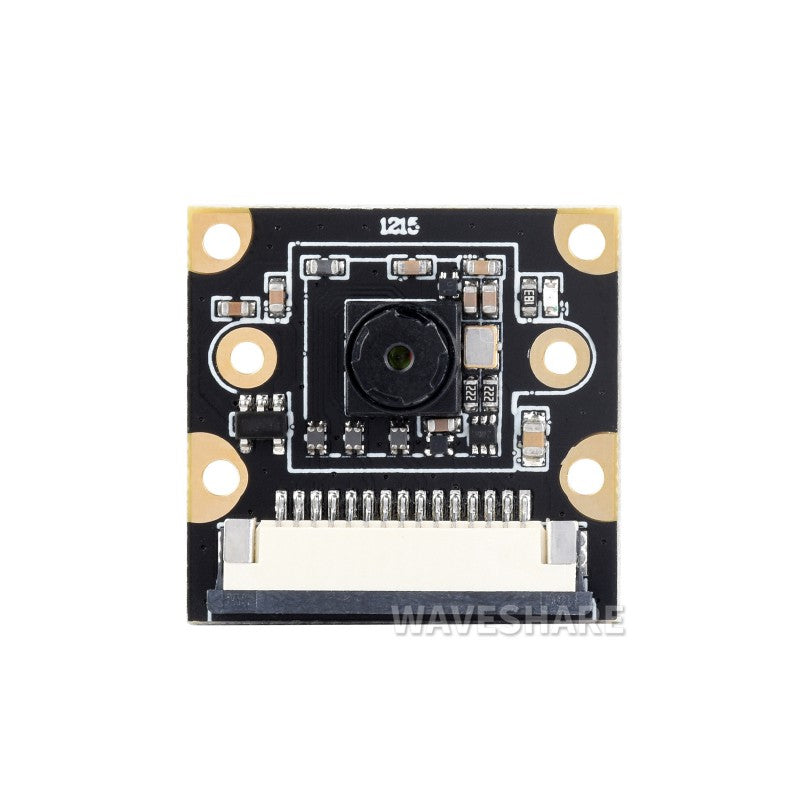

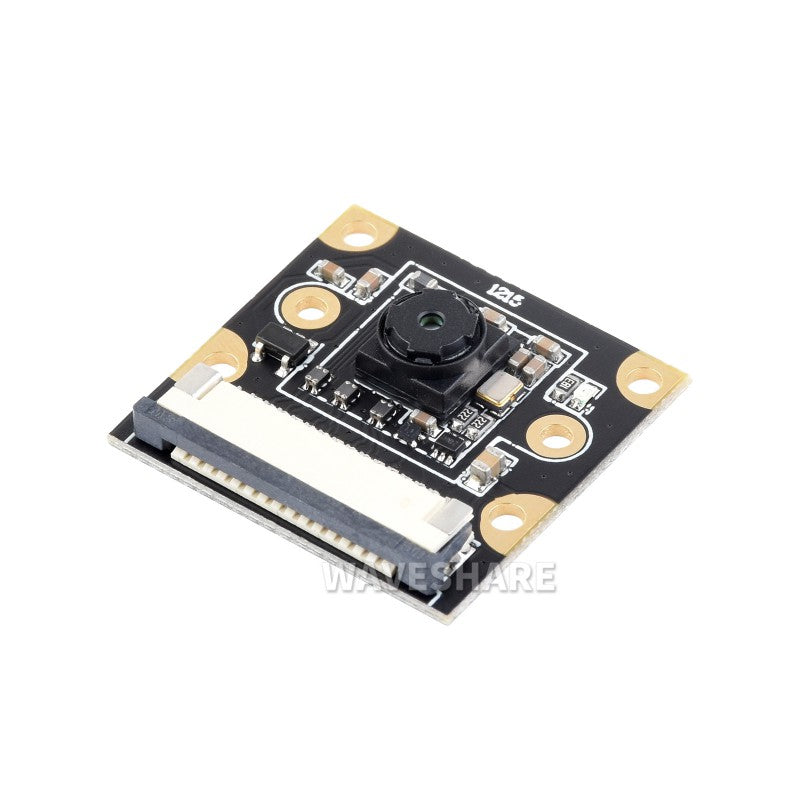

8MP Camera Module For Raspberry Pi 5

IMX219 Sensor, MIPI-CSI Interface, Options For 79.3Ā° / 120Ā° FOV

Ā Ā

Ā

Version Options

Pi5-IMX219-77
79.3Ā° FOV

Pi5-IMX219-120
120Ā° FOV

Ā

Specifications

MODEL Pi5-IMX219-77Ā  Pi5-IMX219-120Ā
PIXELS 8MP
SENSOR IMX219
RESOLUTION 3280Ɨ2464
CMOS SIZE 1/4 inch
APERTURE (F) 2.0
FOCAL LENGTH 2.85mm 1.79mm
FIELD OF VIEW 79.3Ā° 120Ā°
DISTORTION <1% <13.6%
LENS DIMENSIONS 6.5Ɨ6.5mm

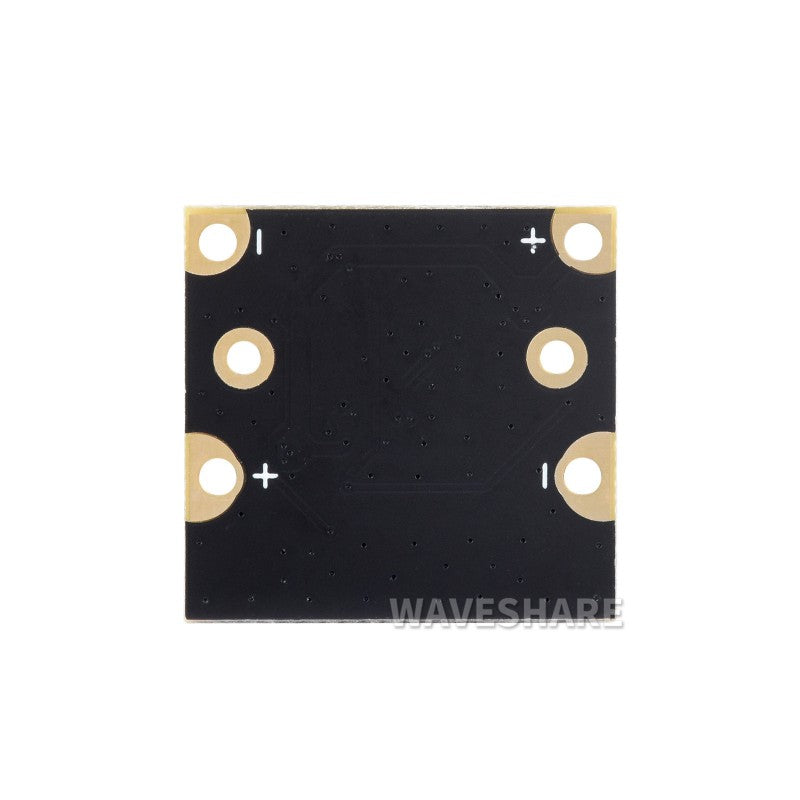

SCREW HOLES 4 Ɨ screw holes, used for attachment, provides 3.3V power output
DIMENSION 25Ɨ24mm

Ā

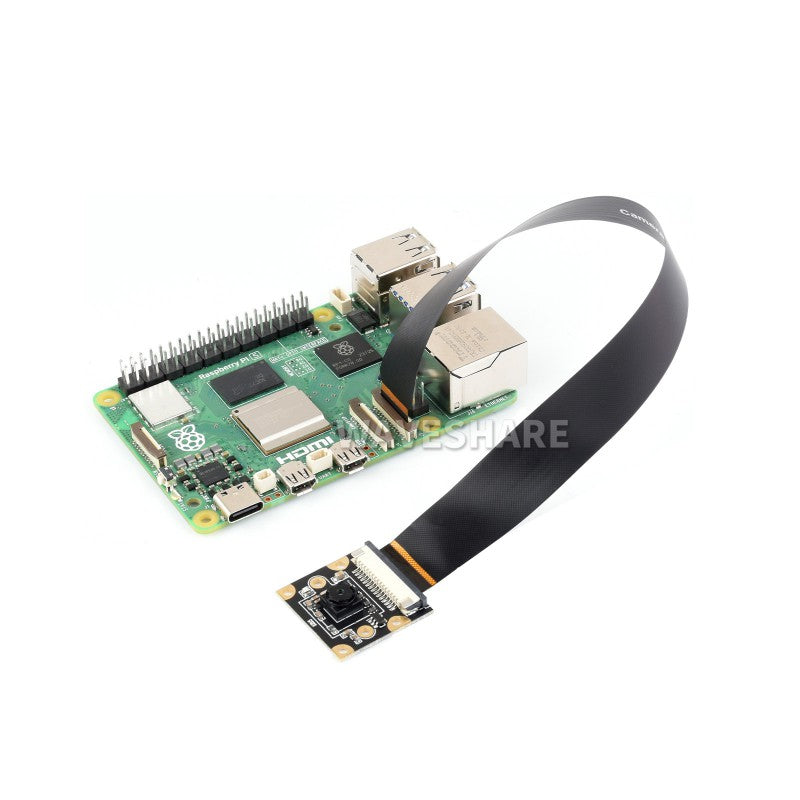

Working With Raspberry Pi 5

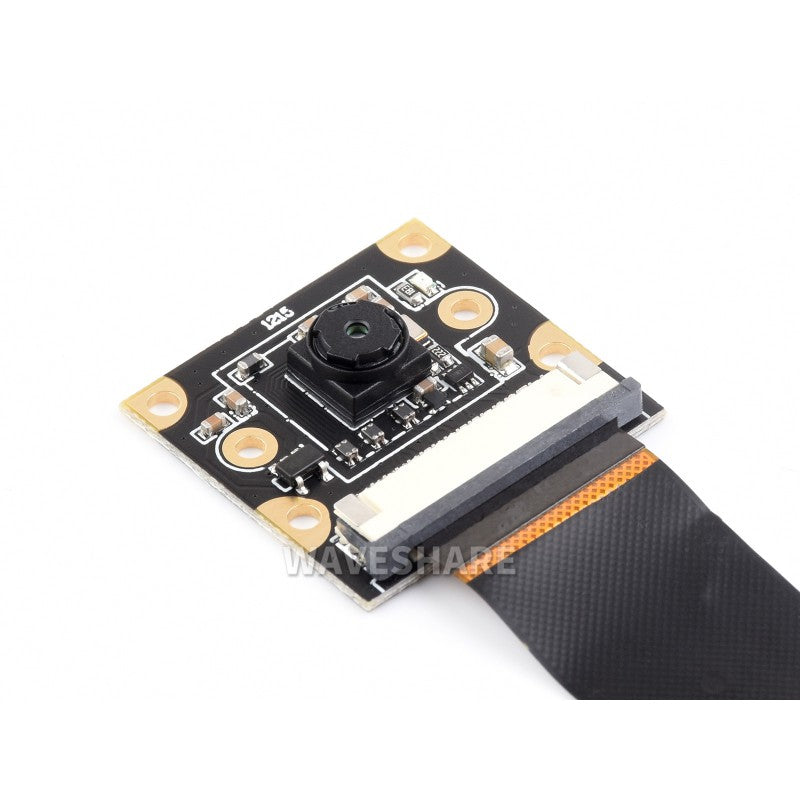

Comes With CSI Flexible Cable 200mm, Easy To Use With Raspberry Pi 5

for reference only, theĀ Raspberry Pi 5Ā is NOT included

Ā Ā

Outline Dimensions

Ā

ResourcesĀ

Wiki:Ā www.waveshare.com/wiki/Pi5-IMX219


Ā

Ā

Package Contents:

Weight:Ā 0.012 kg

Pi5-IMX219 (with Pi5-Camera-Cable-200mm) x1
Is this camera module compatible with the Raspberry Pi 5 and what interface does it use?
Yes, it is designed for Raspberry Pi 5 and uses the MIPI CSI interface for the camera signal.
What are the field of view options and how do they differ?
There are two variants: Pi5-IMX219-77 with 79.3 degree FOV and Pi5-IMX219-120 with 120 degree FOV. The 79.3 degree version has distortion under 1 percent, while the 120 degree version has distortion under 13.6 percent.
What is included in the package and what is not?
The package includes the Pi5-IMX219 camera module with a 200 mm CSI cable. The Raspberry Pi 5 is not included.
What are the main physical specifications of the module?
The module dimensions are 25 by 24 mm and the lens is 6.5 by 6.5 mm. It uses an 8 MP IMX219 sensor with a focal length of 2.85 mm for the 79.3 deg variant and 1.79 mm for the 120 deg variant, and it has 4 screw holes for attachment.
How is power supplied and what about the 3.3V output?
The module provides a 3.3V power output via the screw holes and is designed to be used with the Raspberry Pi 5 through the CSI interface.
