1.69inch LCD Display Module - 240×280 IPS 262K Colors

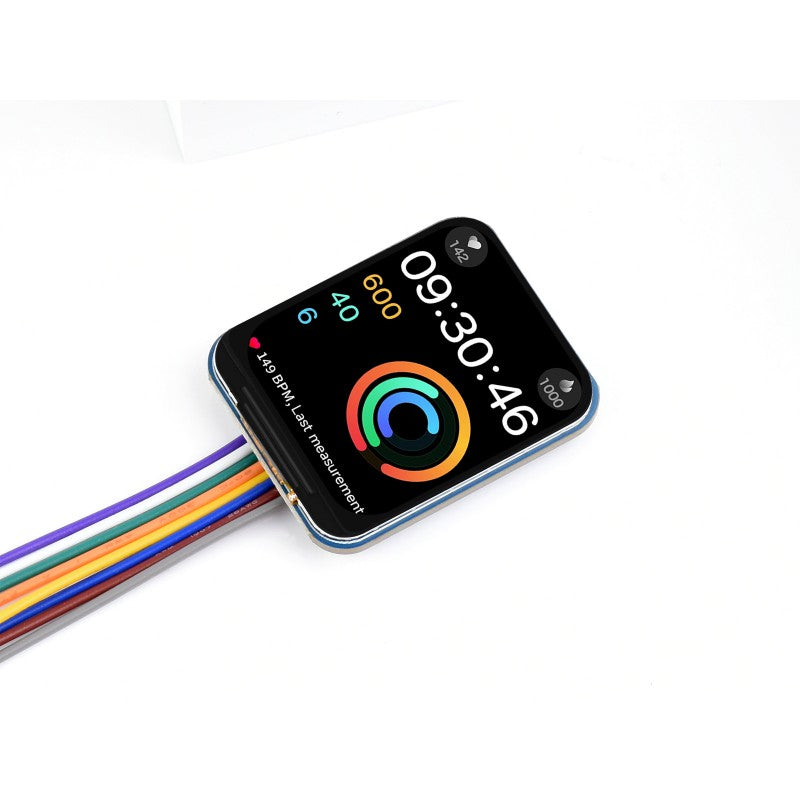

1.69inch LCD Display Module
Embedded ST7789V2 Driver Chip, Using SPI Interface
Comes with examples for Raspberry Pi, Arduino, STM32, etc.
Size
1.69"
Resolution
240×280
Display Color
262K
Interface
SPI
Display Panel
IPS
Driver
ST7789V2
Features At A Glance
240×280 resolution, 262K colors, clear and colorful displaying effect
SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)
Specifications
OPERATING VOLTAGE
3.3V / 5V
RESOLUTION
240 × 280 pixels
COMMUNICATION INTERFACE
4-wire SPI
DISPLAY SIZE
27.97 × 32.63mm
DISPLAY PANEL
IPS
PIXEL SIZE
0.11655 × 0.11655mm
DRIVER
ST7789V2
MODULE SIZE
31.50 × 39.00mm

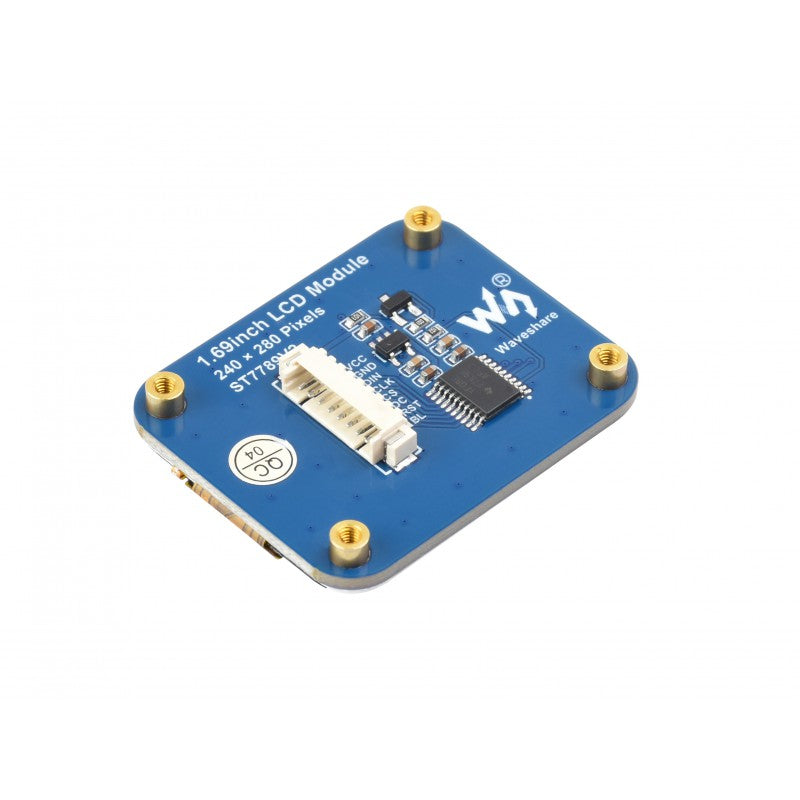

Onboard Voltage Translator
Compatible With 3.3V / 5V Power Input
Onboard SPI Control Interface
For Use With Controller Boards Like Raspberry Pi / Arduino / STM32

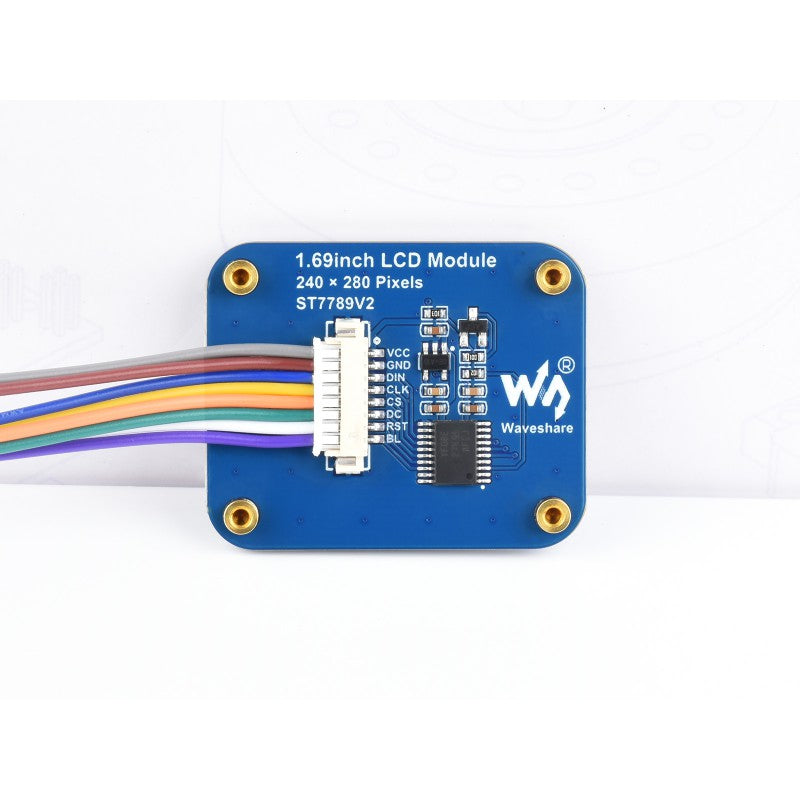

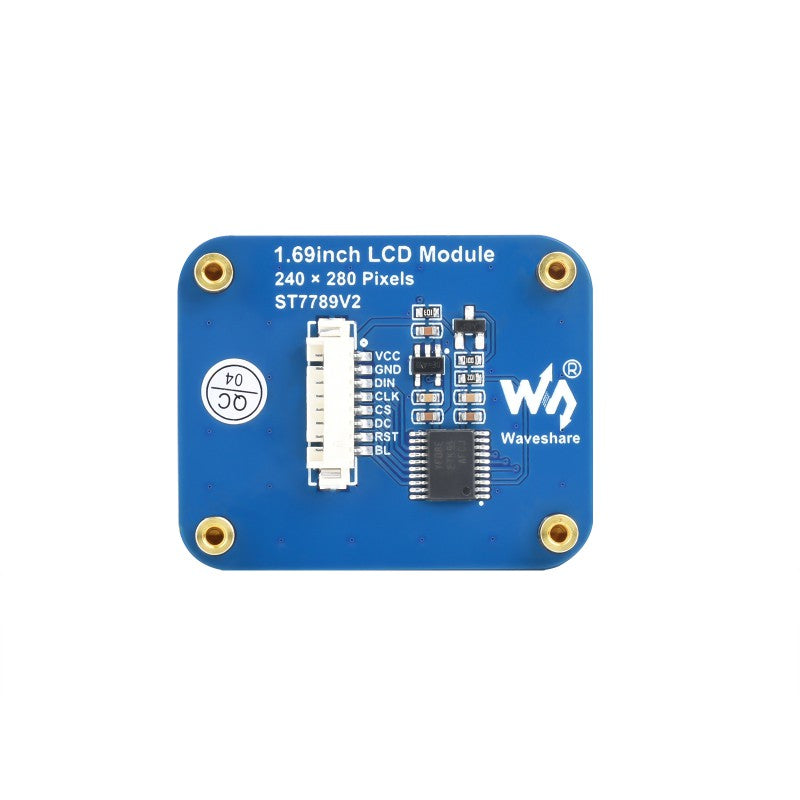

VCC
Power (3.3V / 5V input)
GND
Ground
DIN
SPI data input
CLK
SPI clock input
CS
Chip selection, low active
DC
Data/Command selection (high for data, low for command)
RST
Reset, low active
BL
Backlight
Hardware Connection
Connecting with Raspberry Pi
Connecting with Arduino board
Connecting with STM32
Dimensions
Resources
Packing List
1.69inch LCD Module x1
GH1.25 20cm 8Pin cable x1
Use left/right arrows to navigate the slideshow or swipe left/right if using a mobile device
