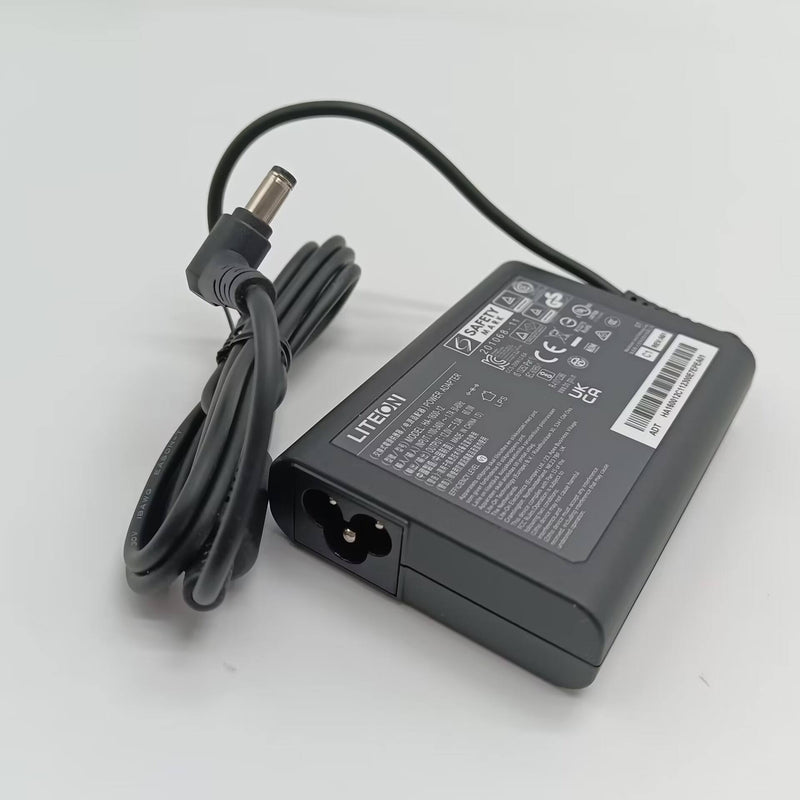

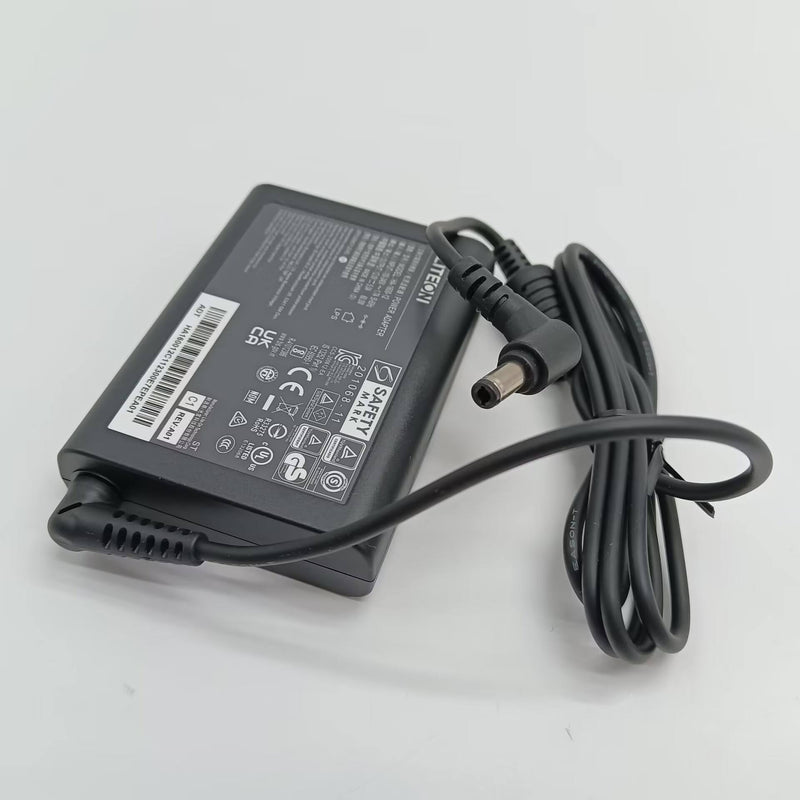

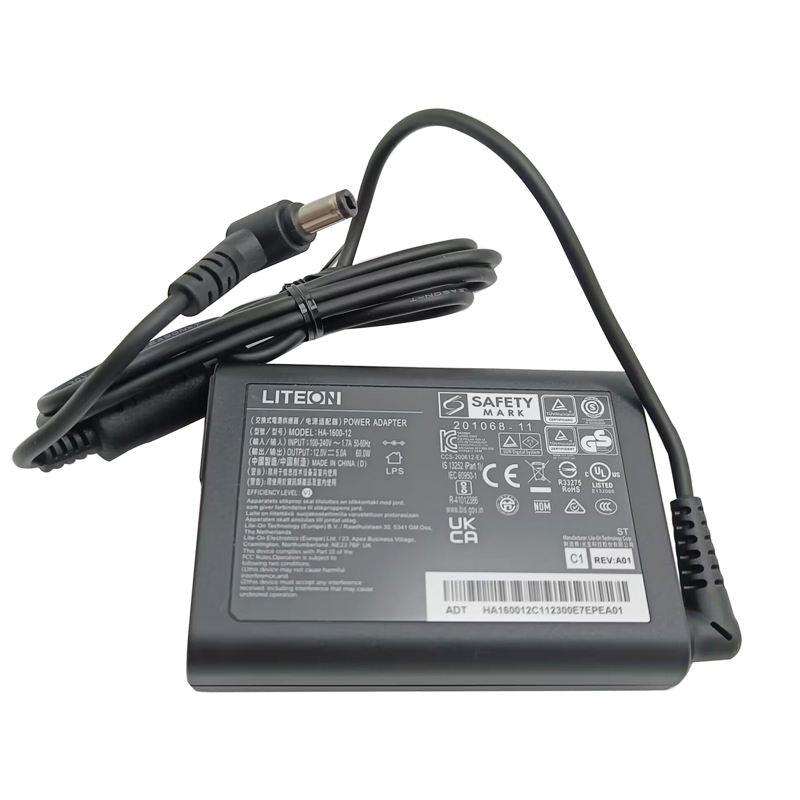

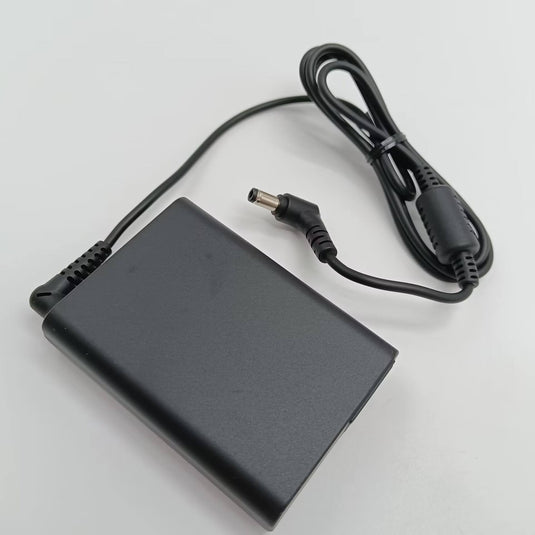

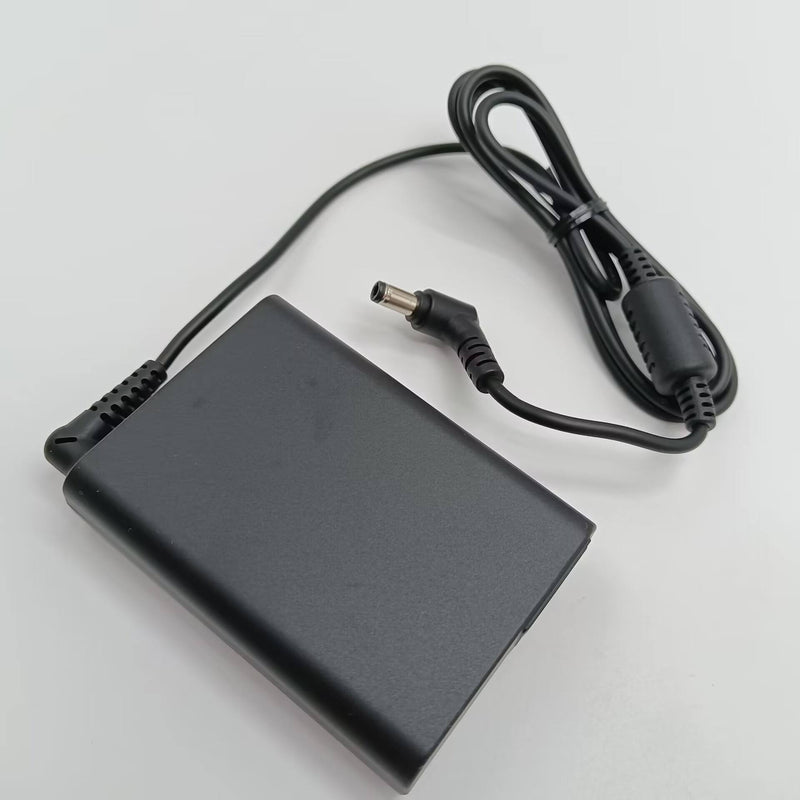

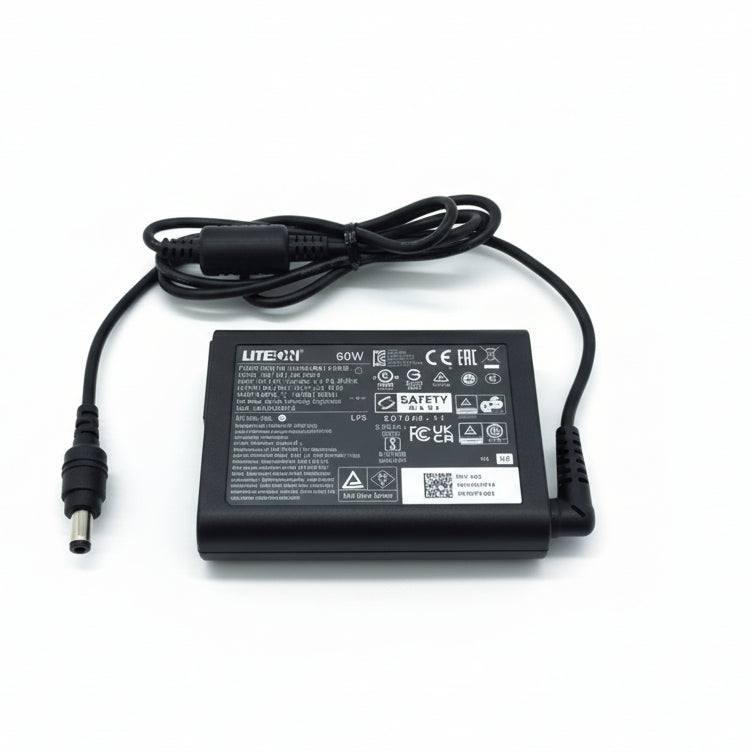

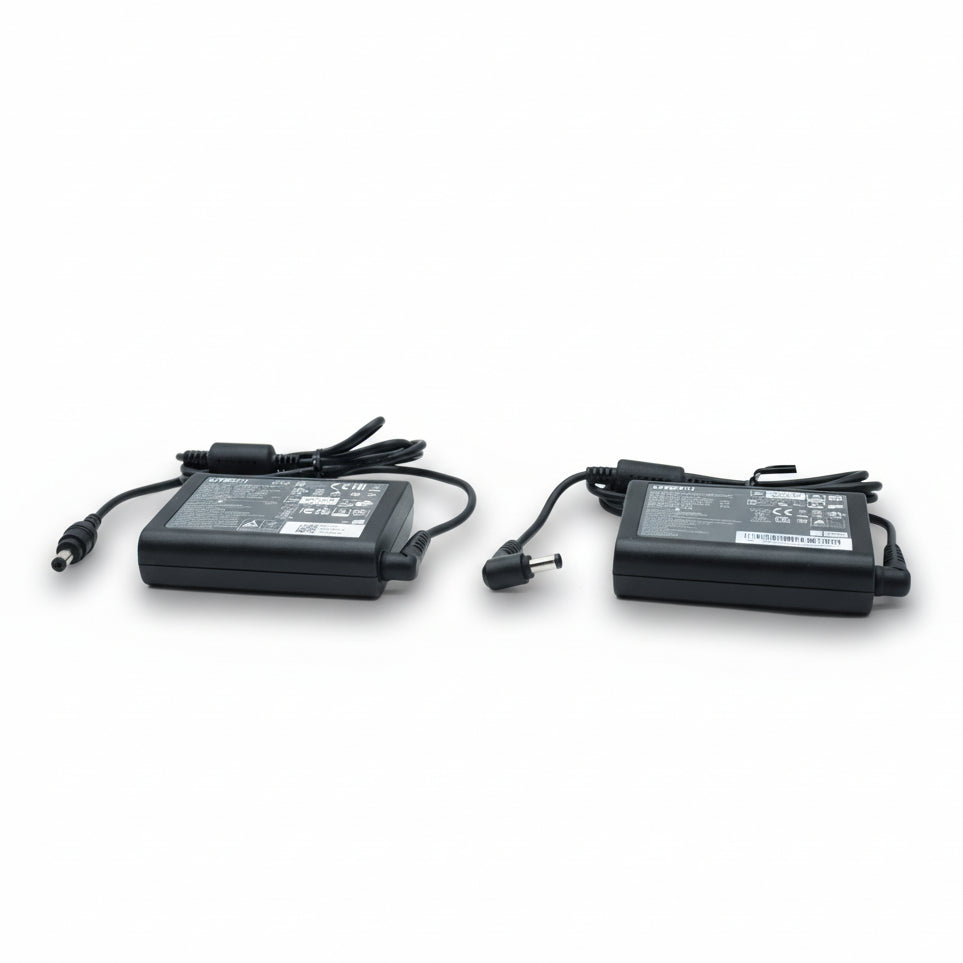

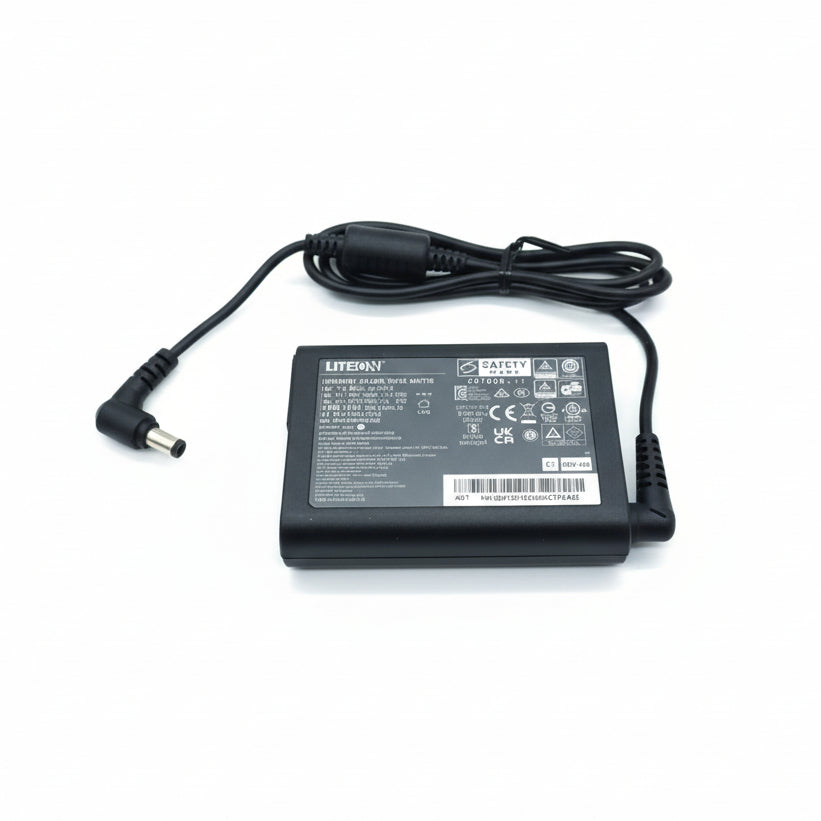

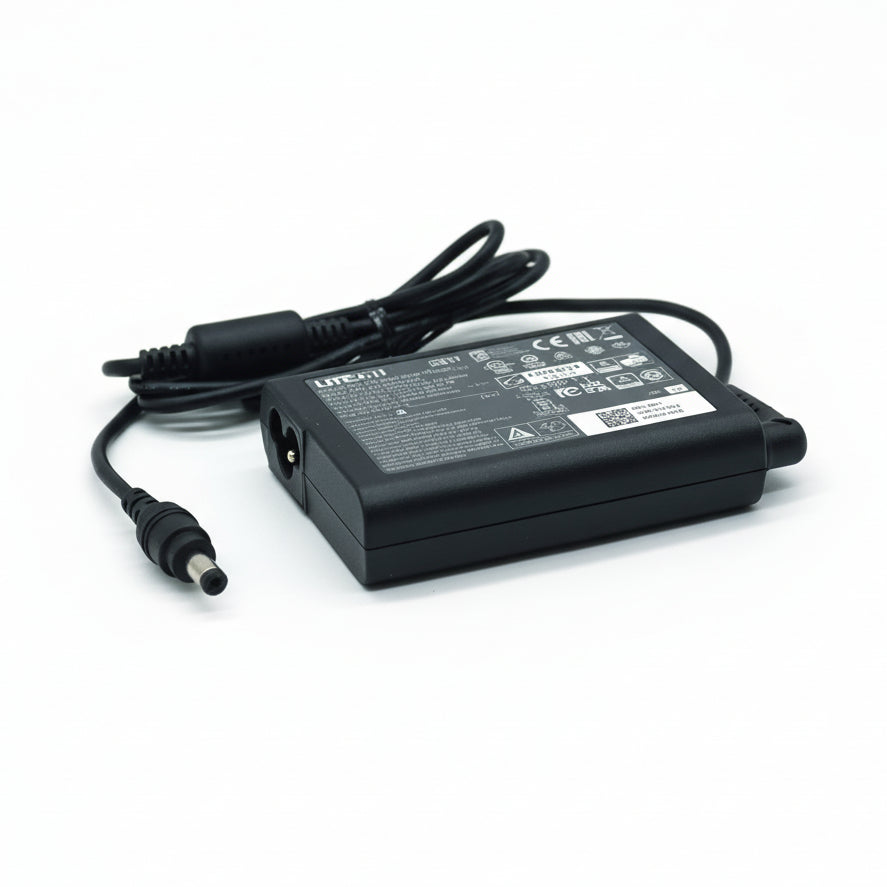

Industrial Adapter 12V Series - HA-1600-12
The Industrial Adapter 12V Series is a Class I, single-output AC to DC 60W green power adapter with a C6 inlet type. It is designed to operate over a wide AC input range of 90V–264V, delivering stable and efficient performance for ITE, industrial, and networking applications.
The adapter complies with worldwide safety and EMC regulations, ensuring reliable and safe operation across various environments.
Features

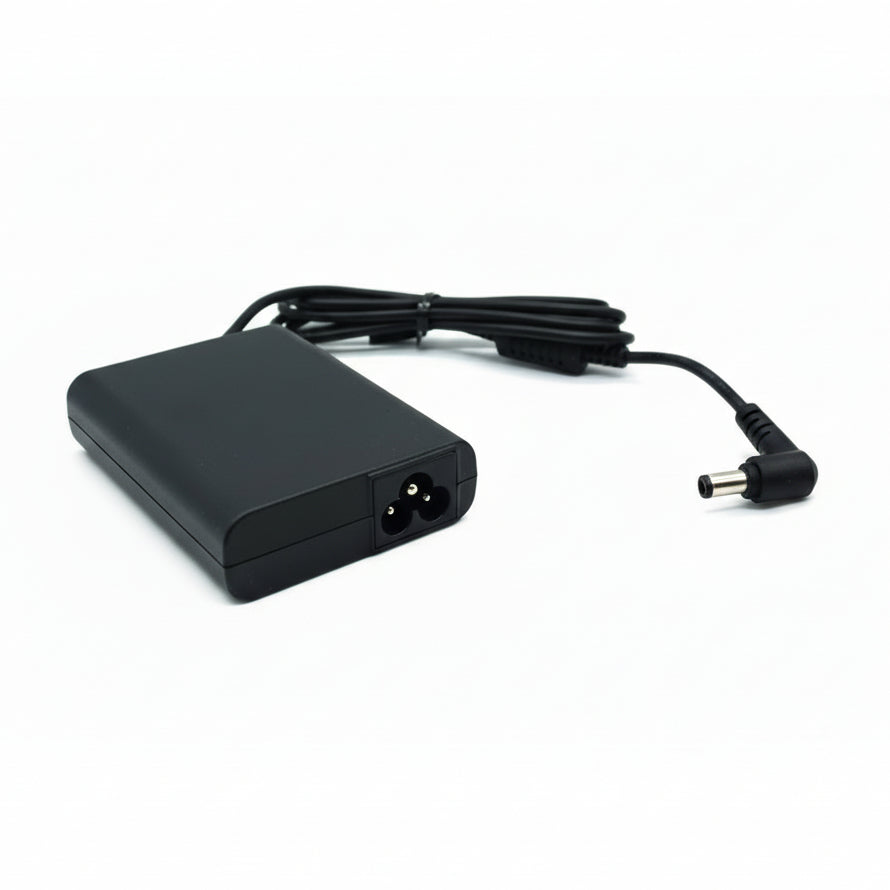

| Full AC input voltage design with C6 socket |
| Withstands 300Vac surge voltage for 5 seconds |
| Full protection functions: Short-circuit, Over-voltage, Over-current, Over-temperature |
| Energy Efficiency Level VI compliant |
| Slim and compact design |
| Multiple DC plug options available |
| Complies with IEC/EN 62368-1 design standards |
| Supports operation at altitudes up to 5000 meters |
| High reliability construction |
Electrical Specification
Model Name: HA-1600-12
| Model Name | HA-1600-12 |
| Rated Power | 60W |
| Rated Voltage | 12V |
| Rated Current | 5.0A |
| Ripple & Noise (Max.) | 300mV |
| Line & Load Regulation | ±5% |
| Hold-up Time (Typ.) | 10ms |
| Timing | AC ON Delay / Rising (Max.) – 3 sec / 30ms |
| Rated Voltage Range | 100–240Vac |
| Operating Voltage Range | 90–264Vac, 300Vac for 5 seconds |
| Current Range (Max.) | 1.7A @100Vac |
| Inrush Current | No component damaged (<I²t) |
| Frequency Range | 50–60Hz |
| Leakage Current (Max.) | 0.25mA @240Vac |
| Average Efficiency (Min.) | 89% |
| Over Voltage Protection | 150% of rated voltage, hiccup mode protection |
| Over Current Protection | 160% of rated current, hiccup mode protection |
| Short Circuit Protection | No damage, hiccup mode protection |
| Over Temperature Protection | No damage, auto recovery |
| MTBF (Min.) | 300,000 hours @ rated load |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Operating Humidity | 10%–90% RH, non-condensing |
| Storage Humidity | 5%–95% RH |
| Maximum Operating Altitude | 5000 meters |

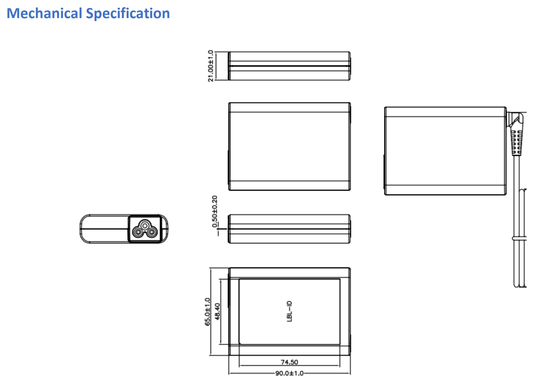

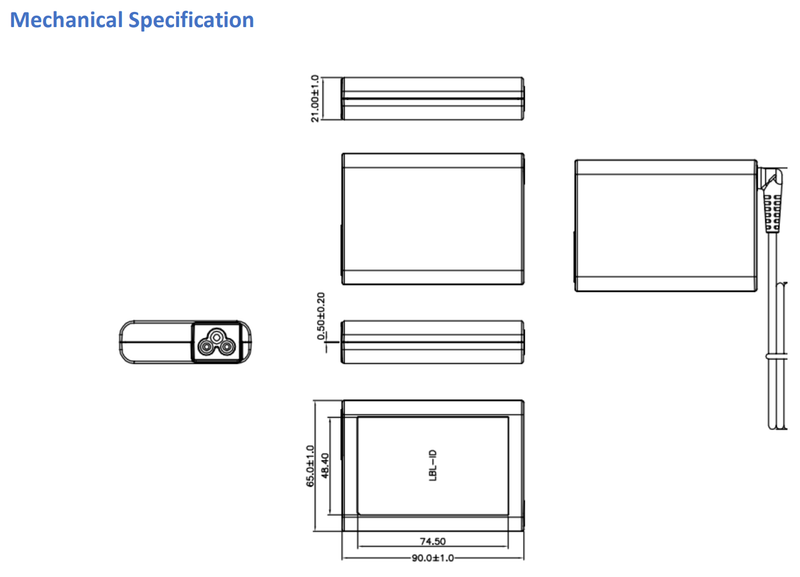

| Dimensions | 90.0 × 65.0 × 21.0 mm |
| Vibration | 10–500Hz, 5G, 20 min / axis (X, Y, Z) |
| Weight (Typ.) | 185g |
| Safety Standards | IEC/EN 60950-1, IEC/EN 62368-1, CNS14336-1 |
| Dielectric Withstand Voltage | Input–Output: 4242VDC, Input–FG: 2150VDC |
| Insulation Resistance | ≥30MΩ @500VDC, 25°C, 70% RH |
| EMC Compliance | EN55032 (CISPR32) Class B, FCC Class B, EN61000-3-2 N/A, ESD ±8kV / ±15kV, EFT ±1kV, Surge ±2kV DM / ±4kV CM, RF Immunity 3V/m, Magnetic Field 3A/m, Voltage Dip Immunity |
| DC Barrel Jack Options | 2.5mm × 5.5mm, 2.1mm × 5.5mm |
Notes
- All specifications are defined at 230Vac / 50Hz, rated power, and 25°C ambient temperature, unless otherwise specified.
- Ripple noise is measured with a 30cm twisted wire, using 0.47µF MLCC & 47µF low-ESR capacitor.
- MTBF calculated according to Telcordia SR332 at 25°C ambient temperature.
- For operating altitudes above 2000m, the temperature derating factor is 0.36°C per 100m.
- Refer to the ambient temperature derating curve for output load variation.
Resources
Package Includes
1x Power Adapter
Note: Power cord is not included in the box.
