Raspberry Pi 256GB NVMe SSD Kit with M.2 HAT

For Raspberry Pi 5

Bypass the speed limitations and read/write cycle degradation of standard memory cards with the Raspberry Pi 5 Waveshare HAT with 256GB NVMe SSD Kit. This specialized expansion package is built for makers, engineers, and developers who already own a Raspberry Pi 5 motherboard and want to drastically enhance its storage capabilities. By pairing a genuine Waveshare M.2 NVMe PCIe expansion hardware interface with a high-speed 256GB solid-state drive, this bundle brings desktop-class data transfer rates to your micro-computing platform.

Whether you are configuring lightweight database hubs, compiling extensive code repositories, or running persistent server operations, this upgrade bundle delivers the hardware framework required to establish a robust NVMe storage pipeline over the Pi 5’s onboard PCIe connection.


Key Features & Bundle Specifications

Seamless Hardware Bridging The included Waveshare expansion board fits precisely over the mechanical layout of your board, anchoring to the mounting points while leaving structural lines open.
High-Density Performance Storage The 256GB NVMe SSD introduces massive data longevity and file access improvements, allowing the system to handle heavy input/output tasks smoothly.
Impedance-Matched Ribbon Connection Shipped with a flexible flat cable explicitly designed to handle high-frequency PCIe signaling paths safely, preventing data corruption or signal loss.
Unrestricted Component Access The expansion HAT is mechanically shaped to protect spatial layouts, allowing you to mount matching active cooling fans or passive heatsinks beneath the expansion board line.



Key Hardware Specifications

Parameter Technical Detail
Processor Speed 2.4 GHz Quad-Core 64-bit ARM Cortex-A76 (Broadcom BCM2712)
Installed Memory Options available in 4GB / 8GB LPDDR4X-4267 SDRAM
Video Out / Display Ports 2 × micro HDMI Video Ports (Supports Dual 4K@60Hz Displays with HDR)
Storage Capacity 256GB M.2 2230 NVMe PCIe SSD (Pre-installed)
Expansion Interface Official Raspberry Pi M.2 HAT+ (PCIe 2.0 x1 interface)
Storage Performance Up to 40K IOPS (4KB random read) / 70K IOPS (4KB random write)
Wireless Connectivity Dual-Band 2.4GHz / 5.0GHz Wi-Fi & Bluetooth 5.0 / BLE
USB Connectivity 2 × USB 3.0 (5Gbps simultaneous) & 2 × USB 2.0 Ports
Camera / Display Connectors 2 × 4-lane MIPI Transceivers (Dual Camera / Display support)
Power Requirements 5V / 5A DC via USB-C with Power Delivery (PD) support



Common Applications

Micro-Server Operating Upgrades The necessary storage accessory kit to convert standard developer boards into low-latency web hosts, local Git servers, or home automation controllers.
High-Speed Database Compilation Drastically reduces block read/write delay barriers during persistent SQL/NoSQL testing or intensive structural Python script loops.
Media Server Cache Acceleration Provides the rapid data throughput overhead required to store, fetch, and stream digital files across regional home network topologies.

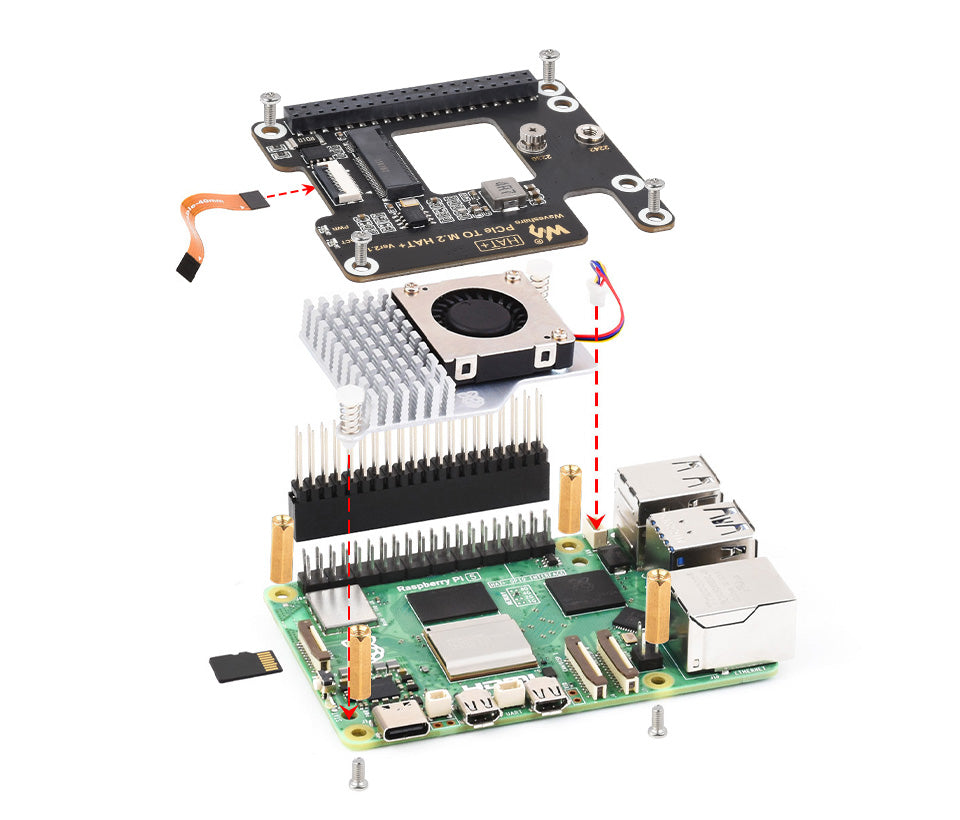

How to Install

PCIe TO M.2 HAT+, how to install



Outline Dimensions

PCIe TO M.2 HAT+, outline dimensions

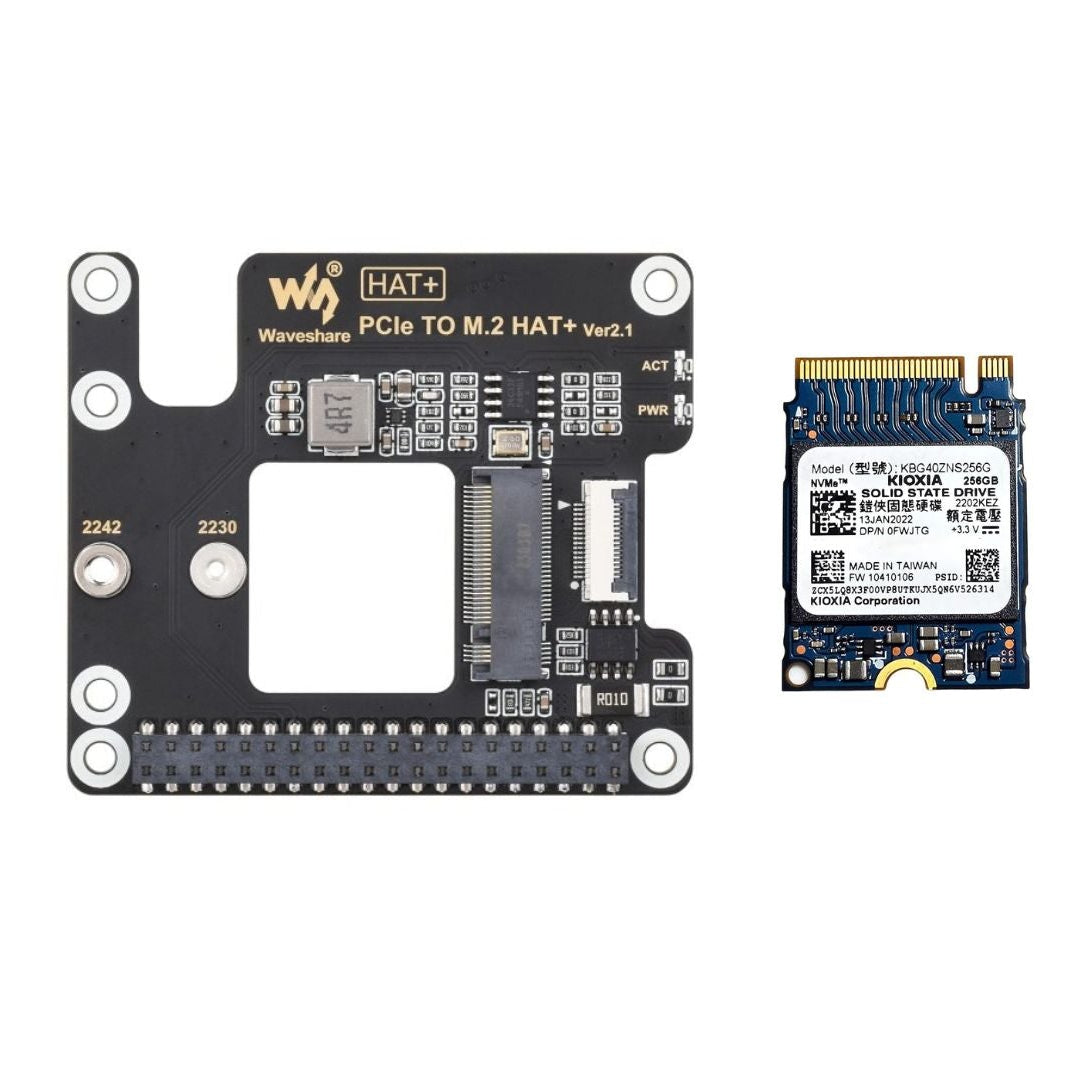

Part List

Waveshare M.2 NVMe PCIe Expansion HAT X1
256GB High-Speed M.2 NVMe Solid State Drive (SSD) X1
16-Pin Flexible Flat Cable (FFC) X1
Factory Mounting Standoff & Screw Pack X1

Note: The primary Raspberry Pi 5 motherboard computer, power supply, and active cooler are sold separately.

Is this kit compatible with the Raspberry Pi 5?
Yes. The kit is designed for Raspberry Pi 5 and comes with the M.2 HAT+ and a 256 GB NVMe SSD pre installed. The Raspberry Pi 5 board is not included and you connect it using the included header, spacers, and screws.
What is included in the kit?
The kit includes the Raspberry Pi M.2 HAT+ with PCI E cable, a 256 GB NVMe SSD pre installed, a 16 mm GPIO stacking header, and nylon standoff and screw set. Spacers are included to secure to the Raspberry Pi 5 and an active cooler can be used underneath.
What are the performance specifications?
The drive supports 40k IOPS for 4kB random reads and 70k IOPS for 4kB random writes. It enables fast startup when booting from the SSD and is suitable for IO intensive applications.
Do I need to assemble anything before use?
No. The SSD is pre installed to the M.2 HAT+ and the kit is ready out of the box to connect to your Raspberry Pi 5.
What are the operating conditions and production status?
Operating temperature is 0 to 50 C ambient. The Raspberry Pi SSD Kit will remain in production until at least January 2032.
