RP2350-USB-C
Mini Development Board

Based on Raspberry Pi RP2350A

Castellated module, suitable for SMD applications

RP2350-USB-C Mini Development Board, front view and features

Board specifications

RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
Adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz
Built-in 520KB Static RAM, with onboard 2MB Flash
Type-C port for easier use
Supports power supply via Type-C port (PD compatible)
Castellated module allows soldering directly to carrier boards
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB
Adapting 15 × multi-function GPIO pins from the RP2350A
2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, and 14 × controllable PWM channels
Accurate clock and timer on-chip
Built-in temperature sensor for real-time monitoring of chip temperature
12 × Programmable I/O (PIO) state machines for custom peripheral support

Version Options

RP2350-USB-C Mini Development Board, dual-core, dual-architecture design

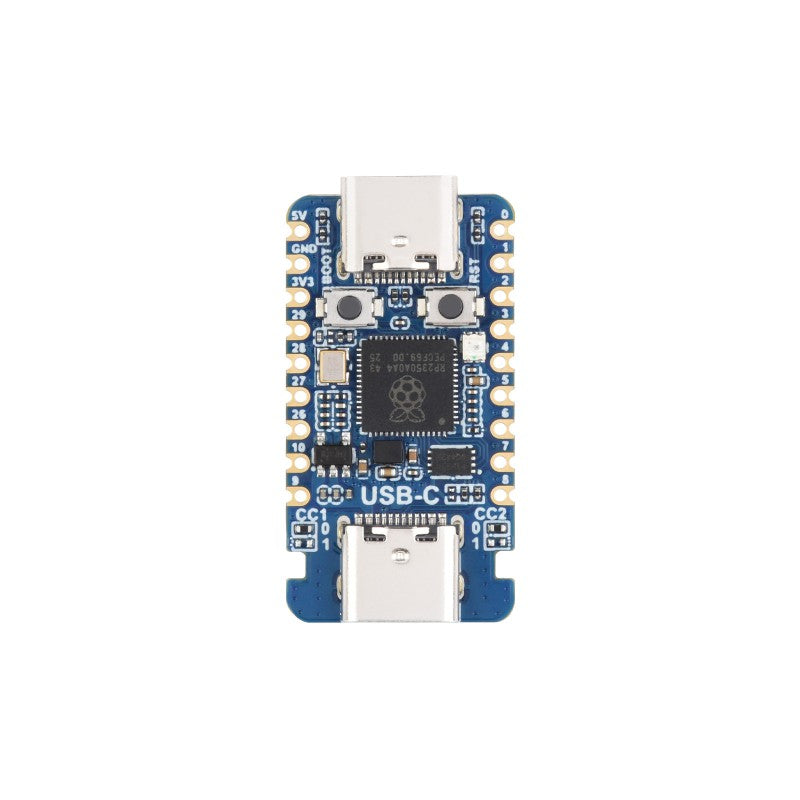

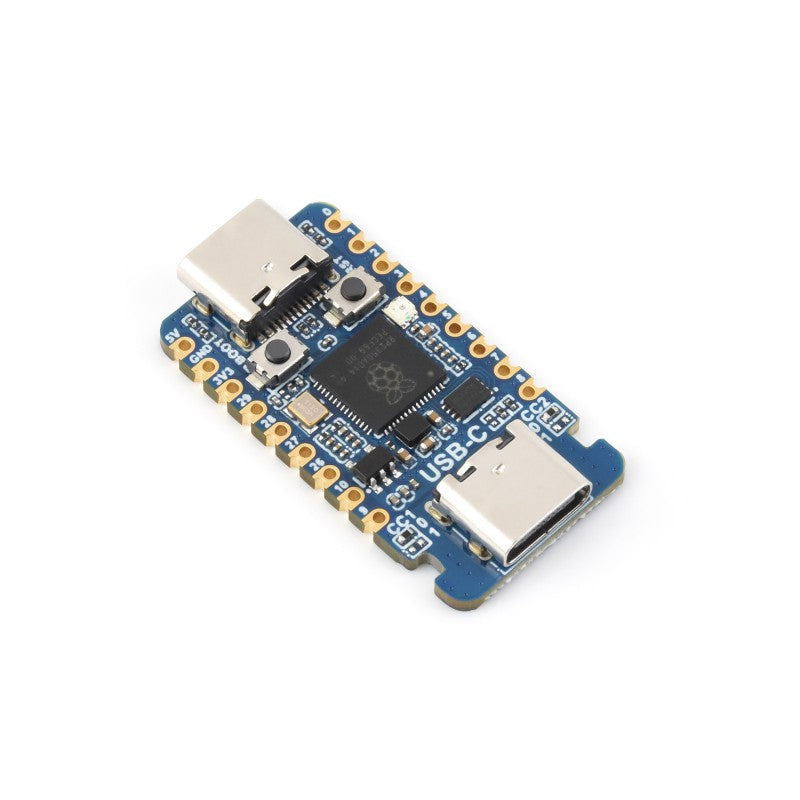

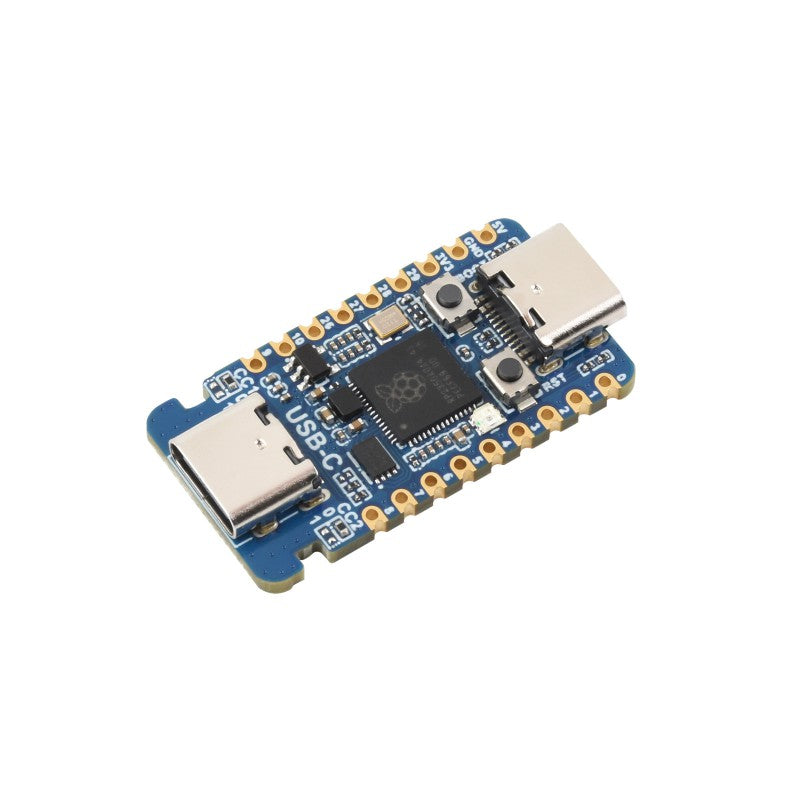

RP2350-USB-C
with PIO-USB female port

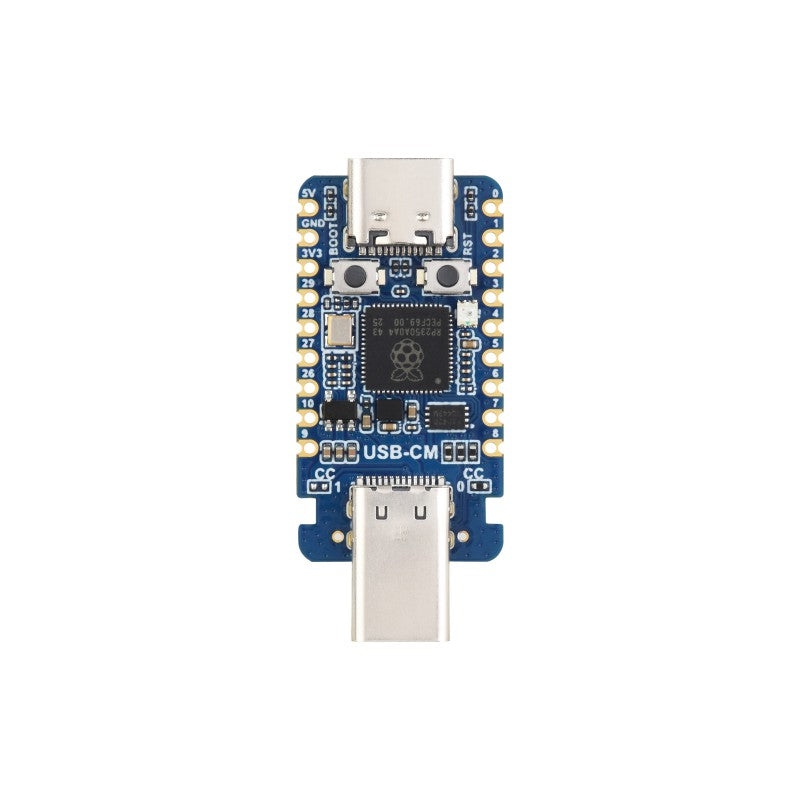

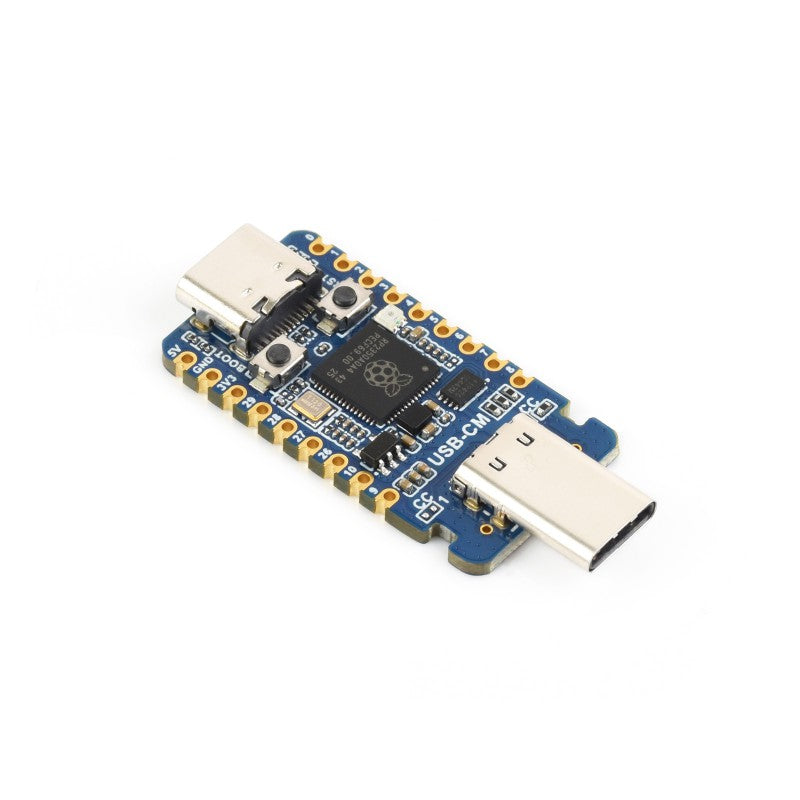

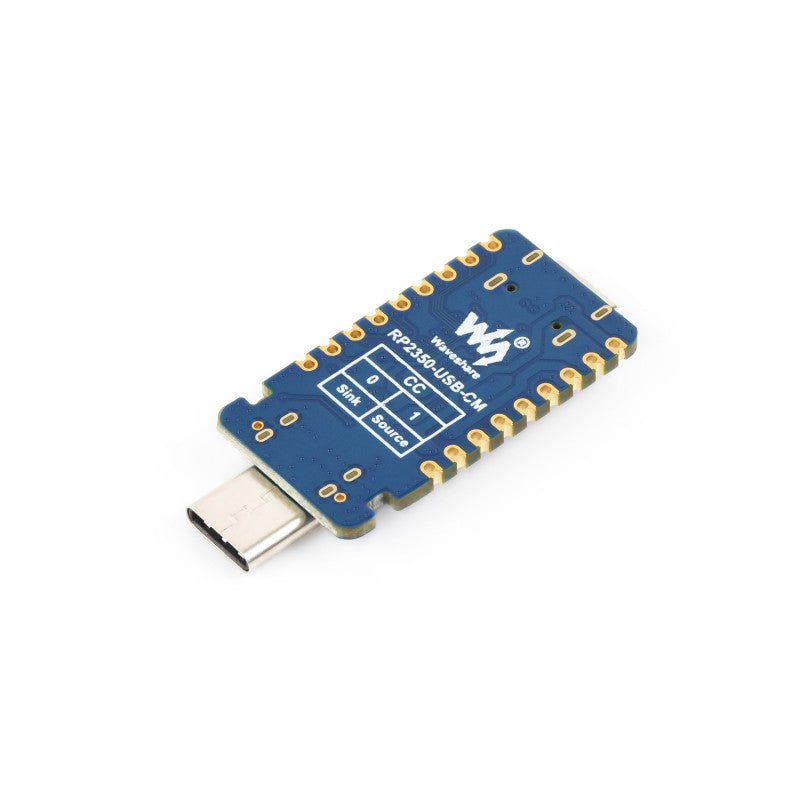

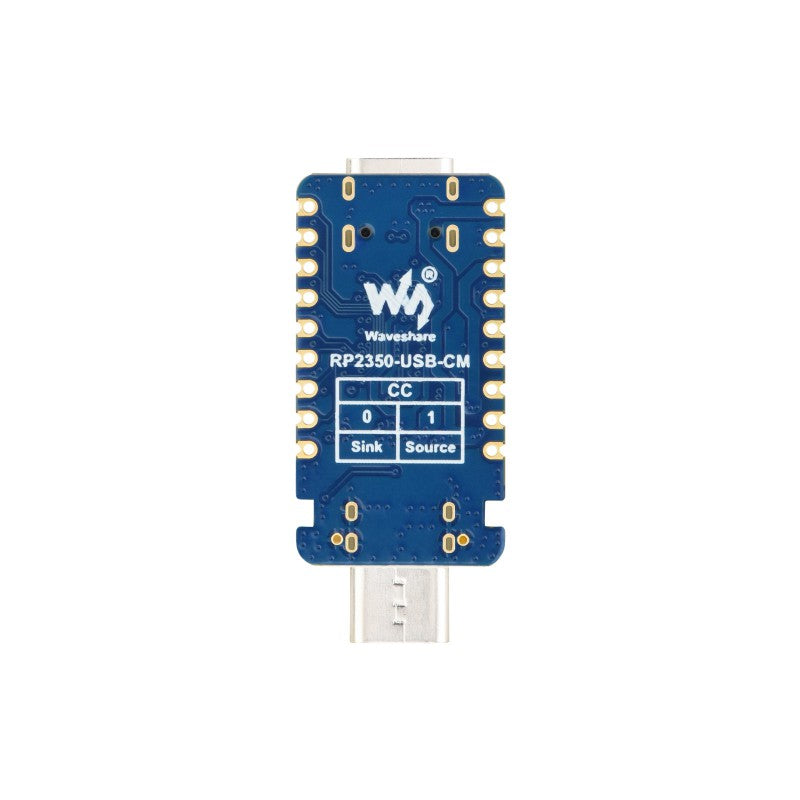

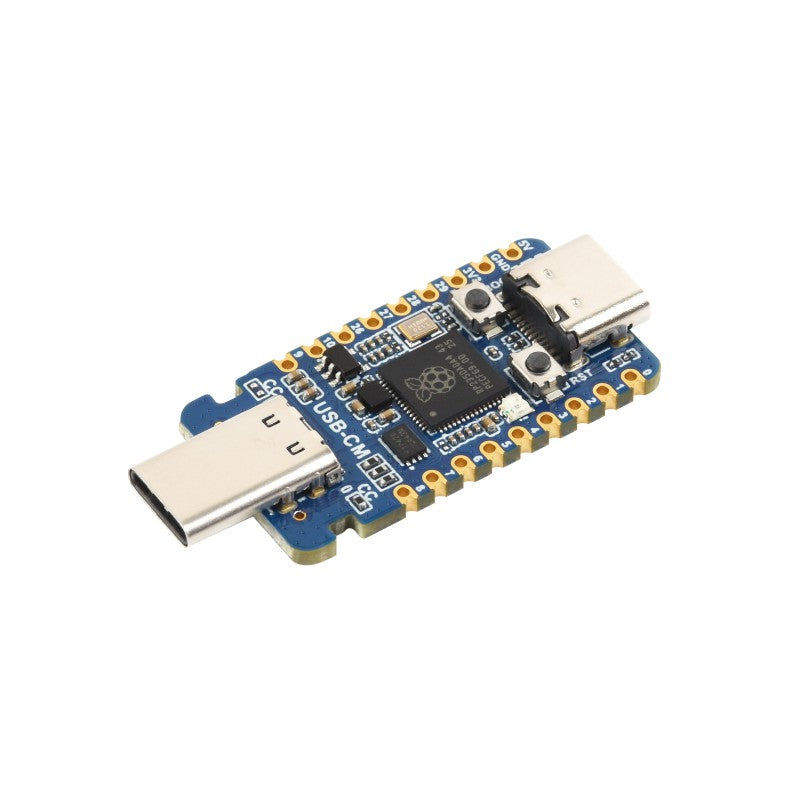

RP2350-USB-CM
with PIO-USB male port

C/C++, MicroPython, Arduino support

Comprehensive SDK, dev resources, tutorials to help you easily get started

RP2350-USB-C Mini Development Board, C/C++, MicroPython support

Dual-core, dual-architecture

The unique dual-core, dual-architecture capability of RP2350A allows users to choose between a pair of industry-standard ARM Cortex-M33 cores, and a pair of open-hardware Hazard3 cores, giving developers a chance to experiment with the RISC-V architecture in a stable, well-supported environment

15 × multi-function GPIO pins

Configurable pin function, allows flexible development and integration

What's On Board

RP2350-USB-C Mini Development Board, onboard components

RP2350A
Dual-core and dual-architecture design, up to 150MHz operating frequency
W25Q16JVUXIQ
2MB NOR Flash

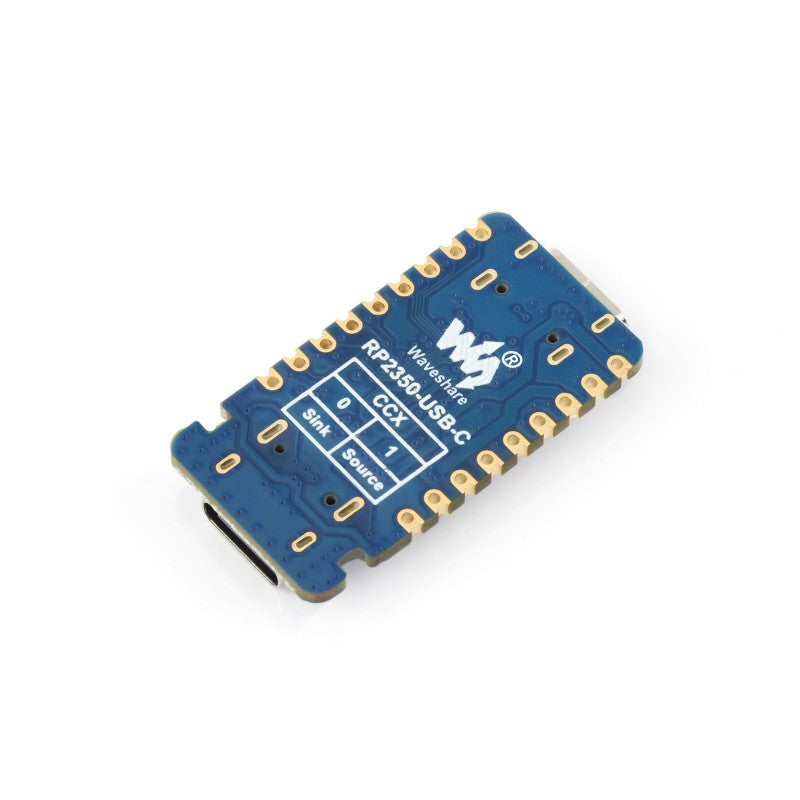

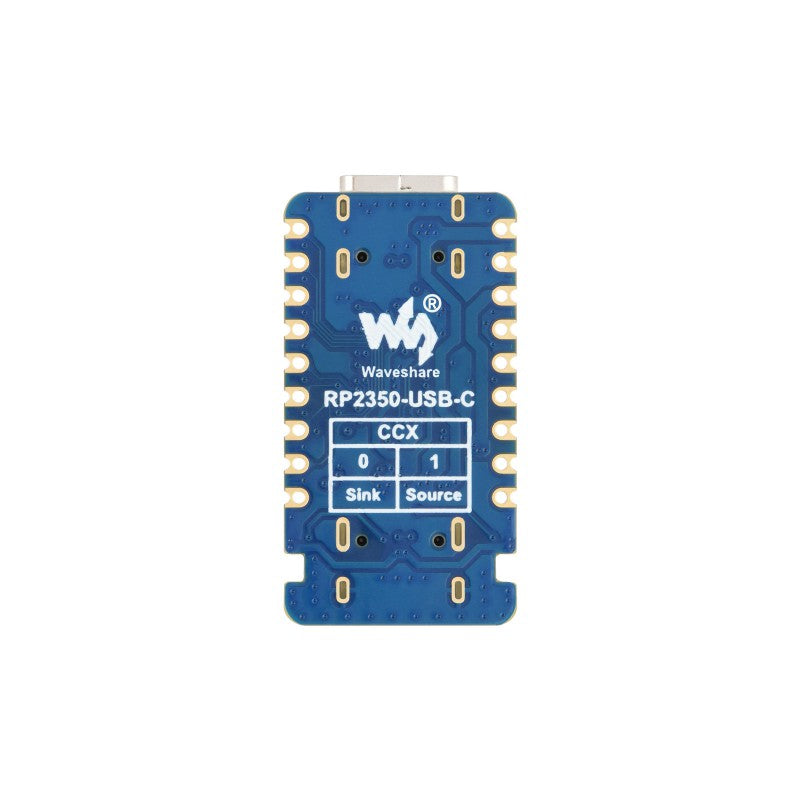

PIO-USB CCX pull-up/pull-down resistors
supports Sink / Source switching via resistor configuration
RT9013-33GB
500mA low dropout, low noise, ultra fast LDO
BOOT button
press it when resetting to enter download mode

USB Type-C port
for downloading programs, USB 1.1 with device and host support
RUN reset button
WS2812
cool RGB LED
PIO-USB (Type-C female port)
for using as a USB host or device via PIO
PIO-USB (Type-C male port)
for using as a USB host or device via PIO

Outline dimensions

Resources & Services

Wiki: docs.waveshare.com/RP2350-USB-C

Weight: 0.004 kg

Package Content

RP2350-USB-C

RP2350-USB-C x1

RP2350-USB-CM

RP2350-USB-CM x1

What is the RP2350 USB-C Mini Development Board and what is the RP2350A chip?

The board is a microcontroller development board based on the RP2350A chip designed by Raspberry Pi. It features a dual core dual architecture with options for ARM Cortex-M33 or Hazard3 RISC-V processors running up to 150 MHz, plus 520 KB SRAM and 2 MB Flash.

How is the board powered and how do I program it?

Power is supplied via the Type-C port and is PD compatible. Programming is done by drag and drop over USB mass storage, with no separate programmer needed.

What IO options does the board provide?

The board exposes 15 multi function GPIO pins, plus 2x SPI, 2x I2C, 2x UART, 4x 12-bit ADC, and 14 PWM channels, through a castellated module for SMD mounting.

What is a castellated module and how can I use it?

Castellated modules allow soldering directly to carrier boards, enabling compact SMD style integration and easy mounting in custom projects.

What USB capabilities and peripherals are supported?

The board supports USB 1.1 with device and host support and enables drag and drop programming via USB mass storage, in addition to USB C connectivity for power and data.
