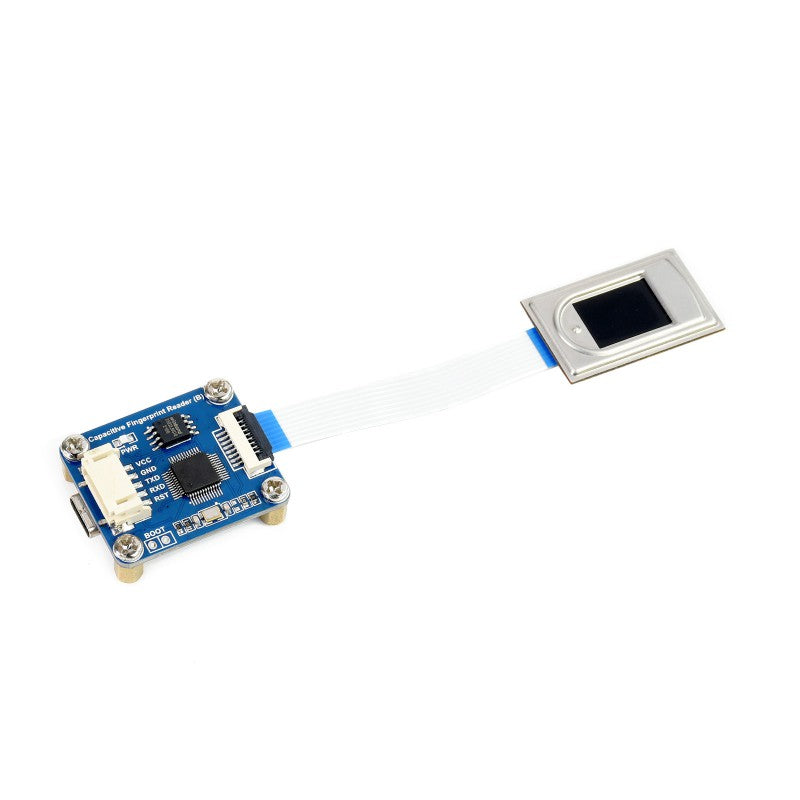

High precision Capacitive Fingerprint Reader, UART/USB dual ports
High Precision Capacitive Fingerprint Reader, UART/USB Dual Ports
Precise Fingerprint Identification | UART/USB Dual Ports
Features
The Capacitive Fingerprint Reader (B) is a fast and stable capacitive fingerprint module specialized for secondary development, suits integration applications.
Easy to use by some simple commands, you don't have to know any fingerprint technology, or the module inter structure/calculation
Commercial fingerprinting algorithm, stable performance, fast identification
Sensitive detection, just touch the collecting window lightly, without pressing
Allows to freely input/output fingerprint images, fingerprint feature file and other fingerprinting actions
Dual communication, UART or USB
Comes with rich development resources (related command documents, tools, and examples for Raspberry Pi/Arduino/STM32)
Specifications
PARAMETER
VALUE
Sensor Semiconductor (capacitive)
Module dimension 34 × 28.5mm

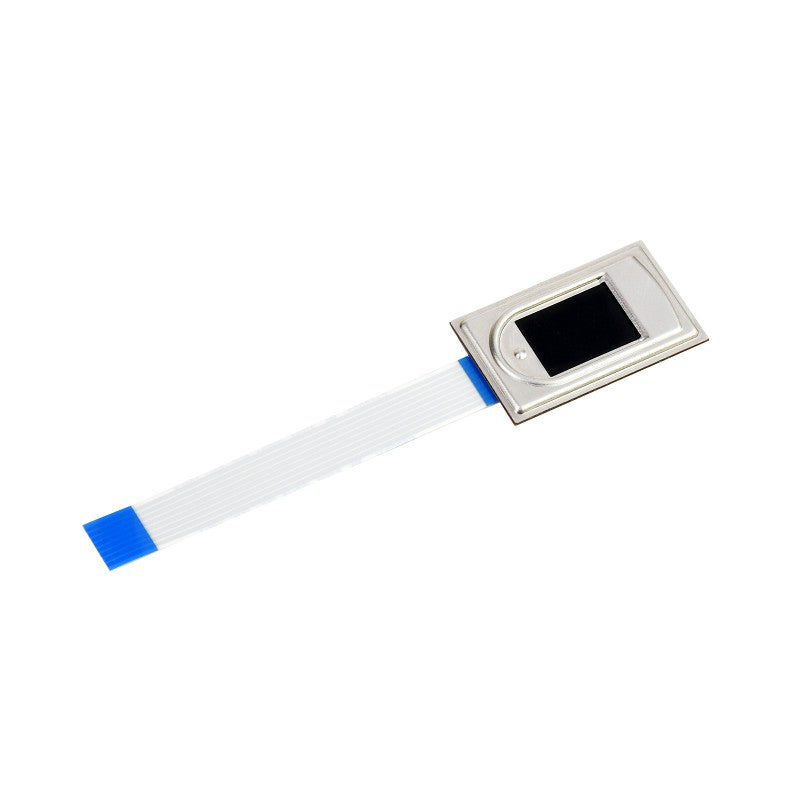

Sensor dimension 33.4 × 20.4mm
Image DPI 508
Image resolution 208 × 288
Greyscale 256 (8-bit)
Sensing area 14.6 × 10.6mm
Fingerprint capacity 3000
Security level 1-5 configurable, 3 by default
Encryption key 64-bit encryption
Image collecting rate 20fps
Matching time 0.5s
Dynamic current <40mA
Operating voltage 3.3-5V
Communication port UART or USB
ESD SD IEC 61000-4-2 LEVEL 4 positive/negative 15KV air discharge
Baudrate configurable: 9600, 19200, 38400, 57600, 115200, 230400, 460800, 921600bps
Application Examples
Fingerprint Lock, Fingerprint Safe Deposit Box, Access Control System, Clock In And Out...
Outline Dimensions
