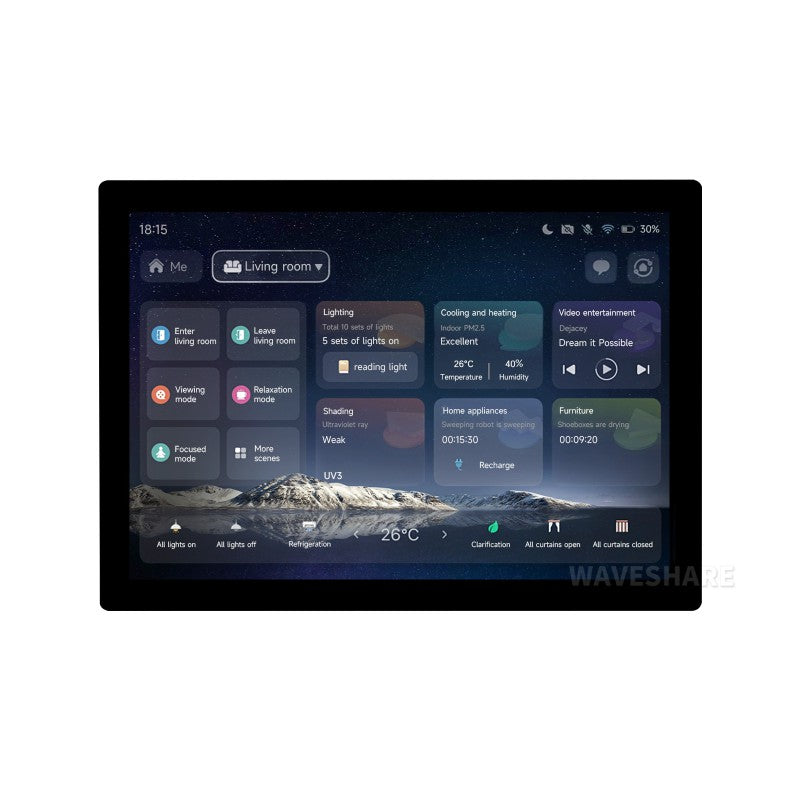

14″ 2K Capacitive Touch Display
High Resolution | Full Color | 10-Point Touch
Size
14″ |
Resolution
2160×1440 |
Display Interface
HDMI/Type-C/DP |
Display Panel
IPS |
Viewing Angle
178° |
|||||
Touch Type
Capacitive |
Touch Points
10-Point |
Touch Port
USB Type-C |
Touch Panel
Toughened Glass |
Touch Panel Tech
Optical Bonding |
|||||
OSD Menu
Brightness/Contrast |
Brightness
DCC/CI Control |
Audio Output
3.5mm Jack |
Audio Output 2
4PIN Header |
Brightness
400cd/㎡ |
|||||
Smartphone
Huawei/Samsung/OPPO... |
VESA Wall Mount
75 × 75mm |
||||||||
Device System Support
 |
Raspberry PiSupports Raspberry Pi OS, 10-point touch, driver free Jetson NanoSupports Ubuntu, single point touch, driver free PCSupports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free SmartphoneHuawei, Samsung, OPPO...(wired projection) |
Automatic Recognition Of Three Signal Sources
Supports Automatic Recognition Of HDMI / DP / Type-C Signal Sources
* for reference only, please refer to the package content for the detailed part list.
Connection Examples
Working With Raspberry Pi 5
Working With Jetson Series Board
Working With Mini PC
Working With Laptop
Working With Smartphone
- Please make sure that the laptop or smartphone itself features a full-featured Type-C interface
- For reference only, the above controller boards or hosts are NOT included
Wide Viewing Angle IPS Display Panel
Excellent Display & Color Performance
Wide Viewing Angle Up To 178°, Color Gamut Up To 72% NTSC
100% SRGB Covers More Gamut Area Of Red, Green And Blue, Designer-Professional-Grade Color Gamut
10-Point Capacitive Touch
- up to 10-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
- Optical bonding, display well and dustproof

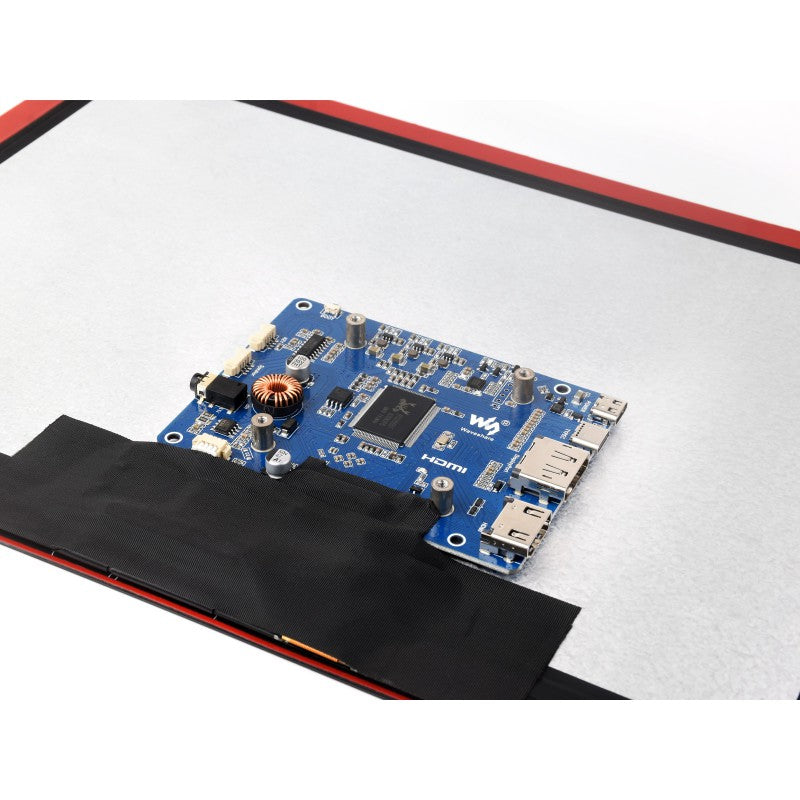

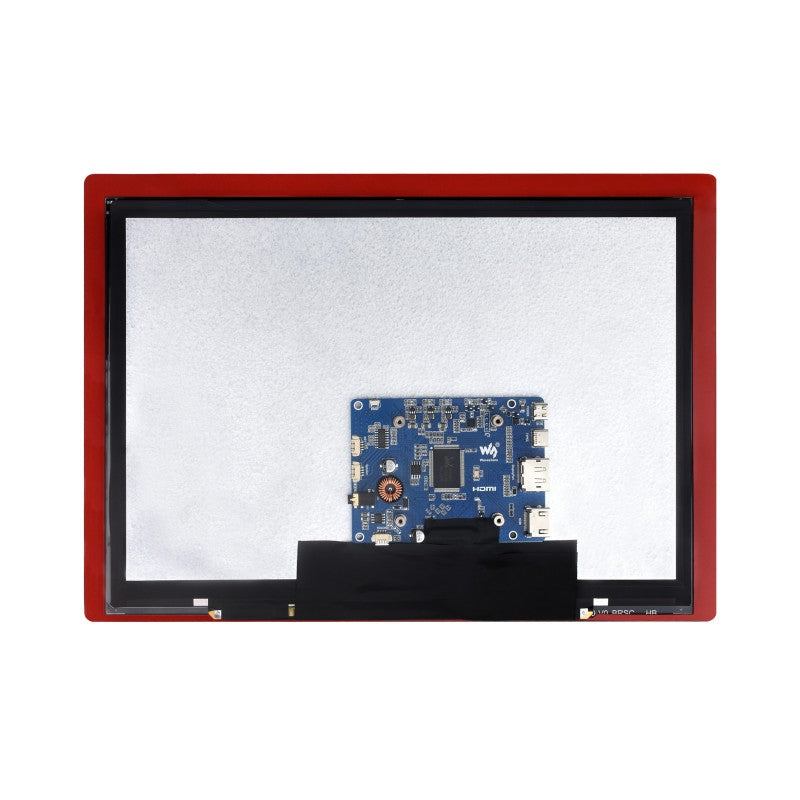

Interface
Dimensions
Resources
Wiki: www.waveshare.com/wiki/14inch_2160x1440_LCDPackage Contains:
Weight: 1.482 kg
- 14inch 2160x1440 LCD x1
- HDMI cable ~1m x1
- HDMI to Micro HDMI adapter x1
- Type-C dual plug cable ~1m x1
- DP dual plug cable ~1m x1
- USB Type A to Type C cable ~1m x1
- Triangular stand x1
- OPTIONS 5V 3A Type-C power adapter x1
- Button board x1
- 1.27H 4PIN button board cable x1
- Capacitive touch pen x1
What devices is the display compatible with?
The product supports Windows PCs with 10 point touch driver free, Raspberry Pi with Raspberry Pi OS also 10 point touch driver free, and Jetson Nano with Ubuntu in single point touch mode. It also supports auto recognition of HDMI, DP and Type-C signal sources.
What is the resolution and display type?
It uses a 14 inch IPS panel with 2160x1440 2K resolution and a 178 degree viewing angle.
What is included in the package?
The package includes the 14 inch 2160x1440 LCD, HDMI cable, HDMI to Micro HDMI adapter, Type-C dual plug cable, DP dual plug cable, USB A to Type C cable, triangular stand, and cleaning cloth. Optional items such as a 5V 3A Type-C power adapter, button board, 4PIN button board cable, and capacitive touch pen are available.
How durable is the touch panel and what about its touch capability?
The display supports up to 10 point capacitive touch on supported OSs and uses a 6H hardness toughened glass with optical bonding for dust resistance.
How do I connect and mount the display?
Interfaces include HDMI, DP and Type-C, and it supports VESA 75x75 mm mounting. For best compatibility ensure your host has a full featured Type-C interface and let the unit auto recognize HDMI, DP or Type-C signal sources.
