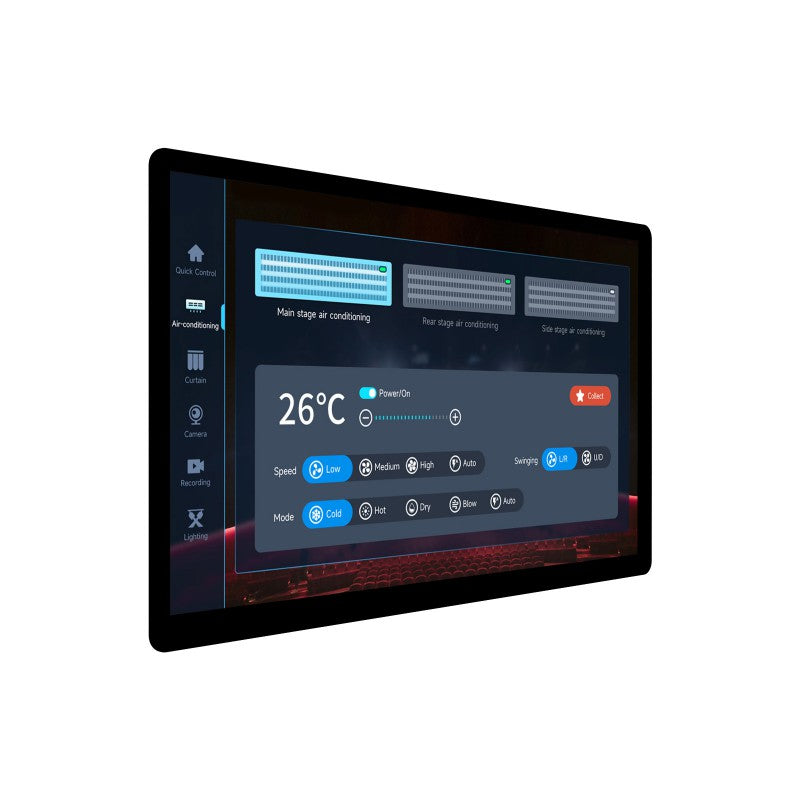

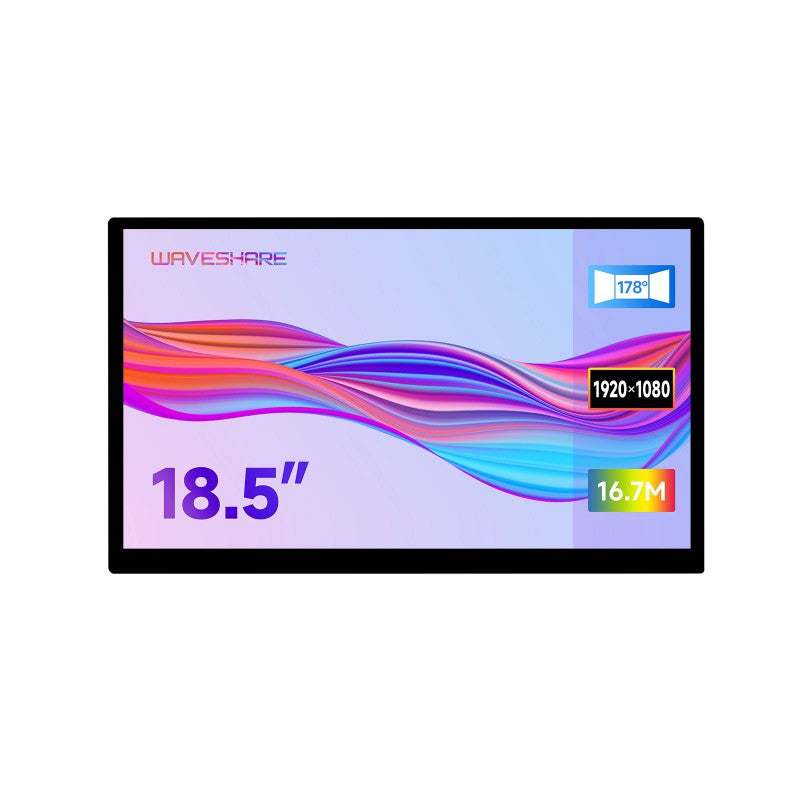

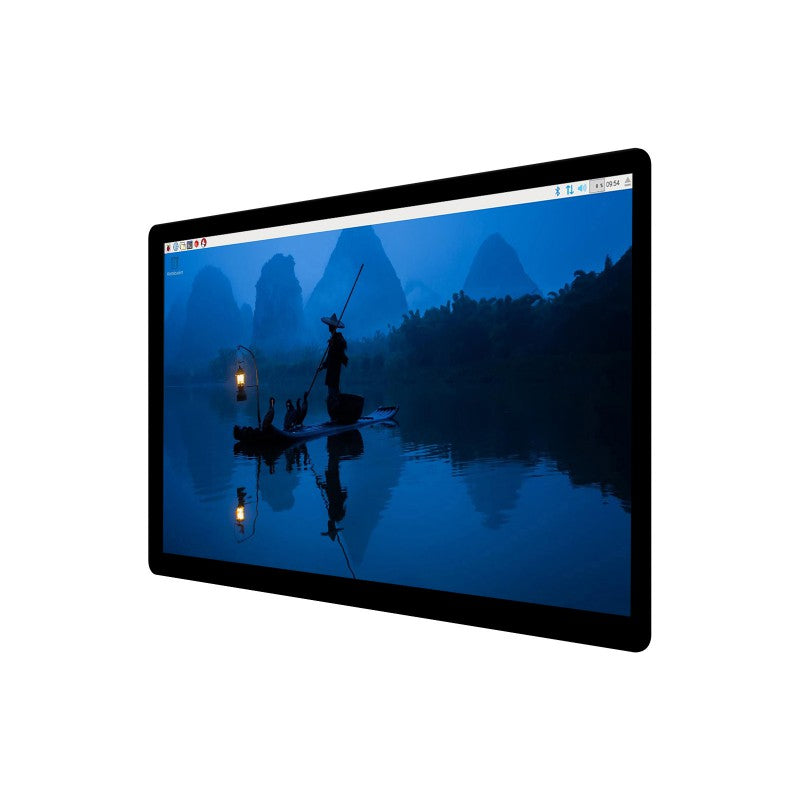

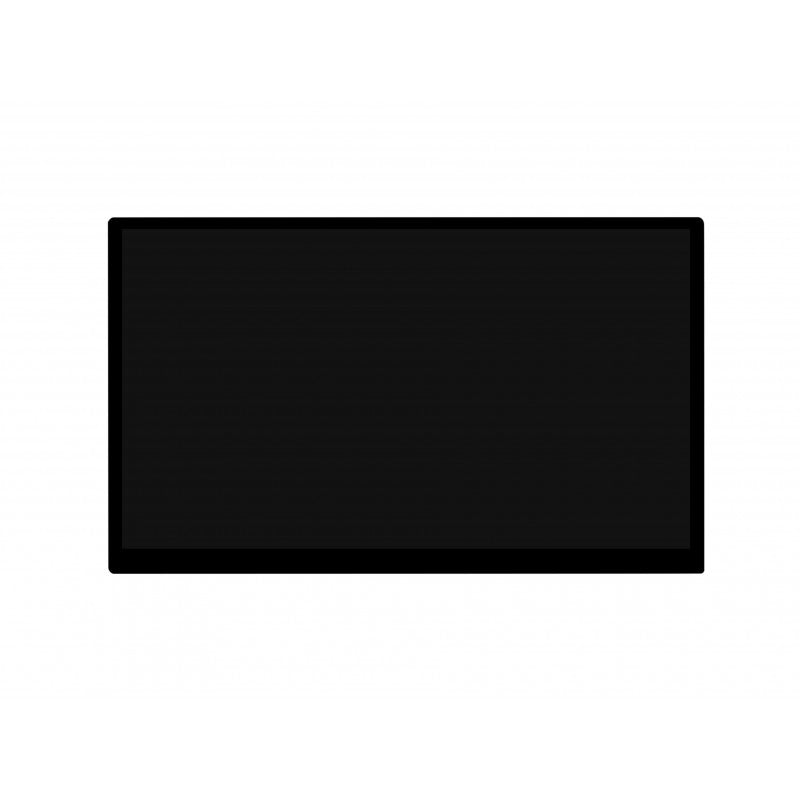

18.5ā³ Capacitive Touch Display
Commercial Quality, Suitable For Commercial IoT Displays, and Smart Home, etc.
Size
18.5ā³ |
Resolution
1920Ć1080 |
Display Interface HDMI/Type-C |
Display Color
16.7M |
Viewing Angle
178Ā° |
Touch Type
Capacitive |
Touch Port
Type-C |
Touch Points
10-Point |
Touch Panel
Toughened Glass |
Touch Panel Tech
Optical Bonding |
Brightness
DCC/CI Control |
OSD Menu
Brightness/Contrast |
Display Panel
IPS |
Audio Output 1
3.5mm Jack |
Audio Output 2
4PIN Header |
Ā
Device System Support
 |
Raspberry PiSupports Raspberry Pi OS, 10-point touch, driver free Supports all versions of Raspberry PiJetson NanoSupports Ubuntu, single point touch, driver free PCSupports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free Game ConsoleXbox360, PS4, Switch... SmartphoneHuawei, Samsung...(wired projection) |
Ā
Connection Examples
Working with Raspberry Pi 5
Ā
Working with Raspberry Pi 4B
Ā
Working with Raspberry Pi 3B+
Ā
Working with Raspberry Zero 2 W
You need to prepare additional mini HDMI adapter and USB cable
Ā
Working with Jetson Series Board
Ā
Working with mini PC
Ā
Working with laptop
Ā
Working with smartphone
- Please make sure that the laptop or smartphone itself features a full-featured Type-C interface
- For reference only, the above controller boards or hosts are NOT included
Ā Ā
Configurable Display Orientation
The display orientation is landscape by default, 1920x1080 resolution (HĆV).
Change the software config for portrait display
Ā
Wide viewing angle IPS display panel
Excellent Display & Color Performance
Wide viewing angle up to 178Ā°, color gamut up to 72% NTSC
Ā
10-Point Capacitive Touch
- up to 10-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
- Optical bonding, display well and dustproof
Ā

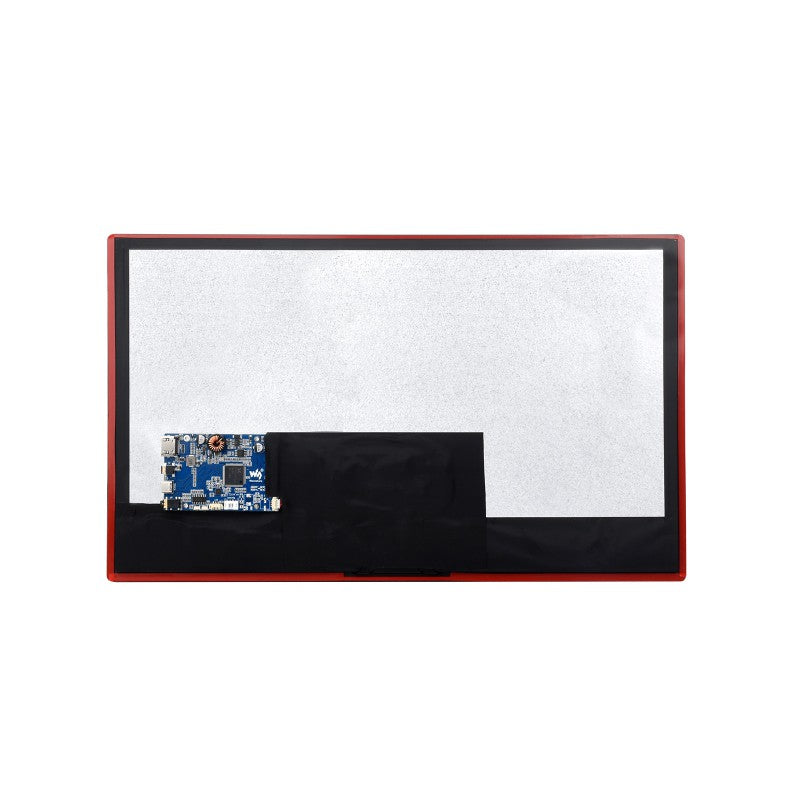

Interface Introduction
Ā
Dimensions
Ā
Resources
Wiki:Ā www.waveshare.com/wiki/18.5inch_FHD_LCD
Ā
Package Contents:
Weight:Ā 1.736 kg
- 18.5inch FHD LCD x1
- HDMI cable ~1m x1
- HDMI to Micro HDMI adapter x1
- USB Type A to Type C cable ~1m x1
- Type C cable ~1m x1
- OPTIONSĀ 12V 2A power adapter x1
- Triangular stand x1
- Button board x1
- 1.27H 4PIN button board cable x1
- Capacitive touch pen x1
What interfaces does the display use and how do I connect it?
Video input is via HDMI and touch data uses the USB Type C connection, with HDMI and USB C cables included for setup.
Is this display compatible with Raspberry Pi and Windows based systems?
Yes, it supports Raspberry Pi OS with driver free 10 point touch and Windows 11/10/8.1/8/7 with driver free touch.
Can I use the display in portrait orientation?
The default is landscape and you can change the software config to portrait.
What is included in the package?
Included items are 18.5 inch FHD LCD, HDMI cable, HDMI to Micro HDMI adapter, USB Type A to Type C cable, and Type C cable.
How durable is the touch panel and what is the touch capability?
It supports 10 point capacitive touch and uses a 6H hardness toughened glass panel with optical bonding for dust resistance.
