3.7V LiPo Batteries - BIS High Quality

SKU: ELC5077-9

₹ 150.99 ₹ 199.99

In stock | Ready to ship

Select variant

45mAh (Long)
  • 45mAh
  • 45mAh (Long)
  • 55mAh
  • 60mAh
  • 150mAh
  • 200mAh
  • 350mAh
  • 400mAh (Long)
  • 400mAh
  • 500mAh
  • 800mAh
  • 850mAh
  • 1000mAh
  • 1200mAh
  • 2500mAh
⚠ Only a few left in stock. Order soon.
⏱ High demand right now.
📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
3.7V LiPo Batteries - BIS High Quality45mAh (Long)₹ 150.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

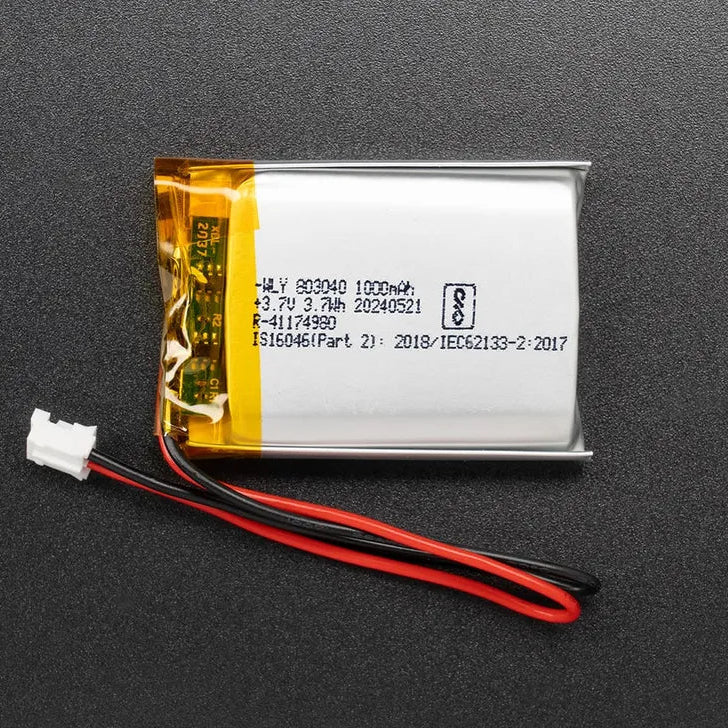

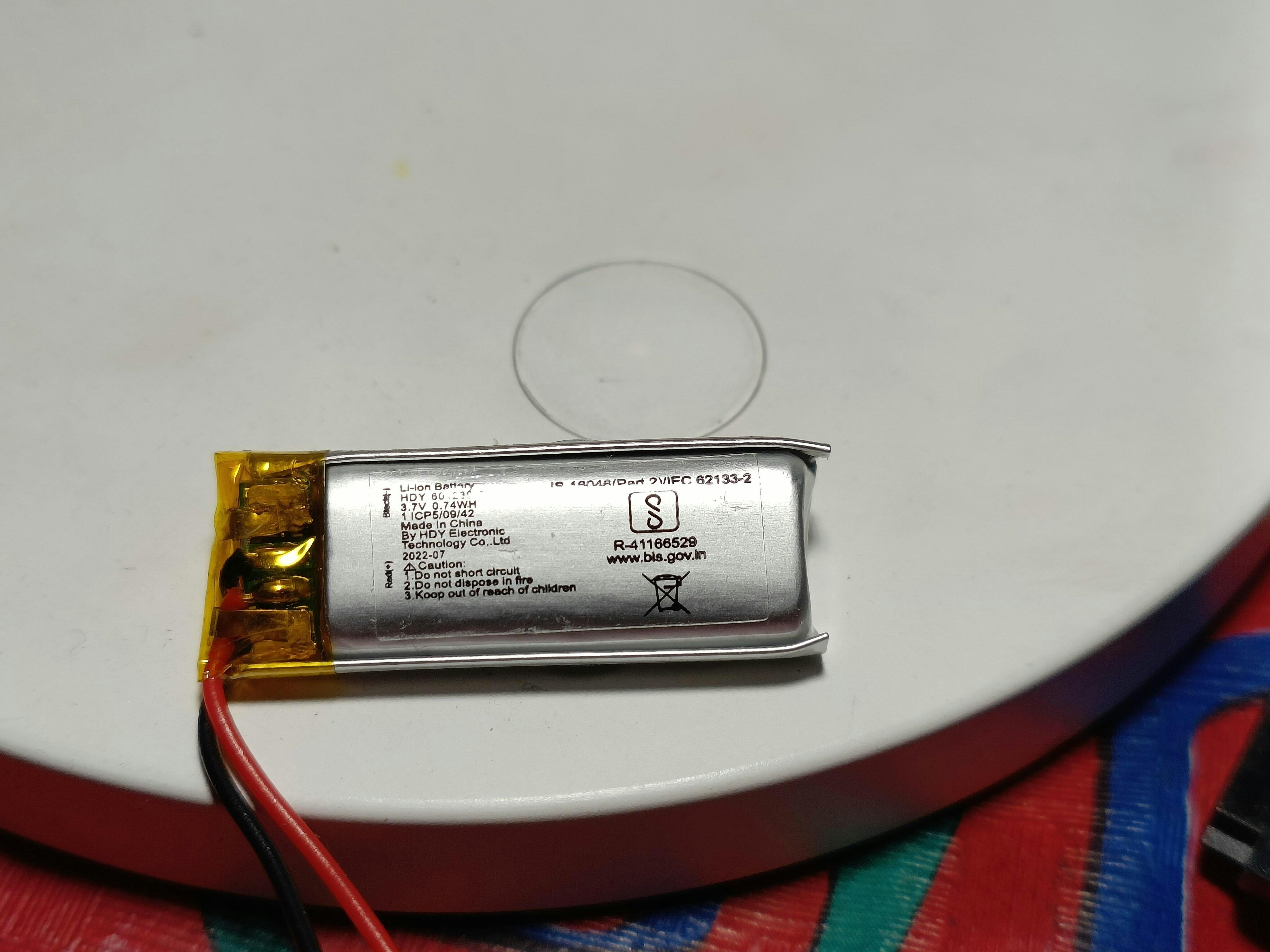

We offer a wide range of single cell Lithium ion polymer (also known as 'lipo' or 'lipoly') batteries, that are thin, light and powerful. The output ranges from 4.2V when completely charged to 3.2V. While the nominal voltage of the battery remains at 3.7V, which is also a safe voltage to store the battery at.

The batteries come with a 2-pin JST connector.

The included protection circuitry keeps the battery voltage from going too high (over-charging) or low (over-use), which means that the battery will cut-out when completely dead at 3.0V. It will also protect against output shorts. However, even with this protection it is important to use a LiIon/LiPoly constant-voltage/constant-current charger to recharge and at a rate of 2A or less (500mA is best). We suggest our Micro Lipo charger, which has a 100mA default rate. You can also set the Micro Lipo to 500mA rate for a faster charge.

NOTE: We can provide custom LiPo batteries for BULK orders on demand. Please contact us for a quote.

Physical Dimensions

In order to facilitate accurate use of these batteries, and help the use with optimum enclosure design, we are providing below, the right cube size needed to house each battery (L X B X H) and weight (including wire and connector)

  1. 45 mAh (Long): 15.5mm X 11.5mm X 5mm | Weight: 1.85 grams

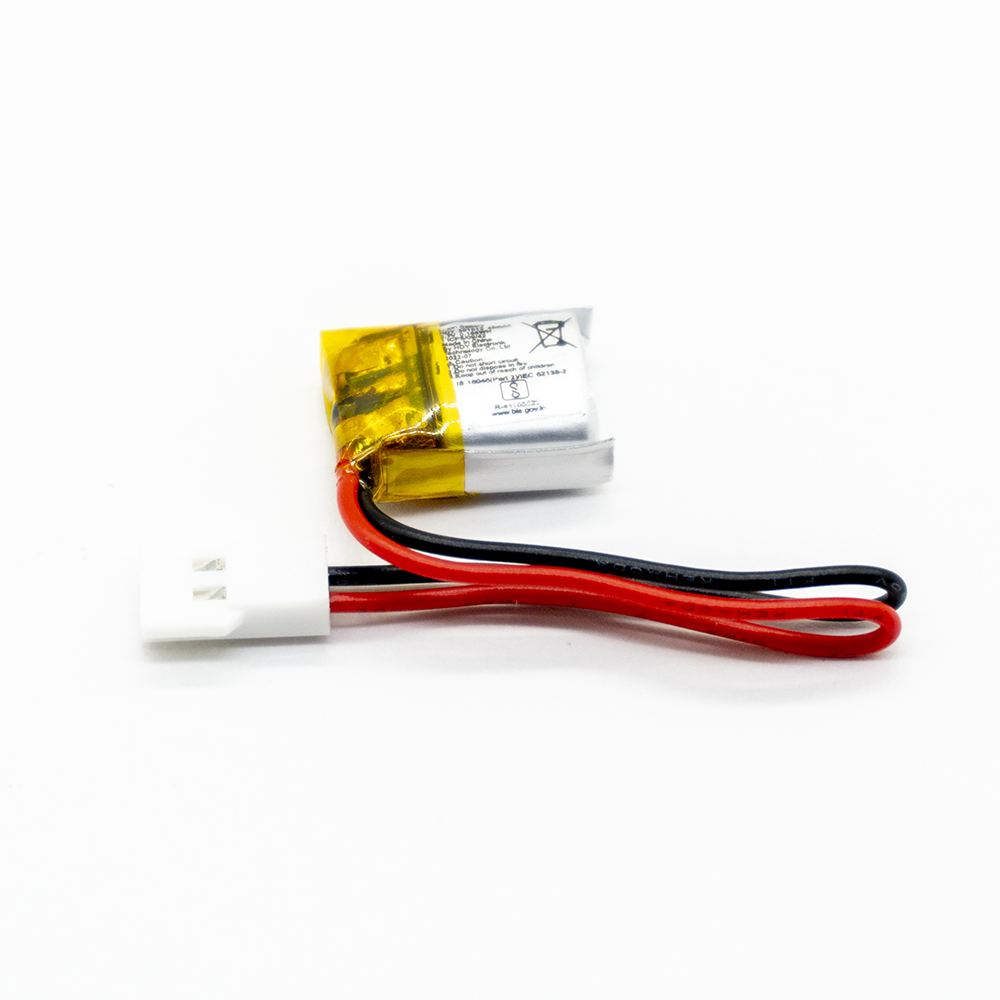

  2. 45 mAh: 13mm X 9.5mm X 5mm | Weight: 1.5 grams

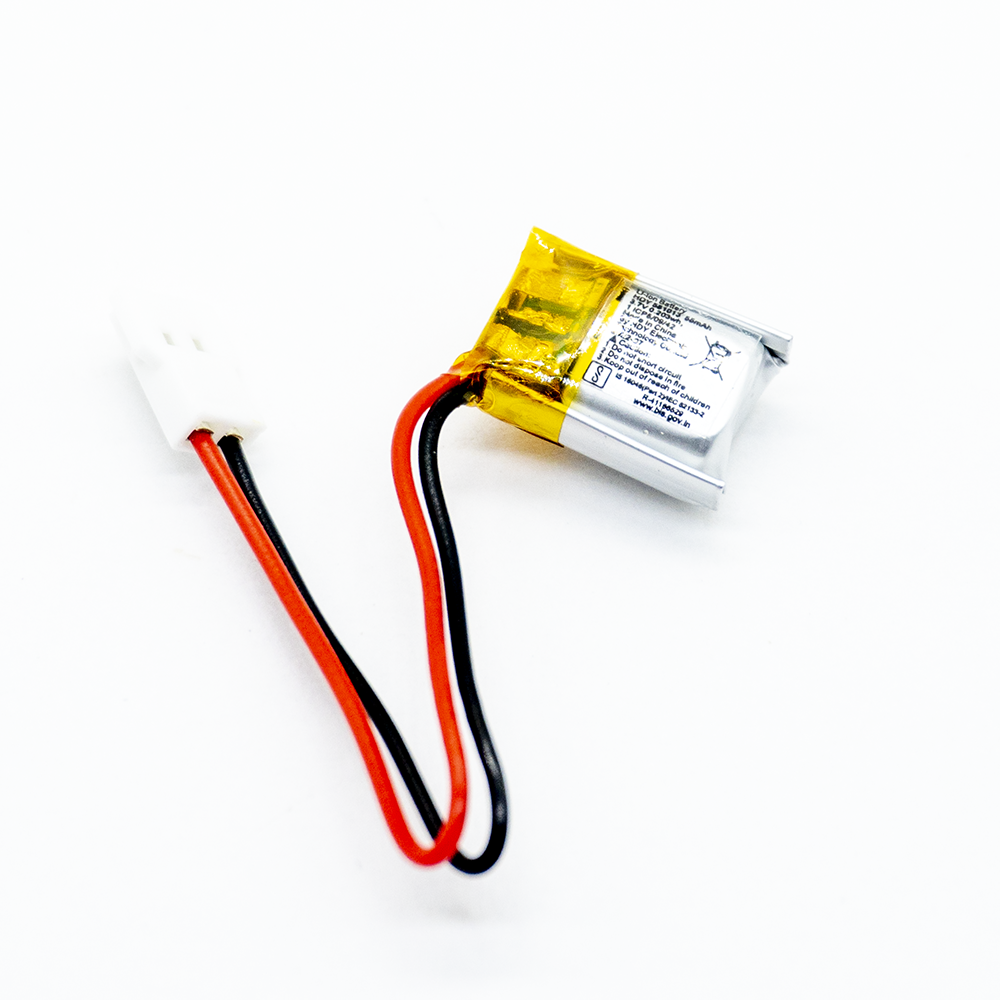

  3. 55 mAh: 15mm X 10mm X 6mm | Weight: 1.6 grams

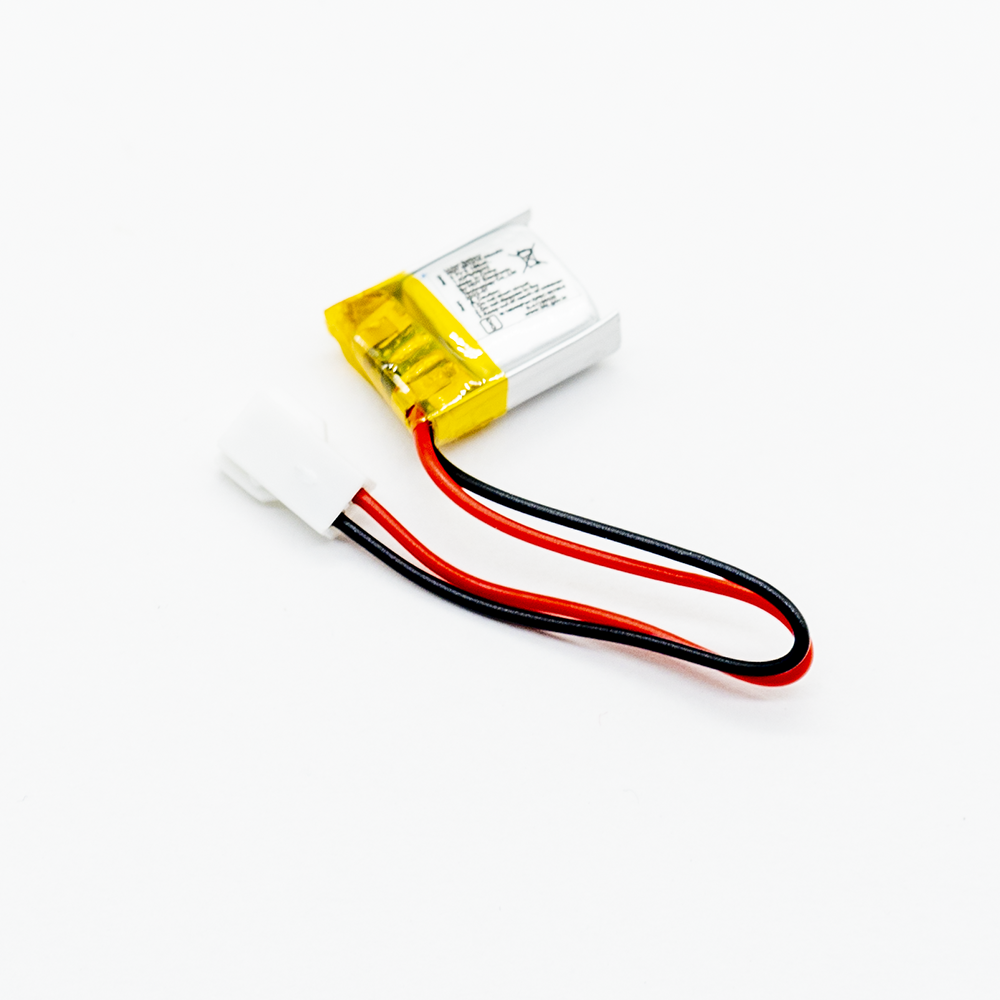

  4. 60 mAh: 17mm X 10mm X 6mm | Weight: 1.8 grams

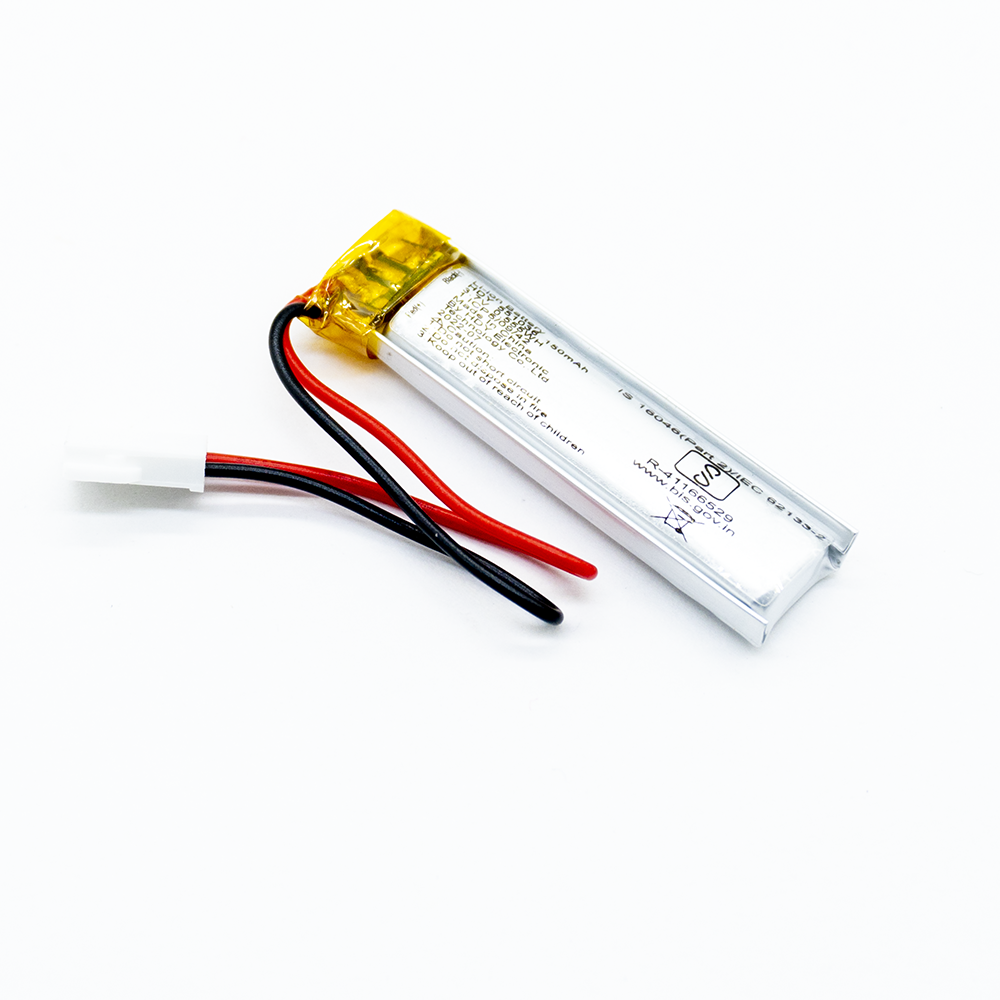

  5. 150 mAh: 40mm X 10mm X 5mm | Weight: 3.6 grams

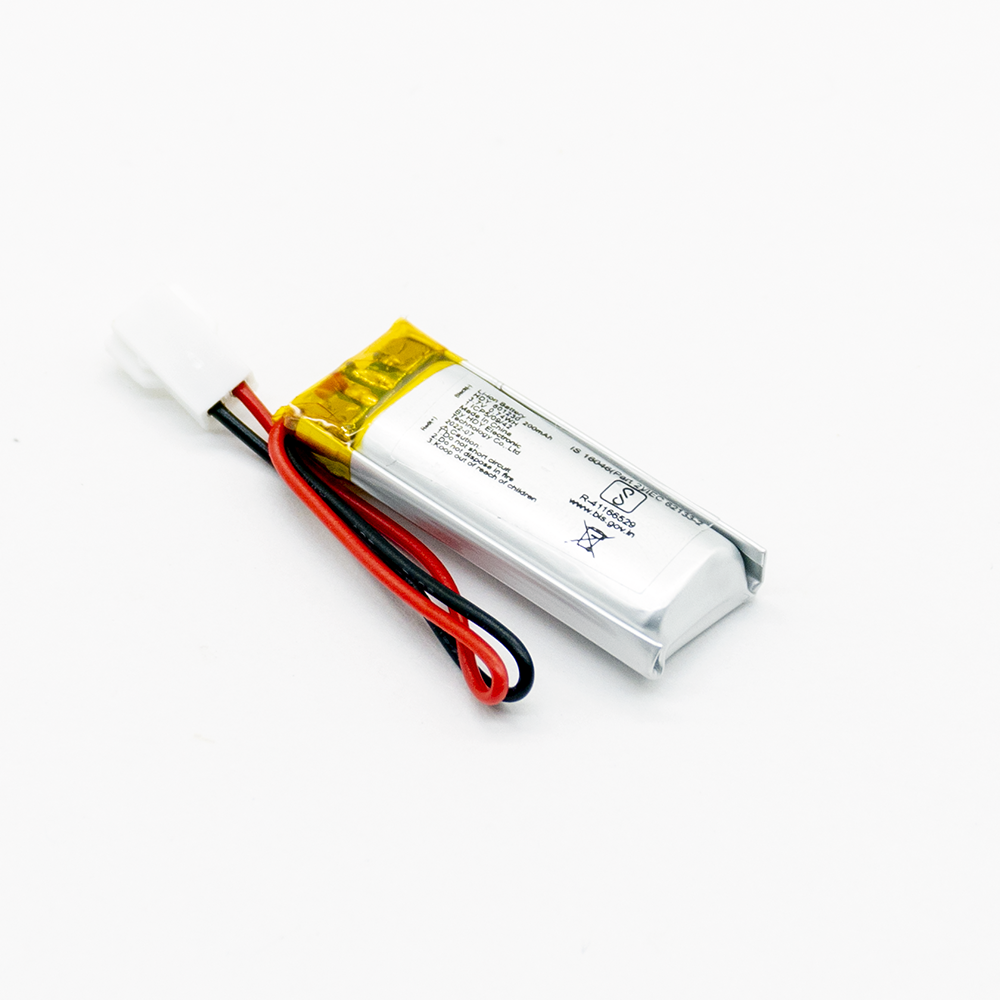

  6. 200 mAh: 31mm X 12mm X 6mm | Weight: 4.2 grams

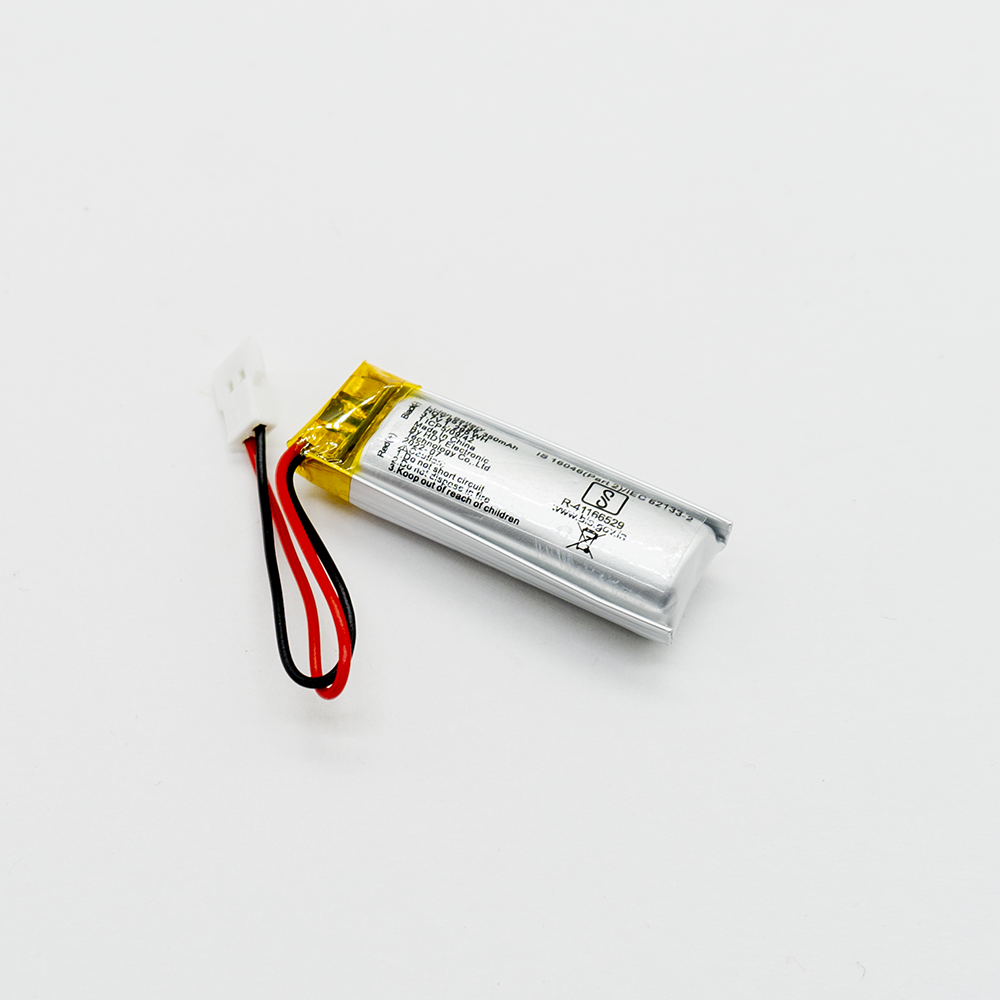

  7. 350 mAh: 36mm X 15mm X 8mm | Weight: 7.3 grams
  8. 400 mAh (Long): 36mm X 19.5mm X 5.7mm | Weight: 8.2 grams

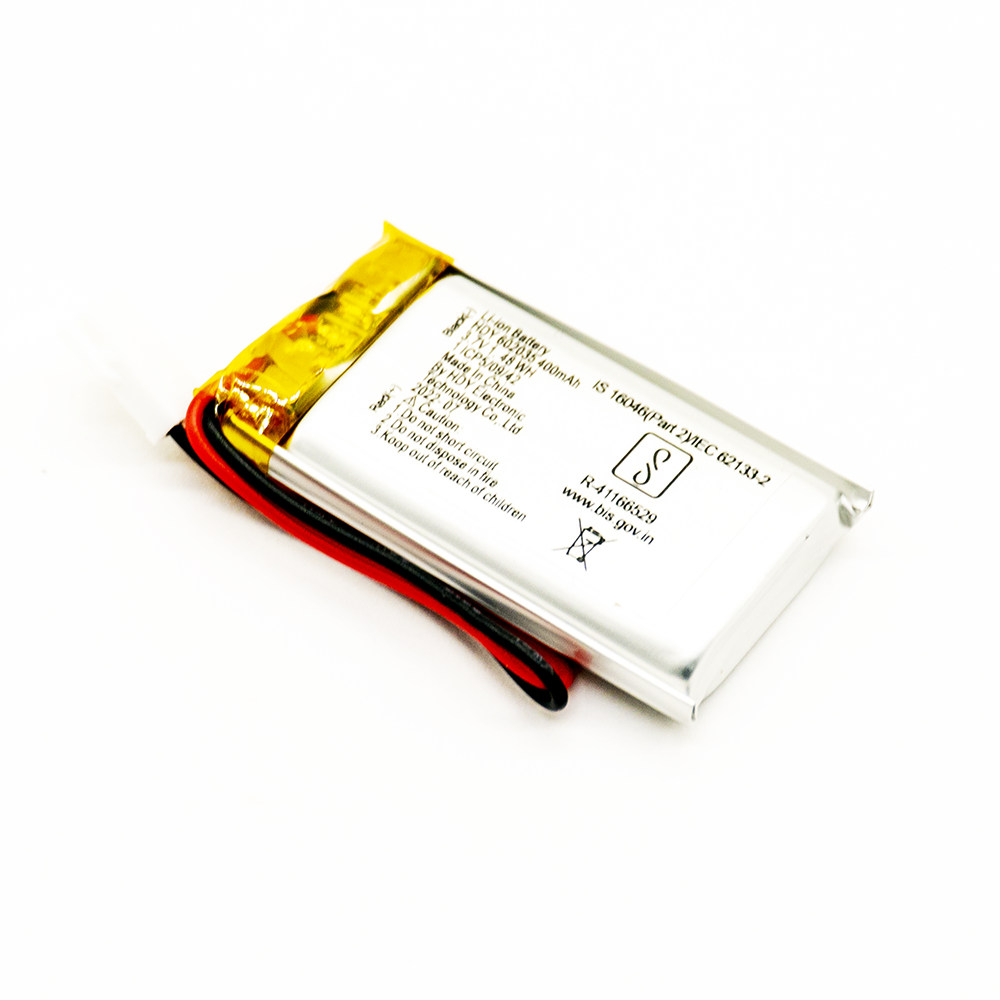

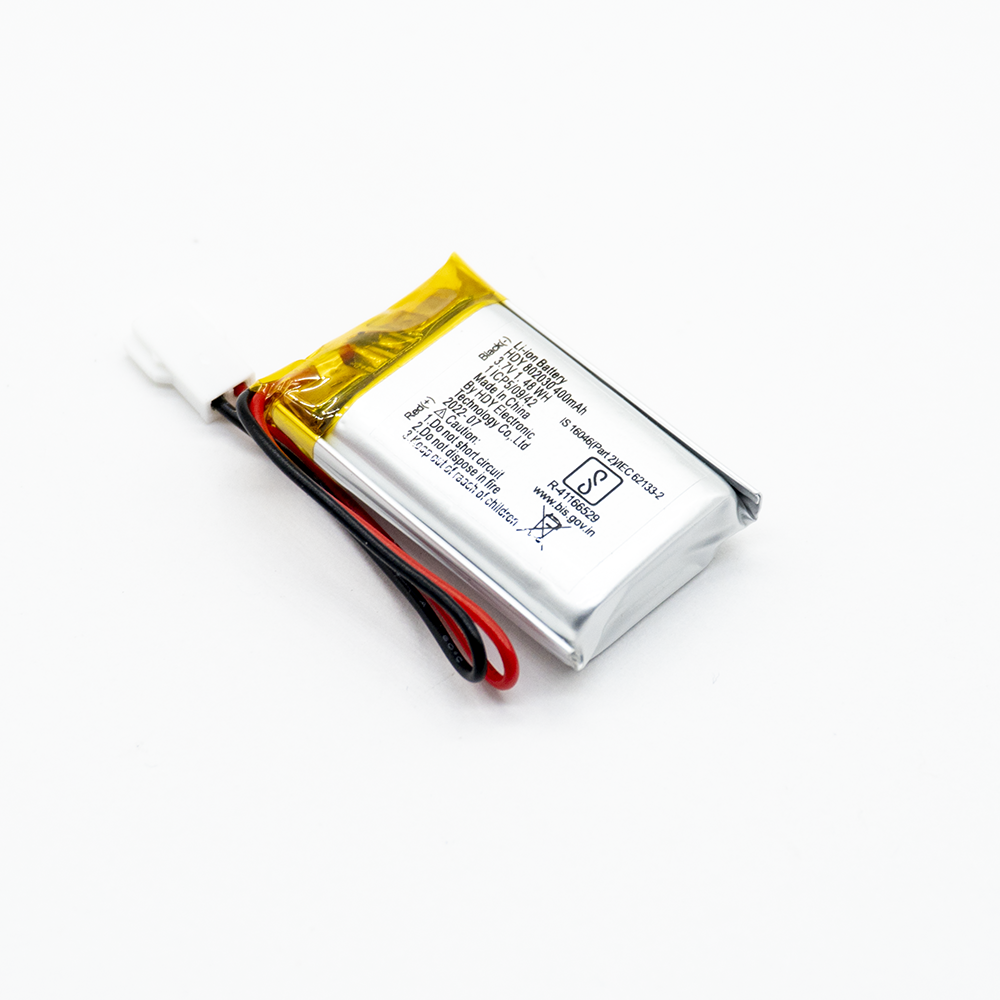

  9. 400 mAh: 32mm X 19mm X 8mm | Weight: 10 grams

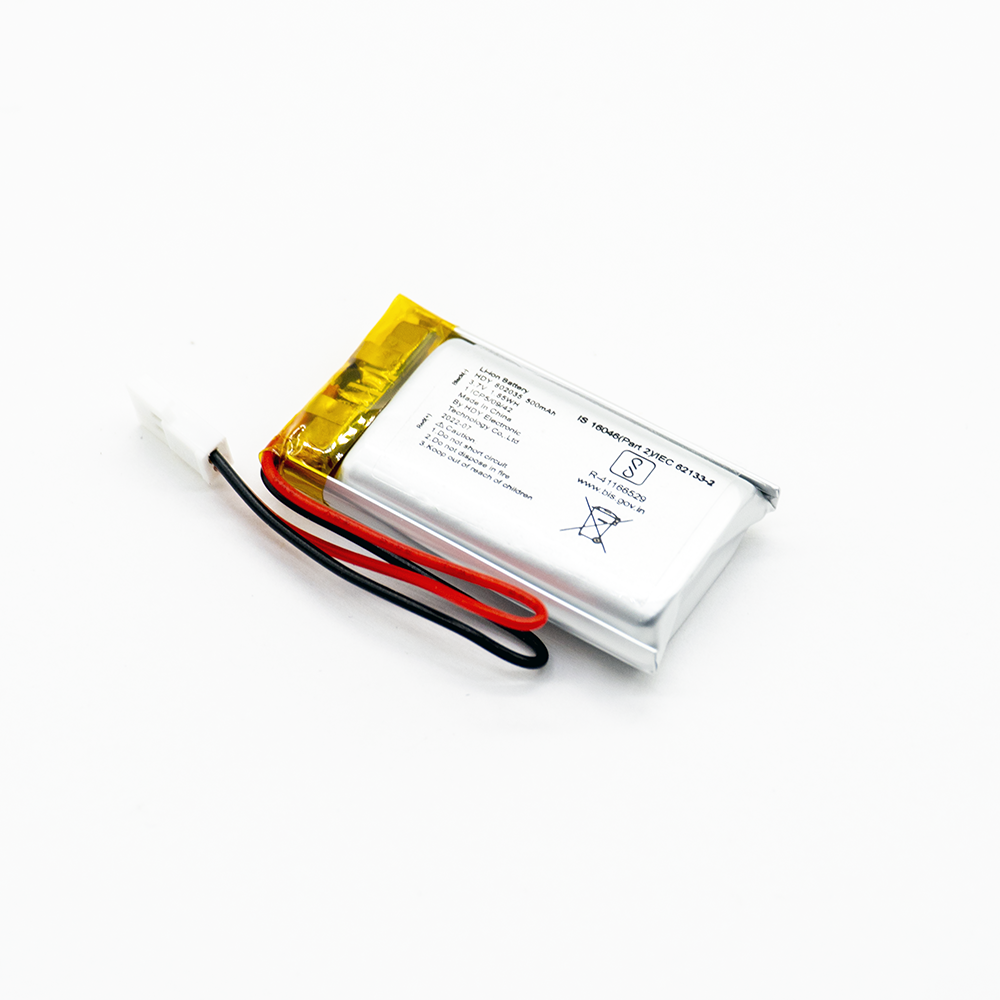

  10. 500 mAh: 36mm X 20mm X 7.5mm | Weight: 10.5 grams

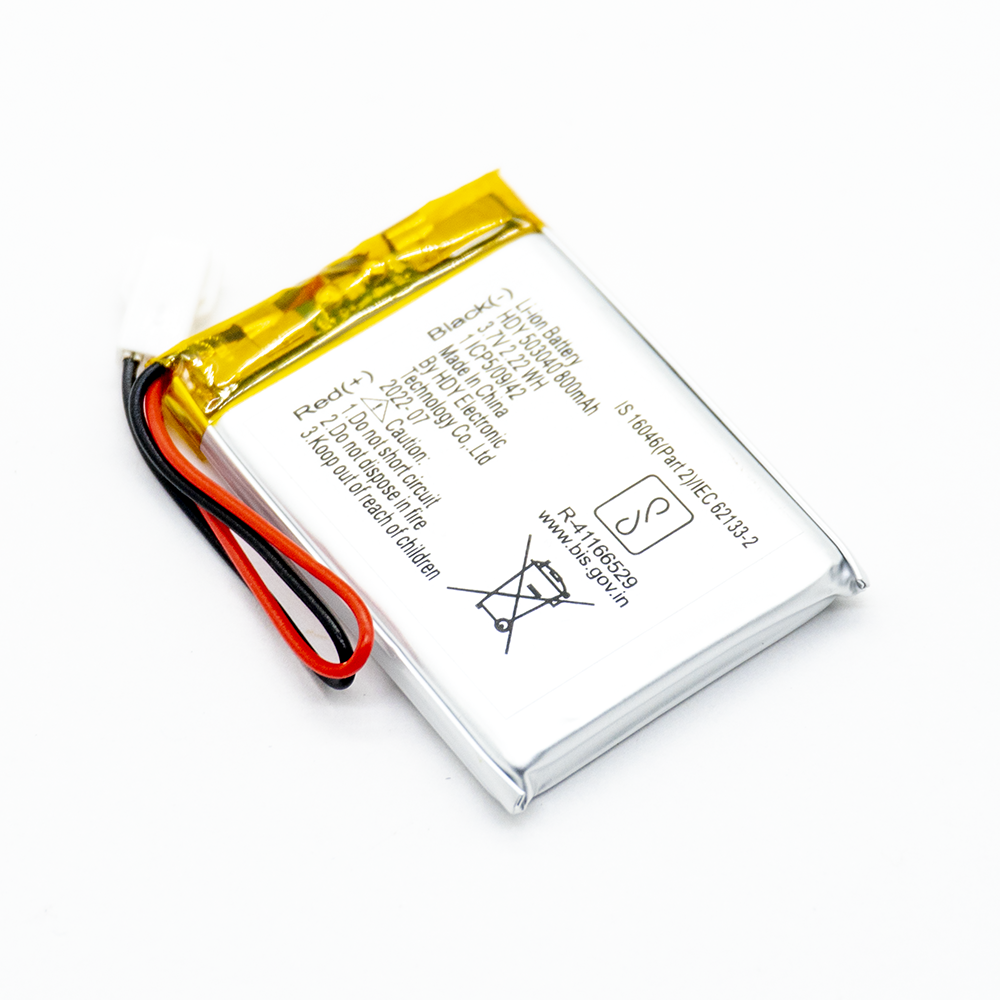

  11. 800 mAh: 41mm X 29.5mm X 5mm | Weight: 12.5 grams

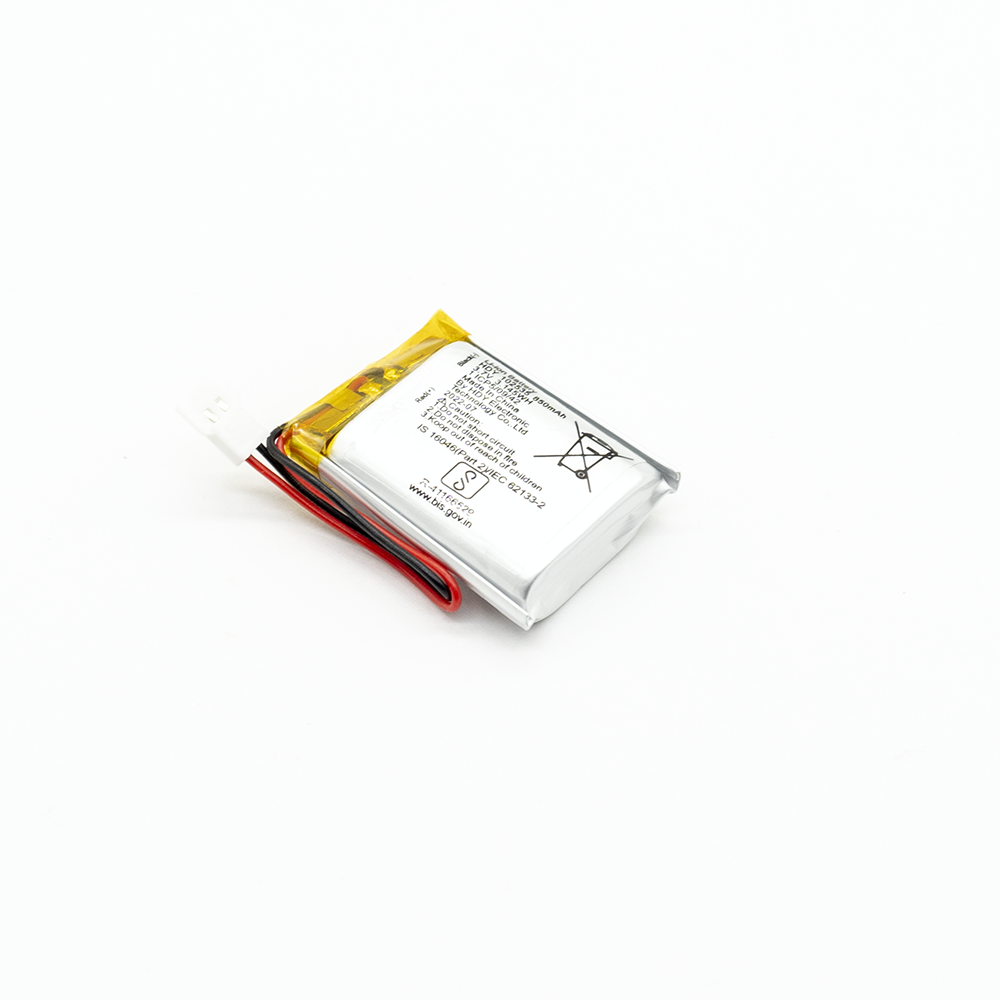

  12. 850 mAh: 35mm X 25mm X 9.5mm | Weight: 15 grams

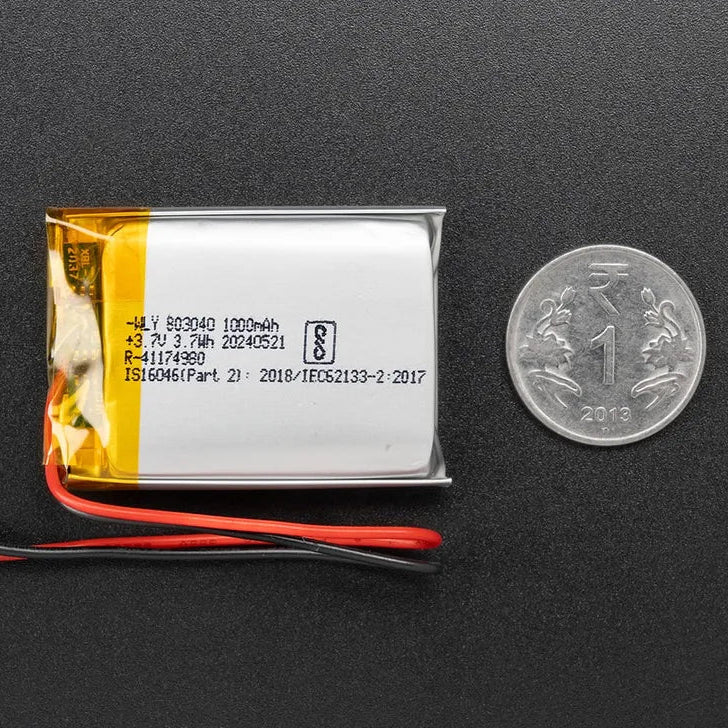

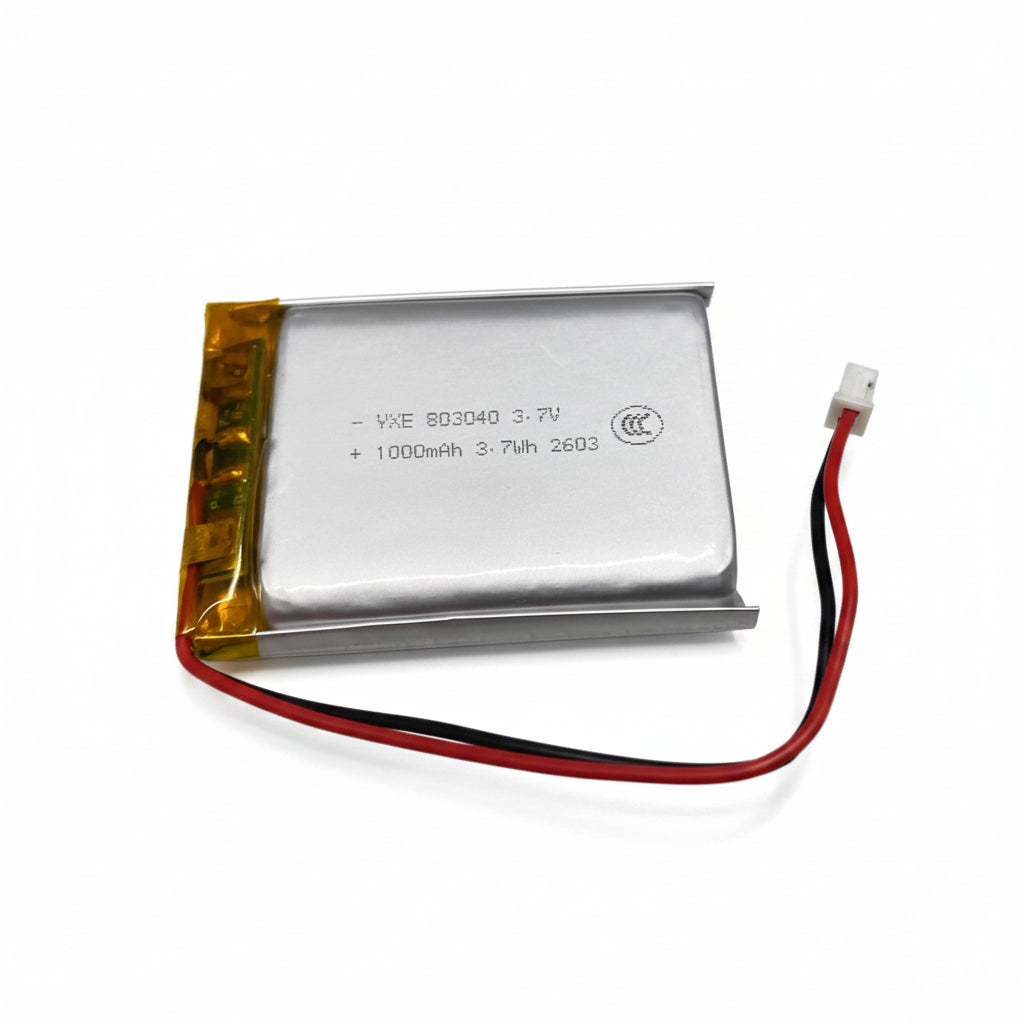

  13. 1000 mAh: 41mm X 30mm X 8mm | Weight: 19 grams
  14. 1200 mAh: 40mm x 30mm x 10mm | Weight: 23 grams

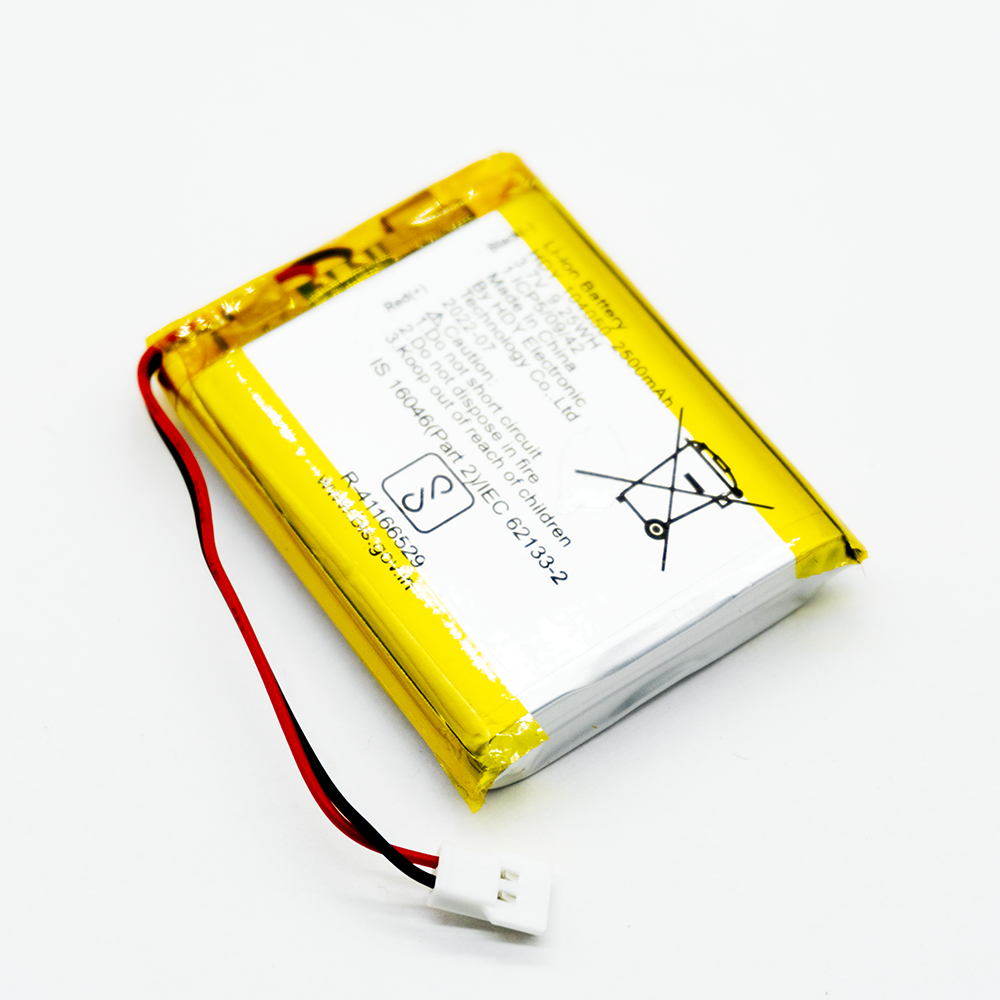

  15. 2500 mAh: 50mm X 40mm X 10mm | Weight: 40 grams
What is the voltage range and nominal voltage of these batteries?
The output voltage ranges from 4.2 V when fully charged to 3.2 V during discharge, while the nominal voltage is 3.7 V.
What connector type is used on these batteries?
The batteries come with a 2 pin JST connector.
What safety features are included?
A protection circuit prevents over charging and over discharge and the pack will cut out at 3.0 V, and it also protects against output shorts.
How should I charge these LiPo cells?
Charge with a LiIon LiPoly constant voltage and constant current charger at 2 A or less; 500 mA is preferred. The Micro Lipo charger can be used with a default of 100 mA or set to 500 mA.
Are bulk or custom LiPo batteries available?
Yes, custom LiPo batteries for bulk orders are available on demand. Please contact us for a quote.

Category: View all Batteries

Fill out the form below and our team will get back to you with bulk pricing.

Description
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

We offer a wide range of single cell Lithium ion polymer (also known as 'lipo' or 'lipoly') batteries, that are thin, light and powerful. The output ranges from 4.2V when completely charged to 3.2V. While the nominal voltage of the battery remains at 3.7V, which is also a safe voltage to store the battery at.

The batteries come with a 2-pin JST connector.

The included protection circuitry keeps the battery voltage from going too high (over-charging) or low (over-use), which means that the battery will cut-out when completely dead at 3.0V. It will also protect against output shorts. However, even with this protection it is important to use a LiIon/LiPoly constant-voltage/constant-current charger to recharge and at a rate of 2A or less (500mA is best). We suggest our Micro Lipo charger, which has a 100mA default rate. You can also set the Micro Lipo to 500mA rate for a faster charge.

NOTE: We can provide custom LiPo batteries for BULK orders on demand. Please contact us for a quote.

Physical Dimensions

In order to facilitate accurate use of these batteries, and help the use with optimum enclosure design, we are providing below, the right cube size needed to house each battery (L X B X H) and weight (including wire and connector)

  1. 45 mAh (Long): 15.5mm X 11.5mm X 5mm | Weight: 1.85 grams
  2. 45 mAh: 13mm X 9.5mm X 5mm | Weight: 1.5 grams
  3. 55 mAh: 15mm X 10mm X 6mm | Weight: 1.6 grams
  4. 60 mAh: 17mm X 10mm X 6mm | Weight: 1.8 grams
  5. 150 mAh: 40mm X 10mm X 5mm | Weight: 3.6 grams
  6. 200 mAh: 31mm X 12mm X 6mm | Weight: 4.2 grams
  7. 350 mAh: 36mm X 15mm X 8mm | Weight: 7.3 grams
  8. 400 mAh (Long): 36mm X 19.5mm X 5.7mm | Weight: 8.2 grams
  9. 400 mAh: 32mm X 19mm X 8mm | Weight: 10 grams
  10. 500 mAh: 36mm X 20mm X 7.5mm | Weight: 10.5 grams
  11. 800 mAh: 41mm X 29.5mm X 5mm | Weight: 12.5 grams
  12. 850 mAh: 35mm X 25mm X 9.5mm | Weight: 15 grams
  13. 1000 mAh: 41mm X 30mm X 8mm | Weight: 19 grams
  14. 1200 mAh: 40mm x 30mm x 10mm | Weight: 23 grams
  15. 2500 mAh: 50mm X 40mm X 10mm | Weight: 40 grams
FAQ
What is the voltage range and nominal voltage of these batteries?
The output voltage ranges from 4.2 V when fully charged to 3.2 V during discharge, while the nominal voltage is 3.7 V.
What connector type is used on these batteries?
The batteries come with a 2 pin JST connector.
What safety features are included?
A protection circuit prevents over charging and over discharge and the pack will cut out at 3.0 V, and it also protects against output shorts.
How should I charge these LiPo cells?
Charge with a LiIon LiPoly constant voltage and constant current charger at 2 A or less; 500 mA is preferred. The Micro Lipo charger can be used with a default of 100 mA or set to 500 mA.
Are bulk or custom LiPo batteries available?
Yes, custom LiPo batteries for bulk orders are available on demand. Please contact us for a quote.
