Luckfox Pico Pro / Max RV1106 Linux Micro Development Board

SKU: WVSH0290

ā‚¹ 4,199.99

In stock | Ready to ship

Select variant

Pro - 128MB
āš  Only a few left in stock. Order soon.
ā± High demand right now.
šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
Luckfox Pico Pro / Max RV1106 Linux Micro Development BoardPro - 128MBā‚¹ 4,199.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini
Ā

Ā

Specifications

Processor CortexĀ A7@1.2GHzĀ
NPU 0.5TOPS, supports int4, int8 and int16Ā
ISP Input 5M @30fps (Max)Ā
Memory Pro: 128MB DDR3LĀ
Max: 256MB DDR3LĀ
USB USB 2.0 Host/Device
Camera MIPI CSI 2-lane
GPIO 26 Ɨ GPIO pins
Ethernet port 10/100M Ethernet controller and embedded PHY
Default Storage SPI NAND FLASH (256MB)

Ā

Version And Pinheader Options

Ā

Highly Integrated And Powerful Performance

Integrates CPU, NPU, ISP And Other Processors

  • Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
  • Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The computing power of int8 is 0.5 TOPS, and up to 1.0 TOPS with int4
  • Built-in self-developed third-generation ISP3.2, supports 5-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
  • Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size, double the storage space
  • Built-in 16-bit DRAM DDR3L, which is capable of sustaining demanding memory bandwidths
  • Integrated with built-in POR, audio codec and MAC PHY

Ā

Easier To Develop

Integrates TF Card Slot, Camera Interface And Ethernet Port

Ā

SLC NAND FLASH

For A Better User Experience

Ā

Application Example

Ā

Suitable For More Application Examples

Ā

Pin Definition

Ā

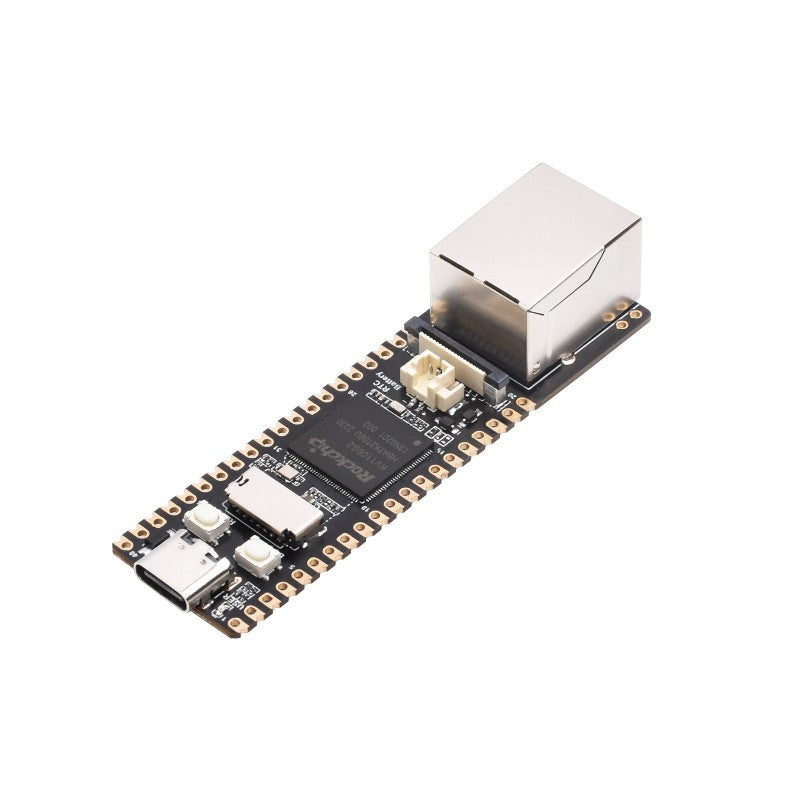

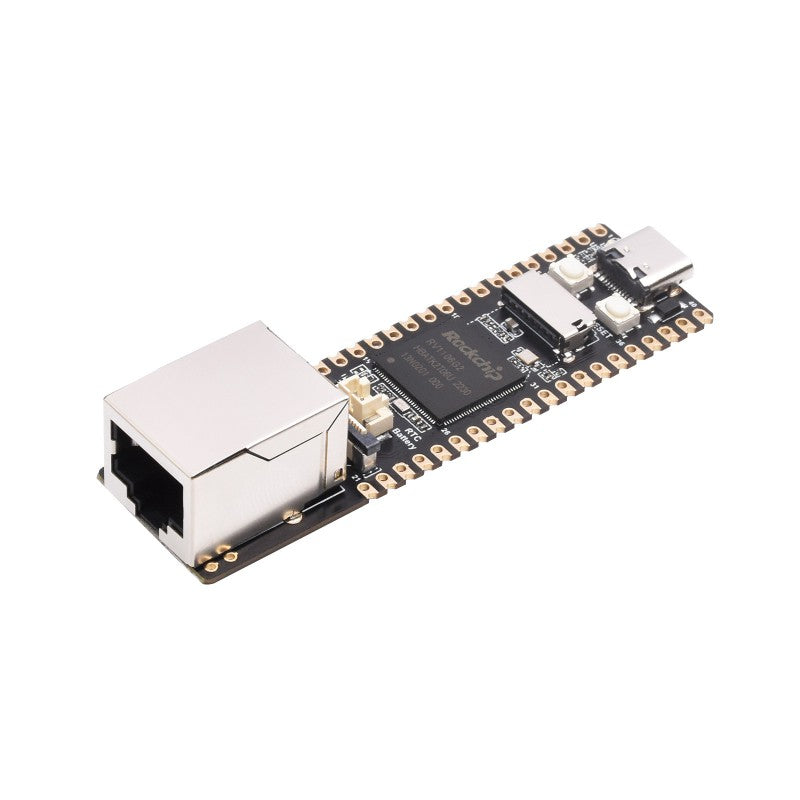

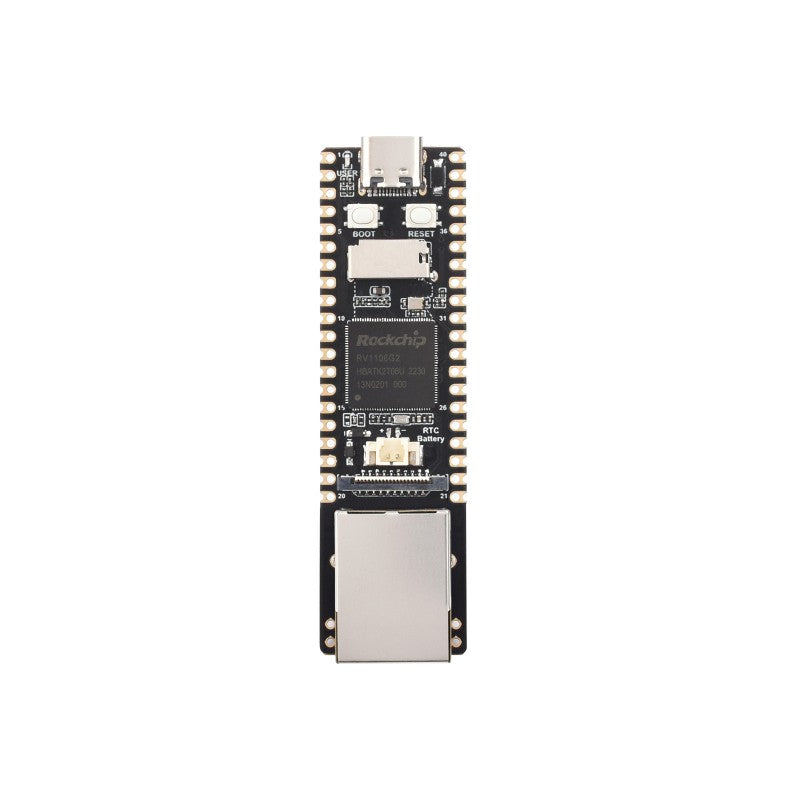

What's On Board

  1. USB Type-C connector
    for power supply and program burning
  2. ACT-LED
  3. BOOT button
    Press it when powering on to enter download mode
  4. RESET button
  5. TF card slot
  6. RV1106
    Vision processor SoC with built-in ARM Cortex-A7 core (RV1106G2 for Pro version, RV1106G3 for Max version)
  7. RTC battery header
    MX1.25 connector, for connecting RTC battery
  8. CSI camera interface
    MIPI CSI 2-lane
  9. RJ45 Ethernet port
  10. USB test pads
  11. BOOT test pad
  12. W25N02KV
    256MB SLC NAND FLASH
  13. GPIO header
Ā

Outline Dimensions

Ā


What processor and AI capabilities does the Pico Pro Max board include?
It uses the RV1106 Vision SoC with an ARM Cortex A7 core and an integrated NPU. It supports int4, int8 and int16, with 0.5 TOPS in int8 and up to 1.0 TOPS in int4.
What memory and storage options are available on the board?
The Pro version provides 128MB DDR3L RAM and the Max version 256MB DDR3L RAM, plus a 256MB SPI NAND flash. A TF card slot is available for additional storage.
Which interfaces are provided for input output and cameras?
The board includes a MIPI CSI 2-lane camera interface, USB 2.0 host and device ports, a 10/100 M Ethernet port, 26 GPIO pins, and a TF card slot.
How is the board powered and booted, and what is the default storage?
Power and programming are via a USB Type-C connector and the BOOT button allows entering download mode. The default storage is SPI NAND flash 256MB.
What support resources are available to help you get started?
Official documentation and a quick start guide are available on the Luckfox wiki for setup, programming and examples.
