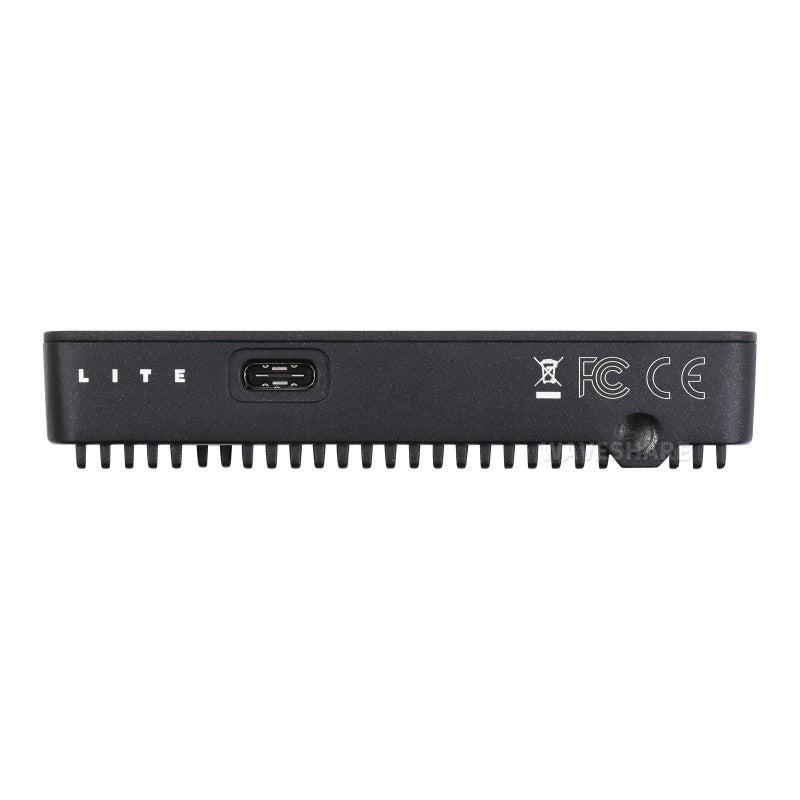

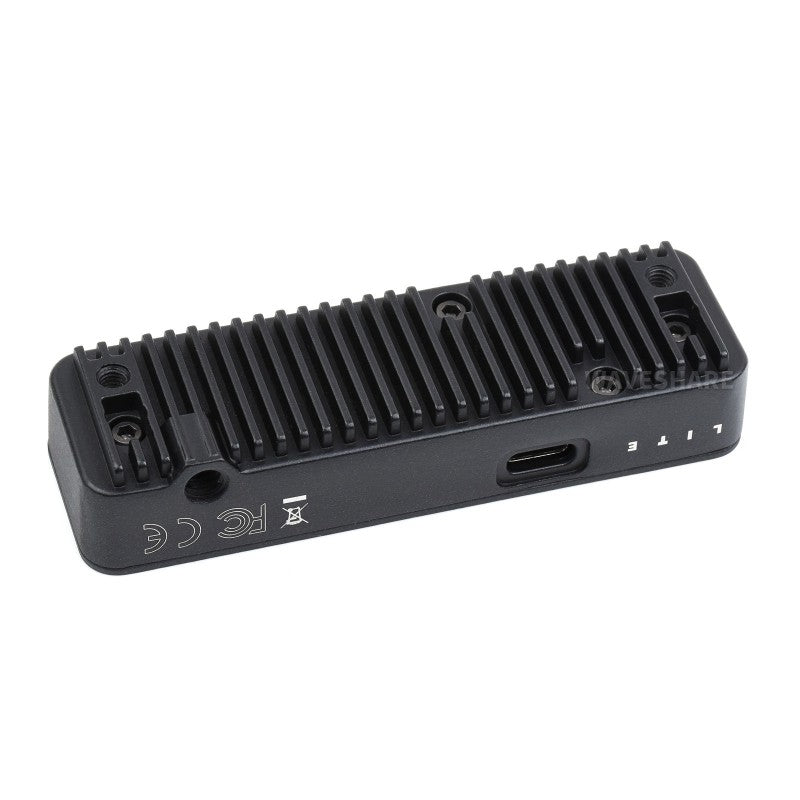

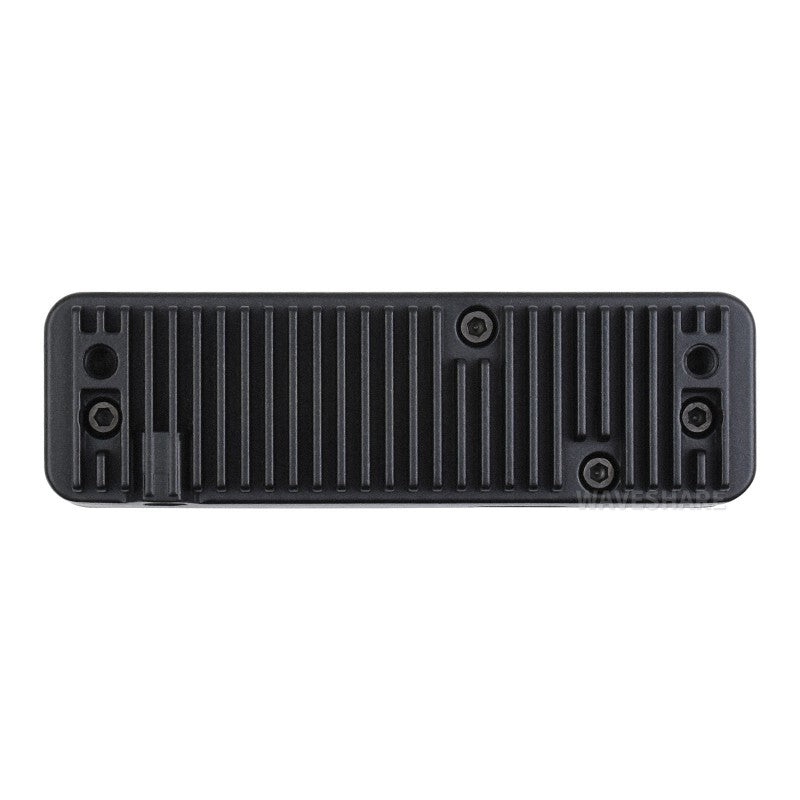

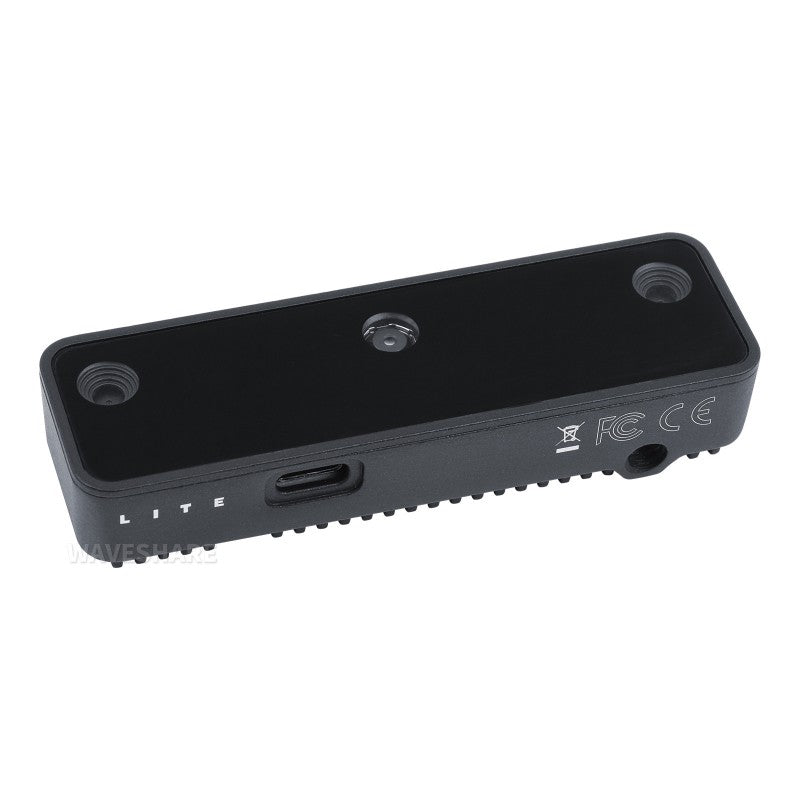

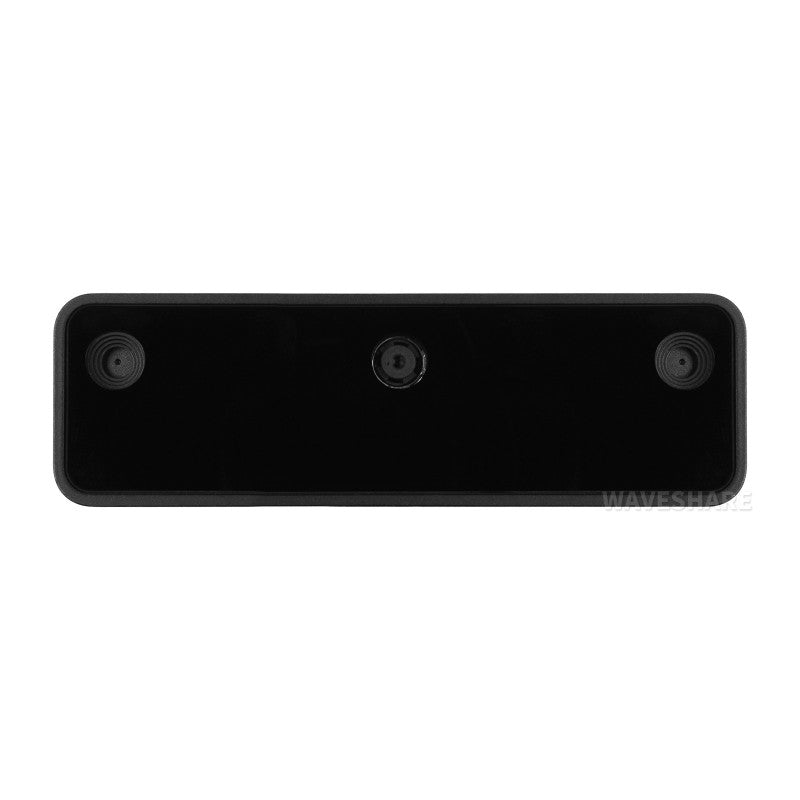

The OAK-D-Lite is the extremely cost effective solution of the OAK USB series, which provides similar performance as the OAK-D, except IMU, at a much lower price. It combines functions including depth perception, object detection (neural inference) and object tracking, together with easy-to-use Python API to help you use these functions. The OAK-D-Lite integrates three onboard cameras (1x 4K/30fps RGB camera, 2x mono binocular cameras) and USB3.0 Type-C port, it is accessible through USB connection on hosts like desktop computer, Raspberry Pi, and other popular embedded hosts.
Specifications
DEPTH MEASURING RANGE
0.2 ~ 9 m
DEPTH CAMERA
global shutter
RGB CAMERA
13MP
MAX FRAMERATE
60fps (RGB), 200fps (Depth)
AI CHIP
Intel Myriad X 4TOPS computing performance
VIDEO PLUG FLOW
4K 30 fps H.265 plug flow
CONNECTOR
USB3.0 Type-C
NN PLATFORM SUPPORT
all platforms
POWER CONSUMPTION
avg 2.5W
DEVELOPMENT LANGUAGE
Python, C++
ECLOSURE
aluminum enclosure
WEIGHT
61g
Powerful Computing Performance
The OAK Provides Up To 4TOPS Computing Performance, 10 Times Of OpenMV, 40 Times Of Raspberry Pi 4B
Camera Specifications
Use Free Neural Networks Or Create Your Own
The OAK-D-Lite adopts Myriad X for binocular depth calculating as well as AI neural inference, then providing direct outputs like target coordinates, recognition results, and so on. More other functions can be achieved by calling the API, which allows you to build your own system easier.
Extensive Applications
The OAK Can Be Widely Used Thanks To Its Rich Functions And Technologies, It Will Upgrade Your Project To The Next Level By Enabling The Computer Vision Feature
Intelligent traffic Detection and recognition for motor vehicles, non-motor vehicles, pedestrians, traffic signs, traffic events...
Intelligent driving Recognizing and ranging around vehicles and road conditions, recognizing the driver status and providing intelligent assistance.
Intelligent safety & security The neural network keeps learning new sudden human body features and event accidents, providing intelligent detection and giving alarm for human abnormal behaviors and accidents.
Robotics Used on industrial robots field, enabling robot functions like target identification, positioning, size measuring, binocular depth mapping, navigation...
Math contest Suitable for teaching competitions like robotic vision, OpenCV, AI IoT projects, Python programming, and so on.
Platform & Language Support
Framework & Neural Network Support
Working With Tripod
**for reference only, the Mini Tripod is NOT included.
