ESP32-S3-Touch-LCD-2.1
Integrates RGB Interface Display And I2C Touch Panel
Multiple Peripheral Interfaces

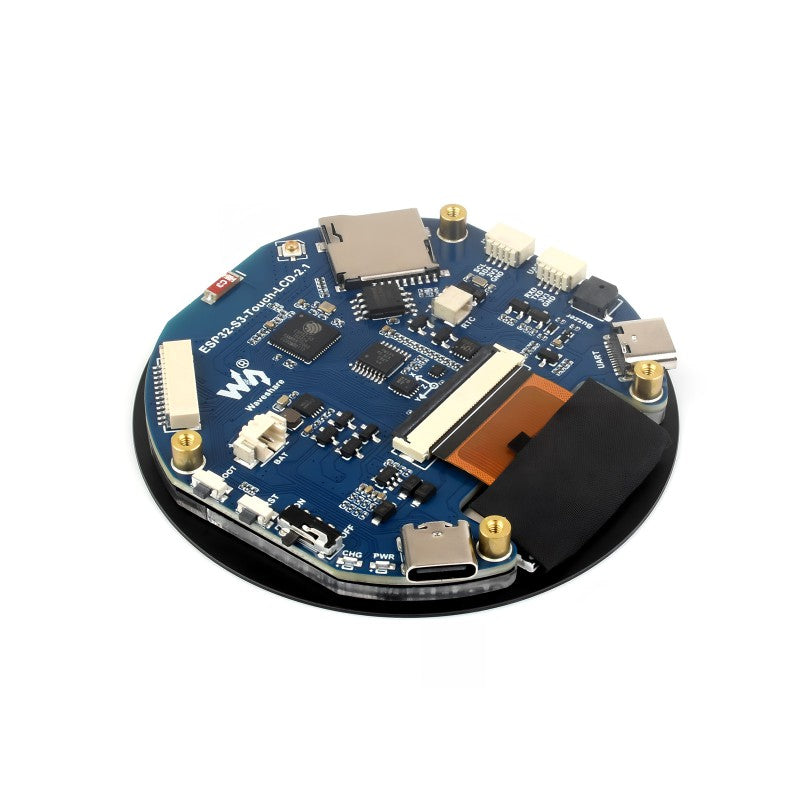

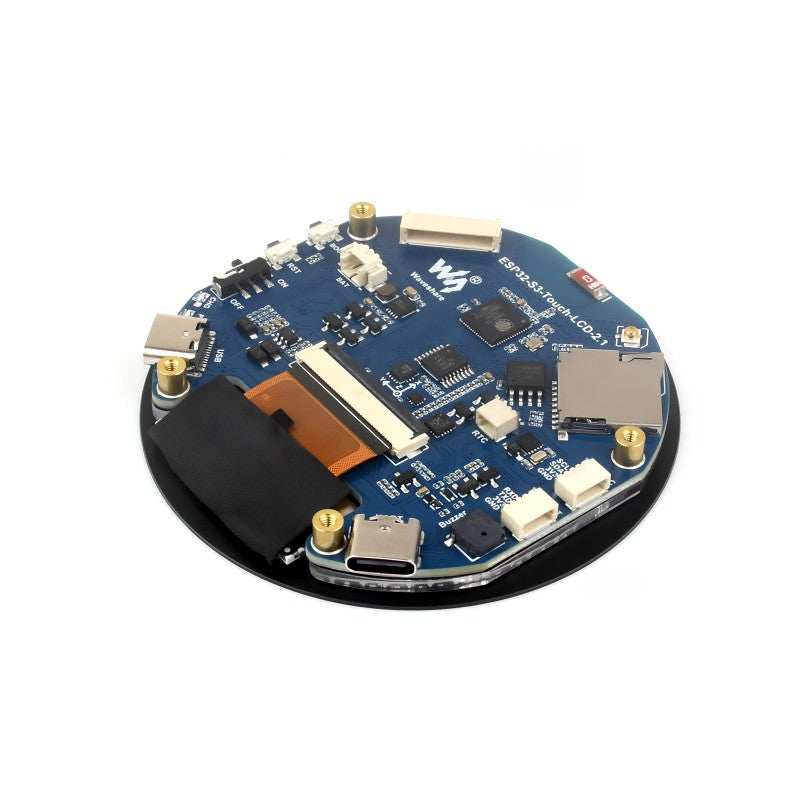

ESP32-S3-Touch-LCD-2.1 is a microcontroller development board with 2.4GHz WiFi and Bluetooth BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 2.1inch capacitive touch screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications.
- Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
- Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
- Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
- Onboard 2.1inch capacitive touch display, 480Ć480 resolution, 262K color
- Supports touch control via I2C interface, with interrupt support
- Adapting UART, I2C and some IO interfaces, integrates full-speed USB port
- Onboard QMI8658 6-axis sensor, RTC sensor, TF card slot and battery recharge management module, etc.
- Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
Ā
Application Scenarios
Ā

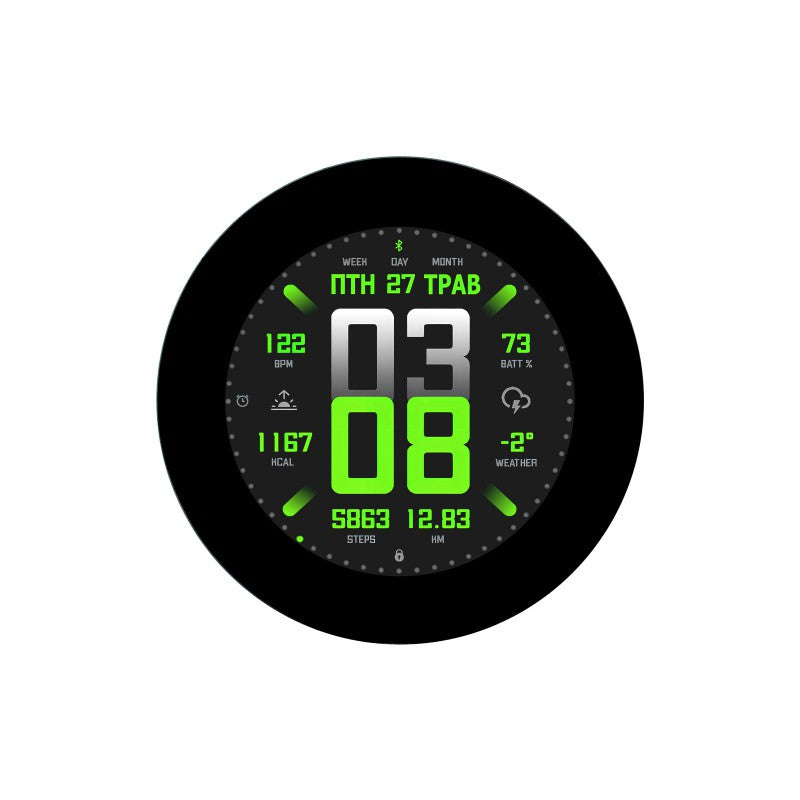

IPS Display Panel
Excellent Display Performance, 262K Color, Wide Viewing Angle
Ā
Supports ESP-IDF, Arduino
Comprehensive SDK, Dev Resources, And Tutorials To Help You Easily Get Started
Ā
Supports Multiple Peripherals
Supports The Expansion Of Multiple Peripherals Via GPIO,
UART And I2C Interfaces, Etc.
Ā
Ā

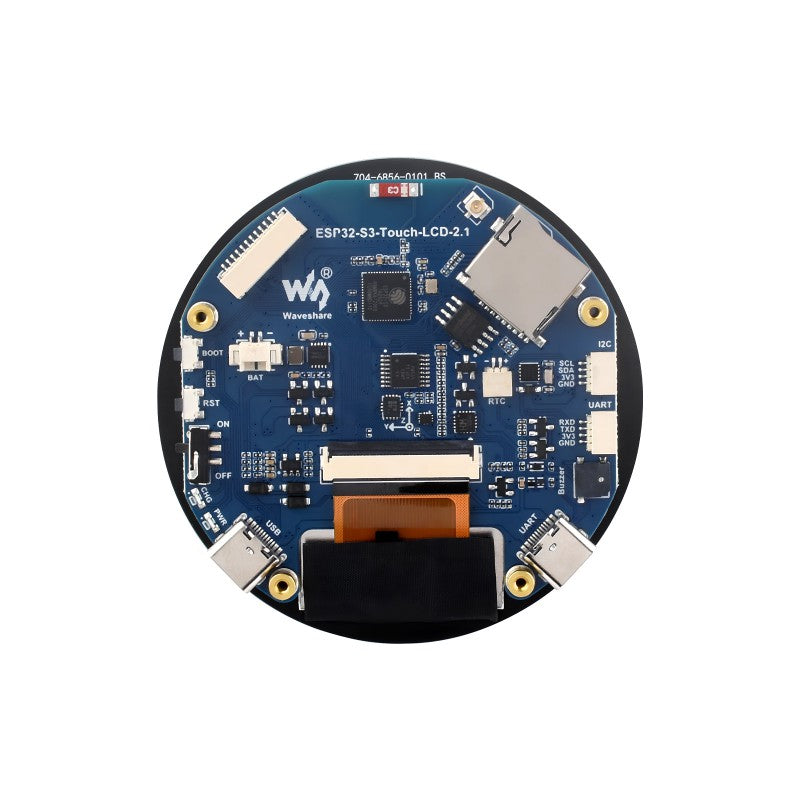

What's On Board
|
|
Ā
Outline Dimensions
Resources
Wiki:Ā www.waveshare.com/wiki/ESP32-S3-Touch-LCD-2.1Ā
Ā
Package Contains:
Weight:Ā 0.047 kg
- ESP32-S3-Touch-LCD-2.1 x1
- SH1.0 12PIN cable ~100mm Ć1
- SH1.0 4PIN cable ~100mm (2pcs) Ć1
Ā
1
2
2
2
2
What interfaces does the board expose for project development?
The board supports UART and I2C interfaces plus other IO options and includes a full speed USB port for programming and data transfer. The I2C header for internal peripherals only supports I2C and cannot be mapped to non I2C functions.
How is power and battery charging handled on this board?
It features a USB Type-C port for charging, a dedicated MX1.25 battery header for a 3.7V Li battery, and a ME6217C33M5G regulator with up to 800 mA output to power the board.
What are the display and touch capabilities?
An on board 2.1 inch capacitive touch display provides 480 by 480 resolution with 262K color, and touch is available via I2C with interrupt support for GUI applications.
What are the main MCU and wireless capabilities of the board?
The board uses an ESP32-S3 dual-core processor up to 240 MHz, supports 2.4 GHz WiFi and Bluetooth 5 LE, and includes 16 MB flash, 8 MB PSRAM, 512 KB SRAM and 384 KB ROM with an onboard antenna.
What is included in the package and where can I find getting started resources?
Package includes the ESP32-S3-Touch-LCD-2.1 board, one 12PIN cable and two 4PIN cables. Resources include ESP-IDF, Arduino SDK, development resources and tutorials to help you get started.
