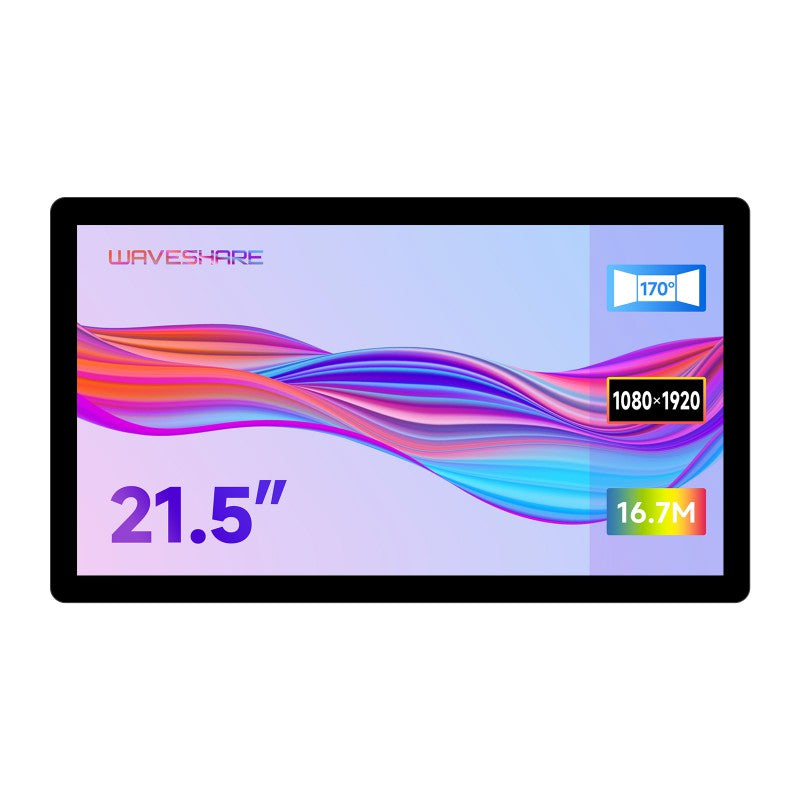

21.5″ Capacitive Touch Display
Industrial Quality, Suitable For Industrial,
Commercial, and Medical Applications, etc.
Size
21.5″
|
Resolution
1080×1920
|
Display Interface
HDMI
|
Display Color
16.7M
|
Viewing Angle
170°
|
Touch Type
Capacitive
|
Touch Port
Type-C
|
Touch Points
10-Point
|
Touch Panel
Toughened Glass
|
Touch Panel Tech
Optical Bonding
|
Temperature Range
-5 ~ 60℃
|
OSD Menu
Brightness/Contrast
|
Brightness
600cd/m²
|
Audio Output 1
3.5mm Jack
|
Audio Output 2
4Pin Header
|
Device & System Support
 |
Raspberry Pi
Supports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali, single point touch, driver free
Jetson Nano
Supports Ubuntu, single point touch, driver free
PC
Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free
|
Configurable Display Orientation
The Display Orientation Is Portrait By Default, 1080×1920 Resolution (H×V).
Change The Software Config For Landscape Display
Wide Viewing Angle IPS Display Panel
Excellent Display & Color Performance
Wide Viewing Angle Up To 170°, Color Gamut Up To 72% NTSC
10-Point Capacitive Touch
- up to 10-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
- Optical bonding, display well and dustproof

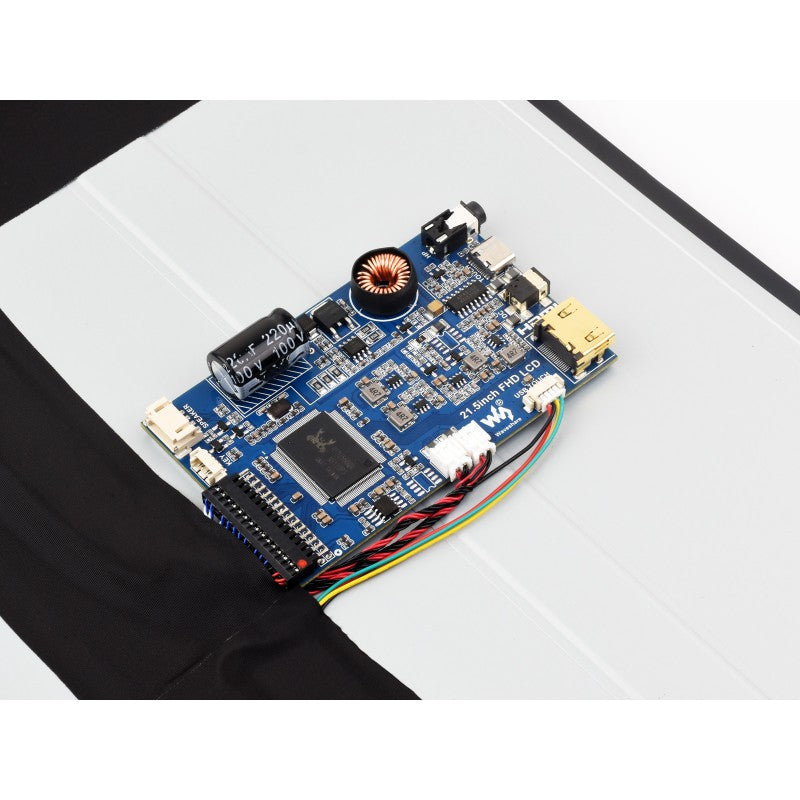

Interface Introduction
Application Scenarios
Suitable For Industrial, Commercial, Medical And Other Applications
Dimensions
Resources
Wiki: www.waveshare.com/wiki/21.5inch_FHD_LCD
Package Contains:
Weight: 4.573 kg
- 21.5inch FHD LCD x1
- HDMI cable ~1m x1
- HDMI to Micro HDMI adapter x1
- USB Type A to Type C cable ~1m x1
-
OPTIONS 12V 2A power adapter x1
- Triangular stand x1
- Button board x1
- 1.27H 4PIN button board cable x1
- Capacitive touch pen ×1
