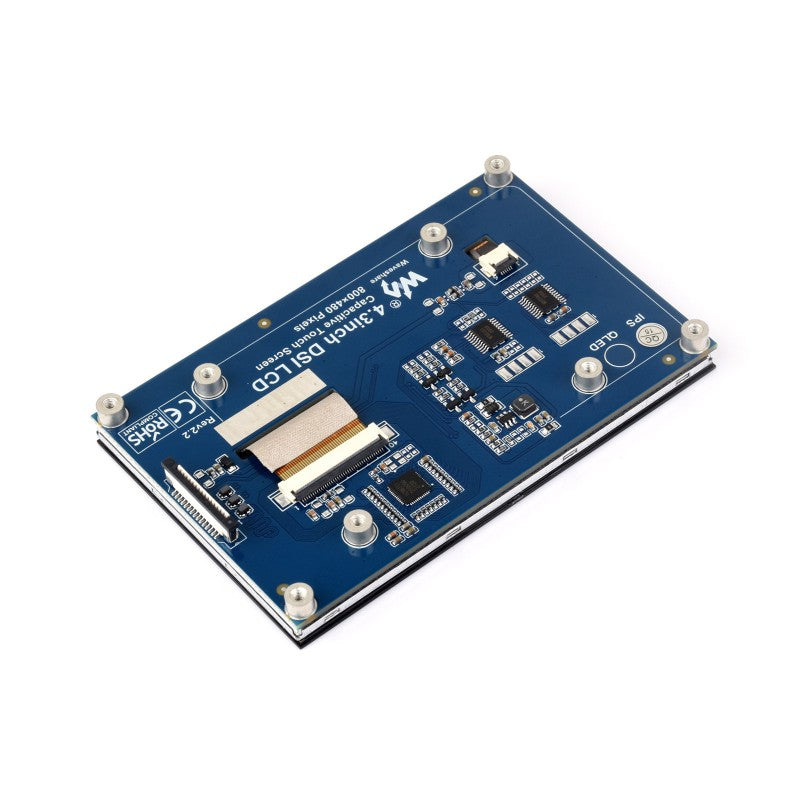

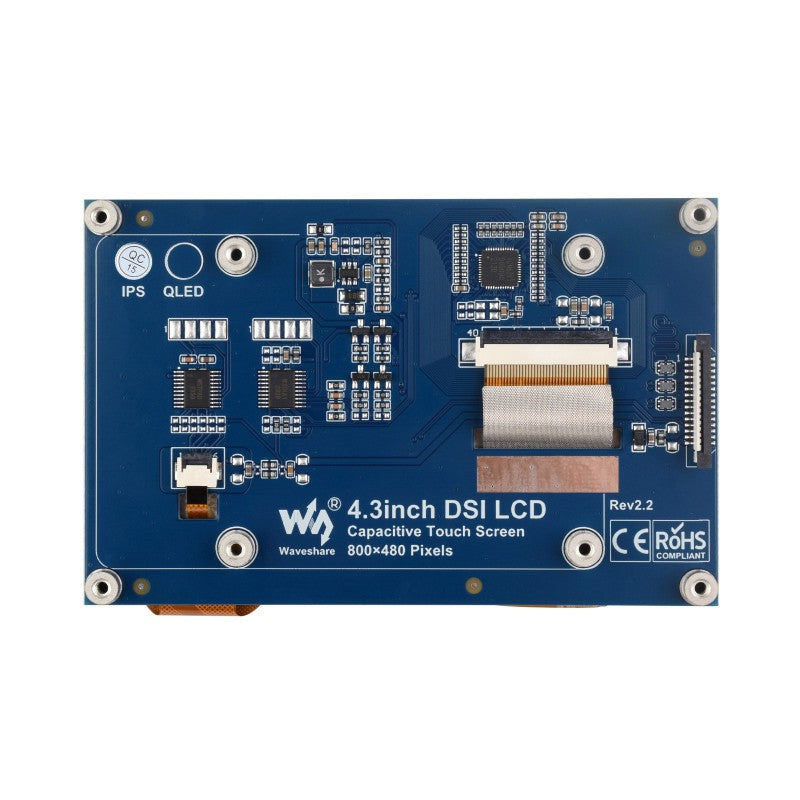

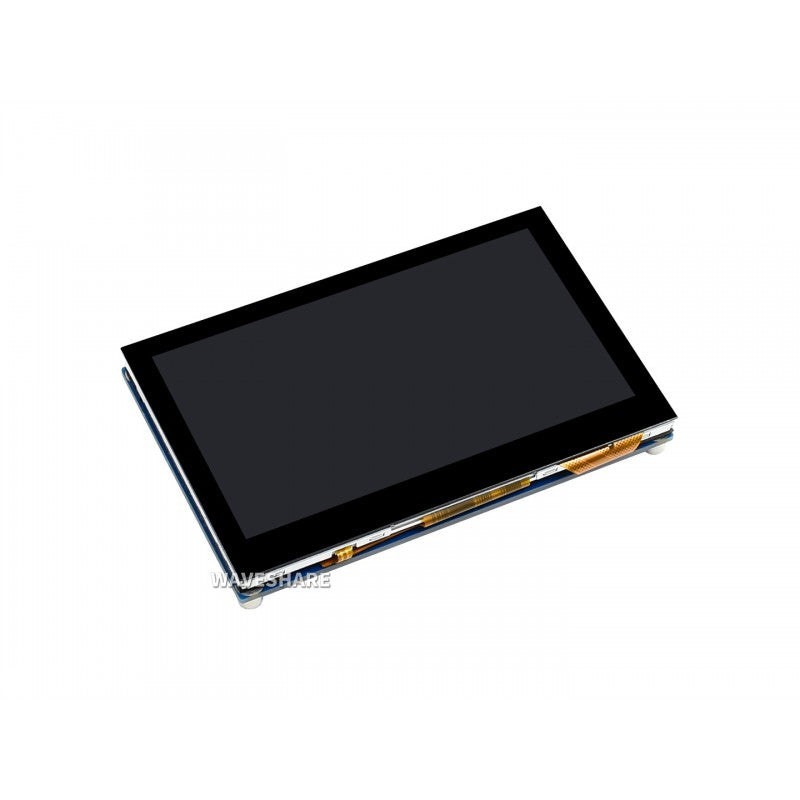

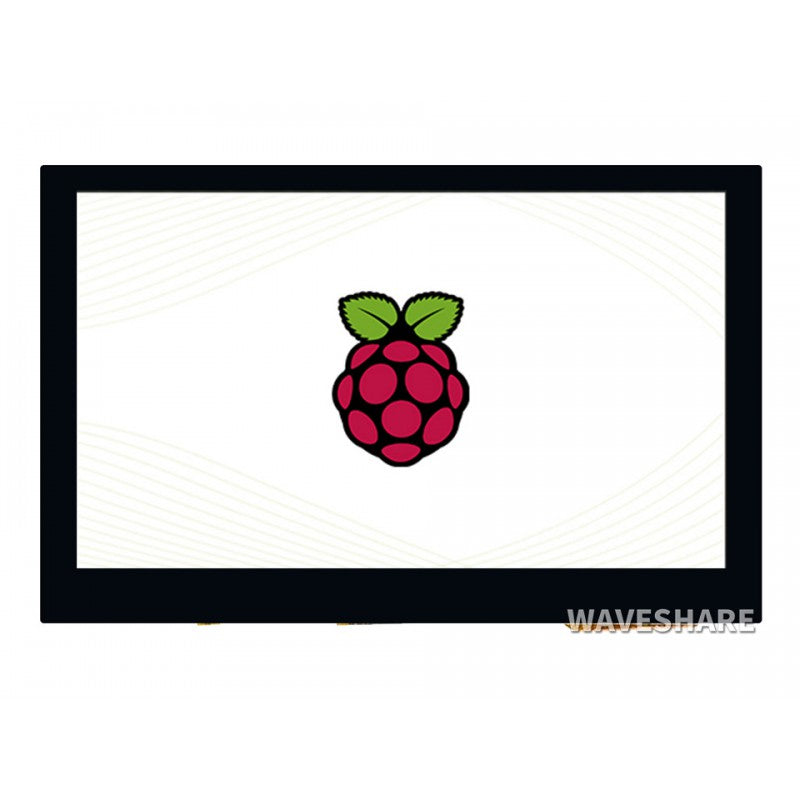

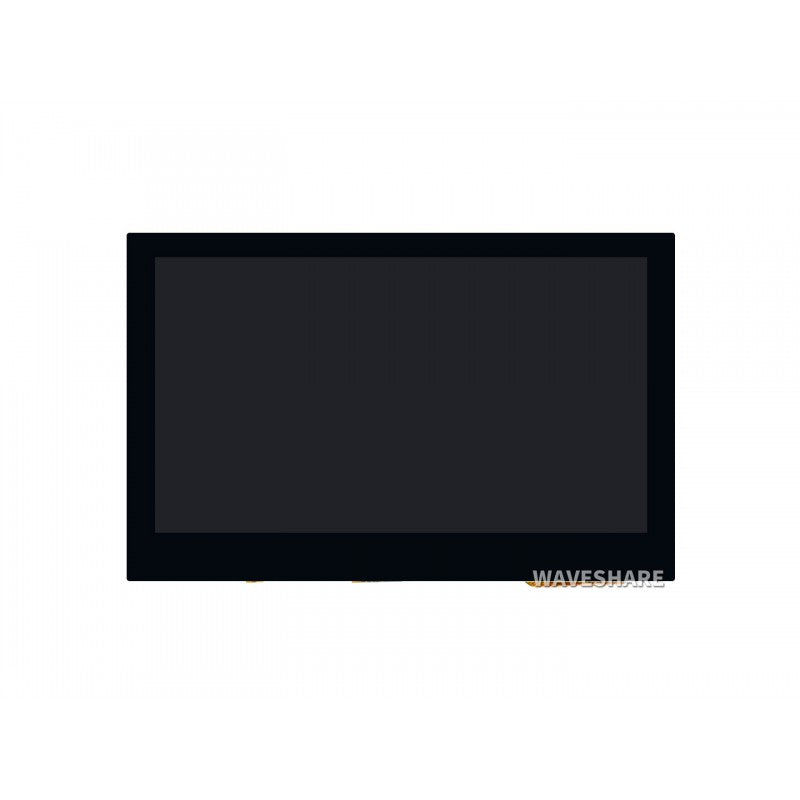

4.3" Touch Display
Size 4.3"
|
Resolution 800×480
|
Display Port DSI
|
Display Panel IPS
|
Viewing Angle 178°
|
Touch Type Capacitive
|
Touch Points 5-Points
|
Touch Port I2C
|
Touch Panel Toughened Glass
|
Power Saving Low Power Solution
|
Device & System Support
 |
Raspberry Pi
Supports Raspberry Pi OS, 10-point touch, driver required
Supports Pi 4B/3B+/3A+, CM3/3+/4* * CM3/3+/4 requires extra adapter cable
|
Connection Examples

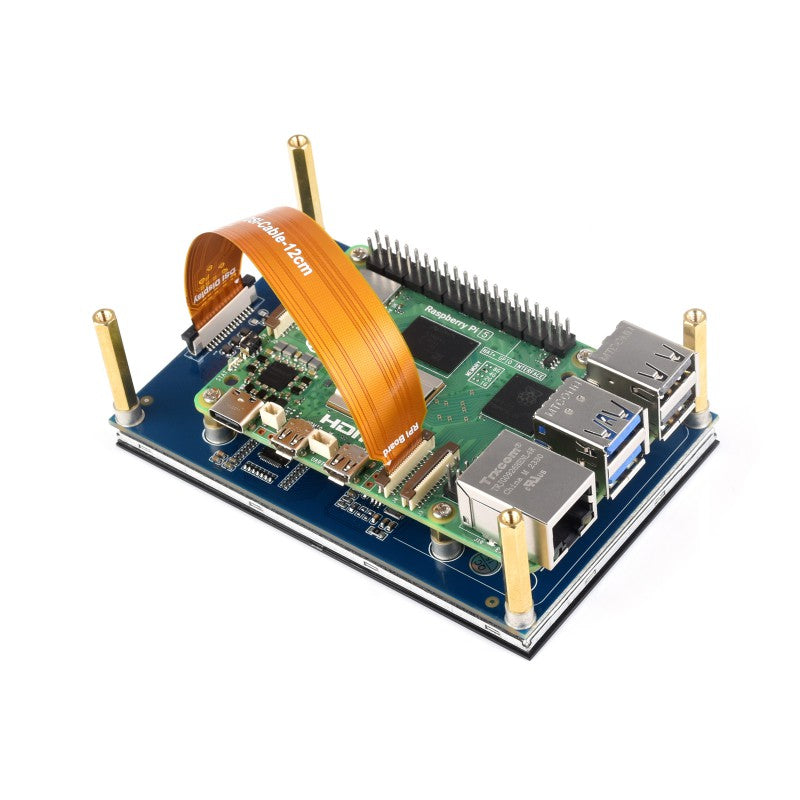

Working With Raspberry Pi 5

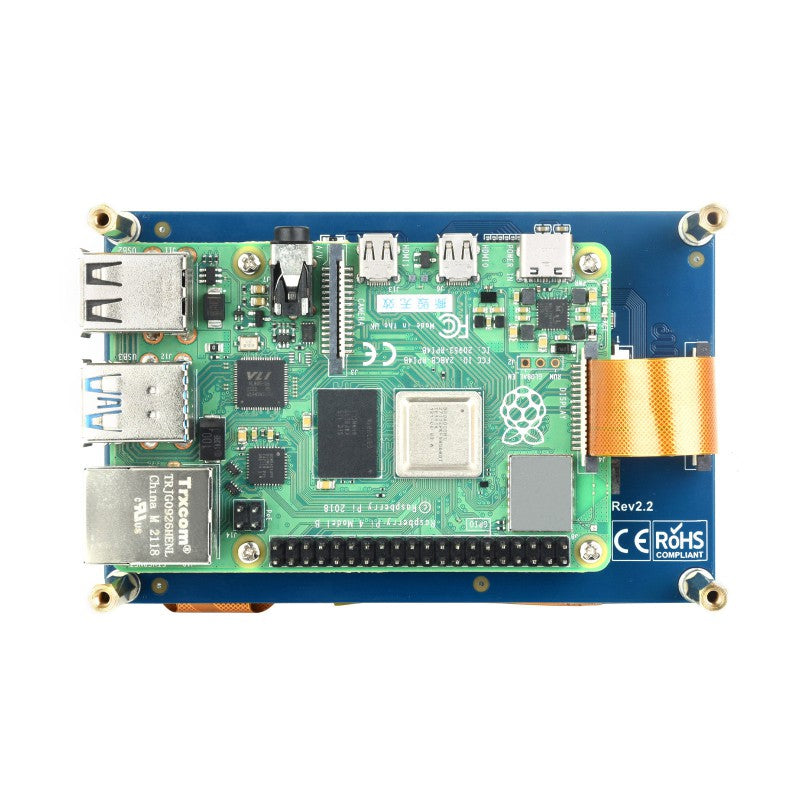

Working With Raspberry Pi 4
Working With Raspberry Pi 3B+
Display
Touch Control
1) up to 5-points touch, depending on the operating system.
Appearance And Dimensions
Development Resources
Wiki: www.waveshare.com/wiki/4.3inch_DSI_LCD
Package Contains:
Weight: 0.174 kg
- 4.3inch DSI LCD x1
- FPC 15PIN 1.0 pitch 50mm (opposite sides) x1
- DSI-Cable-12cm x1
- FPC 15PIN 1.0 pitch 160mm (opposite sides) x1
- Screws pack x1
