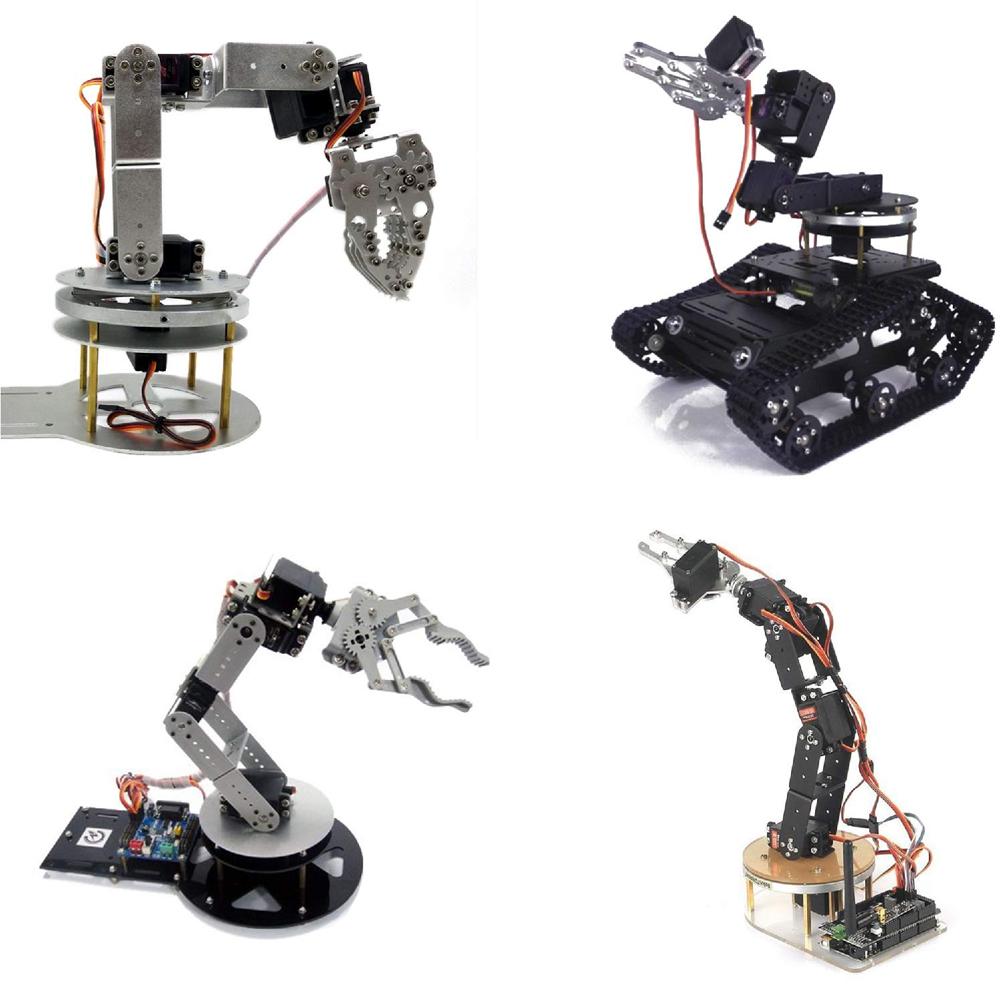

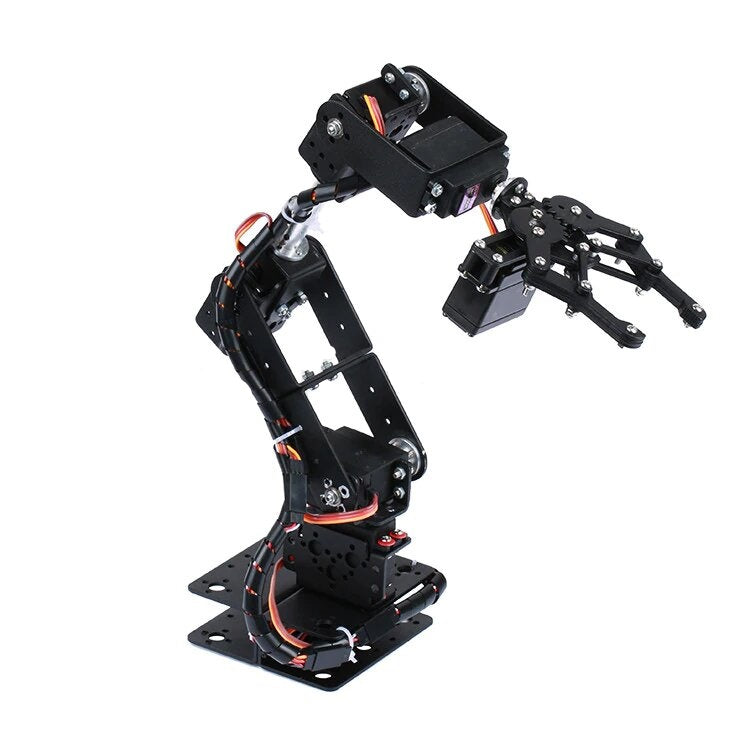

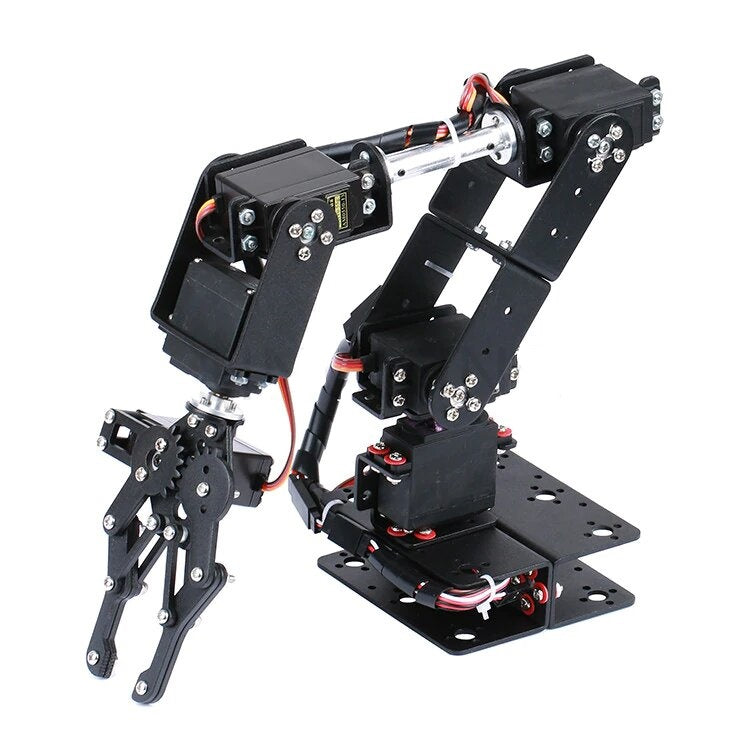

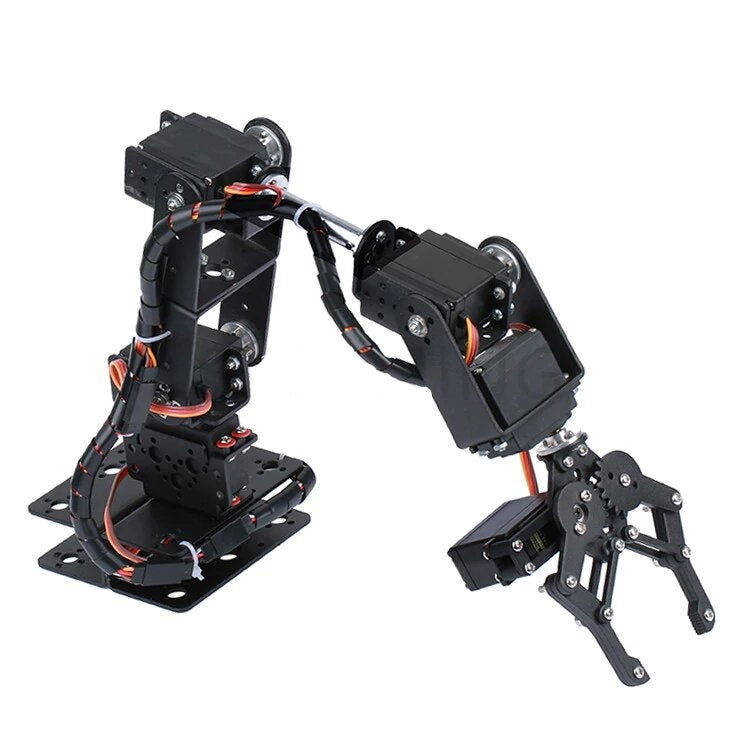

6 DOF Robot Arm
Metal alloy mechanical arm with 6 Degree of Freedom. The kit is delivered in a simple carton. The subassemblies are packaged in separate bags. The structural elements of the robotic arm are made by stamping aluminum plate. To give a better appearance and deburr the edges, the pieces are sandblasted. Black anodising (visible on the assembly instructions) has been abandoned. Positive point of this kit, we find very easily spare parts. Most structural elements, servo motors MG996R, flanged base, clamp (or claw) are standard elements that are found very often our store.
The 6DOF All-Metal Robotic Arm Kit with Servos is a versatile and durable robotic manipulator, widely used for college teaching, robotics training, and DIY projects. Built from high-quality aluminum plates, the arm offers excellent stability, making it ideal for demonstrating robotic concepts, automation experiments, and hobbyist applications.
The disc-shaped chassis design ensures smooth and flexible left-right rotation, while the six included servo motors power a wide range of movements such as lifting, gripping, and rotating.
Whether you are an educator, student, or robotics enthusiast, this robotic arm provides a solid platform for learning robotics, kinematics, and automation control.
This kit with 6x DS3115MG Servo Motors

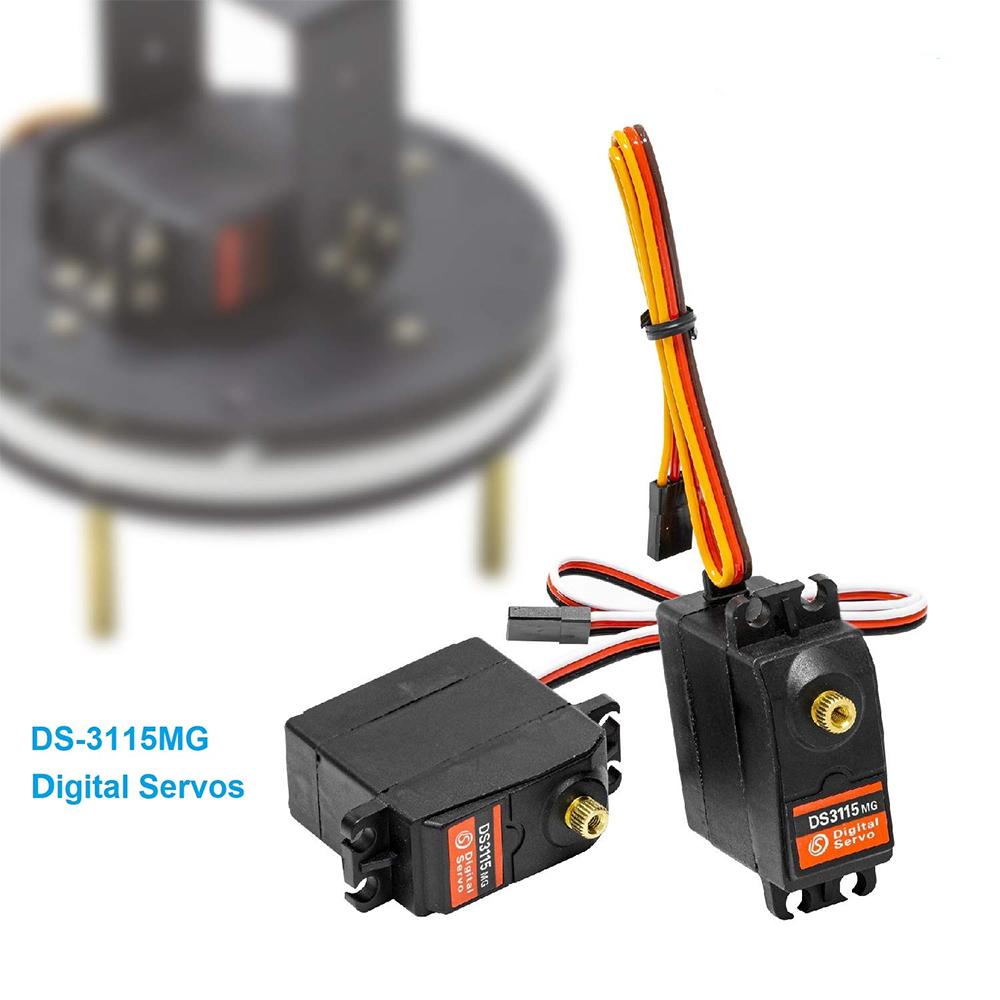

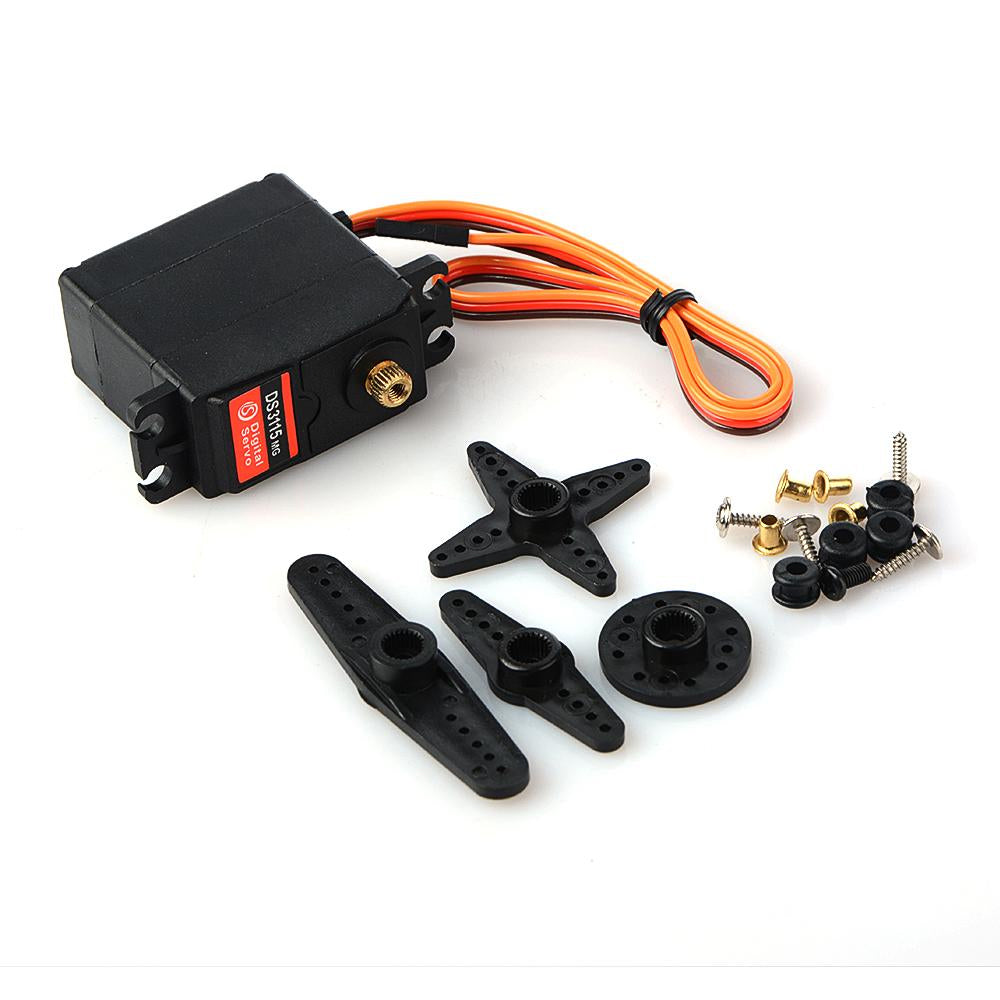

DS3115MG Metal Gear Digital Servo
Fast Heat Dissipation, High Torque, Strong Compatibility, And Sensitive Response High-Performance Programmable Digital Standard Steering Gear Can Be Widely Used in Robots, Mechanical Arms, and Remote-Control Toys.
| Parameter | Specification |
|---|---|
| Operating Voltage | 4.8–6.8 V (some sources mention up to 7.2 V) |
| Operating Speed (no load) | ~0.16 s/60° @5 V ~0.14 s/60° @6.8 V |
| Stall Torque | ~15 kg-cm @5 V ~17 kg-cm @6.8 V (some sources: 14.5 kg-cm @4.8 V, 17.3 kg-cm @6.5 V) |
| Stall Current | ~1.6 A @5 V ~2.5 A @6.8 V |
| Pulse Width Range | 500–2500 µs — standard PWM control |
| Neutral Position | 1500 µs (center) |
| Angular Range | 180° ± 3° for 500–2500 µs — 180° rotation |
| Deadband Width | 3 µs — minimal detectable change |
| Operating Frequency | 50–330 Hz |
| Rotational Direction | Counterclockwise when pulse increases (500 → 2500 µs) |
| Mechanical Details | Dimensions ~40 × 20.5 × 40.5 mm Weight ~58 g Gears: Metal Bearings: Dual ball (2BB) Wire Length: ~320 mm |
| Operating Temperature | −25 °C to +70 °C / −30 °C to +80 °C (storage) |
Digital Servo Dimensions
Resources
What is included with the kit and what motors are used?
The kit includes six DS3115MG servo motors and the structural elements for six joints, with spare parts readily available.
What power supply and control signals does this arm require?
Operating voltage is 4.8 to 6.8 V and servo control uses standard PWM with pulse widths from 500 to 2500 microseconds.
Is this kit suitable for education and what guidance is provided?
It is designed for college teaching, robotics training, and DIY projects, and a video tutorial is provided to assist with assembly and use.
How is the kit packaged and can spare parts be found easily?
It is delivered in a simple carton with subassemblies in separate bags, and spare parts are readily available.
What are the environmental and physical specs of the arm?
The arm uses metal alloy construction with stamped aluminum parts and sandblasted edges; operating temperature range is minus 25 C to plus 70 C; wire length is about 320 mm; each servo is a metal gear digital servo with dual ball bearings.
Description
6 DOF Robot Arm
Metal alloy mechanical arm with 6 Degree of Freedom. The kit is delivered in a simple carton. The subassemblies are packaged in separate bags. The structural elements of the robotic arm are made by stamping aluminum plate. To give a better appearance and deburr the edges, the pieces are sandblasted. Black anodising (visible on the assembly instructions) has been abandoned. Positive point of this kit, we find very easily spare parts. Most structural elements, servo motors MG996R, flanged base, clamp (or claw) are standard elements that are found very often our store.
The 6DOF All-Metal Robotic Arm Kit with Servos is a versatile and durable robotic manipulator, widely used for college teaching, robotics training, and DIY projects. Built from high-quality aluminum plates, the arm offers excellent stability, making it ideal for demonstrating robotic concepts, automation experiments, and hobbyist applications.
The disc-shaped chassis design ensures smooth and flexible left-right rotation, while the six included servo motors power a wide range of movements such as lifting, gripping, and rotating.
Whether you are an educator, student, or robotics enthusiast, this robotic arm provides a solid platform for learning robotics, kinematics, and automation control.
This kit with 6x DS3115MG Servo Motors
DS3115MG Metal Gear Digital Servo
Fast Heat Dissipation, High Torque, Strong Compatibility, And Sensitive Response High-Performance Programmable Digital Standard Steering Gear Can Be Widely Used in Robots, Mechanical Arms, and Remote-Control Toys.
| Parameter | Specification |
|---|---|
| Operating Voltage | 4.8–6.8 V (some sources mention up to 7.2 V) |
| Operating Speed (no load) | ~0.16 s/60° @5 V ~0.14 s/60° @6.8 V |
| Stall Torque | ~15 kg-cm @5 V ~17 kg-cm @6.8 V (some sources: 14.5 kg-cm @4.8 V, 17.3 kg-cm @6.5 V) |
| Stall Current | ~1.6 A @5 V ~2.5 A @6.8 V |
| Pulse Width Range | 500–2500 µs — standard PWM control |
| Neutral Position | 1500 µs (center) |
| Angular Range | 180° ± 3° for 500–2500 µs — 180° rotation |
| Deadband Width | 3 µs — minimal detectable change |
| Operating Frequency | 50–330 Hz |
| Rotational Direction | Counterclockwise when pulse increases (500 → 2500 µs) |
| Mechanical Details | Dimensions ~40 × 20.5 × 40.5 mm Weight ~58 g Gears: Metal Bearings: Dual ball (2BB) Wire Length: ~320 mm |
| Operating Temperature | −25 °C to +70 °C / −30 °C to +80 °C (storage) |
Digital Servo Dimensions
Resources
FAQ
What is included with the kit and what motors are used?
The kit includes six DS3115MG servo motors and the structural elements for six joints, with spare parts readily available.
What power supply and control signals does this arm require?
Operating voltage is 4.8 to 6.8 V and servo control uses standard PWM with pulse widths from 500 to 2500 microseconds.
Is this kit suitable for education and what guidance is provided?
It is designed for college teaching, robotics training, and DIY projects, and a video tutorial is provided to assist with assembly and use.
How is the kit packaged and can spare parts be found easily?
It is delivered in a simple carton with subassemblies in separate bags, and spare parts are readily available.
What are the environmental and physical specs of the arm?
The arm uses metal alloy construction with stamped aluminum parts and sandblasted edges; operating temperature range is minus 25 C to plus 70 C; wire length is about 320 mm; each servo is a metal gear digital servo with dual ball bearings.
