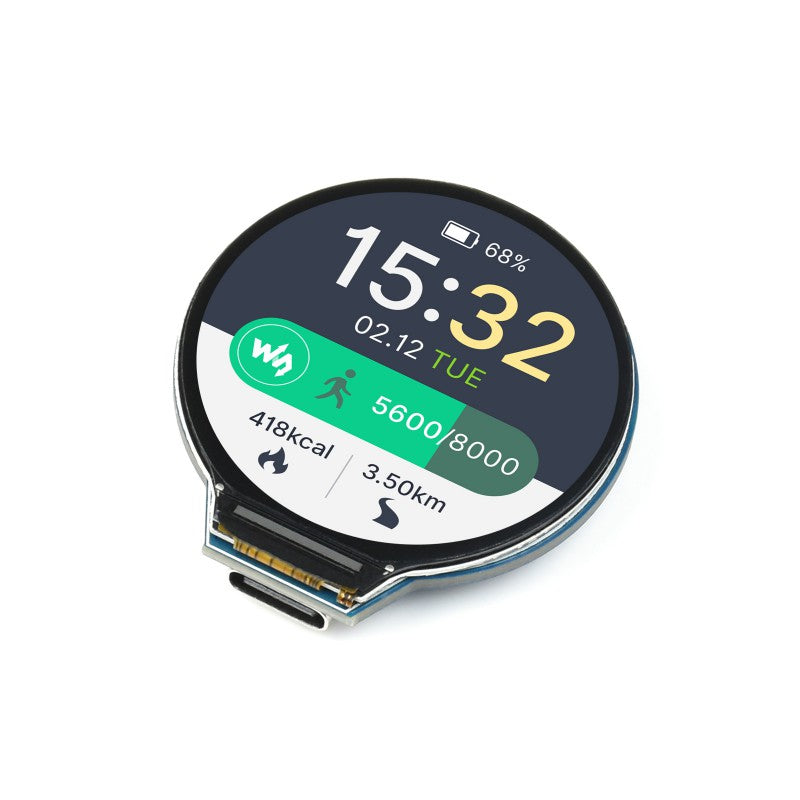

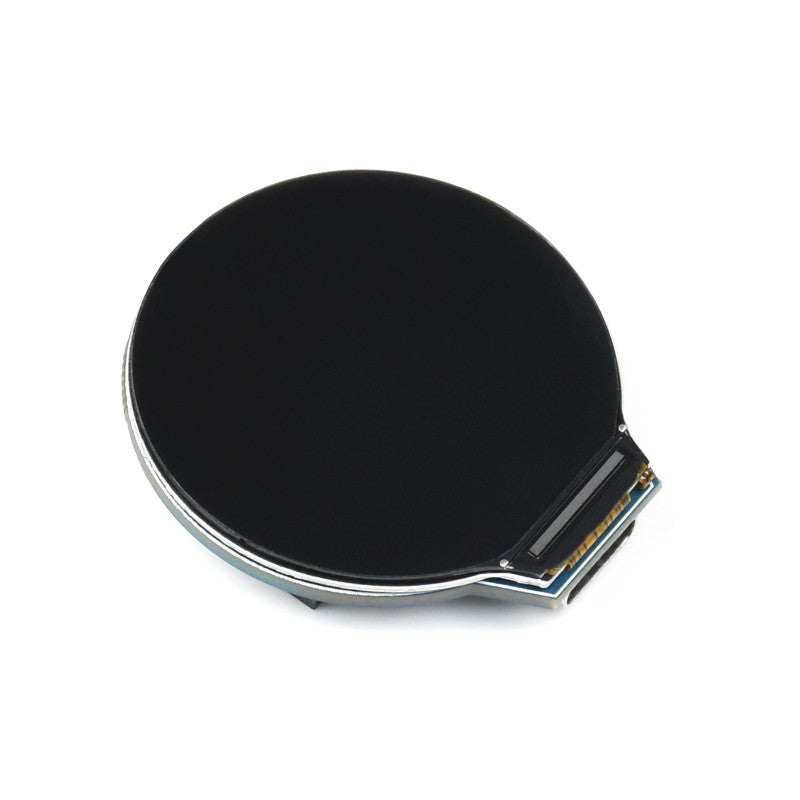

1.28inch Round LCD, Accelerometer And Gyroscope Sensor
Based on Raspberry Pi RP2040
Ā
Ā
Ā
RP2040-LCD-1.28Ā is a low-cost, high-performance MCU board designed by Waveshare. Tiny size with onboard 1.28inch LCD round display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope) and so on, adapting all GPIO and Debug pins, which makes it easy for you to develop and integrate it into products quickly.
Ā
SalientĀ Features:
- RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
- 264KB of SRAM, and 2MB of on-board Flash memory
- Type-C connector, keeps it up to date, easier to use

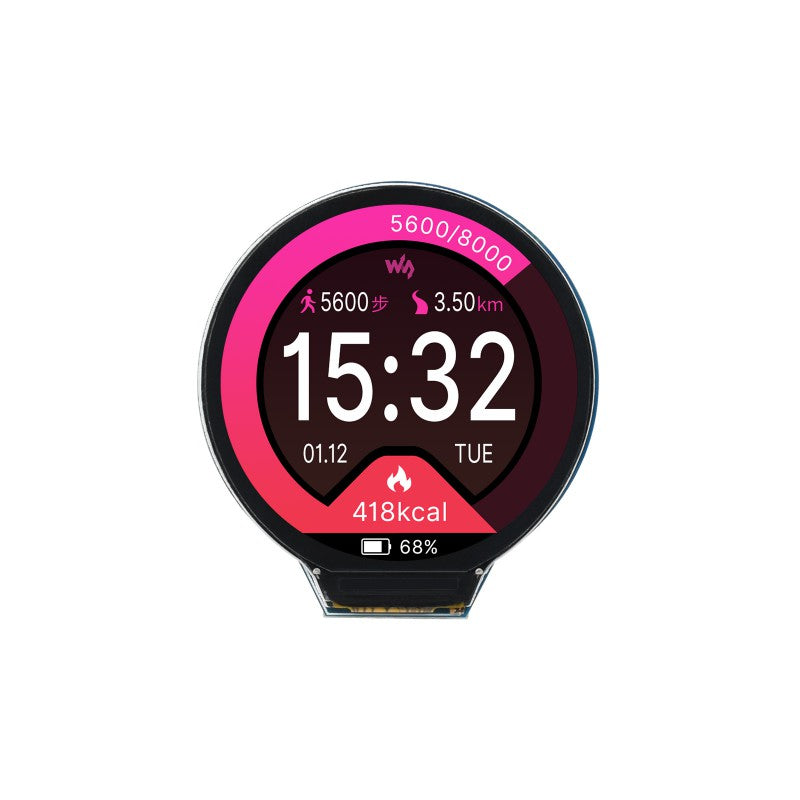

- Onboard 1.28inch 240Ć240 pixels 65K colorful IPS LCD display for clear color pictures
- Lithium battery recharge/discharge header, suitable for mobile devices
- All GPIO pins are adapted through 1.27 pitch female headers (There are 30 pins in total, but some pins have been connected to the internal circuit, please refer to the wiki for details when multiplexing)
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- 2 Ć SPI, 2 Ć I2C, 2 Ć UART, 4 Ć 12-bit ADC, 16 Ć controllable PWM channels
- Accurate clock and timer on-chipĀ
- Temperature sensorĀ
- Accelerated floating-point libraries on-chipĀ
- 8 Ć Programmable I/O (PIO) state machines for custom peripheral support
Resources
Wiki:Ā www.waveshare.com/wiki/RP2040-LCD-1.28
Ā
C/C++, MicroPython Support
Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started
Ā
Dual-Core Arm Processor
Dual-Core Arm Cortex M0+ Processor, Flexible Clock Running Up To 133 MHz
Ā
30 Ć Multi-Function GPIO Pins
Configurable Pin Function, Allows Flexible Development And Integration
Ā

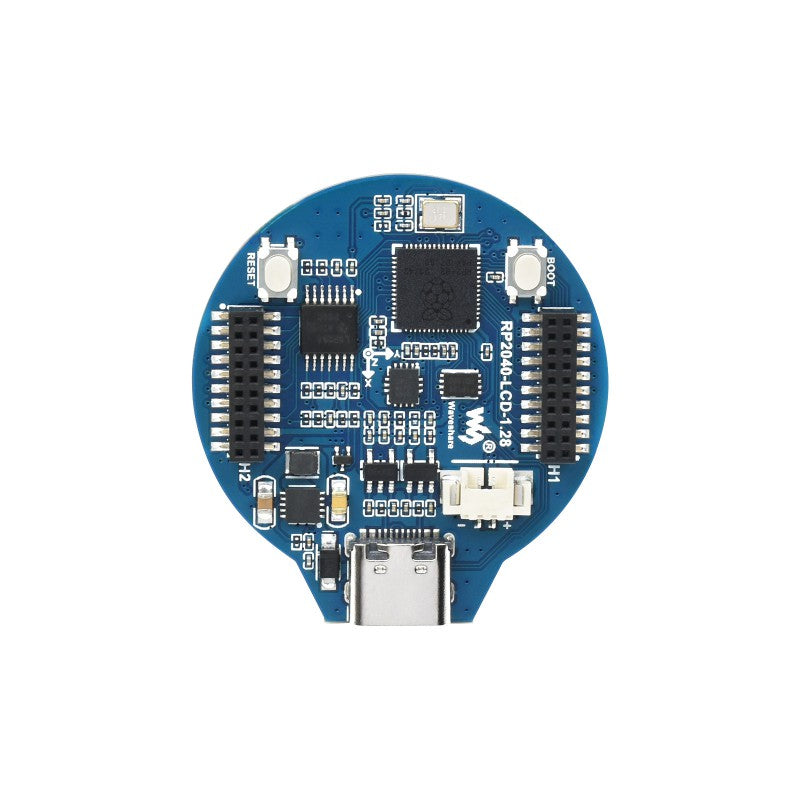

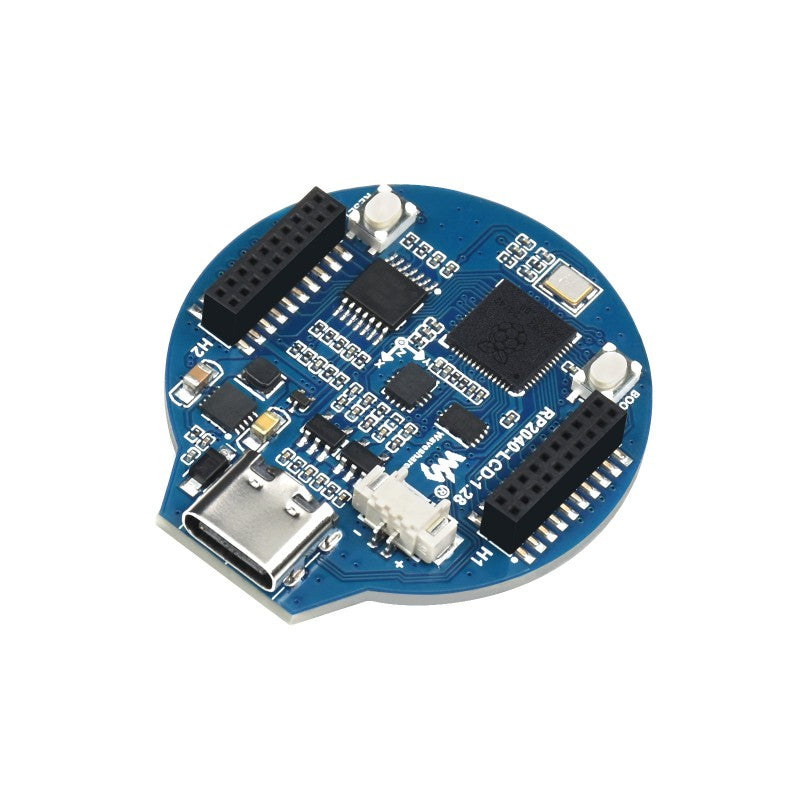

What's On Board
-
USB Type-C connector
USB 1.1 with device and host support -
ETA6096
high efficiency Lithium battery recharge manager -
Battery Header
MX1.25 header, for 3.7V Lithium battery, allows recharging the battery and powering the board at the same time -
QMI8658C
IMU, includes a 3-axis gyroscope and a 3-axis accelerometerĀ -
1.27mm pitch headers
Adapting all GPIO and Debug pins -
W25Q16JVUXIQ
2MB NOR-Flash -
RP2040
Dual-core processor, up to 133MHz operating frequency - RESET Button
-
BOOT Button
press it when resetting to enter download mode
Ā
Dimensions
What are the key features and interfaces of this RP2040 based board with a round 1.28 inch display?
It uses a RP2040 dual core Arm Cortex M0+ up to 133 MHz with 264 KB SRAM and 2 MB on board flash, a 1.28 inch 240x240 IPS LCD, and 30 multi function GPIO pins. It provides USB Type C, 2x SPI, 2x I2C, 2x UART, 4x12 bit ADC, 16 PWM channels and a 6 axis IMU with a 3 axis gyroscope and a 3 axis accelerometer.
How do I power the board and can I charge a battery at the same time?
The board includes an ETA6096 high efficiency Lithium battery recharge manager and a MX1.25 battery header for a 3.7V Li battery. It allows recharging the battery while powering the board and can power from the battery when USB is not connected.
What development environments are supported for programming?
It supports C and C++ and MicroPython via a comprehensive SDK and tutorials. Drag and drop programming over USB mass storage is also supported.
What are the display and sensor specifications?
The board features a 1.28 inch round IPS LCD with 240x240 resolution and 65K colors. It includes a QMI8658CIMU with a 3 axis gyroscope and a 3 axis accelerometer.
How are the GPIO pins exposed and what should I know about multiplexing?
All GPIO pins are exposed through 1.27 mm pitch female headers, a total of 30 pins. Some pins are already connected to the internal circuit and multiplexing details are available in the wiki.
