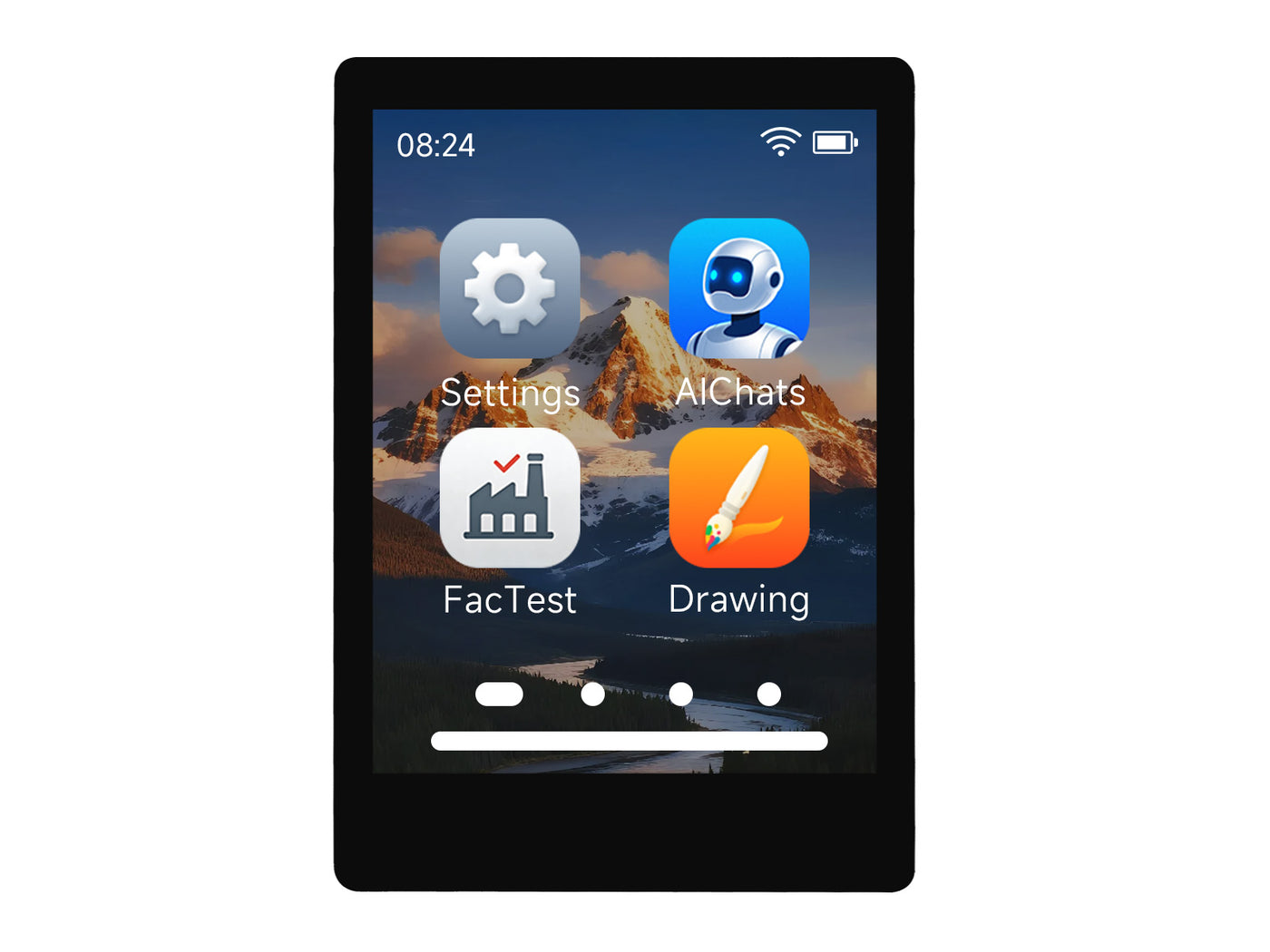

ESP32-C5 2.8-Inch IPS Capacitive Touch Display Development Board

SKU: WVSH0612

₹ 3,249.99

In stock | Ready to ship

Chat with us on WhatsApp We reply quickly! Contact Us

ESP32-C5 2.8-Inch IPS Capacitive Touch Display Development Board₹ 3,249.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

Details

ESP32-C5 2.8inch IPS capacitive touch display development board, 240 × 320 resolution, 262K color, Integrated 2.4GHz/5GHz dual-band Wi-Fi and Bluetooth 5 (LE)

ESP32-C5 2.8inch IPS capacitive touch display development board

Integrates SPI interface display, 240 × 320 resolution, multiple peripheral interfaces

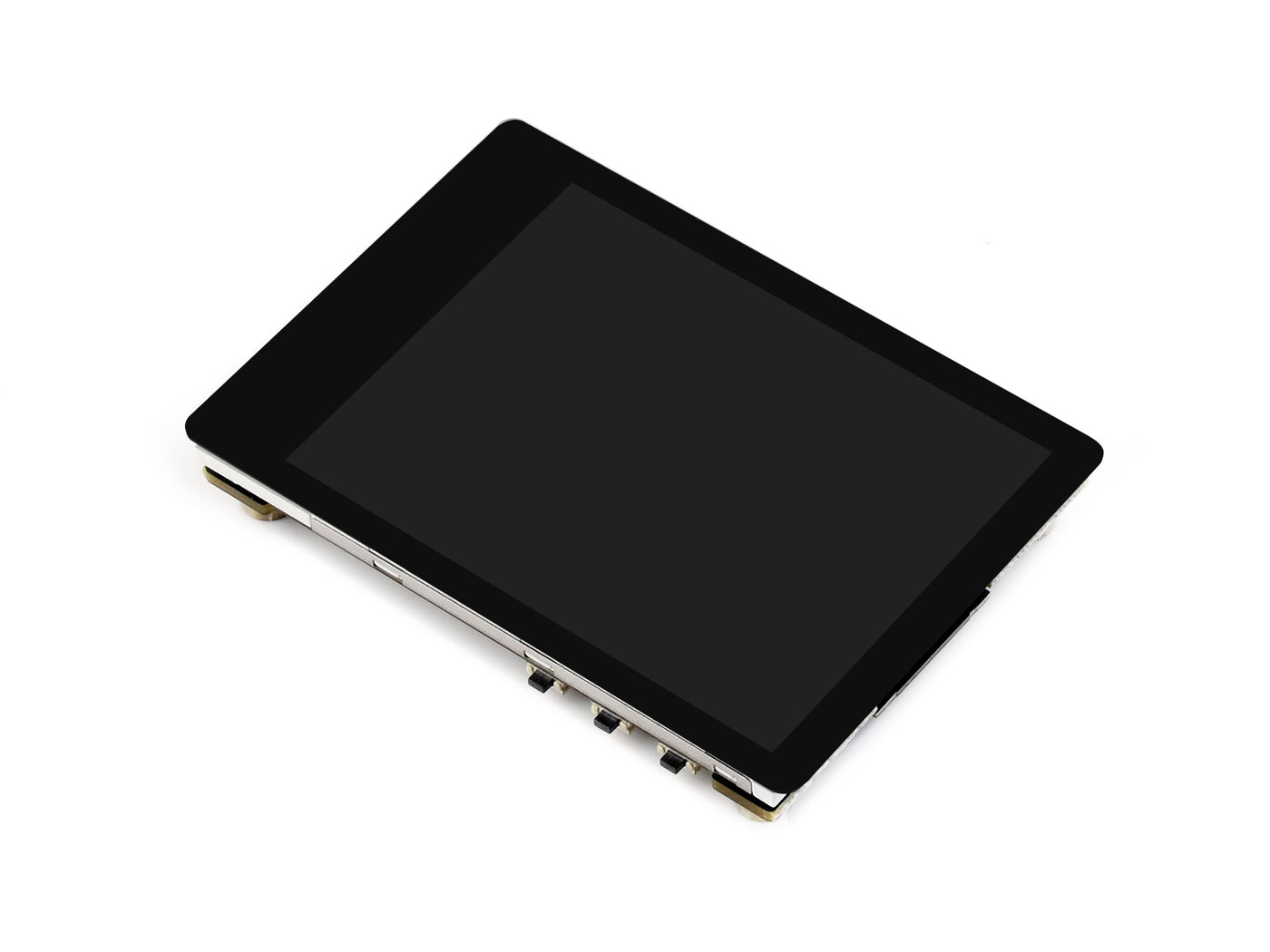

ESP32-C5 Touch LCD 2.8, front view and features

Version Options

ESP32-C5-Touch-LCD-2.8-EN
without Lithium Batt

ESP32-C5-Touch-LCD-2.8
comes with a 3.7V Lithium Batt

Features

This product is designed by Waveshare with onboard 2.8inch LCD display, 6-axis sensor, temperature and humidity sensor, and TF card slot, providing the hardware foundation for display, sensing, voice, and multimedia storage. With these hardware resources, it supports fun interactive mini-games and voice wake-up. It allows access to online AI large model platforms, enabling intelligent voice interaction and continuous upgrades. It comes pre-installed functions such as AI conversation, audio playback, a gravity ball game, 2048 game, and weather. It can be used directly as an AI chatting toy, while also supporting customization and secondary development.

Equipped with the ESP32-C5-WROOM-1 series module, featuring a RISC-V 32-bit processor, up to 240MHz main frequency
Integrated with 384KB Static RAM, 320KB ROM, 8MB PSRAM, and 32MB Flash, meeting the requirements for program execution, graphical interface, and data storage
Integrated 2.4GHz and 5GHz dual-band Wi-Fi, Bluetooth 5 (LE), and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communications, with outstanding RF performance
Onboard Batt recharge management module, with reserved 3.7V MX1.25 Lithium Batt header for connecting external Batt
Type-C port, improving device compatibility, easier to use
Onboard 2.8inch LCD display, 240 × 320 resolution, 262K color
Supports capacitive touch controlled via I2C interface, with interrupt support
Adapting UART, I2C and some IO interfaces, integrates full-speed USB port
Onboard QMI8658 6-axis sensor, RTC sensor, SHTC3 temperature and humidity sensor, TF card slot, etc.
Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
Onboard ES8311 audio codec chip, NS4150B power amplifier chip, microphone, and speaker
Supports ESP-IDF, Arduino, and other development environments, with rich resources for quick and easy development

LCD parameters

Display panel	IPS	Display Size	2.8inch
Display Resolution	240 × 320 pixels	Display Color	262K
communication interface	4-wire SPI	Driver IC	ST7789
Touch Type	Capacitive touch	Touch IC	CST3530
Active Display Area	57.60 × 43.20 (mm)

Function Overview

ESP32-C5 Touch LCD 2.8, application scenarios

Supports multiple peripherals

Supports the expansion of multiple peripherals via GPIO, UART and I2C interfaces, etc.

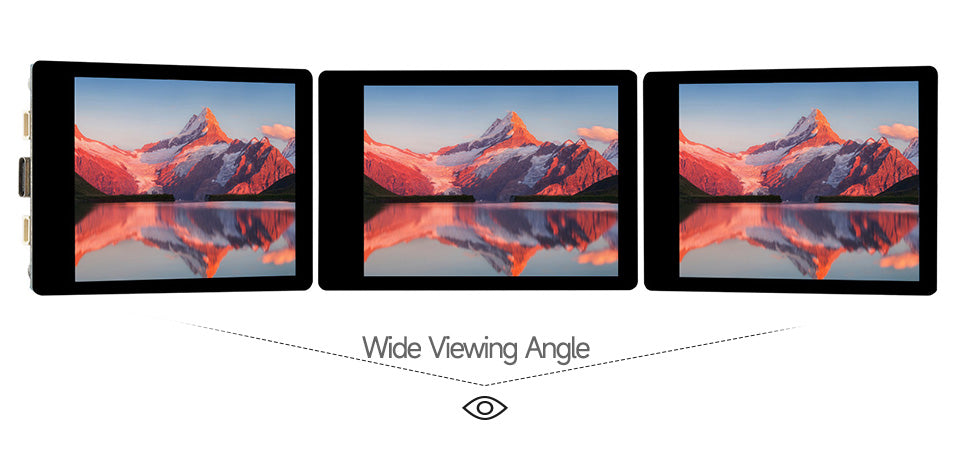

IPS Display Panel

262K color, 240 × 320 resolution, wide viewing angle

Supports ESP-IDF, Arduino IDE

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

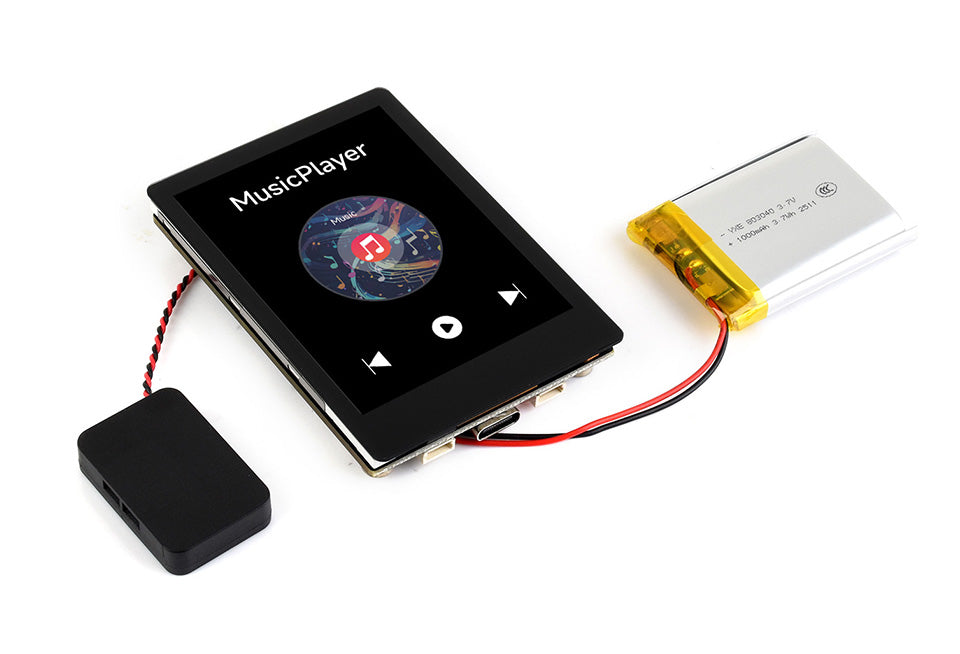

Application Example

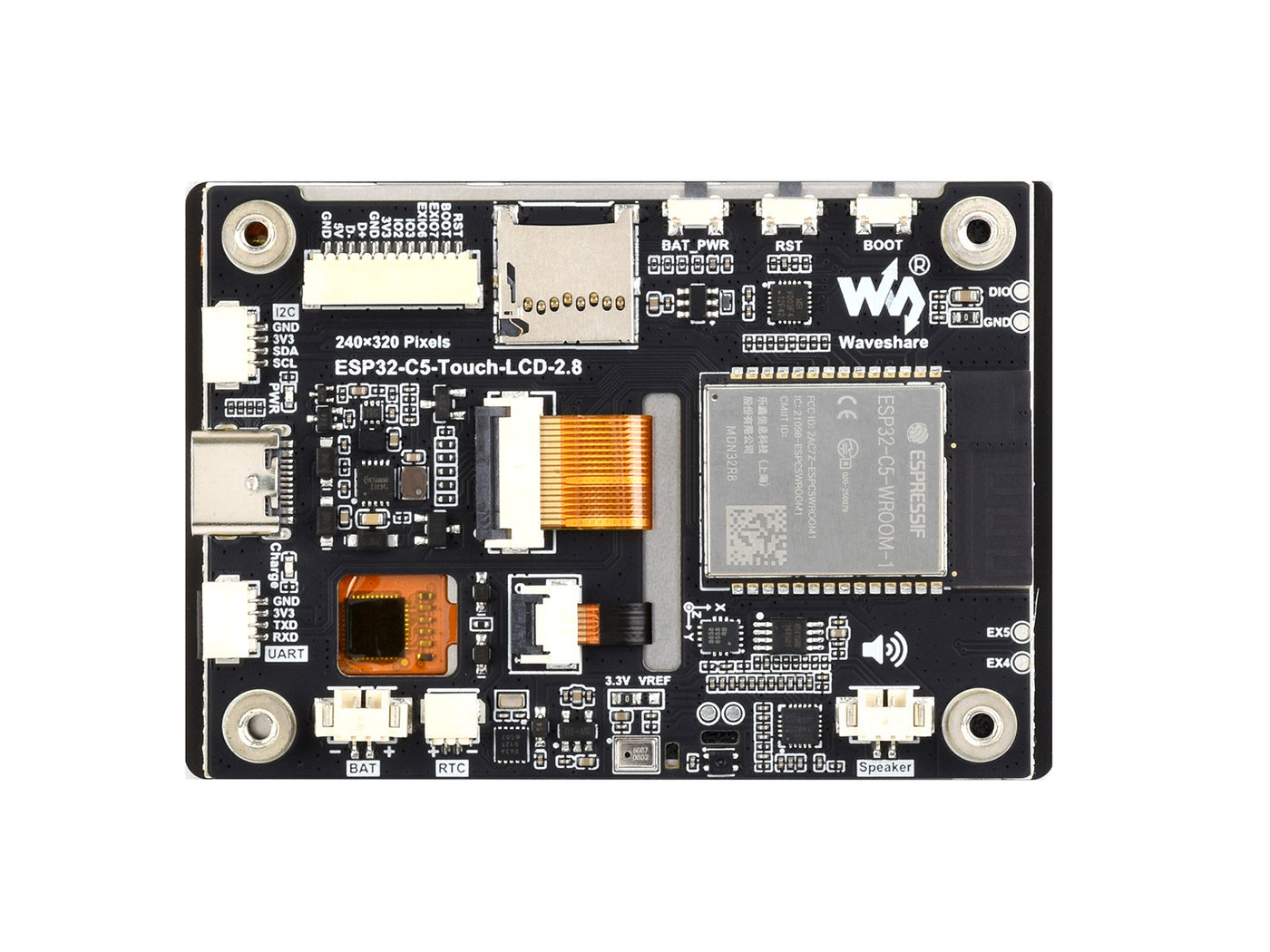

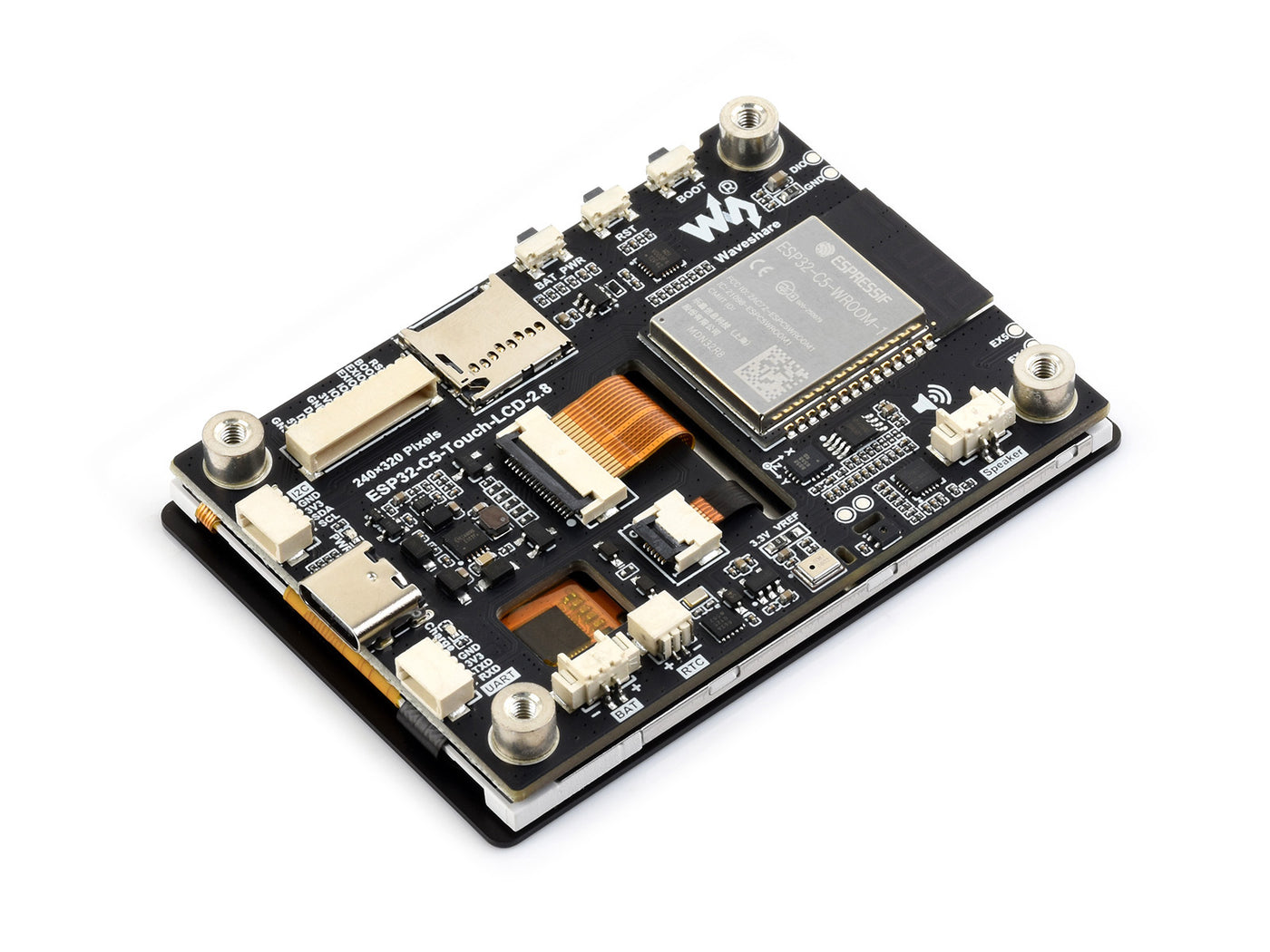

What's On Board

ESP32-C5-WROOM-1

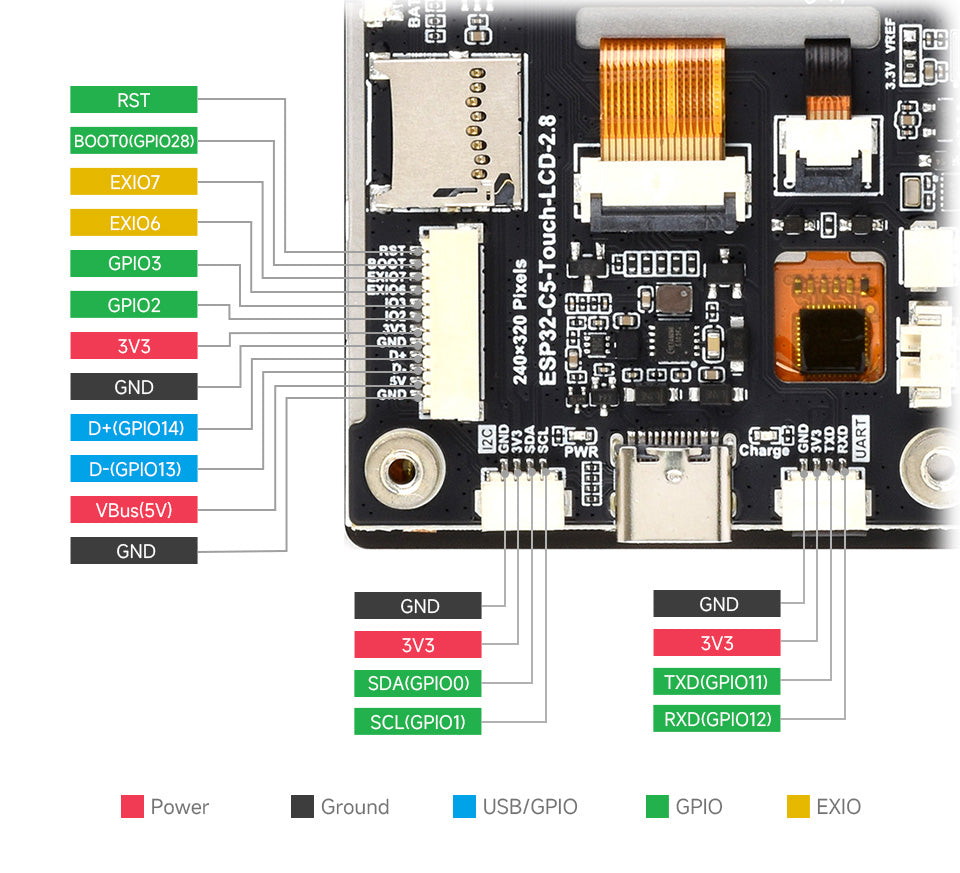

Expansion IO pads
MX1.25 2PIN speaker header
Audio output signal, for connecting external speaker
ES8311
low-power audio codec chip
NS4150B
audio power amplifier chip
SHTC3 temperature and humidity sensor
provides temperature and humidity measurement for environmental monitoring applications
QMI8658
6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer
Onboard microphone
PCF85063 RTC chip
SH1.0 2PIN RTC Batt header
for connecting rechargeable RTC Batt
MX1.25 2PIN Lithium Batt header
for 3.7V Lithium Batt, supports charging and discharging

UART header
Charging indicator
Lithium battery charge indicator, lights up when charging, off when fully charged (the light status is uncertain when the battery is not connected)
USB Type-C port
ETA6098 charging management chip
I2C header
SH1.0 12PIN connector
TF card slot
supports TF card up to 64GB
Power ON/OFF chip
BAT power button
When a Batt is connected, long press 2s to power off, short press 1s to power on
CH32V003 IO expansion chip
RESET button
BOOT button
for entering download mode, and can also be reused as a general-purpose button
2.8inch display panel connector

outline dimensions

Resources & Services

Wiki: docs.waveshare.com/ESP32-C5-Touch-LCD-2.8

ESP32 LCD Selection

Model	Core Configuration			display				onboard resources						Peripheral interfaces
Model	CPU	PSRAM	Flash	pixels	Interface	Display	Touch	IMU	RTC	TF	Speaker	mic	battery header	Peripheral interfaces
AMOLED display
ESP32-S3-Touch-AMOLED-2.41	ESP32-S3R8	8MB	16MB	600 × 450	QSPI	RM690B0	FT6336	√	√	√	-	-	√	I2C, UART, USB, 34PIN GPIO header
ESP32-S3-Touch-AMOLED-2.41-B	ESP32-S3R8	8MB	16MB	600 × 450	QSPI	RM690B0	FT6336	√	√	√	-	-	√	I2C, UART, USB, 34PIN GPIO header, with case
ESP32-C6-Touch-AMOLED-2.16	ESP32-C6	-	16MB	480 × 480	QSPI	CO5300	CST9220	√	√	√	√	√	√	I2C, UART, USB, and GPIO pads
ESP32-S3-Touch-AMOLED-2.16	ESP32-S3R8	8MB	16MB	480 × 480	QSPI	CO5300	CST9220	√	√	√	√	√	√
ESP32-S3-Touch-AMOLED-2.06	ESP32-S3R8	8MB	32MB	410 × 502	QSPI	CO5300	FT3168	√	√	√	√	√	√	I2C, UART, and USB reserved pads
ESP32-C6-Touch-AMOLED-2.06	ESP32-C6	-	16MB	410 × 502	QSPI	CO5300	FT3168	√	√	-	√	√	√
ESP32-S3-Touch-AMOLED-1.91	ESP32-S3R8	8MB	16MB	240 × 536	QSPI	RM67162	FT3168	√	-	√	-	-	√	40PIN header
ESP32-S3-AMOLED-1.91	ESP32-S3R8	8MB	16MB	240 × 536	QSPI	RM67162	-	√	-	√	-	-	√	40PIN header
ESP32-C6-Touch-AMOLED-1.8	ESP32-C6	-	16MB	368 × 448	QSPI	CO5300	CST820	√	√	√	√	√	√	I2C, UART, USB pads
ESP32-S3-Touch-AMOLED-1.8	ESP32-S3R8	8MB	16MB	368 × 448	QSPI	CO5300	CST820	√	√	√	√	√	√	I2C, UART, GPIO pads
ESP32-S3-Touch-AMOLED-1.75	ESP32-S3R8	8MB	16MB	466 × 466	QSPI	CO5300	CST9217	√	√	√	√	√	√	I2C, UART, USB, 8PIN headers (2.54mm pitch)
ESP32-S3-Touch-AMOLED-1.75-B	ESP32-S3R8	8MB	16MB	466 × 466	QSPI	CO5300	CST9217	√	√	√	√	√	√
ESP32-S3-Touch-AMOLED-1.75C	ESP32-S3R8	8MB	32MB	466 × 466	QSPI	CO5300	CST9217	√	-	-	√	√	√	I2C, UART, USB, GPIO pads
ESP32-C6-Touch-AMOLED-1.64	ESP32-C6	-	16MB	280 × 456	QSPI	CO5300	FT6146	√	-	√	-	-	√	22PIN header (2.54mm pitch)
ESP32-S3-Touch-AMOLED-1.64	ESP32-S3R8	8MB	16MB	280 × 456	QSPI	CO5300	FT3168	√	-	√	-	-	√	2 × 11PIN headers (2.54mm pitch)
ESP32-C6-Touch-AMOLED-1.43	ESP32-C6	-	16MB	466 × 466	QSPI	CO5300	FT6146	√	√	√	√	√	√	UART, I2C, 16PIN header (2.54mm pitch)
ESP32-C6-Touch-AMOLED-1.43-B	ESP32-C6	-	16MB	466 × 466	QSPI	CO5300	FT6146	√	√	√	√	√	√
ESP32-S3-Touch-AMOLED-1.43	ESP32-S3R8	8MB	16MB	466 × 466	QSPI	SH8601 /C05300	FT3168 /FT6146	√	√	√	-	-	√	I2C, UART, USB, 2 × 14PIN headers
ESP32-S3-Touch-AMOLED-1.43-B	ESP32-S3R8	8MB	16MB	466 × 466	QSPI	SH8601 /C05300	FT3168 /FT6146	√	√	√	-	-	√
ESP32-S3-Touch-AMOLED-1.43C	ESP32-S3	8MB	8MB	466 × 466	QSPI	CO5300	CST820	-	-	-	√	√	√
ESP32-C6-Touch-AMOLED-1.32	ESP32-C6	-	16MB	466 × 466	QSPI	CO5300	CST820	-	-	-	√	√	√	SH1.0 12PIN header
ESP32-S3-Touch-AMOLED-1.32	ESP32-S3-PICO-1-N8R8	8MB	8MB	466 × 466	QSPI	CO5300	CST820	-	-	-	√	√	√
LCD display
ESP32-Touch-LCD-3.5	ESP32-D0WDR2-V3	2MB	16MB	320 × 480	SPI	ST7796	FT6336	-	√	√	√	√	√	32PIN GPIO header
ESP32-S3-Touch-LCD-3.5	ESP32-S3R8	8MB	16MB	320 × 480	SPI	ST7796	FT6336	√	√	√	√	√	√	32PIN GPIO header, camera interface
ESP32-S3-Touch-LCD-3.5-C	ESP32-S3R8	8MB	16MB	320 × 480	SPI	ST7796	FT6336	√	√	√	√	√	√
ESP32-S3-Touch-LCD-3.5B	ESP32-S3R8	8MB	16MB	320 × 480	QSPI	AXS15231B	AXS15231B	√	√	√	√	√	√
ESP32-S3-Touch-LCD-3.5B-C	ESP32-S3R8	8MB	16MB	320 × 480	QSPI	AXS15231B	AXS15231B	√	√	√	√	√	√
ESP32-S3-Touch-LCD-3.49	ESP32-S3R8	8MB	16MB	172 × 640	QSPI	AXS15231B	AXS15231B	√	√	√	√	√	√	22pin 2.54mm pitch pads
ESP32-S3-Touch-LCD-3.49B	ESP32-S3R8	8MB	16MB	172 × 640	QSPI	AXS15231B	AXS15231B	√	√	√	√	√	√
ESP32-S3-LCD-3.16	ESP32-S3R8	8MB	16MB	320 × 820	RGB	ST7701	-	√	√	√	-	-	√	I2C, UART, USB headers
ESP32-S3-Touch-LCD-2.8	ESP32-S3R8	8MB	16MB	240 × 320	SPI	ST7789	CST3530	√	√	√	√	-	√	I2C, UART, SH1.0 12PIN header
ESP32-S3-LCD-2.8	ESP32-S3R8	8MB	16MB	240 × 320	SPI	ST7789	-	√	√	√	√	-	√
ESP32-C5-Touch-LCD-2.8	ESP32-C5HR8	8MB	32MB	240 × 320	SPI	ST7789	CST3530	√	√	√	√	√	√
ESP32-C6-Touch-LCD-2.8	ESP32-C6	-	16MB	240 × 320	SPI	ST7789	CST3530	√	√	√	√	√	√
ESP32-S3-Touch-LCD-2.8B	ESP32-S3R8	8MB	16MB	480 × 640	RGB	ST7701	GT911	√	√	√	-	-	√	20PIN header
ESP32-S3-LCD-2.8B	ESP32-S3R8	8MB	16MB	480 × 640	RGB	ST7701	-	√	√	√	-	-	√	20PIN header
ESP32-S3-Touch-LCD-2.8C	ESP32-S3R8	8MB	16MB	480 × 480	RGB	ST7701	GT911	√	√	√	-	-	√
ESP32-S3-LCD-2.8C	ESP32-S3R8	8MB	16MB	480 × 480	RGB	ST7701	-	√	√	√	-	-	√
ESP32-S3-Touch-LCD-2.1	ESP32-S3R8	8MB	16MB	480 × 480	RGB	ST7701	CST820	√	√	√	-	-	√
ESP32-S3-Touch-LCD-2.1B	ESP32-S3R8	8MB	16MB	480 × 480	RGB	ST7701	CST820	√	√	√	-	-	√
ESP32-S3-Touch-LCD-2	ESP32-S3R8	8MB	16MB	240 × 320	SPI	ST7789T3	CST816	√	-	√	-	-	√	28PIN header, camera interface
ESP32-S3-LCD-2	ESP32-S3R8	8MB	16MB	240 × 320	SPI	ST7789T3	-	√	-	√	-	-	√
ESP32-S3-Touch-LCD-1.9	ESP32-S3R8	8MB	16MB	170 × 320	SPI	ST7789	CST816	√	-	√	-	-	√	40PIN header, compatible with Pico header
ESP32-S3-LCD-1.9	ESP32-S3R8	8MB	16MB	170 × 320	SPI	ST7789	-	√	-	√	-	-	√
ESP32-C6-Touch-LCD-1.9	ESP32-C6FH8	-	8MB	170 × 320	SPI	ST7789	CST816	√	-	√	-	-	√
ESP32-C6-LCD-1.9	ESP32-C6FH8	-	8MB	170 × 320	SPI	ST7789	-	√	-	√	-	-	√
ESP32-S3-Touch-LCD-1.85C	ESP32-S3R8	8MB	16MB	360 × 360	QSPI	ST77916	CST816	-	√	√	√	√	√	I2C, UART, 2×14PIN header (1.27mm pitch)
ESP32-S3-Touch-LCD-1.85C-BOX	ESP32-S3R8	8MB	16MB	360 × 360	QSPI	ST77916	CST816	-	√	√	√	√	√
ESP32-S3-Touch-LCD-1.85B	ESP32-S3R8	8MB	16MB	360 × 360	QSPI	ST77916	CST816	√	√	√	√	√	√	UART, GPIO
ESP32-S3-Touch-LCD-1.85	ESP32-S3R8	8MB	16MB	360 × 360	QSPI	ST77916	CST816	√	√	√	√	√	√
ESP32-S3-LCD-1.85	ESP32-S3R8	8MB	16MB	360 × 360	QSPI	ST77916	-	√	√	√	√	√	√
ESP32-S3-Touch-LCD-1.83	ESP32-S3R8	8MB	16MB	240 × 284	SPI	ST7789P	CST816D	√	√	√	√	√	√	Reserved I2C, UART, USB pads
ESP32-C6-Touch-LCD-1.83	ESP32-C6	-	16MB	240 × 284	SPI	ST7789P	CST816D	√	√	√	√	√	√
ESP32-C6-Touch-LCD-1.69	ESP32-C6	-	16MB	240 × 280	SPI	ST7789V2	CST816T	√	√	-	√	√	√	Reserved USB, I2C, UART, and GPIO pads
ESP32-C6-LCD-1.69	ESP32-C6	-	16MB	240 × 280	SPI	ST7789V2	-	√	√	-	√	√	√
ESP32-S3-Touch-LCD-1.69	ESP32-S3R8	8MB	16MB	240 × 280	SPI	ST7789	CST816	√	√	-	-	-	√
ESP32-S3-LCD-1.69	ESP32-S3R8	8MB	16MB	240 × 280	SPI	ST7789	-	√	√	-	-	-	√
ESP32-C6-LCD-1.54	ESP32-C6	-	16MB	240 × 240	SPI	ST7789	-	√	-	√	√	√	√	I2C, UART pads
ESP32-C6-Touch-LCD-1.54	ESP32-C6	-	16MB	240 × 240	SPI	ST7789	CST816	√	-	√	√	√	√	I2C, UART pads
ESP32-S3-LCD-1.54	ESP32-S3R8	8MB	16MB	240 × 240	SPI	ST7789	-	√	-	√	√	√	√	I2C, UART pads
ESP32-S3-Touch-LCD-1.54	ESP32-S3R8	8MB	16MB	240 × 240	SPI	ST7789	CST816	√	-	√	√	√	√	I2C, UART pads
ESP32-S3-Touch-LCD-1.47	ESP32-S3R8	8MB	16MB	172 × 320	SPI	JD9853	AXS5106L	-	-	√	-	-	√	22PIN header
ESP32-S3-LCD-1.47	ESP32-S3R8	8MB	16MB	172 × 320	SPI	ST7789	-	-	-	√	-	-	-	18PIN header
ESP32-S3-LCD-1.47B	ESP32-S3R8	8MB	16MB	172 × 320	SPI	ST7789	-	√	-	√	-	-	√	18PIN header
ESP32-C6-Touch-LCD-1.47	ESP32-C6FH8	-	8MB	172 × 320	SPI	JD9853	AXS5106L	√	-	√	-	-	√	22PIN header
ESP32-C6-LCD-1.47	ESP32-C6FH8	-	8MB	172 × 320	SPI	ST7789	-	-	-	√	-	-	-	18PIN header
ESP32-C5-LCD-1.47	ESP32-C5FH4	-	4MB	172 × 320	SPI	ST7789	-	-	-	√	-	-	-	18PIN header
ESP32-C3-LCD-1.47	ESP32-C3FH4	-	4MB	172 × 320	SPI	ST7789	-	-	-	√	-	-	-	18PIN header
ESP32-S3-Touch-LCD-1.46B	ESP32-S3R8	8MB	16MB	412 × 412	QSPI	SPD2010	SPD2010	√	√	√	√	√	√	20pin GPIO header
ESP32-S3-Touch-LCD-1.46	ESP32-S3R8	8MB	16MB	412 × 412	QSPI	SPD2010	SPD2010	√	√	√	√	√	√
ESP32-C6-LCD-1.3	ESP32-C6FH4	-	4MB	240 × 240	SPI	ST7789	-	-	-	√	-	-	-	2.54mm 12PIN header
ESP32-C6-LCD-1.3-M	ESP32-C6FH4	-	4MB	240 × 240	SPI	ST7789	-	-	-	√	-	-	-
ESP32-S3-LCD-1.3	ESP32-S3R8	8MB	16MB	240 × 240	SPI	ST7789	-	√	-	√	-	-	√	2.54mm 16PIN header
ESP32-S3-LCD-1.3-B	ESP32-S3R8	8MB	16MB	240 × 240	SPI	ST7789	-	√	-	√	-	-	√	2.54mm 16PIN header, with case
ESP32-S3-LCD-1.3-C	ESP32-S3R8	8MB	16MB	240 × 240	SPI	ST7789	-	√	-	√	-	-	√	2.54mm 16PIN header, with case and prism cube
ESP32-S3-Touch-LCD-1.28	ESP32-S3R2	2MB	16MB	240 × 240	SPI	GC9A01A	CST816	√	-	-	-	-	√
ESP32-S3-LCD-1.28	ESP32-S3R2	2MB	16MB	240 × 240	SPI	GC9A01A	-	√	-	-	-	-	√	2 × 20PIN header (1.27mm pitch)
ESP32-C3-LCD-0.71	ESP32-C3FH4	-	4MB	160 × 160	SPI	GC9D01	-	-	-	-	-	-	√	12PIN GPIO pads
ESP32-S3-LCD-0.85	ESP32-S3	8MB	8MB	128 × 128	SPI	GC9107	-	-	-	√	√	√	√	I2C, UART pads
ESP32-C6-LCD-0.85	ESP32-C6	-	8MB	128 × 128	SPI	ST7735	-	-	-	√	√	√	√	I2C, UART pads
ESP32-C6-GEEK	ESP32-C6	-	16MB	240 × 135	SPI	ST7789P3	-	-	-	√	-	-	-	I2C, UART, GPIO
ESP32-S3-GEEK	ESP32-S3R2	2MB	16MB	240 × 135	SPI	ST7789P3	-	-	-	√	-	-	-	I2C, UART, GPIO

Weight: 0.088 kg

Quick Overview

* the 3.7V Lithium Batt is optional.

ESP32-C5-Touch-LCD-2.8 host x1
OPTIONAL 3.7V 1000mA MX1.25 2PIN Lithium Batt x1
SH1.0 12PIN cable ~100mm x1
SH1.0 4PIN cable ~100mm x2
8Ω 2W speaker x1

1

2

3

4

5

What hardware is included on the ESP32-C5 2.8 Inch IPS Touch Display Development Board?

The board includes a 2.8 inch IPS capacitive touch display, a 6 axis sensor, a temperature and humidity sensor, a TF card slot, and an ESP32-C5 based module with 2.4 GHz/5 GHz dual band WiFi and Bluetooth 5 LE.

Are there version options with and without a Lithium Battery?

Yes. There are two versions: ESP32-C5-Touch-LCD-2.8-EN without Lithium Batt and ESP32-C5-Touch-LCD-2.8 with a 3.7V Lithium Battery.

What is the display resolution and interface specification?

The display supports 240 x 320 resolution and is an IPS capacitive touchscreen using an SPI interface.

What pre installed features does the board include?

It ships with pre installed functions such as AI conversation, audio playback, gravity ball game, 2048 game, and weather, and supports access to online AI large model platforms for intelligent voice interaction.

How can this board be used for development and customization?

It provides hardware resources for display, sensing, voice, and multimedia storage and can be used directly as an AI chatting toy with support for customization and secondary development.

A

Admin

Welcome to the discussion thread for ESP32-C5 2.8-Inch IPS Capacitive Touch Display Development Board
Feel free to ask questions, share tips or report issues.

Add Post

For more discussion Click Here

Category: View all Development Boards

Fill out the form below and our team will get back to you with bulk pricing.

Description

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

Details

ESP32-C5 2.8inch IPS capacitive touch display development board, 240 × 320 resolution, 262K color, Integrated 2.4GHz/5GHz dual-band Wi-Fi and Bluetooth 5 (LE)

ESP32-C5 2.8inch IPS capacitive touch display development board

Integrates SPI interface display, 240 × 320 resolution, multiple peripheral interfaces

Version Options

ESP32-C5-Touch-LCD-2.8-EN
without Lithium Batt

ESP32-C5-Touch-LCD-2.8
comes with a 3.7V Lithium Batt

Features

This product is designed by Waveshare with onboard 2.8inch LCD display, 6-axis sensor, temperature and humidity sensor, and TF card slot, providing the hardware foundation for display, sensing, voice, and multimedia storage. With these hardware resources, it supports fun interactive mini-games and voice wake-up. It allows access to online AI large model platforms, enabling intelligent voice interaction and continuous upgrades. It comes pre-installed functions such as AI conversation, audio playback, a gravity ball game, 2048 game, and weather. It can be used directly as an AI chatting toy, while also supporting customization and secondary development.

Equipped with the ESP32-C5-WROOM-1 series module, featuring a RISC-V 32-bit processor, up to 240MHz main frequency
Integrated with 384KB Static RAM, 320KB ROM, 8MB PSRAM, and 32MB Flash, meeting the requirements for program execution, graphical interface, and data storage
Integrated 2.4GHz and 5GHz dual-band Wi-Fi, Bluetooth 5 (LE), and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communications, with outstanding RF performance
Onboard Batt recharge management module, with reserved 3.7V MX1.25 Lithium Batt header for connecting external Batt
Type-C port, improving device compatibility, easier to use
Onboard 2.8inch LCD display, 240 × 320 resolution, 262K color
Supports capacitive touch controlled via I2C interface, with interrupt support
Adapting UART, I2C and some IO interfaces, integrates full-speed USB port
Onboard QMI8658 6-axis sensor, RTC sensor, SHTC3 temperature and humidity sensor, TF card slot, etc.
Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
Onboard ES8311 audio codec chip, NS4150B power amplifier chip, microphone, and speaker
Supports ESP-IDF, Arduino, and other development environments, with rich resources for quick and easy development

LCD parameters

Display panel	IPS	Display Size	2.8inch
Display Resolution	240 × 320 pixels	Display Color	262K
communication interface	4-wire SPI	Driver IC	ST7789
Touch Type	Capacitive touch	Touch IC	CST3530
Active Display Area	57.60 × 43.20 (mm)

Function Overview

Supports multiple peripherals

Supports the expansion of multiple peripherals via GPIO, UART and I2C interfaces, etc.

IPS Display Panel

262K color, 240 × 320 resolution, wide viewing angle

Supports ESP-IDF, Arduino IDE

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

Application Example

What's On Board

ESP32-C5-WROOM-1
Expansion IO pads
MX1.25 2PIN speaker header
Audio output signal, for connecting external speaker
ES8311
low-power audio codec chip
NS4150B
audio power amplifier chip
SHTC3 temperature and humidity sensor
provides temperature and humidity measurement for environmental monitoring applications
QMI8658
6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer
Onboard microphone
PCF85063 RTC chip
SH1.0 2PIN RTC Batt header
for connecting rechargeable RTC Batt
MX1.25 2PIN Lithium Batt header
for 3.7V Lithium Batt, supports charging and discharging

UART header
Charging indicator
Lithium battery charge indicator, lights up when charging, off when fully charged (the light status is uncertain when the battery is not connected)
USB Type-C port
ETA6098 charging management chip
I2C header
SH1.0 12PIN connector
TF card slot
supports TF card up to 64GB
Power ON/OFF chip
BAT power button
When a Batt is connected, long press 2s to power off, short press 1s to power on
CH32V003 IO expansion chip
RESET button
BOOT button
for entering download mode, and can also be reused as a general-purpose button
2.8inch display panel connector

outline dimensions

Resources & Services

Wiki: docs.waveshare.com/ESP32-C5-Touch-LCD-2.8

ESP32 LCD Selection

Model	Core Configuration			display				onboard resources						Peripheral interfaces
Model	CPU	PSRAM	Flash	pixels	Interface	Display	Touch	IMU	RTC	TF	Speaker	mic	battery header	Peripheral interfaces
AMOLED display
ESP32-S3-Touch-AMOLED-2.41	ESP32-S3R8	8MB	16MB	600 × 450	QSPI	RM690B0	FT6336	√	√	√	-	-	√	I2C, UART, USB, 34PIN GPIO header
ESP32-S3-Touch-AMOLED-2.41-B	ESP32-S3R8	8MB	16MB	600 × 450	QSPI	RM690B0	FT6336	√	√	√	-	-	√	I2C, UART, USB, 34PIN GPIO header, with case
ESP32-C6-Touch-AMOLED-2.16	ESP32-C6	-	16MB	480 × 480	QSPI	CO5300	CST9220	√	√	√	√	√	√	I2C, UART, USB, and GPIO pads
ESP32-S3-Touch-AMOLED-2.16	ESP32-S3R8	8MB	16MB	480 × 480	QSPI	CO5300	CST9220	√	√	√	√	√	√
ESP32-S3-Touch-AMOLED-2.06	ESP32-S3R8	8MB	32MB	410 × 502	QSPI	CO5300	FT3168	√	√	√	√	√	√	I2C, UART, and USB reserved pads
ESP32-C6-Touch-AMOLED-2.06	ESP32-C6	-	16MB	410 × 502	QSPI	CO5300	FT3168	√	√	-	√	√	√
ESP32-S3-Touch-AMOLED-1.91	ESP32-S3R8	8MB	16MB	240 × 536	QSPI	RM67162	FT3168	√	-	√	-	-	√	40PIN header
ESP32-S3-AMOLED-1.91	ESP32-S3R8	8MB	16MB	240 × 536	QSPI	RM67162	-	√	-	√	-	-	√	40PIN header
ESP32-C6-Touch-AMOLED-1.8	ESP32-C6	-	16MB	368 × 448	QSPI	CO5300	CST820	√	√	√	√	√	√	I2C, UART, USB pads
ESP32-S3-Touch-AMOLED-1.8	ESP32-S3R8	8MB	16MB	368 × 448	QSPI	CO5300	CST820	√	√	√	√	√	√	I2C, UART, GPIO pads
ESP32-S3-Touch-AMOLED-1.75	ESP32-S3R8	8MB	16MB	466 × 466	QSPI	CO5300	CST9217	√	√	√	√	√	√	I2C, UART, USB, 8PIN headers (2.54mm pitch)
ESP32-S3-Touch-AMOLED-1.75-B	ESP32-S3R8	8MB	16MB	466 × 466	QSPI	CO5300	CST9217	√	√	√	√	√	√
ESP32-S3-Touch-AMOLED-1.75C	ESP32-S3R8	8MB	32MB	466 × 466	QSPI	CO5300	CST9217	√	-	-	√	√	√	I2C, UART, USB, GPIO pads
ESP32-C6-Touch-AMOLED-1.64	ESP32-C6	-	16MB	280 × 456	QSPI	CO5300	FT6146	√	-	√	-	-	√	22PIN header (2.54mm pitch)
ESP32-S3-Touch-AMOLED-1.64	ESP32-S3R8	8MB	16MB	280 × 456	QSPI	CO5300	FT3168	√	-	√	-	-	√	2 × 11PIN headers (2.54mm pitch)
ESP32-C6-Touch-AMOLED-1.43	ESP32-C6	-	16MB	466 × 466	QSPI	CO5300	FT6146	√	√	√	√	√	√	UART, I2C, 16PIN header (2.54mm pitch)
ESP32-C6-Touch-AMOLED-1.43-B	ESP32-C6	-	16MB	466 × 466	QSPI	CO5300	FT6146	√	√	√	√	√	√
ESP32-S3-Touch-AMOLED-1.43	ESP32-S3R8	8MB	16MB	466 × 466	QSPI	SH8601 /C05300	FT3168 /FT6146	√	√	√	-	-	√	I2C, UART, USB, 2 × 14PIN headers
ESP32-S3-Touch-AMOLED-1.43-B	ESP32-S3R8	8MB	16MB	466 × 466	QSPI	SH8601 /C05300	FT3168 /FT6146	√	√	√	-	-	√
ESP32-S3-Touch-AMOLED-1.43C	ESP32-S3	8MB	8MB	466 × 466	QSPI	CO5300	CST820	-	-	-	√	√	√
ESP32-C6-Touch-AMOLED-1.32	ESP32-C6	-	16MB	466 × 466	QSPI	CO5300	CST820	-	-	-	√	√	√	SH1.0 12PIN header
ESP32-S3-Touch-AMOLED-1.32	ESP32-S3-PICO-1-N8R8	8MB	8MB	466 × 466	QSPI	CO5300	CST820	-	-	-	√	√	√
LCD display
ESP32-Touch-LCD-3.5	ESP32-D0WDR2-V3	2MB	16MB	320 × 480	SPI	ST7796	FT6336	-	√	√	√	√	√	32PIN GPIO header
ESP32-S3-Touch-LCD-3.5	ESP32-S3R8	8MB	16MB	320 × 480	SPI	ST7796	FT6336	√	√	√	√	√	√	32PIN GPIO header, camera interface
ESP32-S3-Touch-LCD-3.5-C	ESP32-S3R8	8MB	16MB	320 × 480	SPI	ST7796	FT6336	√	√	√	√	√	√
ESP32-S3-Touch-LCD-3.5B	ESP32-S3R8	8MB	16MB	320 × 480	QSPI	AXS15231B	AXS15231B	√	√	√	√	√	√
ESP32-S3-Touch-LCD-3.5B-C	ESP32-S3R8	8MB	16MB	320 × 480	QSPI	AXS15231B	AXS15231B	√	√	√	√	√	√
ESP32-S3-Touch-LCD-3.49	ESP32-S3R8	8MB	16MB	172 × 640	QSPI	AXS15231B	AXS15231B	√	√	√	√	√	√	22pin 2.54mm pitch pads
ESP32-S3-Touch-LCD-3.49B	ESP32-S3R8	8MB	16MB	172 × 640	QSPI	AXS15231B	AXS15231B	√	√	√	√	√	√
ESP32-S3-LCD-3.16	ESP32-S3R8	8MB	16MB	320 × 820	RGB	ST7701	-	√	√	√	-	-	√	I2C, UART, USB headers
ESP32-S3-Touch-LCD-2.8	ESP32-S3R8	8MB	16MB	240 × 320	SPI	ST7789	CST3530	√	√	√	√	-	√	I2C, UART, SH1.0 12PIN header
ESP32-S3-LCD-2.8	ESP32-S3R8	8MB	16MB	240 × 320	SPI	ST7789	-	√	√	√	√	-	√
ESP32-C5-Touch-LCD-2.8	ESP32-C5HR8	8MB	32MB	240 × 320	SPI	ST7789	CST3530	√	√	√	√	√	√
ESP32-C6-Touch-LCD-2.8	ESP32-C6	-	16MB	240 × 320	SPI	ST7789	CST3530	√	√	√	√	√	√
ESP32-S3-Touch-LCD-2.8B	ESP32-S3R8	8MB	16MB	480 × 640	RGB	ST7701	GT911	√	√	√	-	-	√	20PIN header
ESP32-S3-LCD-2.8B	ESP32-S3R8	8MB	16MB	480 × 640	RGB	ST7701	-	√	√	√	-	-	√	20PIN header
ESP32-S3-Touch-LCD-2.8C	ESP32-S3R8	8MB	16MB	480 × 480	RGB	ST7701	GT911	√	√	√	-	-	√
ESP32-S3-LCD-2.8C	ESP32-S3R8	8MB	16MB	480 × 480	RGB	ST7701	-	√	√	√	-	-	√
ESP32-S3-Touch-LCD-2.1	ESP32-S3R8	8MB	16MB	480 × 480	RGB	ST7701	CST820	√	√	√	-	-	√
ESP32-S3-Touch-LCD-2.1B	ESP32-S3R8	8MB	16MB	480 × 480	RGB	ST7701	CST820	√	√	√	-	-	√
ESP32-S3-Touch-LCD-2	ESP32-S3R8	8MB	16MB	240 × 320	SPI	ST7789T3	CST816	√	-	√	-	-	√	28PIN header, camera interface
ESP32-S3-LCD-2	ESP32-S3R8	8MB	16MB	240 × 320	SPI	ST7789T3	-	√	-	√	-	-	√
ESP32-S3-Touch-LCD-1.9	ESP32-S3R8	8MB	16MB	170 × 320	SPI	ST7789	CST816	√	-	√	-	-	√	40PIN header, compatible with Pico header
ESP32-S3-LCD-1.9	ESP32-S3R8	8MB	16MB	170 × 320	SPI	ST7789	-	√	-	√	-	-	√
ESP32-C6-Touch-LCD-1.9	ESP32-C6FH8	-	8MB	170 × 320	SPI	ST7789	CST816	√	-	√	-	-	√
ESP32-C6-LCD-1.9	ESP32-C6FH8	-	8MB	170 × 320	SPI	ST7789	-	√	-	√	-	-	√
ESP32-S3-Touch-LCD-1.85C	ESP32-S3R8	8MB	16MB	360 × 360	QSPI	ST77916	CST816	-	√	√	√	√	√	I2C, UART, 2×14PIN header (1.27mm pitch)
ESP32-S3-Touch-LCD-1.85C-BOX	ESP32-S3R8	8MB	16MB	360 × 360	QSPI	ST77916	CST816	-	√	√	√	√	√
ESP32-S3-Touch-LCD-1.85B	ESP32-S3R8	8MB	16MB	360 × 360	QSPI	ST77916	CST816	√	√	√	√	√	√	UART, GPIO
ESP32-S3-Touch-LCD-1.85	ESP32-S3R8	8MB	16MB	360 × 360	QSPI	ST77916	CST816	√	√	√	√	√	√
ESP32-S3-LCD-1.85	ESP32-S3R8	8MB	16MB	360 × 360	QSPI	ST77916	-	√	√	√	√	√	√
ESP32-S3-Touch-LCD-1.83	ESP32-S3R8	8MB	16MB	240 × 284	SPI	ST7789P	CST816D	√	√	√	√	√	√	Reserved I2C, UART, USB pads
ESP32-C6-Touch-LCD-1.83	ESP32-C6	-	16MB	240 × 284	SPI	ST7789P	CST816D	√	√	√	√	√	√
ESP32-C6-Touch-LCD-1.69	ESP32-C6	-	16MB	240 × 280	SPI	ST7789V2	CST816T	√	√	-	√	√	√	Reserved USB, I2C, UART, and GPIO pads
ESP32-C6-LCD-1.69	ESP32-C6	-	16MB	240 × 280	SPI	ST7789V2	-	√	√	-	√	√	√
ESP32-S3-Touch-LCD-1.69	ESP32-S3R8	8MB	16MB	240 × 280	SPI	ST7789	CST816	√	√	-	-	-	√
ESP32-S3-LCD-1.69	ESP32-S3R8	8MB	16MB	240 × 280	SPI	ST7789	-	√	√	-	-	-	√
ESP32-C6-LCD-1.54	ESP32-C6	-	16MB	240 × 240	SPI	ST7789	-	√	-	√	√	√	√	I2C, UART pads
ESP32-C6-Touch-LCD-1.54	ESP32-C6	-	16MB	240 × 240	SPI	ST7789	CST816	√	-	√	√	√	√	I2C, UART pads
ESP32-S3-LCD-1.54	ESP32-S3R8	8MB	16MB	240 × 240	SPI	ST7789	-	√	-	√	√	√	√	I2C, UART pads
ESP32-S3-Touch-LCD-1.54	ESP32-S3R8	8MB	16MB	240 × 240	SPI	ST7789	CST816	√	-	√	√	√	√	I2C, UART pads
ESP32-S3-Touch-LCD-1.47	ESP32-S3R8	8MB	16MB	172 × 320	SPI	JD9853	AXS5106L	-	-	√	-	-	√	22PIN header
ESP32-S3-LCD-1.47	ESP32-S3R8	8MB	16MB	172 × 320	SPI	ST7789	-	-	-	√	-	-	-	18PIN header
ESP32-S3-LCD-1.47B	ESP32-S3R8	8MB	16MB	172 × 320	SPI	ST7789	-	√	-	√	-	-	√	18PIN header
ESP32-C6-Touch-LCD-1.47	ESP32-C6FH8	-	8MB	172 × 320	SPI	JD9853	AXS5106L	√	-	√	-	-	√	22PIN header
ESP32-C6-LCD-1.47	ESP32-C6FH8	-	8MB	172 × 320	SPI	ST7789	-	-	-	√	-	-	-	18PIN header
ESP32-C5-LCD-1.47	ESP32-C5FH4	-	4MB	172 × 320	SPI	ST7789	-	-	-	√	-	-	-	18PIN header
ESP32-C3-LCD-1.47	ESP32-C3FH4	-	4MB	172 × 320	SPI	ST7789	-	-	-	√	-	-	-	18PIN header
ESP32-S3-Touch-LCD-1.46B	ESP32-S3R8	8MB	16MB	412 × 412	QSPI	SPD2010	SPD2010	√	√	√	√	√	√	20pin GPIO header
ESP32-S3-Touch-LCD-1.46	ESP32-S3R8	8MB	16MB	412 × 412	QSPI	SPD2010	SPD2010	√	√	√	√	√	√
ESP32-C6-LCD-1.3	ESP32-C6FH4	-	4MB	240 × 240	SPI	ST7789	-	-	-	√	-	-	-	2.54mm 12PIN header
ESP32-C6-LCD-1.3-M	ESP32-C6FH4	-	4MB	240 × 240	SPI	ST7789	-	-	-	√	-	-	-
ESP32-S3-LCD-1.3	ESP32-S3R8	8MB	16MB	240 × 240	SPI	ST7789	-	√	-	√	-	-	√	2.54mm 16PIN header
ESP32-S3-LCD-1.3-B	ESP32-S3R8	8MB	16MB	240 × 240	SPI	ST7789	-	√	-	√	-	-	√	2.54mm 16PIN header, with case
ESP32-S3-LCD-1.3-C	ESP32-S3R8	8MB	16MB	240 × 240	SPI	ST7789	-	√	-	√	-	-	√	2.54mm 16PIN header, with case and prism cube
ESP32-S3-Touch-LCD-1.28	ESP32-S3R2	2MB	16MB	240 × 240	SPI	GC9A01A	CST816	√	-	-	-	-	√
ESP32-S3-LCD-1.28	ESP32-S3R2	2MB	16MB	240 × 240	SPI	GC9A01A	-	√	-	-	-	-	√	2 × 20PIN header (1.27mm pitch)
ESP32-C3-LCD-0.71	ESP32-C3FH4	-	4MB	160 × 160	SPI	GC9D01	-	-	-	-	-	-	√	12PIN GPIO pads
ESP32-S3-LCD-0.85	ESP32-S3	8MB	8MB	128 × 128	SPI	GC9107	-	-	-	√	√	√	√	I2C, UART pads
ESP32-C6-LCD-0.85	ESP32-C6	-	8MB	128 × 128	SPI	ST7735	-	-	-	√	√	√	√	I2C, UART pads
ESP32-C6-GEEK	ESP32-C6	-	16MB	240 × 135	SPI	ST7789P3	-	-	-	√	-	-	-	I2C, UART, GPIO
ESP32-S3-GEEK	ESP32-S3R2	2MB	16MB	240 × 135	SPI	ST7789P3	-	-	-	√	-	-	-	I2C, UART, GPIO

Weight: 0.088 kg

Quick Overview

* the 3.7V Lithium Batt is optional.

ESP32-C5-Touch-LCD-2.8 host x1
OPTIONAL 3.7V 1000mA MX1.25 2PIN Lithium Batt x1
SH1.0 12PIN cable ~100mm x1
SH1.0 4PIN cable ~100mm x2
8Ω 2W speaker x1

1

2

3

4

5

FAQ

What hardware is included on the ESP32-C5 2.8 Inch IPS Touch Display Development Board?

The board includes a 2.8 inch IPS capacitive touch display, a 6 axis sensor, a temperature and humidity sensor, a TF card slot, and an ESP32-C5 based module with 2.4 GHz/5 GHz dual band WiFi and Bluetooth 5 LE.

Are there version options with and without a Lithium Battery?

Yes. There are two versions: ESP32-C5-Touch-LCD-2.8-EN without Lithium Batt and ESP32-C5-Touch-LCD-2.8 with a 3.7V Lithium Battery.

What is the display resolution and interface specification?

The display supports 240 x 320 resolution and is an IPS capacitive touchscreen using an SPI interface.

What pre installed features does the board include?

It ships with pre installed functions such as AI conversation, audio playback, gravity ball game, 2048 game, and weather, and supports access to online AI large model platforms for intelligent voice interaction.

How can this board be used for development and customization?

It provides hardware resources for display, sensing, voice, and multimedia storage and can be used directly as an AI chatting toy with support for customization and secondary development.

Reviews

Forum

A

Admin

Welcome to the discussion thread for ESP32-C5 2.8-Inch IPS Capacitive Touch Display Development Board
Feel free to ask questions, share tips or report issues.

Add Post

For more discussion Click Here

Meet with our team

Related products

0.71inch Double Eye Round LCD Display Module, 160x160 Resolution

Waveshare

Your cart

Compute

Explore Jetson systems

Makers Hub

Explore Jetson systems

Electrical

Mechanical

Services

Built for builders

Community

Learn. Build. Share.

ESP32-C5 2.8-Inch IPS Capacitive Touch Display Development Board

Details

Quick Overview

Customer Reviews

Details

Quick Overview

Customer Reviews

Meet with our team

Related products

0.71inch Double Eye Round LCD Display Module, 160x160 Resolution

0.85inch LCD Display Module, IPS Panel, 128×128 Resolution

0106-14

0615 Brushless Motor (Pack of 4)

Let customers speak for us
