LILYGO® TTGO T-Beam V1.1 ESP32 868Mhz LoRa with GPS

SKU: ELC8033-N

₹ 3,999.99 ₹ 4,999.99

Out of stock

Select variant

Without OLED
📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
LILYGO® TTGO T-Beam V1.1 ESP32 868Mhz LoRa with GPSWithout OLED₹ 3,999.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

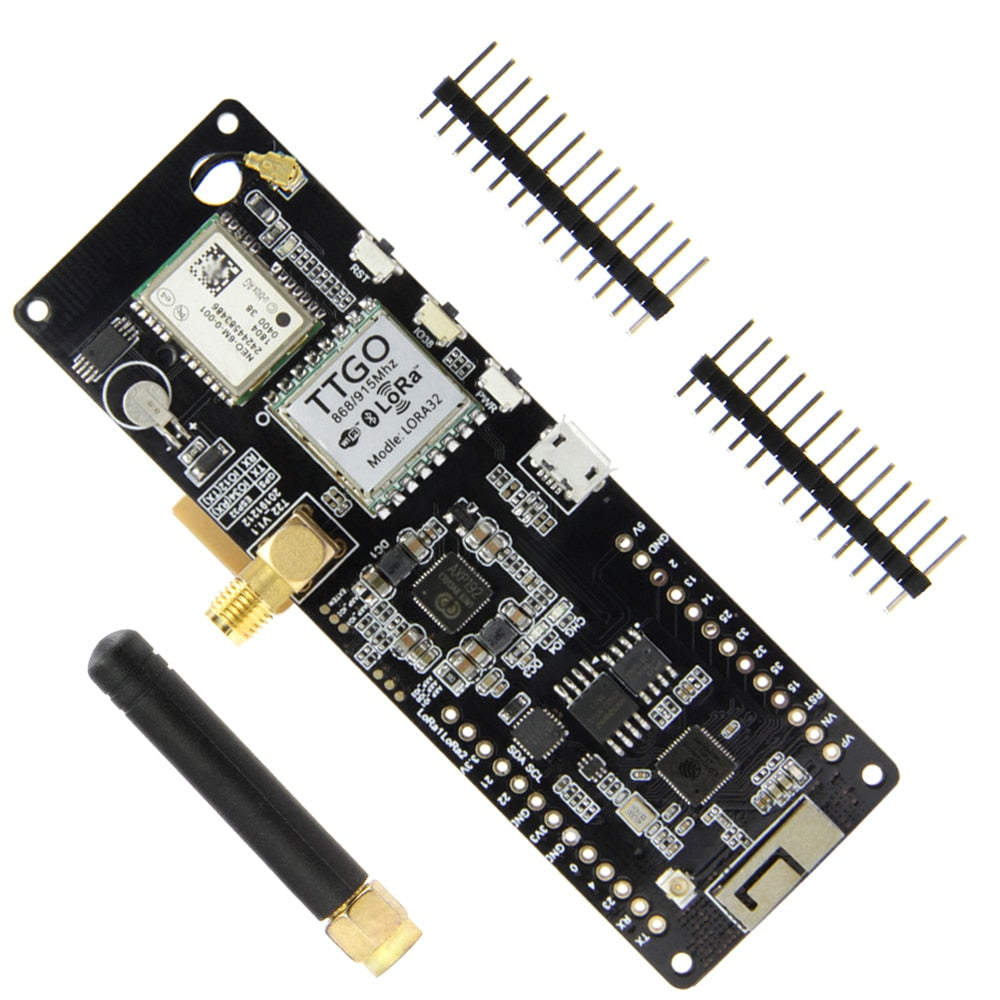

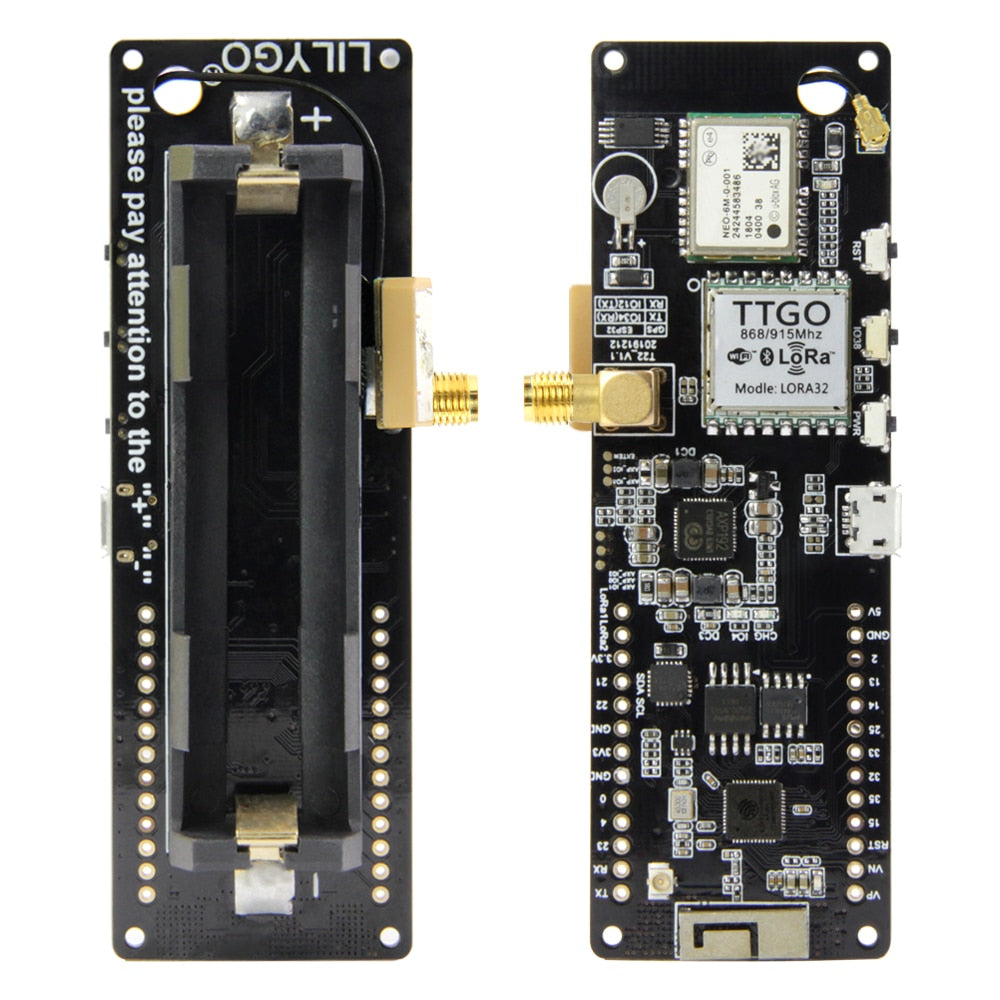

LILYGO® TTGO T-Beam V1.1 ESP32 868Mhz LoRa (alternate for SX1276) Wireless Bluetooth GPS NEO-6M Module, with 18650 Battery Holder & SoftRF is your perfect LoRa companion.


ESP32 Features

  • Lastest ESP32 Version: REV1
  • WIFI
  • Bluetooth
  • 8MB PSRAM
  • 4MB Flash
  • 3D Antenna

LORA

  • Working voltage: 1.8~3.7v
  • Acceptable current：10~14mA
  • Transmit current: 120mA@+20dBm, 90mA@+17dBm, 29mA@+13dBm
  • Operating frequency: 868MHz version
  • Transmit power: +20dBm
  • Receive sensitivity :-139dBm@LoRa &62.5Khz&SF=12&146bps
  • -136dBm@LoRa &125Khz&SF=12&293bps
  • -118dBm@LoRa &125Khz&SF=6&9380bps
  • -123dBm@FSK&5Khz&1.2Kbps
  • Frequency error：+/-15KHz
  • FIFO space：64Byte
  • Data rate：1.2K~300Kbps@FSK
  •                    0.018K~37.5Kbps@LoRa
  • Modulation Mode ：FSK,GFSK,MSK,GMSK,LoRa TM，OOK
  • Interface form ： SPI
  • Sleep current ：0.2uA@SLEEP & 1.5uA@IDLE
  • Operating temperature ：-40℃- +85℃
  • Digital RSSI function
  • Automatic frequency correction
  • Automatic gain control
  • Low voltage detection and temperature sensor
  • Fast wake-up and frequency hopping
  • Highly configurable data packet handler

GPS

  • GPS modules NEO-6M, 3V-5V power supply Universal

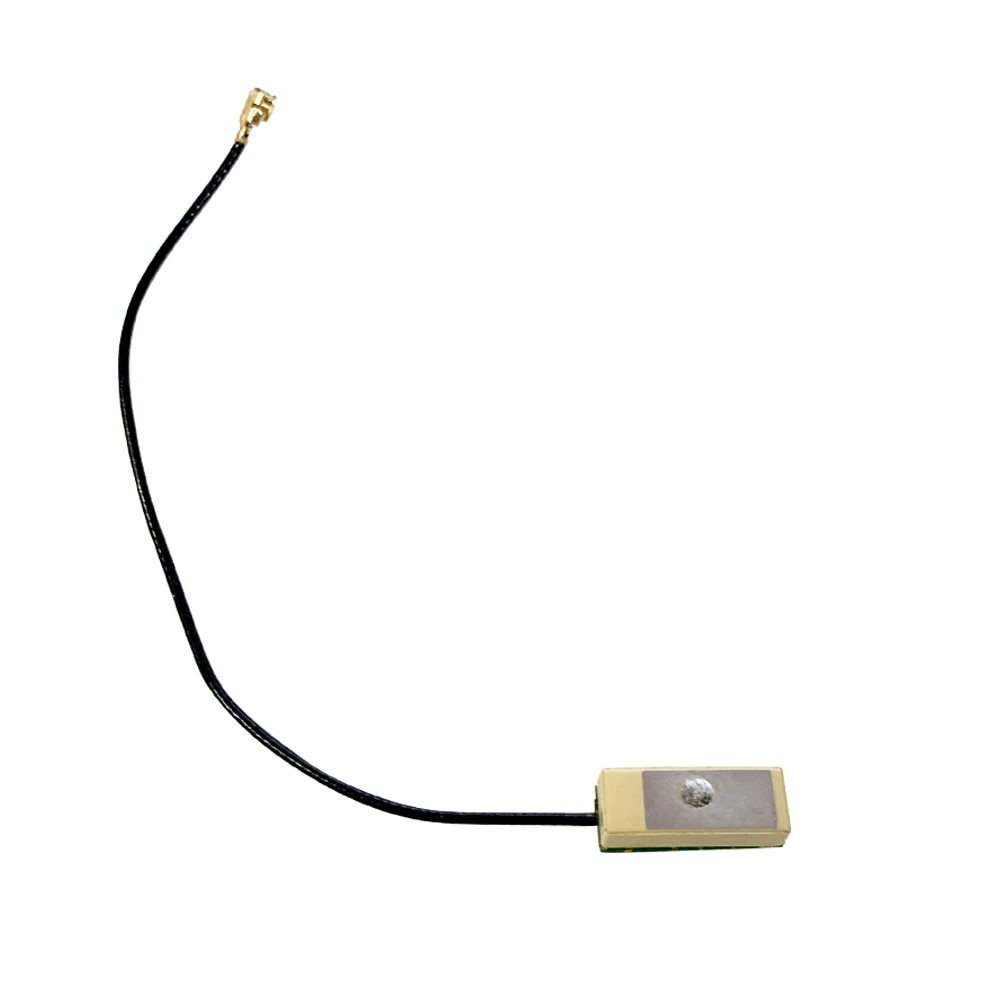

  • Destined module with ceramic antenna, signal super
  • Save the configuration parameter data EEPROM Down
  • With data backup battery
  • There are LED signal indicator
  • Default Baud Rate: 9600

Power

  • Power Supply Input USB 5V/1A
  • Charging current 500mA
  • Battery Input  3.7-4.2V
  • Charge IC AXP192

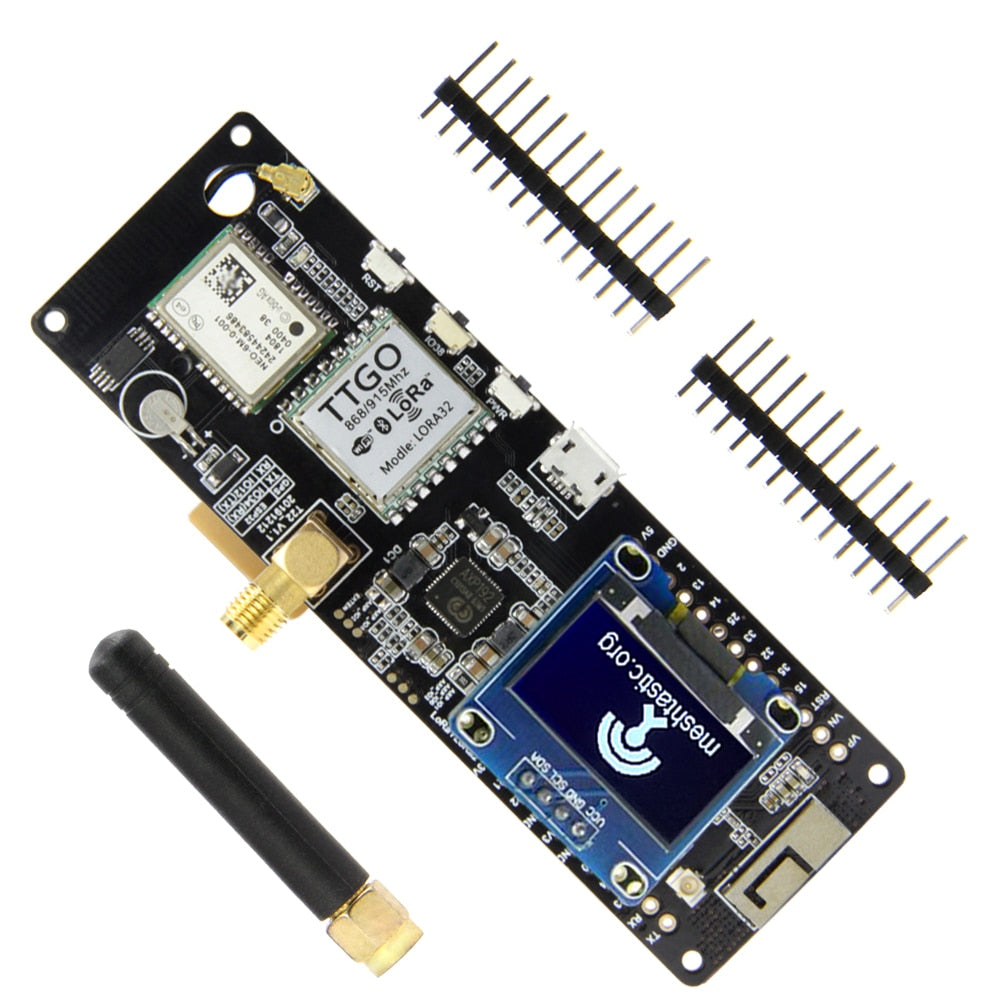

OLED Description:

  • Size:0.96 inch white OLED
  • High resolution:128 * 64
  • Viewing angle:> 160 °
  • Driver IC:SSD1306
  • Working temperature:-30  celcius ~ 80  celcius
  • Module volume (generous):27.0MM * 27.0MM * 4.1MM
  • Supports many control chip:Fully compatible with Arduino, 51 series, MSP430 series,STM32/2, CSR chip, etc.(a lot of routines for reference)
  • Wide voltage support:without any modification, directly supports 3.3V ~ 5V DC
  • Ultra-low power consumption:Normal operation Is 0.04W
  • IO port occupies minimal display:I2C Communication

More information:

  • https://github.com/lyusupov/SoftRF/wiki/Prime-Edition-MkII
  • https://github.com/LilyGO/SoftRF
  • https://github.com/Xinyuan-LilyGO/LilyGO-T-Beam

What are the main wireless capabilities and modulation options of this board?
It combines an ESP32 module with 868 MHz LoRa support and a GPS NEO-6M module. It supports LoRa, FSK, GFSK, MSK, GMSK and OOK modulation modes.
Is the board compatible with common development environments and microcontrollers?
Yes, it is fully compatible with Arduino and supports a range of MCU families including 51 series, MSP430, STM32 and more.
What power and charging options are available for this module?
It accepts USB 5V input for charging up to 1 A and has a 3.7 to 4.2 V battery input with an 18650 battery holder and AXP192 charge IC.
What is the built in OLED display specification and interface?
A 0.96 inch white OLED with 128 by 64 resolution and SSD1306 driver. It uses an I2C interface.
What are the operating conditions and data storage features?
The module is rated for -40 C to 85 C operating temperature. It stores configuration data in EEPROM and uses a backup battery.
