Gemini 336 combines active and passive stereo vision technologies and enhances active infrared imaging by filtering visible light, delivering precise imaging even in challenging lighting conditions such as strong outdoor lighting, indoor reflections, and shadowed areas within high dynamic range scenes with sunlight exposure.
Built on Orbbec’s latest custom ASIC MX 6800 and a high-performance optical system, Gemini 336 flexibly meets the needs of application scenarios with complex lighting conditions, making it ideal for use in robotics, manufacturing, and logistics applications. It is easy to set up and operate with the Orbbec SDK and the camera delivers extremely accurate and reliable data across various lighting conditions, from pitch dark to bright environments.
| Product Name |
Gemini 336 |
|---|---|
| Model |
G40155-180 |
| Depth Technology |
Stereo |
| Depth Range |
*0.10 - 10m (Optimal Range: 0.26 - 3m) |
| Depth Resolution/FPS |
Up to 1280X800@30fps |
| Depth FOV |
H90° V65° |
| RGB Resolution/FPS |
Up to 1920X1080@30fps |
| RGB FOV |
H86° V55° |
| Processing |
Orbbec ASIC |
| IMU |
Supported |
| Data Connection |

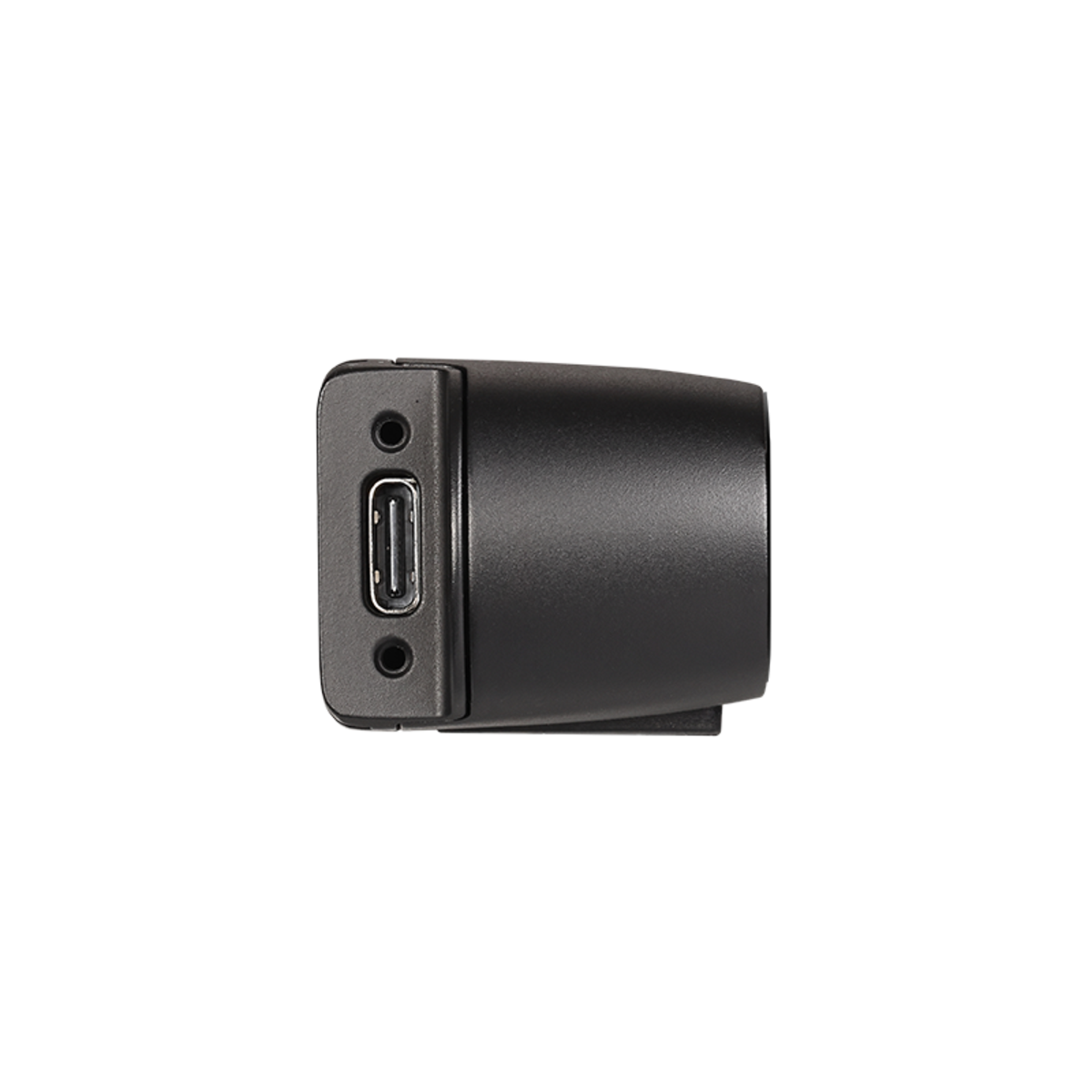

USB 3.0 Type-C |
| Power Input |
USB 3.0 Type-C |
| Trigger |
Supported |
| Power Consumption |
Average < 3.0W |
| Operating Environment |
-10℃ - 45℃; Indoor/Outdoor; 5%~95%RH (non-condensing) |
| SDK Support |
Orbbec SDK |
| Data Output |
Point Cloud, Depth Map, IR & RGB |
|
Dimensions (W*H*D) |
90mm x 25mm x 30.7mm |
| Weight |
99g |
| Installation |

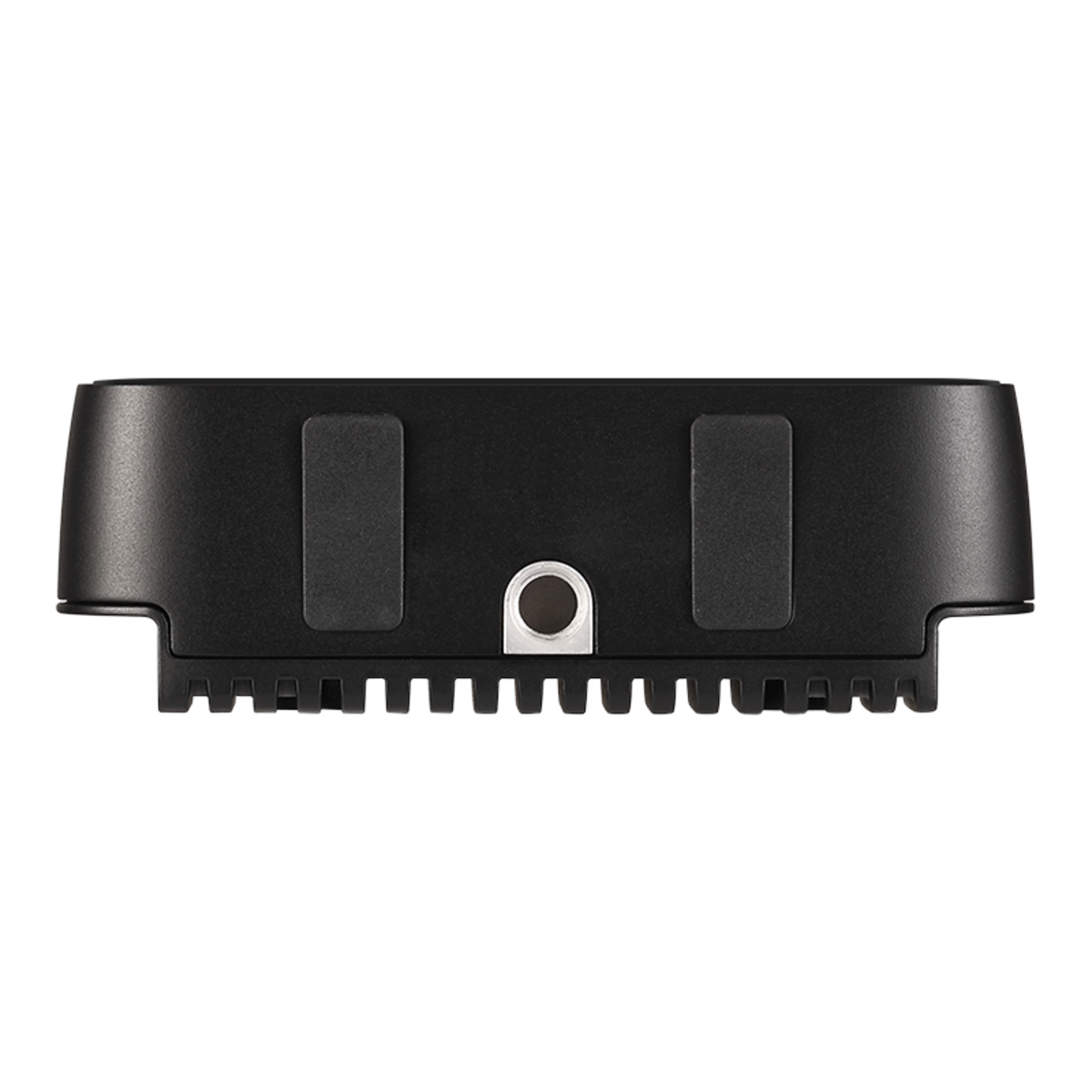

Bottom: ¼-20UNC |
| Wavelength |
850nm |
