Gens ACE High Discharge Lipo Battery 3S 11.1V 30C
Gens ace lipo battery packs have remarkable stacking technology which enables high current capacity cells. With High discharge performance and high energy density, GensAce batteries provide high quality, reliable power for MIKADO LOGO500, ALIGN T-REX550/600, GAUI X5, Outrage 550, Hirobo SDX, FPV and custom made racing drones.
Nominal Charge Current should be kept at 1C for peak battery life.
Gens ace 3S1P Lipo Battery Pack Specs:
- 1300mAh 30C 11.1V 3S
- Capacity: 1300mAh
- Electric core: 3S1P
- Voltage: 11.1V
- Discharge rate: 30C
- Discharge wire: 80mm, silicone wire
- Charging line: 45mm, silicone wire
- Size(HxWxL): 19x33x71mm
- Weight(士15g)：109.5g

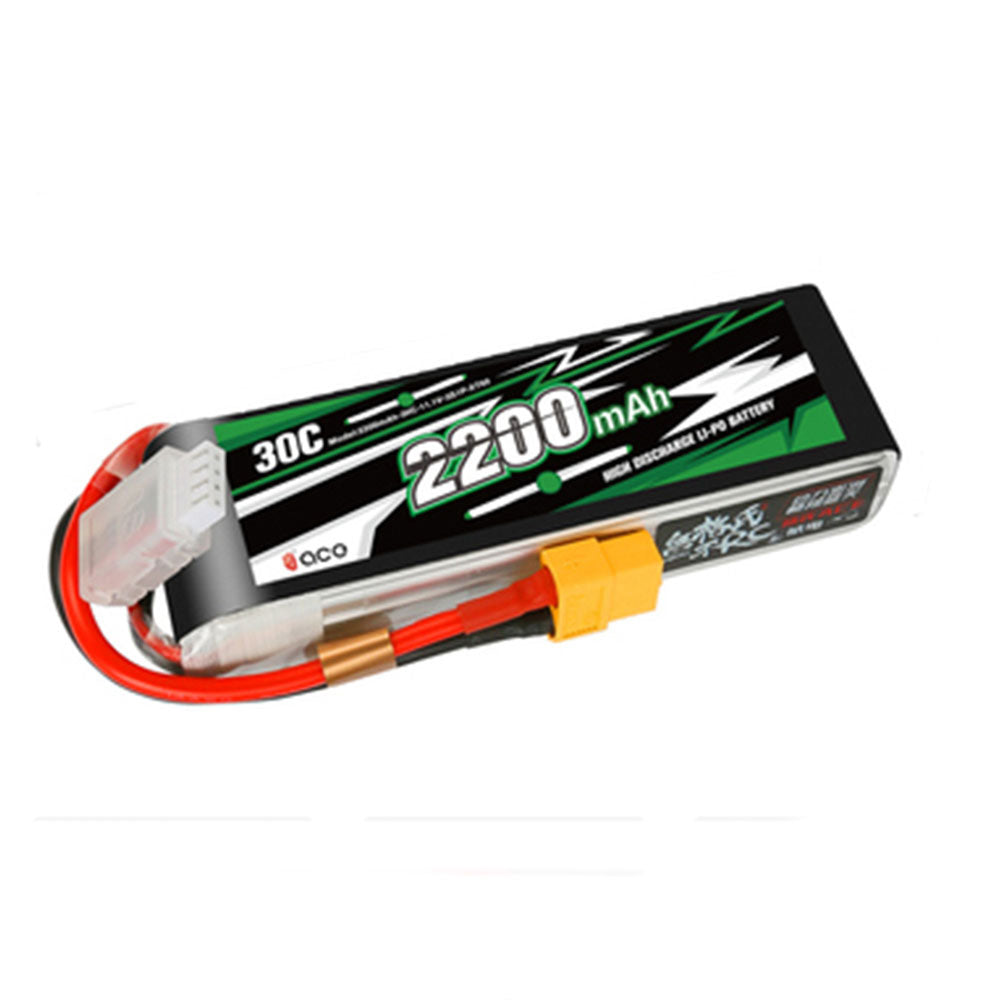

- 2200mAh 30C 11.1V 3S
- Capacity: 2200mAh
- Electric core: 3S1P
- Voltage: 11.1V
- Discharge rate: 30C
- Discharge wire: 80mm, silicone wire
- Charging line: 45mm, silicone wire
- Size(HxWxL): 20x32x112mm
- Weight(士15g): 182g
- 3300mAh 30C 11.1V 3S
- Capacity: 3300mAh
- Electric core: 3S1P
- Voltage: 11.1V
- Discharge rate: 30C
- Discharge wire: 80mm, silicone wire
- Charging line: 45mm, silicone wire
- Size(HxWxL): 17x40x136mm
- Weight(士15g): 234g

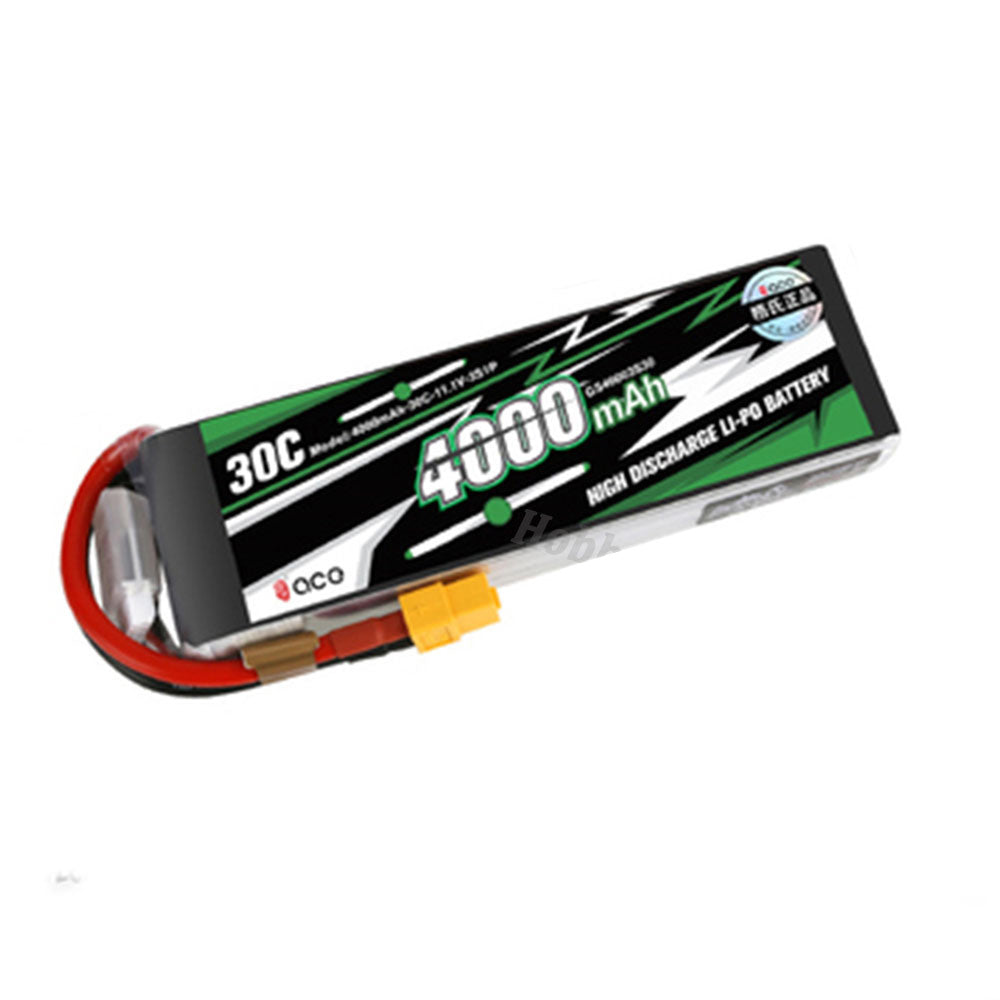

- 4000mAh 30C 11.1V 3S
- Capacity: 4000mAh
- Electric core: 3S1P
- Voltage: 11.1V
- Discharge rate: 30C
- Discharge wire: 80mm, silicone wire
- Charging line: 45mm, silicone wire
- Size(HxWxL): 22x40x138mm
- Weight(士15g): 288g
What capacity options are available for this LiPo battery?
The packs are available in 1300mAh, 2200mAh, 3300mAh and 4000mAh, all 11.1V (3S) with a 30C discharge rate. Each capacity has specific size and weight: 1300mAh 19 x 33 x 71 mm 109.5 g; 2200mAh 20 x 32 x 112 mm 182 g; 3300mAh 17 x 40 x 136 mm 234 g; 4000mAh 22 x 40 x 138 mm 288 g.
Which devices or models are these batteries designed to power?
They are used to power models such as MIKADO LOGO500, ALIGN T-REX550/600, GAUI X5, Outrage 550, Hirobo SDX and FPV racing drones.
What is the recommended charging guideline?
The nominal charge current should be kept at 1C for peak battery life.
How can I confirm compatibility with my drone or system?
If your system uses 11.1V 3S LiPo packs with 30C discharge and you need capacities from 1300mAh to 4000mAh, these packs should be suitable.
What about warranty or returns for this battery?
The product description does not specify warranty or return terms; please check with the retailer or product page for details.
Description
Gens ACE High Discharge Lipo Battery 3S 11.1V 30C
Gens ace lipo battery packs have remarkable stacking technology which enables high current capacity cells. With High discharge performance and high energy density, GensAce batteries provide high quality, reliable power for MIKADO LOGO500, ALIGN T-REX550/600, GAUI X5, Outrage 550, Hirobo SDX, FPV and custom made racing drones.
Nominal Charge Current should be kept at 1C for peak battery life.
Gens ace 3S1P Lipo Battery Pack Specs:
- 1300mAh 30C 11.1V 3S
- Capacity: 1300mAh
- Electric core: 3S1P
- Voltage: 11.1V
- Discharge rate: 30C
- Discharge wire: 80mm, silicone wire
- Charging line: 45mm, silicone wire
- Size(HxWxL): 19x33x71mm
- Weight(士15g)：109.5g
- 2200mAh 30C 11.1V 3S
- Capacity: 2200mAh
- Electric core: 3S1P
- Voltage: 11.1V
- Discharge rate: 30C
- Discharge wire: 80mm, silicone wire
- Charging line: 45mm, silicone wire
- Size(HxWxL): 20x32x112mm
- Weight(士15g): 182g
- 3300mAh 30C 11.1V 3S
- Capacity: 3300mAh
- Electric core: 3S1P
- Voltage: 11.1V
- Discharge rate: 30C
- Discharge wire: 80mm, silicone wire
- Charging line: 45mm, silicone wire
- Size(HxWxL): 17x40x136mm
- Weight(士15g): 234g
- 4000mAh 30C 11.1V 3S
- Capacity: 4000mAh
- Electric core: 3S1P
- Voltage: 11.1V
- Discharge rate: 30C
- Discharge wire: 80mm, silicone wire
- Charging line: 45mm, silicone wire
- Size(HxWxL): 22x40x138mm
- Weight(士15g): 288g
FAQ
What capacity options are available for this LiPo battery?
The packs are available in 1300mAh, 2200mAh, 3300mAh and 4000mAh, all 11.1V (3S) with a 30C discharge rate. Each capacity has specific size and weight: 1300mAh 19 x 33 x 71 mm 109.5 g; 2200mAh 20 x 32 x 112 mm 182 g; 3300mAh 17 x 40 x 136 mm 234 g; 4000mAh 22 x 40 x 138 mm 288 g.
Which devices or models are these batteries designed to power?
They are used to power models such as MIKADO LOGO500, ALIGN T-REX550/600, GAUI X5, Outrage 550, Hirobo SDX and FPV racing drones.
What is the recommended charging guideline?
The nominal charge current should be kept at 1C for peak battery life.
How can I confirm compatibility with my drone or system?
If your system uses 11.1V 3S LiPo packs with 30C discharge and you need capacities from 1300mAh to 4000mAh, these packs should be suitable.
What about warranty or returns for this battery?
The product description does not specify warranty or return terms; please check with the retailer or product page for details.
