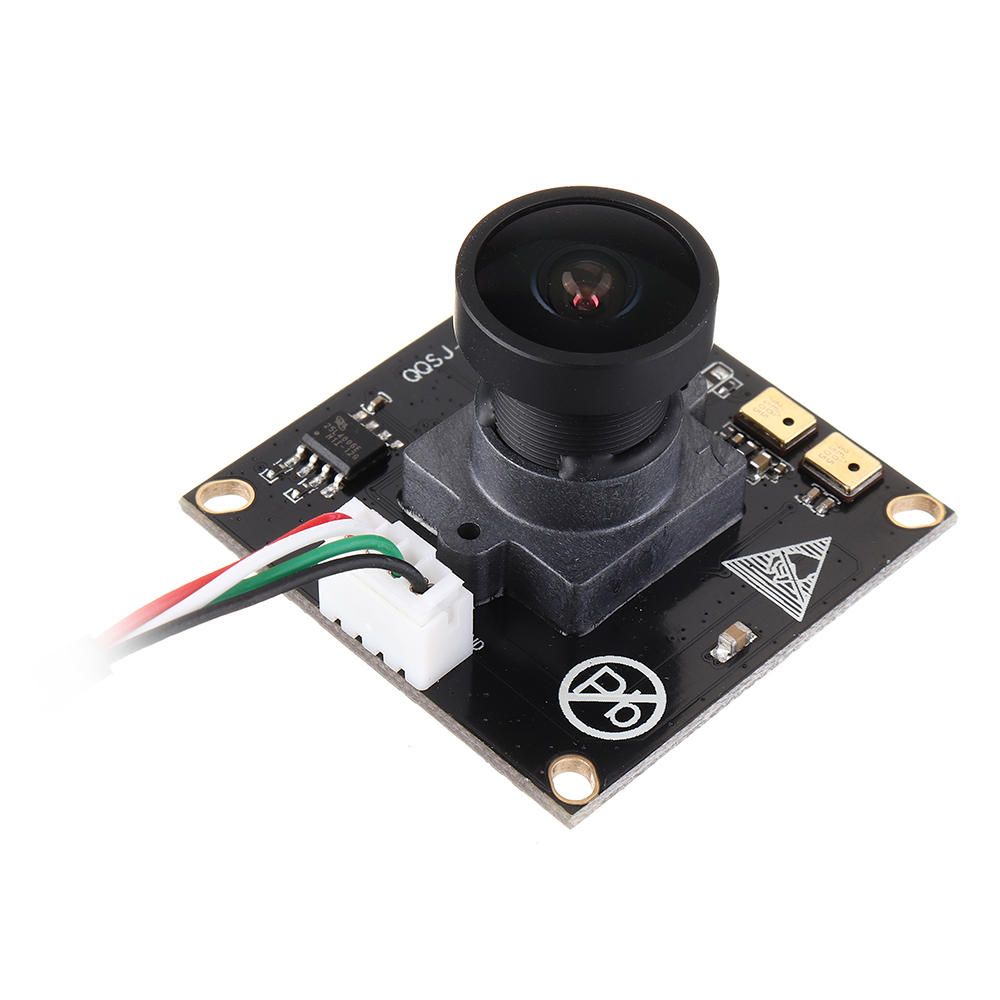

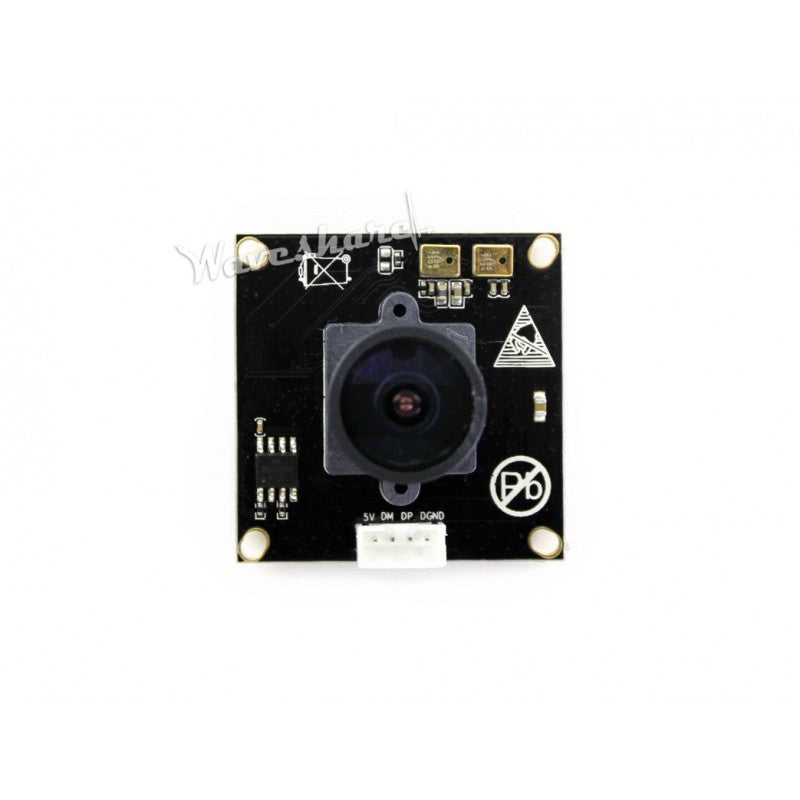

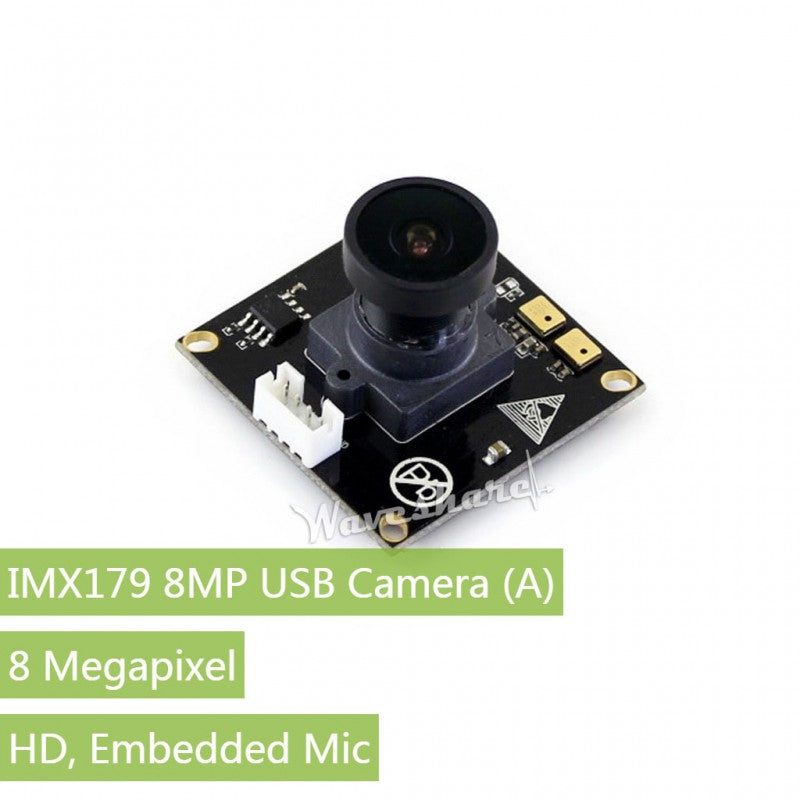

IMX179 8MP USB Camera, Ultra High Definition, Embedded Mic, Driver-Free
USB Camera, IMX179 sensor. 8 megapixel. Supports UVC protocol.
Features
- 8 megapixel IMX179 sensor
- 3288x2512 resolution
- USB interface, UVC protocol, driver-free, plug-and-play
- Supports Raspberry Pi and Jetson Nano
- DSP
- Automatic white balance (AWB)Ā
- Automatic exposure (AEC)Ā
- Automatic gain control (AGC)Ā
- Camera specifications
- CCD size: 1/3.2inch
- Aperture (F): 1.8
- Focal Length: 2.8mm
- Field of View (Diagonal): 145Ā°
- Mic specifications
- Sensitivity: -26dB (1kHz 1Pa)
- Interface: USB2.0
- Image formats: MJPEG, YUY2
- Operating temperature: 0Ā°C ~ 50Ā°C
- Dimension: 38mmx38mm
- Supported OS: Windows, Linux

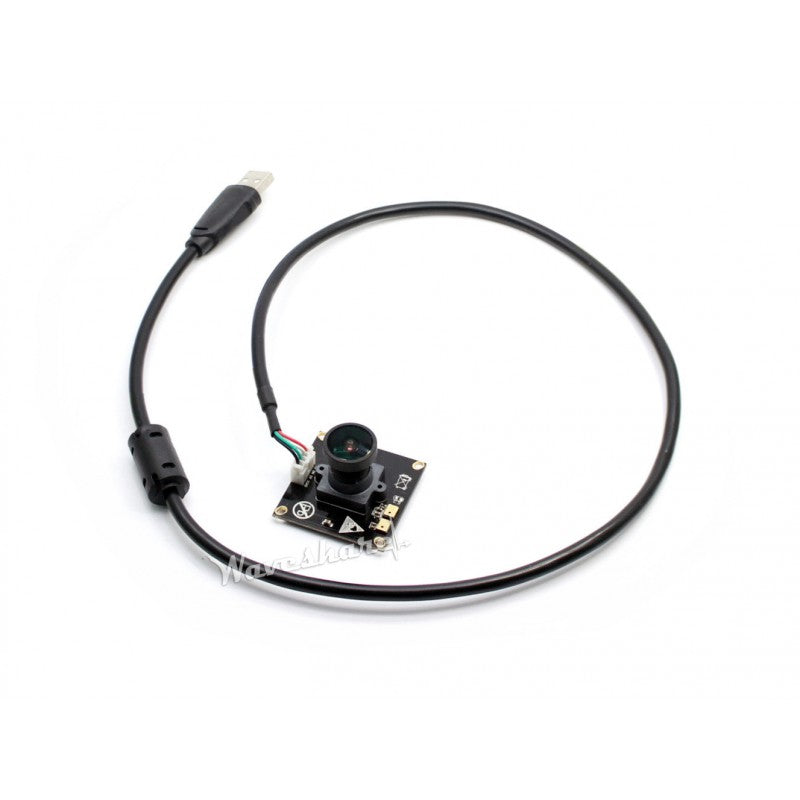

Package Contains:
- 1x IMX179 8MP USB Camera (A)
- 1x USB to 4-pin cable
- Weight:Ā 0.049 kg
Development Resources
What are the main specifications of this camera?
It features an 8 megapixel IMX179 sensor with 3288x2512 resolution, a USB 2.0 interface, and supports the UVC driver free plug and play standard. It also includes an embedded microphone and supports MJPEG and YUY2 image formats.
Do I need to install any drivers to use this camera?
No. It is a driver free USB camera that works with the UVC protocol in a plug and play manner.
Which platforms and operating systems are supported?
It supports Windows and Linux desktops and is compatible with Raspberry Pi and Jetson Nano via USB 2.0.
What are the microphone specifications?
The built in microphone has a sensitivity of -26 dB at 1 kHz with a 1 Pa reference.
What is included in the package and what are the physical specs?
The package includes 1 x IMX179 8MP USB Camera (A) and a USB to 4 pin cable. The camera measures 38 mm by 38 mm, weighs 0.049 kg, operates from 0 to 50 C, with a 1.8 aperture, 2.8 mm focal length, and a 145 degree diagonal field of view.
