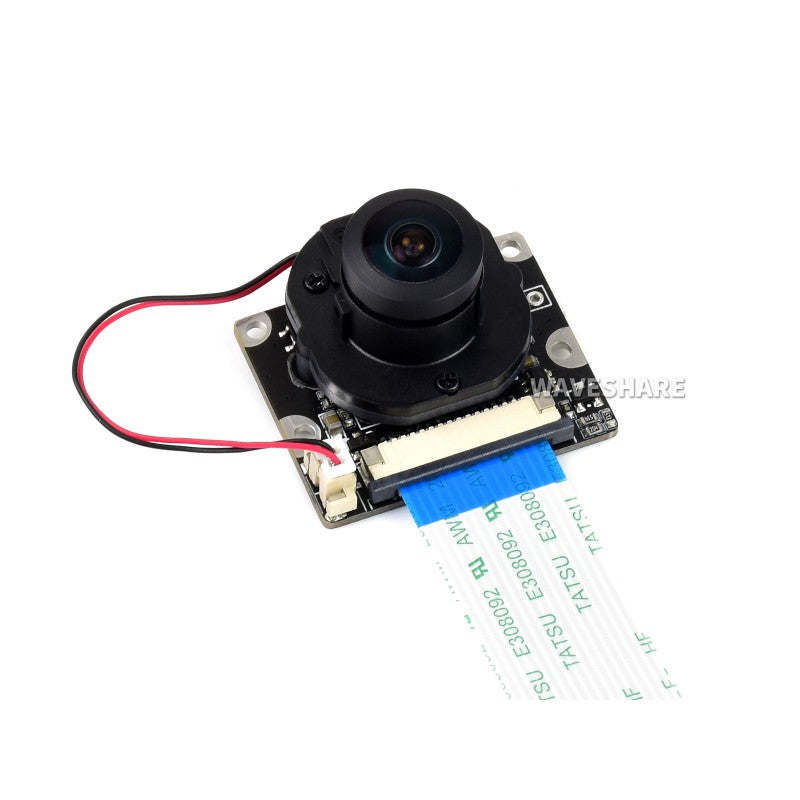

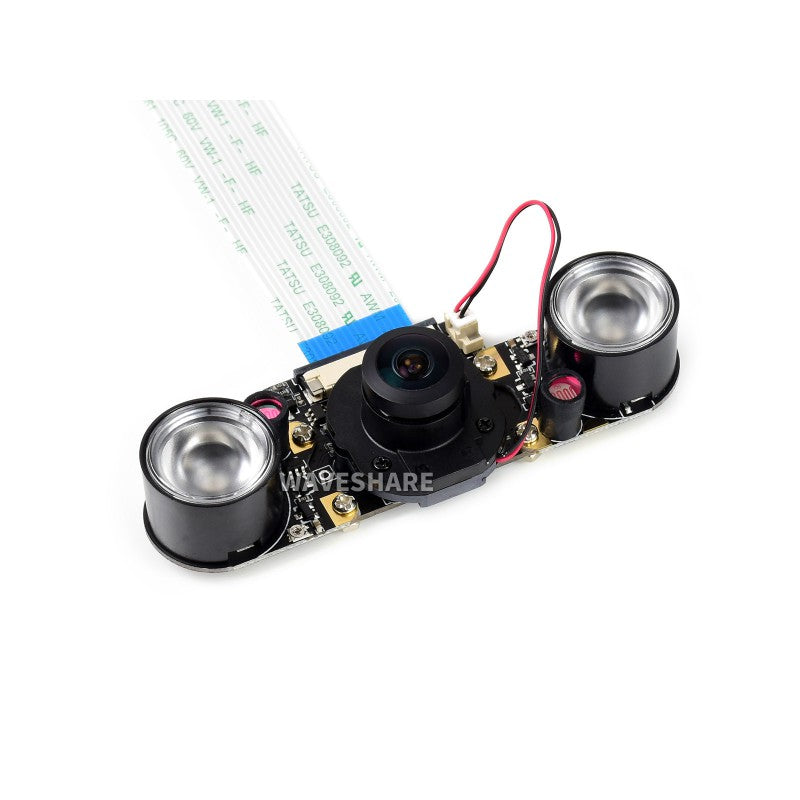

IMX219-160 8MP IR-CUT Camera, 162° FOV

SKU: WVSH0368

₹ 2,999.99

In stock | Ready to ship

⚠ Only a few left in stock. Order soon.
⏱ High demand right now.
📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
IMX219-160 8MP IR-CUT Camera, 162° FOV₹ 2,999.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini



IMX219-160 8MP IR-CUT Camera, IR-CUT Infrared Night Vision, 162° FOV, For Compute Module / Jetson Nano / Jetson Xavier NX

 Eliminating The Reddish Issue Of Normal IR Cameras On Daylight

Specifications

PIXELS 8MP
SENSOR IMX219
CAMERA Sensor size 1/4 inch
Aperture (F) 2.7
Resolution 3280 × 2464
Focal length (BFL) 1.75
Field of view (FOV) 162.4°(D) 124°(H) 91°(V)
Distortion <-22.7%

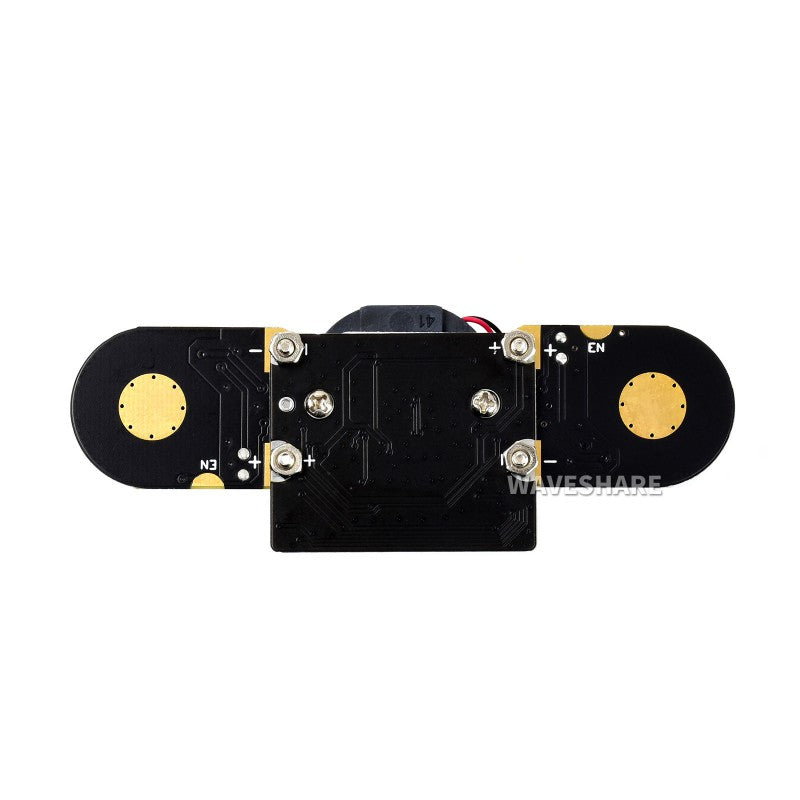

4X MOUNTING HOLES used for attachment
provides 3.3V power output

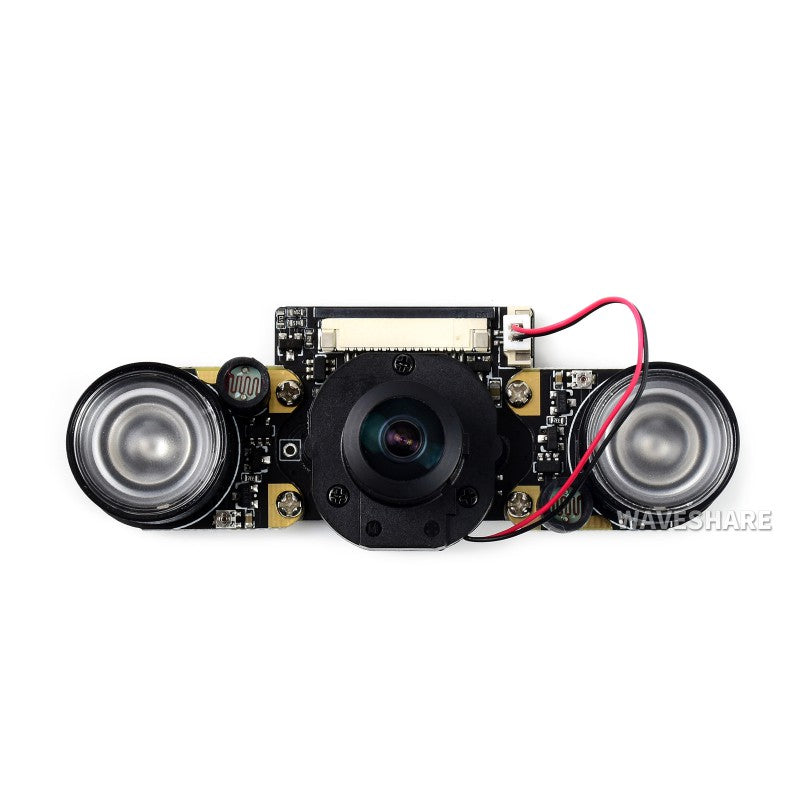

supports connecting infrared LED and/or fill flash LED
OPERATING VOLTAGE 3.3V
APPLICATIONS suitable for AI applications like: facial recognition, road mark recognition, license plate number recognition, and so on.

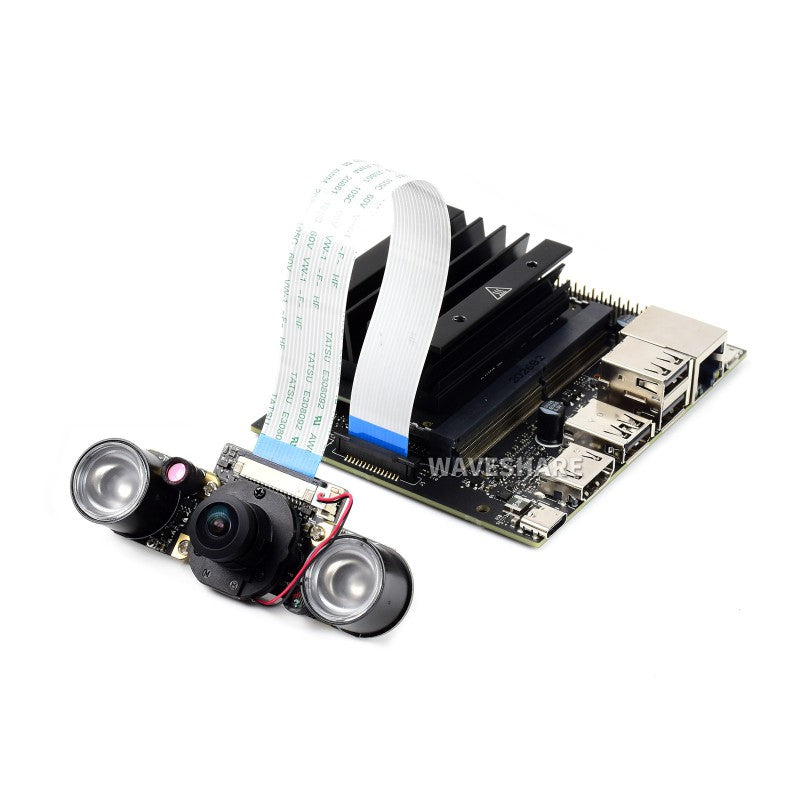

Working With Jetson Nano

Jetson Nano Developer Kit B01 (Left) And Jetson Nano 2GB Developer Kit (Right)

Working With Raspberry Pi Compute Module

Compatible With Raspberry Pi Compute Module CM3 / CM3+ / CM4



Dimensions

Resources

Wiki: IMX219-160_IR-CUT_Camera
What is the field of view of this camera?
The camera provides a 162.4 degree diagonal FOV, with 124 degree horizontal and 91 degree vertical coverage.
Which development boards and compute modules is it compatible with?
It is compatible with Raspberry Pi Compute Module CM3 CM3+ CM4, as well as Jetson Nano and Jetson Xavier NX.
What are the power requirements and LED support features?
Operating voltage is 3.3V and it provides 3.3V power outputs for connecting infrared LED or fill flash LED.
How is the camera mounted on a project or enclosure?
The unit has four mounting holes to attach it securely for flexible installation.
Is warranty or return information available for this product?
Warranty and returns are not specified in the provided information; please check the seller terms for details.
