RaspRover Open-source 4WD AI Robot for Raspberry Pi
Ask AI about this product
IMX219-170 Camera, Applicable For Jetson Nano, 8 Megapixels, 170Ā° FOV
Features
- Supports CM3/3+/4, Jetson Nano, Jetson Xavier NX
- 8 MegapixelsĀ
- Sensor: IMX219Ā
- Resolution: 3280 Ć 2464Ā
- Lens specifications:
- CMOS size: 1/4inch
- Aperture (F): 2.4
- Focal Length: 2.2mm
- Angle of View (diagonal): 170 degree
- Distortion: <22%
- 4 screw holes
- Used for attachment
- Provides 3.3V power output
- Dimension: 32mm Ć 32mm
Package Contains:
- 1x IMX219-170 Camera
- 1x 15-pin FFC (opposite sides contact)
Applications

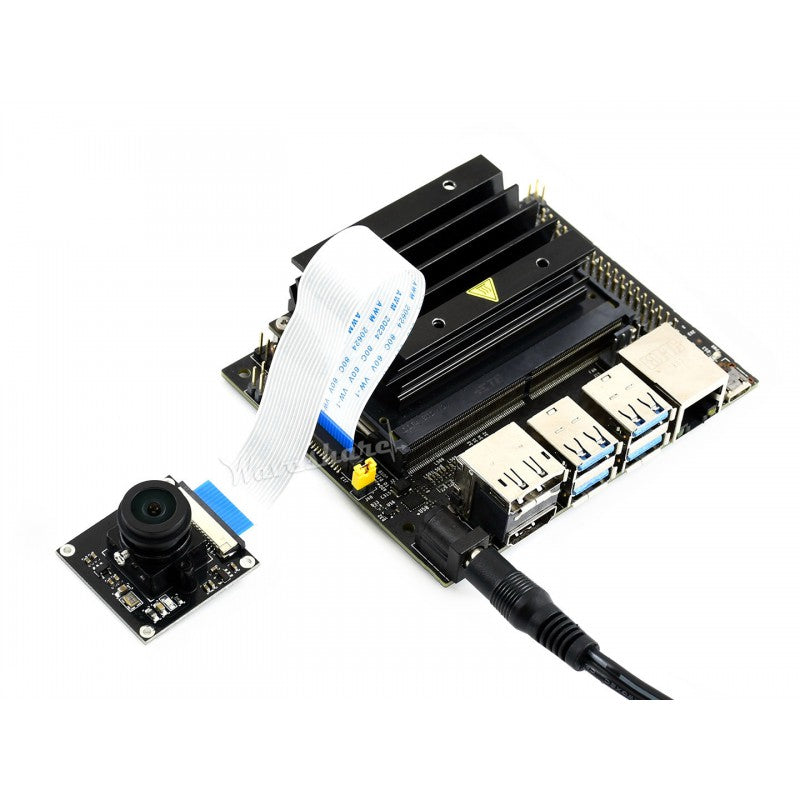

Combined with the Jetson Nano AI computer, this camera suits for AI projects such as:
- Face recognition
- Road mark detection
- License plate recognition
Resources
What devices is this camera compatible with?
It supports Compute Module 3, Compute Module 3 Plus, Compute Module 4, Jetson Nano and Jetson Xavier NX.
What are the main image specs such as resolution and field of view?
It uses the IMX219 sensor with 8 megapixels and 3280 by 2464 resolution, with a diagonal field of view of 170 degrees.
How is the camera mounted and connected?
It has four screw holes for mounting, a 32 by 32 millimeter body, and comes with a 15 pin FFC. It also provides a 3.3 volt power output.
What is included in the package?
The package contains 1x IMX219-170 Camera and 1x 15 pin FFC.
What are common AI project use cases for this camera?
Typical applications include face recognition, road mark detection, and license plate recognition when used with compatible Jetson boards.
