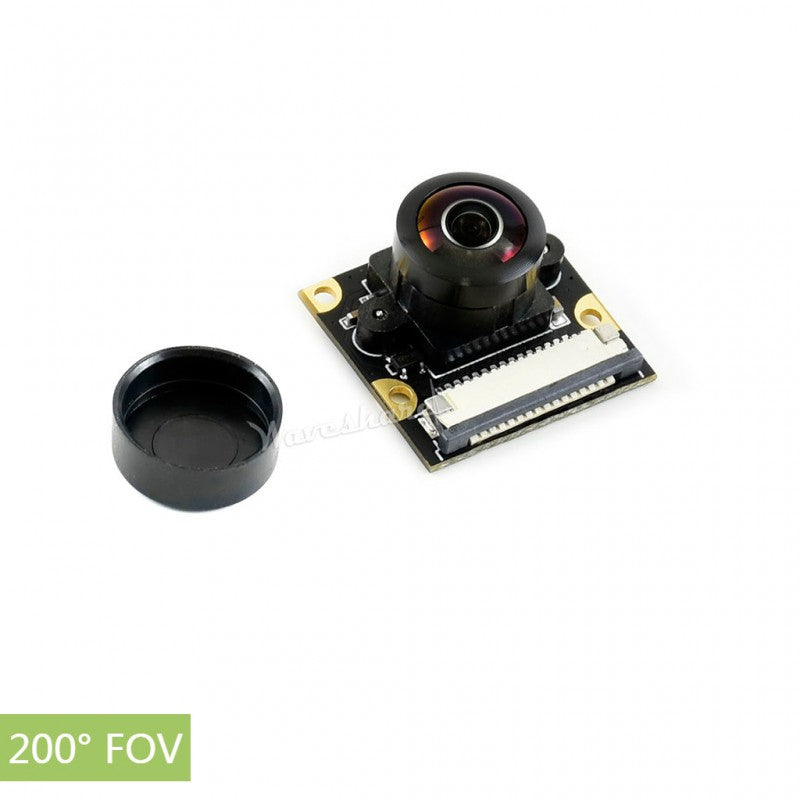

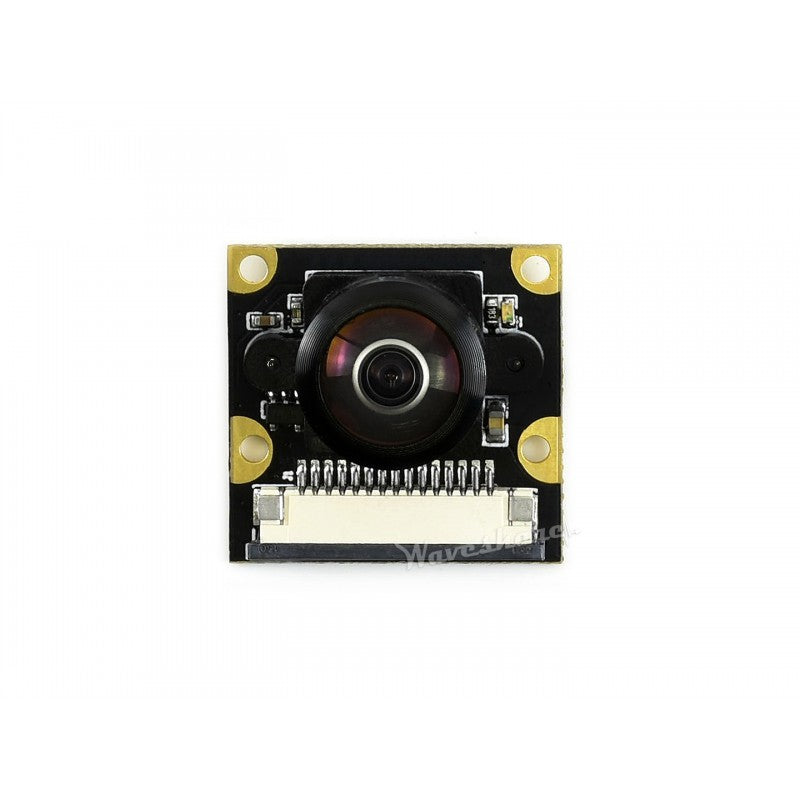

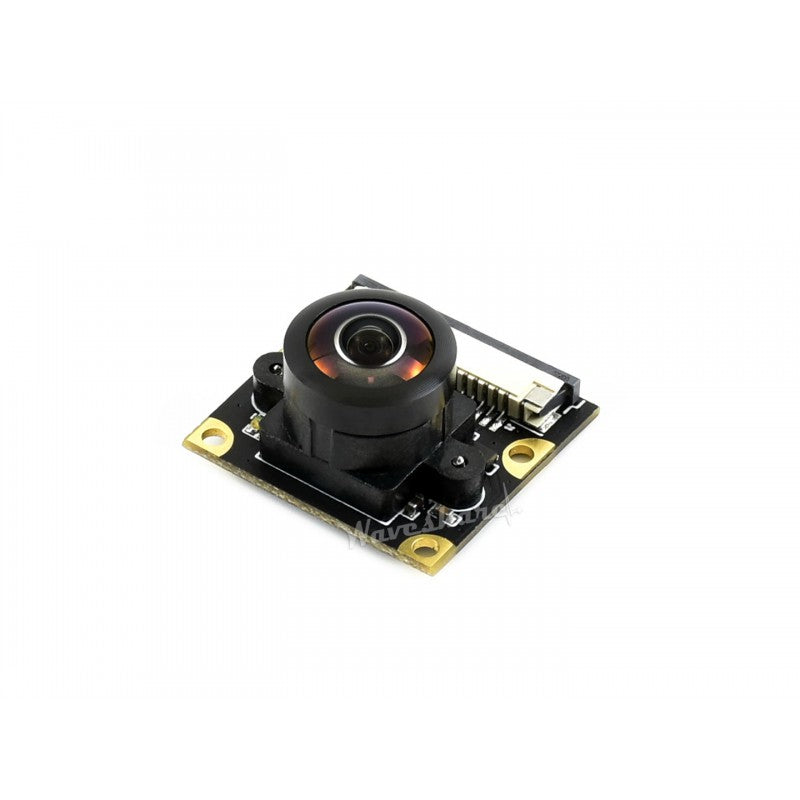

IMX219-200 Camera, Applicable For Jetson Nano, 8 Megapixels, 200Ā° FOV
Features
- Supports CM3/3+/4, Jetson Nano, Jetson Xavier NX
- 8 Megapixels
- Sensor: IMX219
- Resolution: 3280 Ć 2464
- Lens specifications:
- CMOS size: 1/4inchĀ
- Aperture (F): 2.0Ā
- Focal Length: 0.87mm
- Angle of View (diagonal): 200 degree
- Distortion: <11%

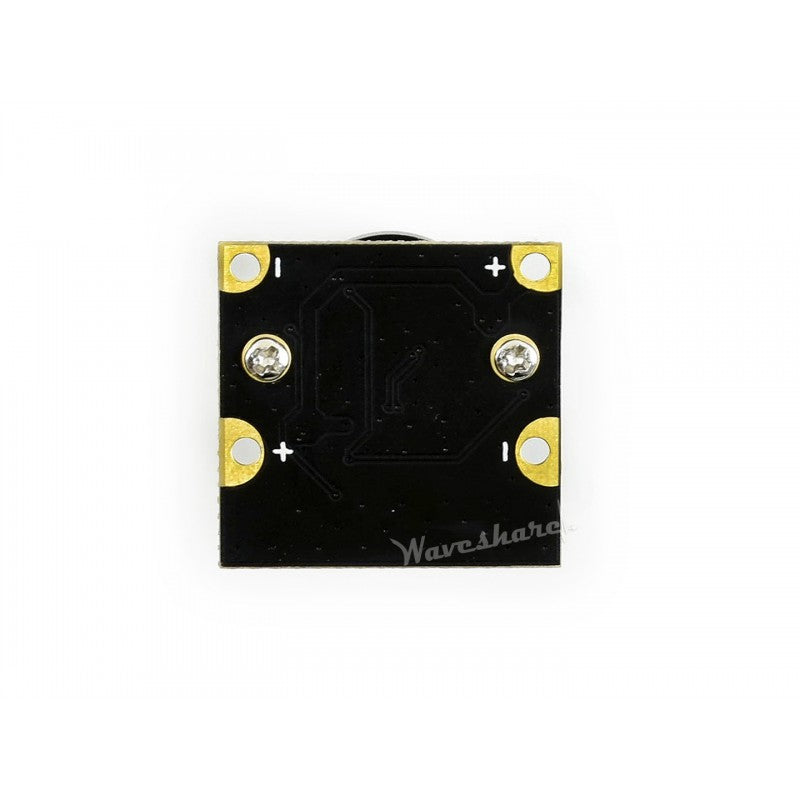

- 4 screw holes
- Used for attachment
- Provides 3.3V power output
- Dimension: 25mm Ć 24mm
Package Contains:
- 1x IMX219-200 Camera

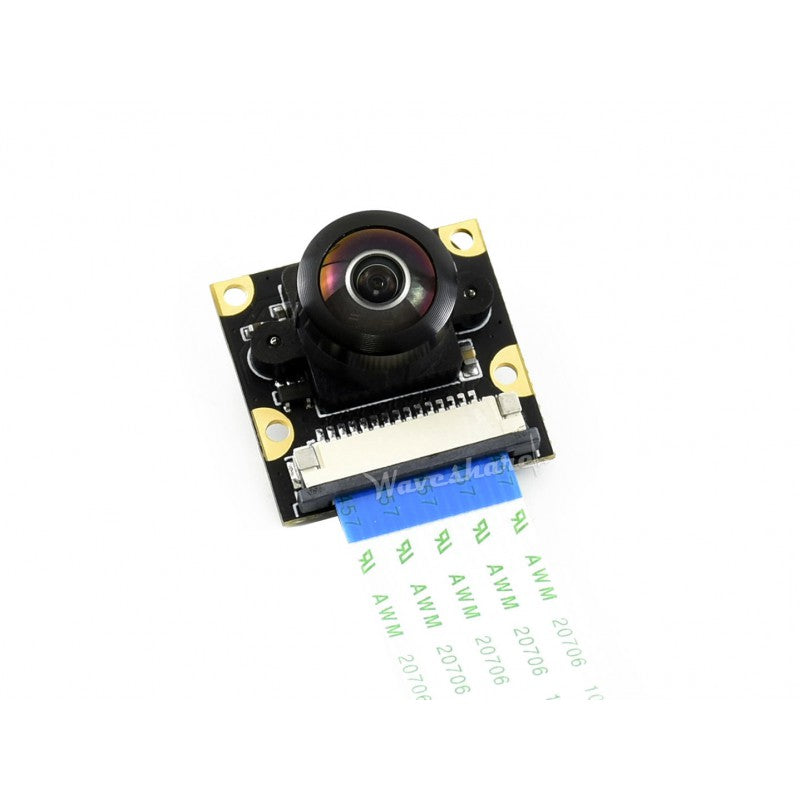

- 1x 15-pin FFC (opposite sides contact) - 16cm long.
Applications

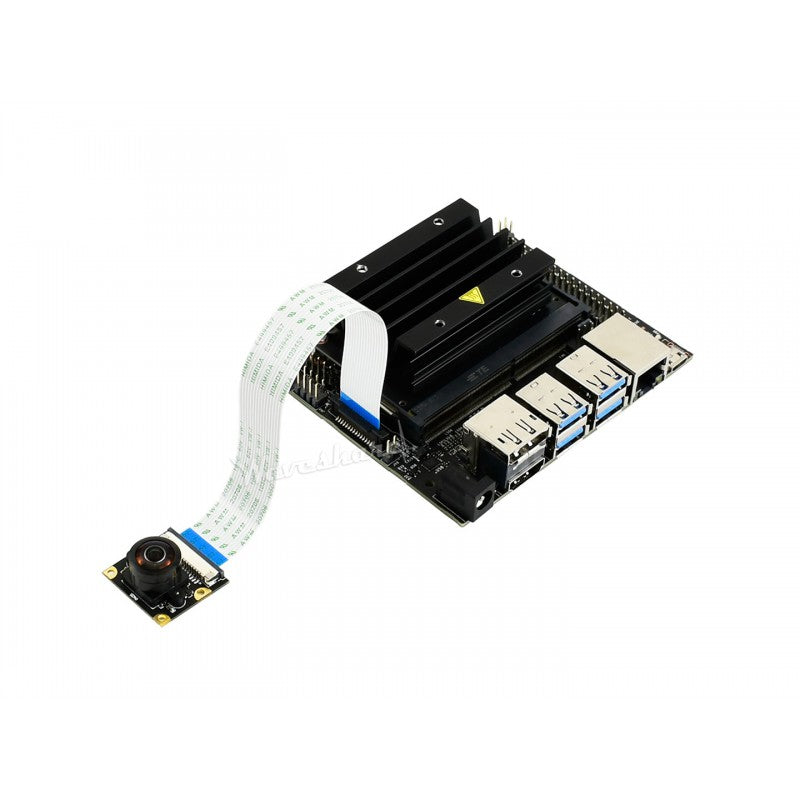

Combined with the Jetson Nano AI computer, this camera suits for AI projects such as:
- Face recognition
- Road mark detection
- License plate recognition
Resources
What platforms is this camera compatible with?
It supports CM3, CM3 Plus, CM4, Jetson Nano, and Jetson Xavier NX.
What are the main optical specs such as resolution and field of view?
It uses the IMX219 sensor with 3280 x 2464 resolution and a diagonal field of view of 200 degrees. Distortion is less than 11 percent.
What is included in the package?
The package includes 1x IMX219-200 Camera and 1x 15 pin FFC cable 16 cm long.
What are the dimensions and power features?
The camera measures 25 mm by 24 mm and provides a 3.3V power output. It has 4 screw holes for attachment.
What are common use cases for this camera?
When used with a Jetson Nano computer, it is suitable for AI projects such as face recognition, road mark detection, and license plate recognition.
