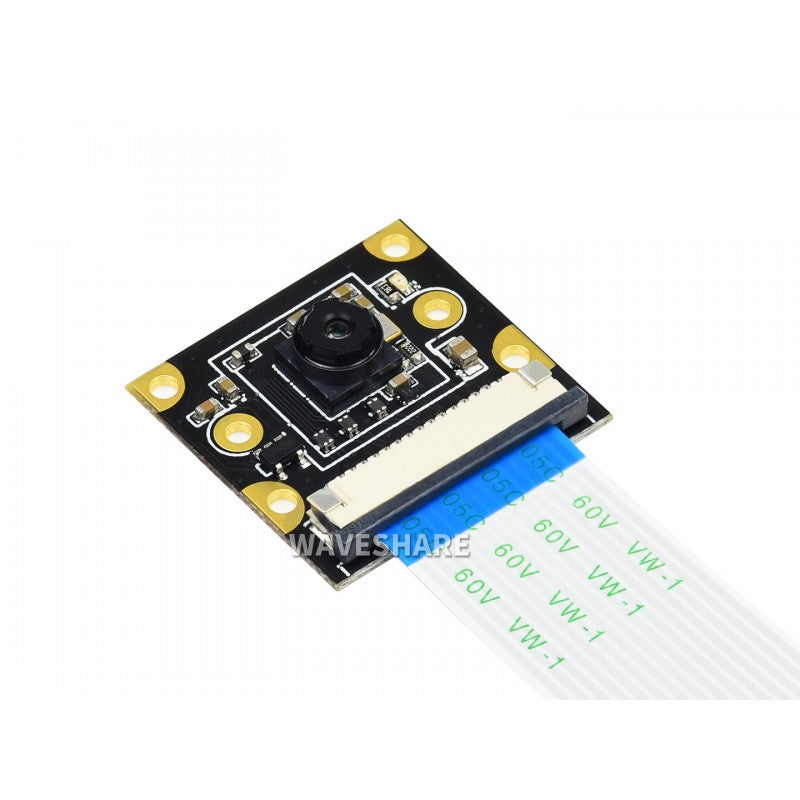

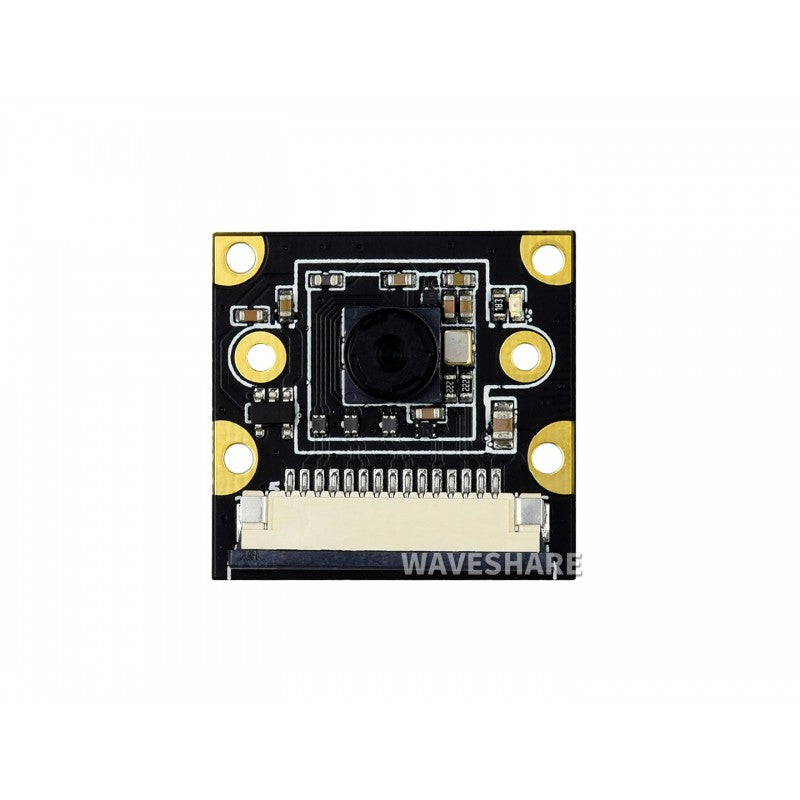

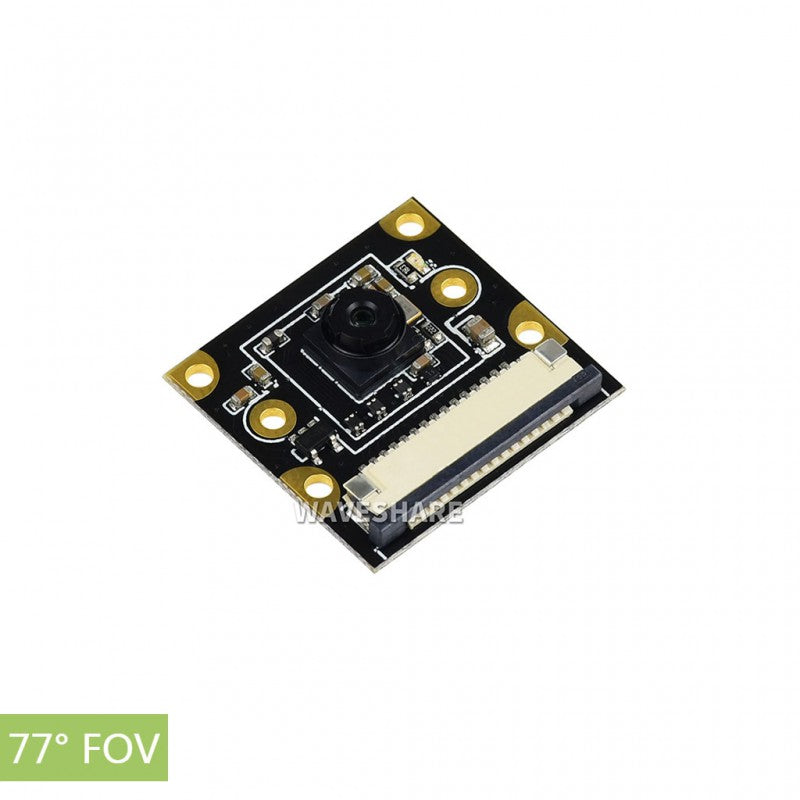

IMX219-77 Camera, Applicable For Jetson Nano, 8 Megapixels, 77° FOV
IMX219-77 Camera Features
- Supports CM3/3+/4, Jetson Nano, Jetson Xavier NX
- 8 Megapixels
- Sensor: Sony IMX219
- Resolution: 3280 × 2464
- Lens specifications:
- CMOS size: 1/4inch
- Aperture (F): 2.0
- Focal Length: 2.85mm
- Angle of View (diagonal): 79.3 degree
- Distortion: < 1%
- Lens dimensions: 6.5mm × 6.5mm
- 4 screw holes
- Used for attachment
- Provides 3.3V power output
- Dimension: 25mm × 24mm
Package Contains:
- 1x IMX219-77 Camera
- 1x 15-pin FFC (opposite sides contact)
Applications

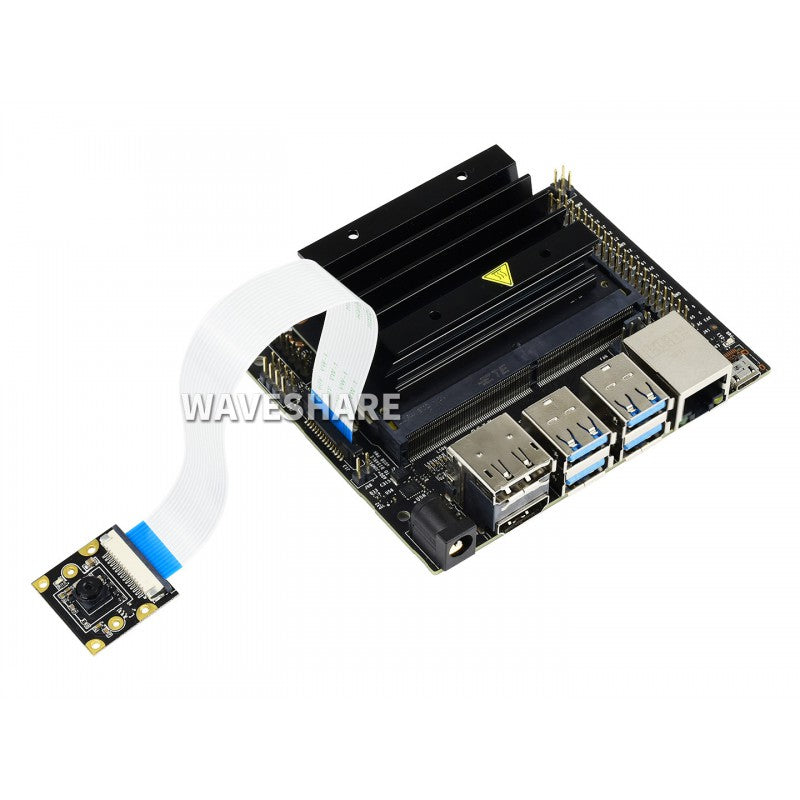

Combined with the Jetson Nano AI computer, this camera suits for AI projects such as:
- Face recognition
- Road mark detection
- License plate recognition
Resources
Wiki: www.waveshare.com/wiki/IMX219-77_Camera
