IMX219-83 Stereo Camera, 8MP Binocular Camera Module
Binocular Camera Module, Dual IMX219, 8 Megapixels, Stereo Vision, Depth Vision
This is a binocular camera module which features dual IMX219 cameras onboard, 8Megapixels of each camera. It is suitable for AI vision applications like depth vision and stereo vision.
The module supports NVIDIA Jetson Nano Developer Kit B01 version, Jetson Xavier NX Developer Kit, as well as Raspberry Pi CM3/CM3+ expansion boards like Compute Module IO Board Plus, Compute Module POE Board, etc.
Specifications
8 Megapixels
Sensor: IMX219
Resolution: 3280 × 2464 (per camera)
Lens specifications:
CMOS size: 1/4inch
Focal Length: 2.6mm
Angle of View: 83/73/50 degree (diagonal/horizontal/vertical)
Distortion: <1%
Baseline Length: 60mm
ICM20948:
Accelerometer:
Resolution: 16-bit
Measuring Range (configurable): ±2, ±4, ±8, ±16g
Operating Current: 68.9uA
Gyroscope:
Resolution: 16-bit
Measuring Range (configurable): ±250, ±500, ±1000, ±2000°/sec
Operating Current: 1.23mA
Magnetometer:
Resolution: 16-bit
Measuring Range: ±4900μT
Operating Current: 90uA
Dimension: 24mm × 85mm
Applications
AI vision applications like depth vision and stereo vision.

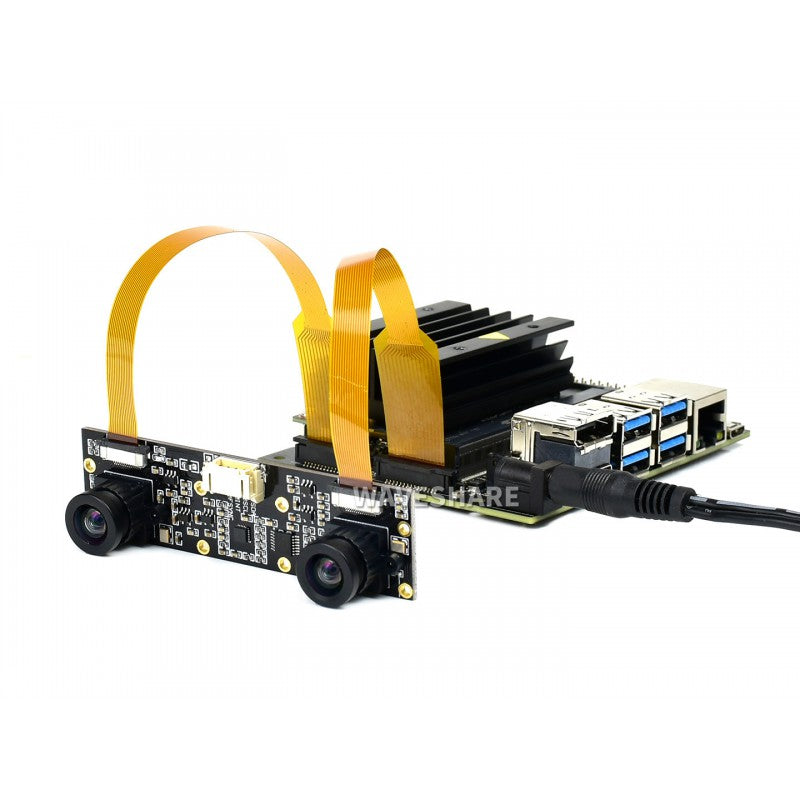

Example
Note: for reference only, Jetson Nano Developer Kit (B01) is NOT included.
Dimensions
Resources
Wiki: www.waveshare.com/wiki/IMX219-83_Stereo_Camera
