Waveshare IMX219-D160 Camera Module for Raspberry Pi Camera Board V2

SKU: WVSH0355

₹ 1,449.99 ₹ 1,499.99

In stock | Ready to ship

⚠ Only a few left in stock. Order soon.
⏱ High demand right now.
📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
Waveshare IMX219-D160 Camera Module for Raspberry Pi Camera Board V2₹ 1,449.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

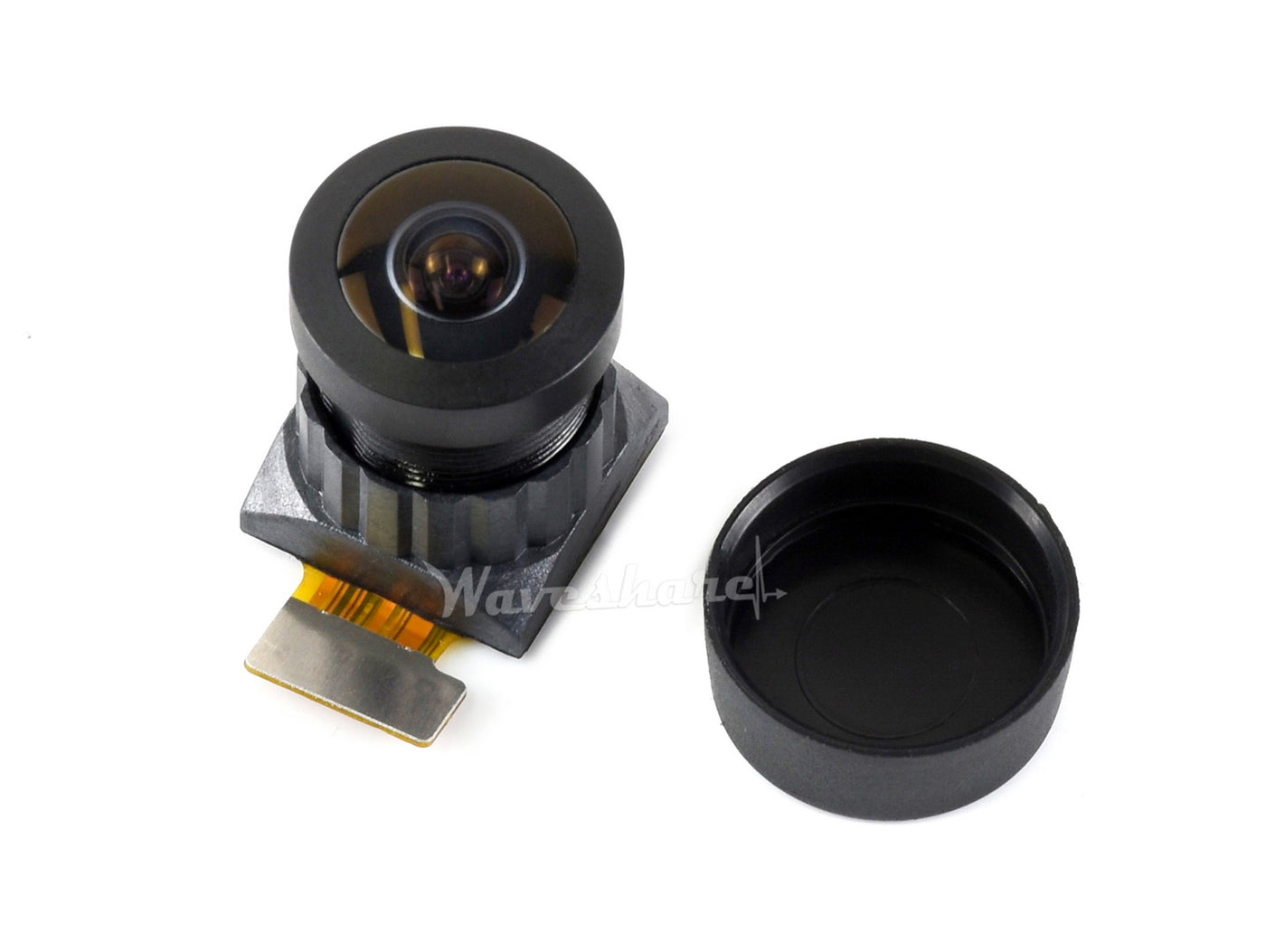

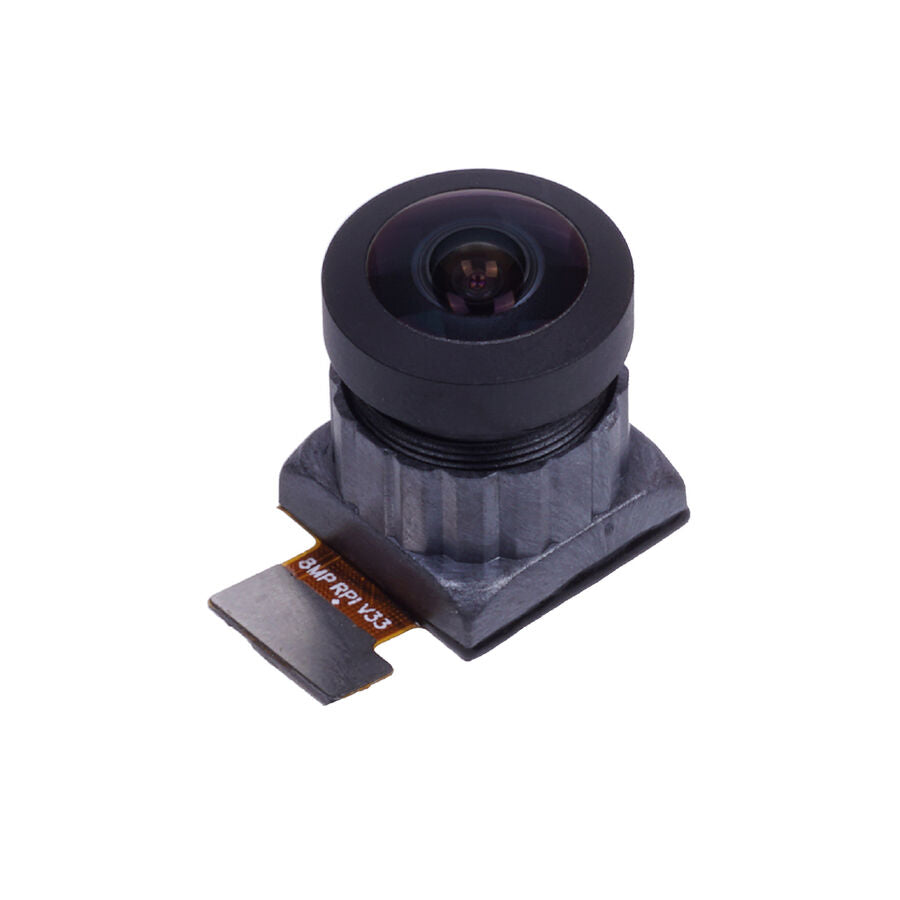

This is a camera module (without driver PCB) compatible with the official Raspberry Pi Camera Board V2, with 8-megapixel IMX219 sensor and features 160 degree field of view.

If you got a Raspberry Pi Camera Board V2 and just want to try something new, here it is.

Features

  • Sony IMX219 8-megapixel sensor
  • Camera specifications
    • CMOS size : 1/4inch
    • Aperture (F) : 2.35
    • Focal Length : 3.15mm
    • Angle of View (diagonal) : 160 degree (while the original V2 camera is only 62.2 degree)
    • Distortion: < 14.3%
    • Focusing Range: 20cm ~ infinity
  • 3280 x2464 still picture resolution
  • Support 1080p30, 720p60 and 640x480p90 video record

Is this camera module compatible with the Raspberry Pi Camera Board V2?
Yes, it is compatible with the official Raspberry Pi Camera Board V2 and is supplied as a module without a driver PCB.
What are the main image and video capabilities?
It uses the Sony IMX219 8 megapixel sensor with a 1/4 inch CMOS size and an aperture of 2.35. It supports 3280 x 2464 stills and 1080p30, 720p60, and 640x480p90 video.
What does without driver PCB mean and how do I install it?
The product is a camera module without a driver PCB; to use with a Raspberry Pi connect to the camera interface as you would with a standard V2 camera.
What is the field of view and distortion?
The diagonal field of view is 160 degrees and distortion is less than 14.3 percent.
Are there warranty or return terms available?
Warranty and returns terms vary by seller and region. Please check the seller policy for details.
Add Post

For more discussion Click Here

Discover More In:

Browse All Products → Camera Modules → Cameras & LIDARs →

Category: View all camera

Fill out the form below and our team will get back to you with bulk pricing.

Description
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini



This is a camera module (without driver PCB) compatible with the official Raspberry Pi Camera Board V2, with 8-megapixel IMX219 sensor and features 160 degree field of view.

If you got a Raspberry Pi Camera Board V2 and just want to try something new, here it is.

Features

  • Sony IMX219 8-megapixel sensor
  • Camera specifications
    • CMOS size : 1/4inch
    • Aperture (F) : 2.35
    • Focal Length : 3.15mm
    • Angle of View (diagonal) : 160 degree (while the original V2 camera is only 62.2 degree)
    • Distortion: < 14.3%
    • Focusing Range: 20cm ~ infinity
  • 3280 x2464 still picture resolution
  • Support 1080p30, 720p60 and 640x480p90 video record

FAQ
Is this camera module compatible with the Raspberry Pi Camera Board V2?
Yes, it is compatible with the official Raspberry Pi Camera Board V2 and is supplied as a module without a driver PCB.
What are the main image and video capabilities?
It uses the Sony IMX219 8 megapixel sensor with a 1/4 inch CMOS size and an aperture of 2.35. It supports 3280 x 2464 stills and 1080p30, 720p60, and 640x480p90 video.
What does without driver PCB mean and how do I install it?
The product is a camera module without a driver PCB; to use with a Raspberry Pi connect to the camera interface as you would with a standard V2 camera.
What is the field of view and distortion?
The diagonal field of view is 160 degrees and distortion is less than 14.3 percent.
Are there warranty or return terms available?
Warranty and returns terms vary by seller and region. Please check the seller policy for details.
