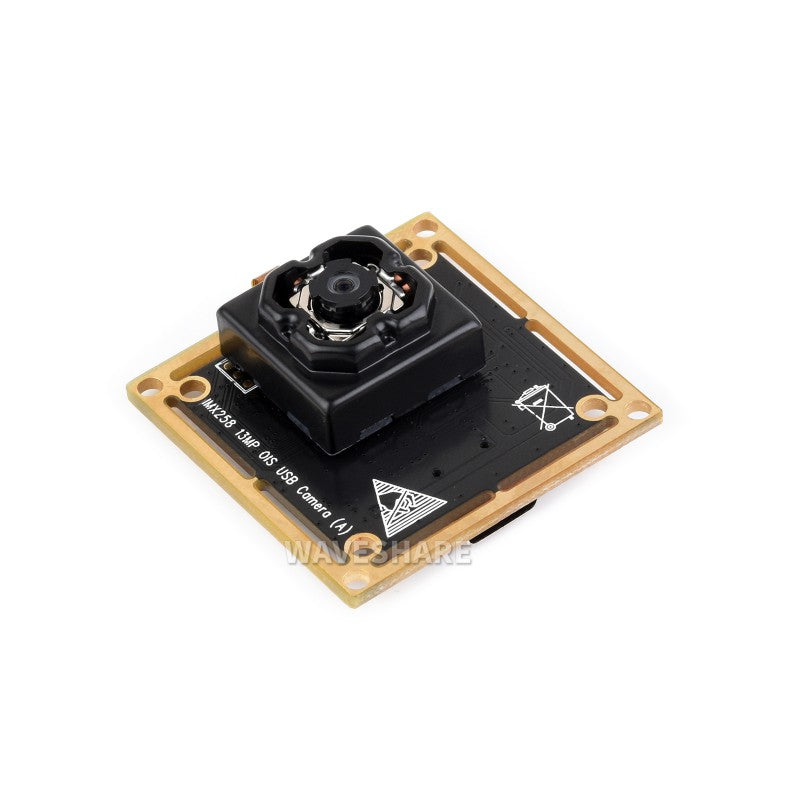

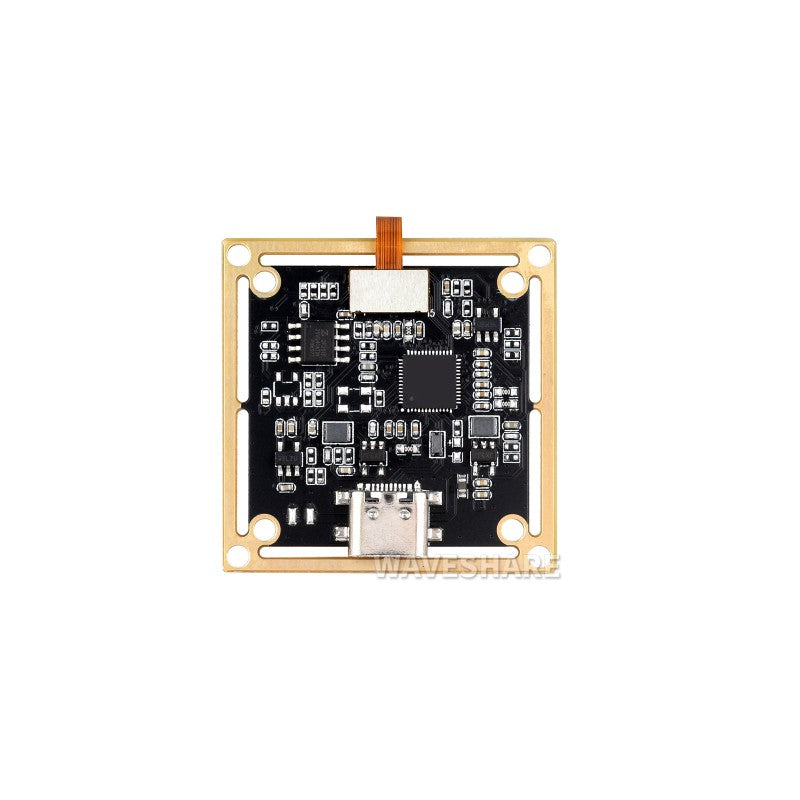

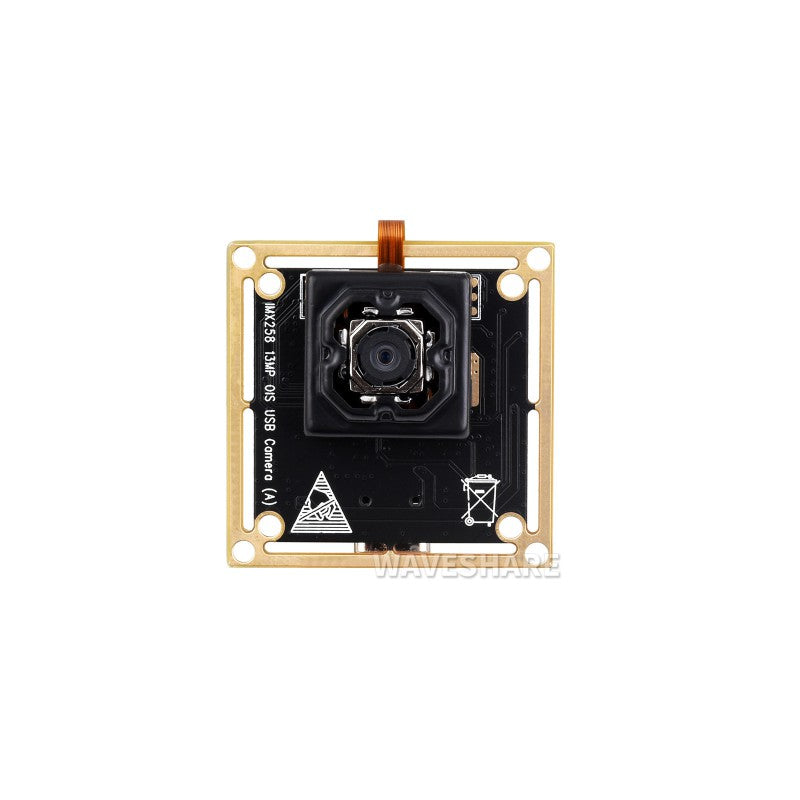

IMX258 13MP USB Camera, Optical Image Stabilization, Plug-And-Play, Driver Free,Ā Auto Focusing
Specifications
| PIXELS | 13MP | |
|---|---|---|
| SENSOR | IMX258 | |
| STABILIZATION | Micro Gimbal Stabilizer (MGS) | |
| INTERFACE | USB2.0 (UVC 1.0 compliant) | |
| CAMERA | Sensor size | 1/3.06 inch |
| Aperture (F)Ā | 2.4 | |
| Focal length (EFL)Ā | 2.35 mm | |
| Field of view (FOV) | 127Ā°(D) 99.5Ā°(H) 70Ā°(V) | |
| Focusing | auto focusing | |
| IMAGE | Format support | MJPG |
| Static image resolution | 4224 Ć 3192 | |
| Video recording | 10 FPS 4192 Ć 3104 20 FPS 3840 Ć 2160 25 FPS 1920 Ć 1080 |
|
| OPERATING VOLTAGE | 5V Ā± 5% | |
| CAMERA SIZE | 19.00 Ć 19.00 Ć 9.90 mm | |
| MODULE SIZE | 38.00 Ć 35.80 mm | |
Optical Image Stabilization Feature
OIS Camera (Left) VS Non-OIS Camera (Right)

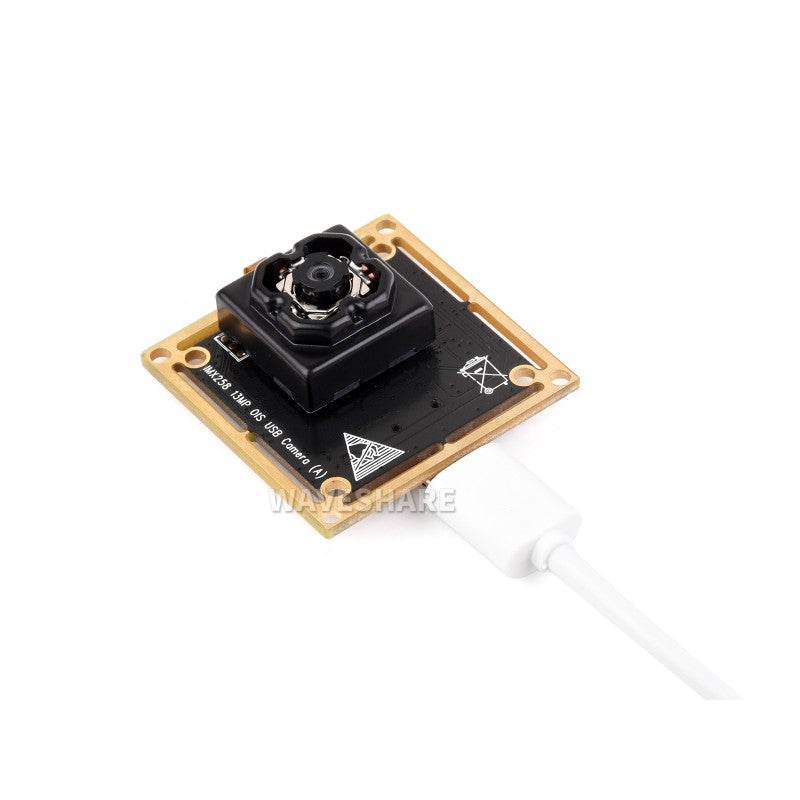

Connecting With USB Cable
Dimensions
FAQ
Is this camera plug and play and does it require external drivers?
Yes, it is plug and play and driver free, using USB2.0 with UVC 1.0 compliance.
What resolutions and image quality can I expect?
It captures stills up to 4224 x 3192 with auto focusing, and supports video at resolutions including 4192 x 3104 at 20 FPS, 3840 x 2160 at 25 FPS, and 1920 x 1080.
Does it have optical image stabilization?
Yes, it features Optical Image Stabilization via a Micro Gimbal Stabilizer.
What are the physical dimensions and power requirements?
The camera size is 19.00 x 19.00 x 9.90 mm, module size 38.00 x 35.80 mm, and it operates at 5 V plus minus 5 percent.
What is the field of view and focal length?
Focal length is 2.35 mm, and the field of view is 127 degrees diagonal, 99.5 degrees horizontal, and 70 degrees vertical.
