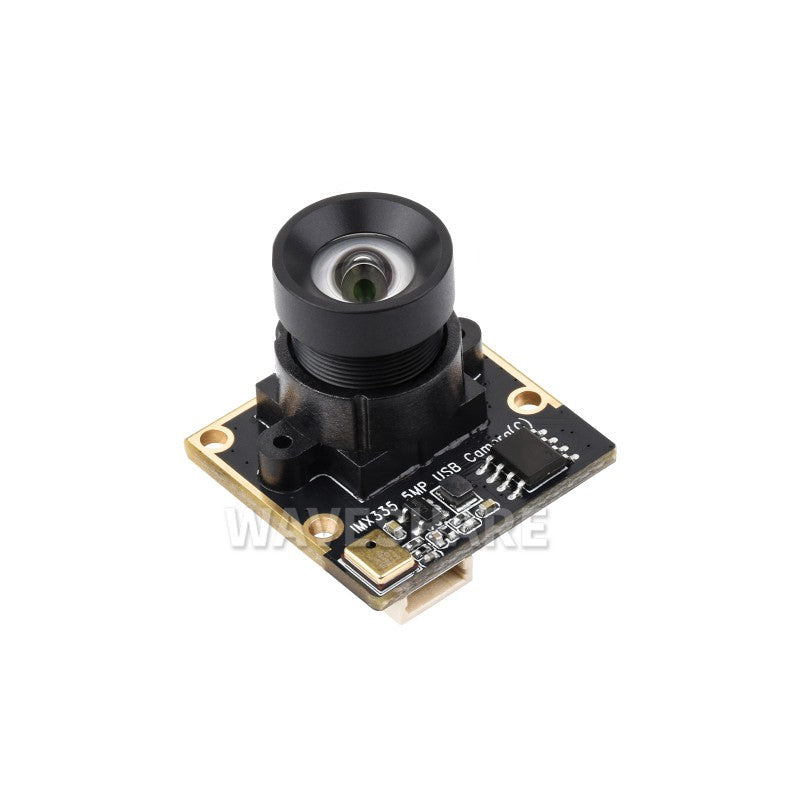

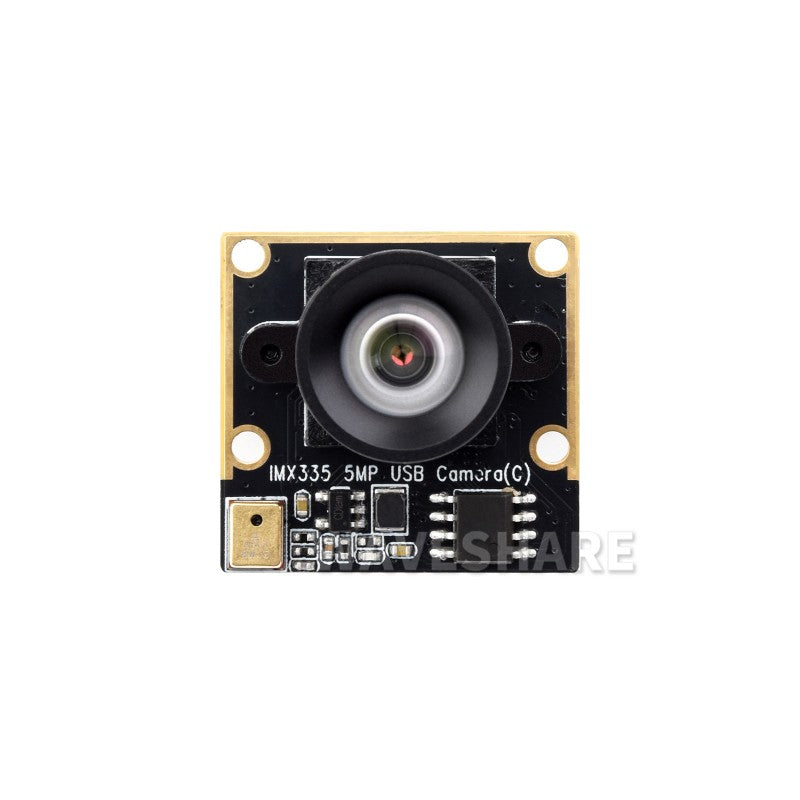

5MP USB Camera Module
IMX335 Sensor | USB2.0 Port | 91.7° Distortion-Free Lens
Specifications
| Pixels | 5MP |
| Sensor | IMX335 |
| Interface | USB 2.0 |
| Sensor Size | 1/2.8 inch |
| Aperture (F) | 2.4 |
| Focal Length (EFL) | 3.25mm |
| Field of View (FOV) | 91.7° |
| Distortion | <-1.22% |
| Focusing | Fixed-focus |
| Mount | M12 |
| Construction | 3G2P + IR Filter (650nm) |
| Image Format Support | MJPG, YVY2 |
| Static Image Resolution | 2592 × 1944 |
| Video Recording | 30 FPS 2592 × 1944 30 FPS 1920 × 1080 30 FPS 1280 × 720 |
| Dynamic Range | 71.6dB@8xgain |
| SNR | 36dB |
| Operating Voltage | 5V ± 5% |
| Operating Temperature | -10°C~60°C |
| Module Size | 25.00 × 24.30 (mm) |

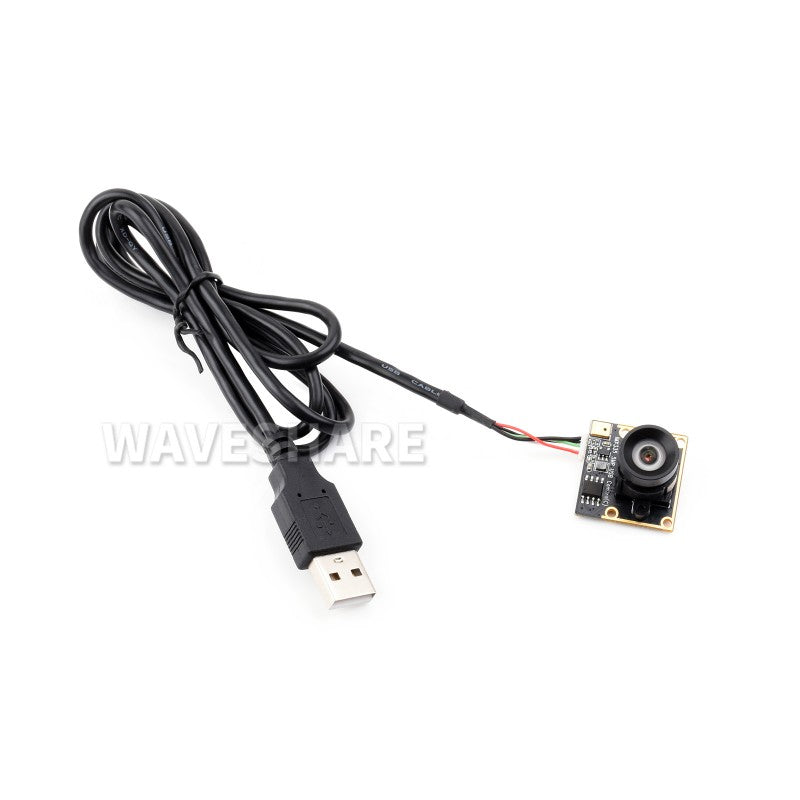

Connecting with USB cable

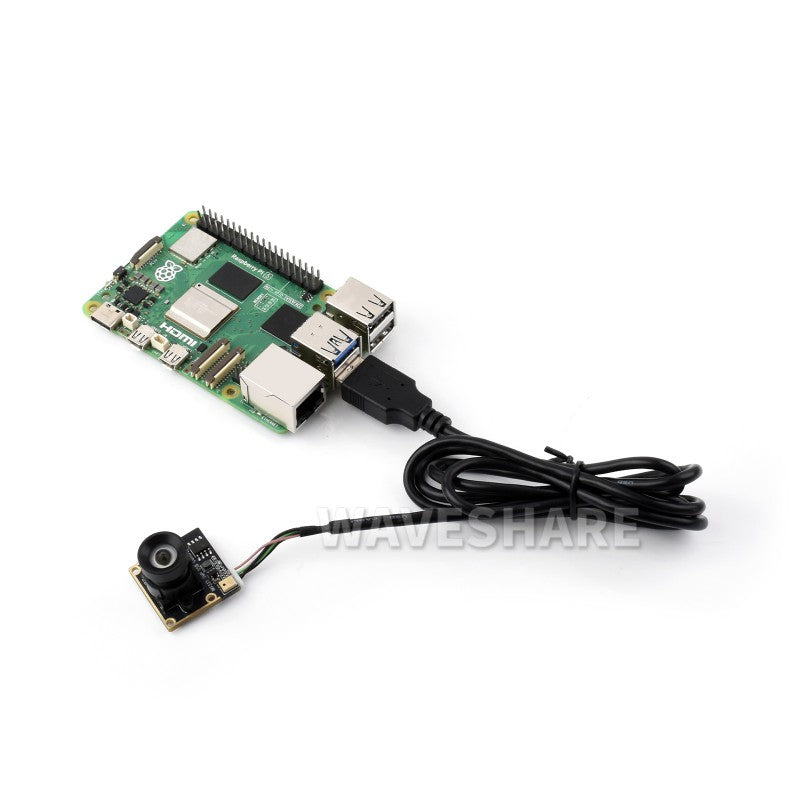

 Connecting to Raspberry Pi 5 |
 Connecting to Jetson Orin kit |
 Connecting to RDK X5 Development Board |
* for reference only, the Raspberry Pi 5, Jetson Orin kit and RDK X5 Development Board are not included
5MP High Resolution
Supports 30 FPS output, suitable for capturing details
Better Low-Light Sensitivity
Provides a better imaging effect in low light condition
Wide Dynamic Range
supports wide dynamic range (WDR) technology for maintaining image details and quality in high contrast scenes
* The above pictures are the simulated effect for demonstrating the expected performance of IMX335 camera under various conditions, for reference only, please refer to actual effect.
Distortion-Free
Equipped with a distortion-free lens with a distortion rate of less than -1.22%, delivering undistorted imaging and more accurate reproduction of real-world scenes
* Note: In the industry, lenses with distortion rate less than 2% are generally considered distortion-free.
Pinout Definition
Outline Dimensions
Resources
Wiki: www.waveshare.com/wiki/IMX335_5MP_USB_Camera_(C)
Package Content
Weight: 0.021 kg
IMX335 5MP USB Camera (C) x1
What devices can this camera be used with
It uses a USB 2.0 interface and can connect to devices that support USB cameras. The description mentions reference to Raspberry Pi 5, Jetson Orin kit and RDK X5 Development Board, but these boards are not included.
What is the field of view and distortion specification
Field of view is 91.7 degrees and distortion is less than 1.22 percent.
What video resolutions and frame rates are supported
Video supports 2592x1944 at 30 FPS, 1920x1080 at 30 FPS, and 1280x720 at 30 FPS.
What are the power and operating conditions
The module operates at 5V plus or minus 5 percent and a temperature range of minus 10 C to 60 C.
Is warranty or return policy information available
Warranty and shipping details are not provided in the product description; please check the seller page for policy.
No reviews yet. Be the first to share your experience!
Fill out the form below and our team will get back to you with bulk pricing.
Description
Ask AI about this product
5MP USB Camera Module
IMX335 Sensor | USB2.0 Port | 91.7° Distortion-Free Lens
Specifications
| Pixels | 5MP |
| Sensor | IMX335 |
| Interface | USB 2.0 |
| Sensor Size | 1/2.8 inch |
| Aperture (F) | 2.4 |
| Focal Length (EFL) | 3.25mm |
| Field of View (FOV) | 91.7° |
| Distortion | <-1.22% |
| Focusing | Fixed-focus |
| Mount | M12 |
| Construction | 3G2P + IR Filter (650nm) |
| Image Format Support | MJPG, YVY2 |
| Static Image Resolution | 2592 × 1944 |
| Video Recording | 30 FPS 2592 × 1944 30 FPS 1920 × 1080 30 FPS 1280 × 720 |
| Dynamic Range | 71.6dB@8xgain |
| SNR | 36dB |
| Operating Voltage | 5V ± 5% |
| Operating Temperature | -10°C~60°C |
| Module Size | 25.00 × 24.30 (mm) |
Connecting with USB cable
|
Connecting to Raspberry Pi 5 |
Connecting to Jetson Orin kit |
Connecting to RDK X5 Development Board |
* for reference only, the Raspberry Pi 5, Jetson Orin kit and RDK X5 Development Board are not included
5MP High Resolution
Supports 30 FPS output, suitable for capturing details
Better Low-Light Sensitivity
Provides a better imaging effect in low light condition
Wide Dynamic Range
supports wide dynamic range (WDR) technology for maintaining image details and quality in high contrast scenes
* The above pictures are the simulated effect for demonstrating the expected performance of IMX335 camera under various conditions, for reference only, please refer to actual effect.
Distortion-Free
Equipped with a distortion-free lens with a distortion rate of less than -1.22%, delivering undistorted imaging and more accurate reproduction of real-world scenes
* Note: In the industry, lenses with distortion rate less than 2% are generally considered distortion-free.
Pinout Definition
Outline Dimensions
Resources
Wiki: www.waveshare.com/wiki/IMX335_5MP_USB_Camera_(C)
Package Content
Weight: 0.021 kg
IMX335 5MP USB Camera (C) x1
FAQ
What devices can this camera be used with
It uses a USB 2.0 interface and can connect to devices that support USB cameras. The description mentions reference to Raspberry Pi 5, Jetson Orin kit and RDK X5 Development Board, but these boards are not included.
What is the field of view and distortion specification
Field of view is 91.7 degrees and distortion is less than 1.22 percent.
What video resolutions and frame rates are supported
Video supports 2592x1944 at 30 FPS, 1920x1080 at 30 FPS, and 1280x720 at 30 FPS.
What are the power and operating conditions
The module operates at 5V plus or minus 5 percent and a temperature range of minus 10 C to 60 C.
Is warranty or return policy information available
Warranty and shipping details are not provided in the product description; please check the seller page for policy.
