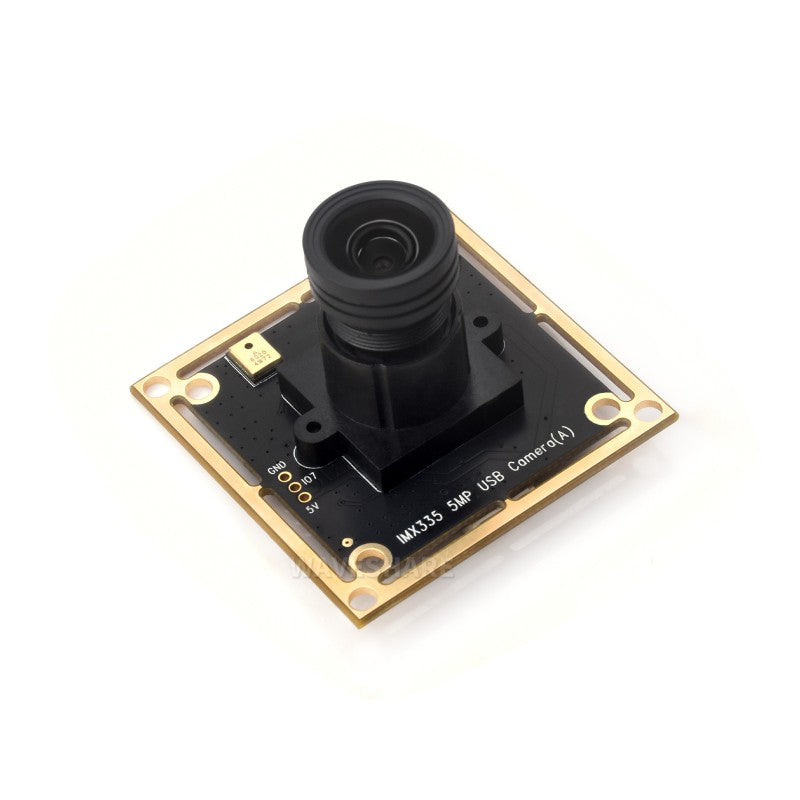

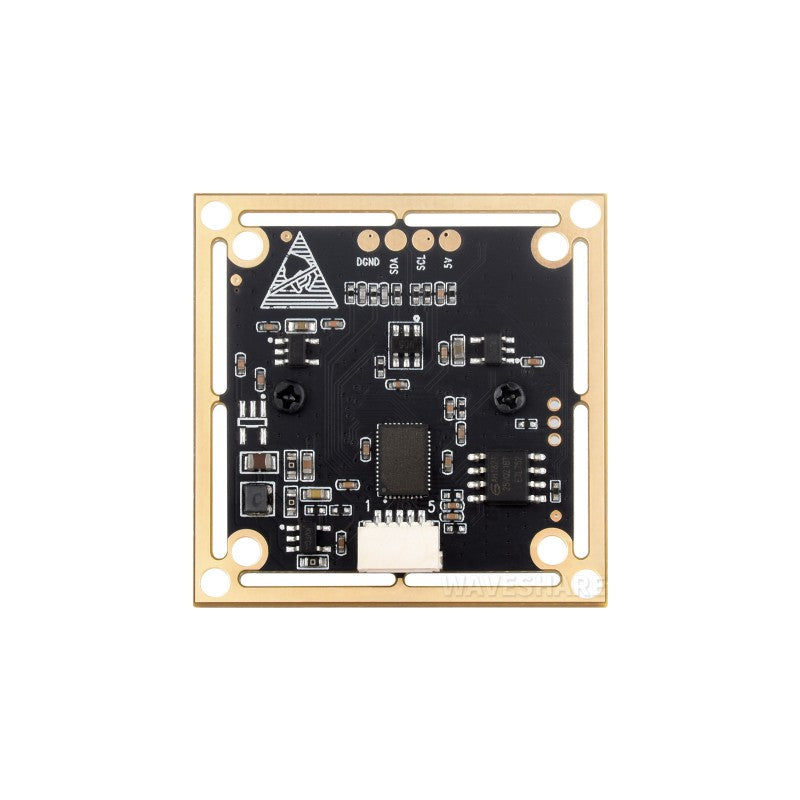

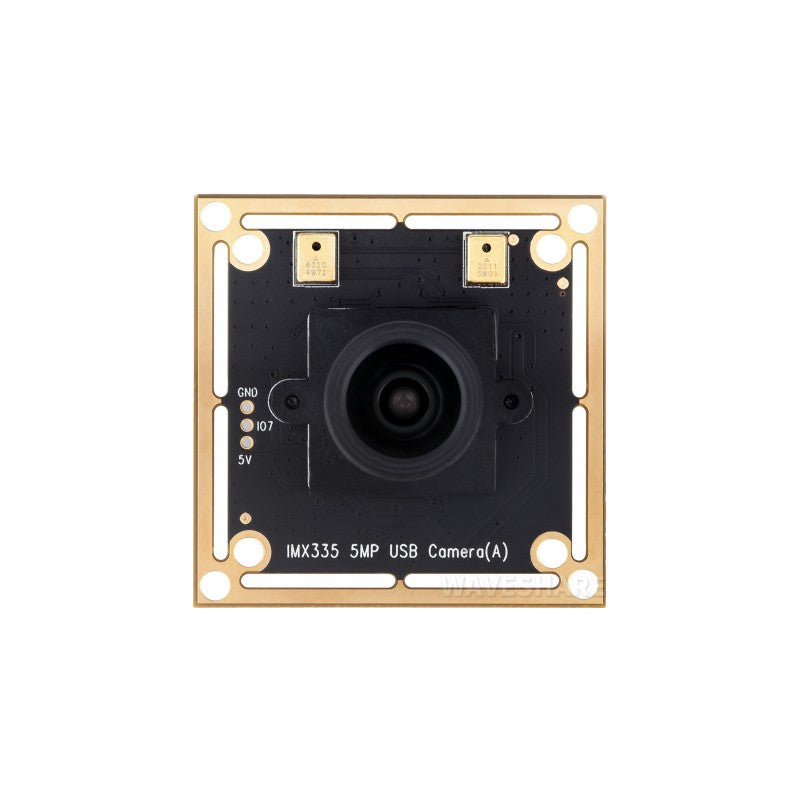

IMX335 5MP USB Camera, Large Aperture F1.08, 30FPS 2K Video Recording, Plug-And-Play, Driver Free
USB Camera, IMX335 sensor. 5 megapixel. Supports UVC protocol.
Specifications
| PIXELS | 5MP | |
|---|---|---|
| SENSOR | IMX335 | |
| INTERFACE | USB (UVC 1.0 compliant) | |
| CAMERA | Sensor size | 1/2.8 inch |
| Aperture (F) | 1.08 | |
| Focal length (EFL) | 3.91 mm | |
| Field of view (FOV) | 106°(D) 92.6°(H) 48.6°(V) | |
| Focusing | manually focusing | |
| IMAGE | Format support | MJPG, YVY2 |
| Static image resolution | 2592 × 1944 | |
| Video recording | 20 FPS 2592 × 1944 30 FPS 1920 × 1080 30 FPS 1280 × 720 |
|
| OPERATING VOLTAGE | 5V ± 5% | |
| CAMERA SIZE | 23.50 × 19.50 × 36.94 mm | |
| MODULE SIZE | 38.00 × 38.00 mm | |

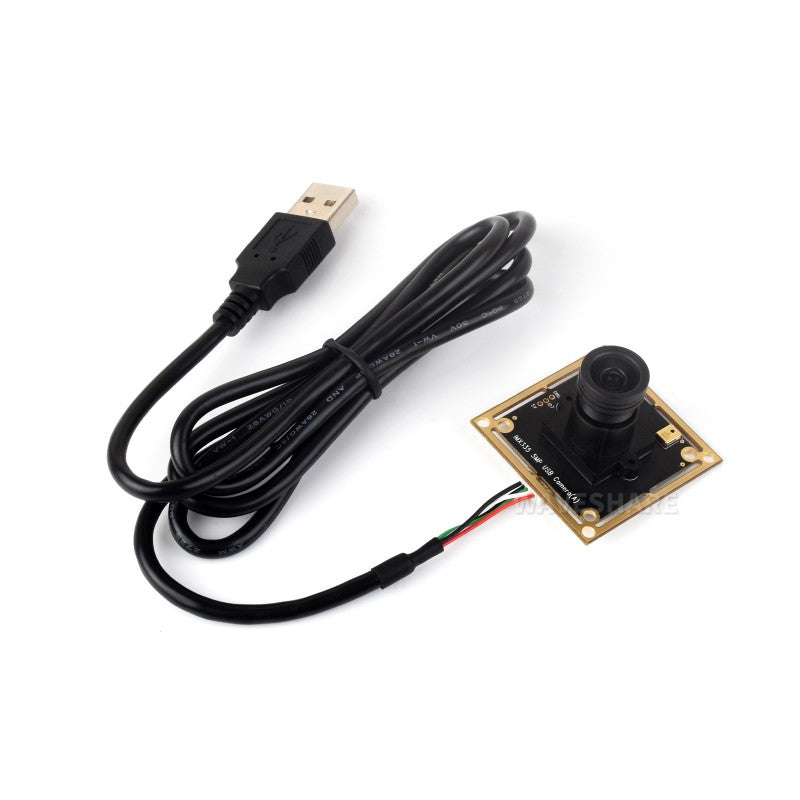

Connecting With USB Cable

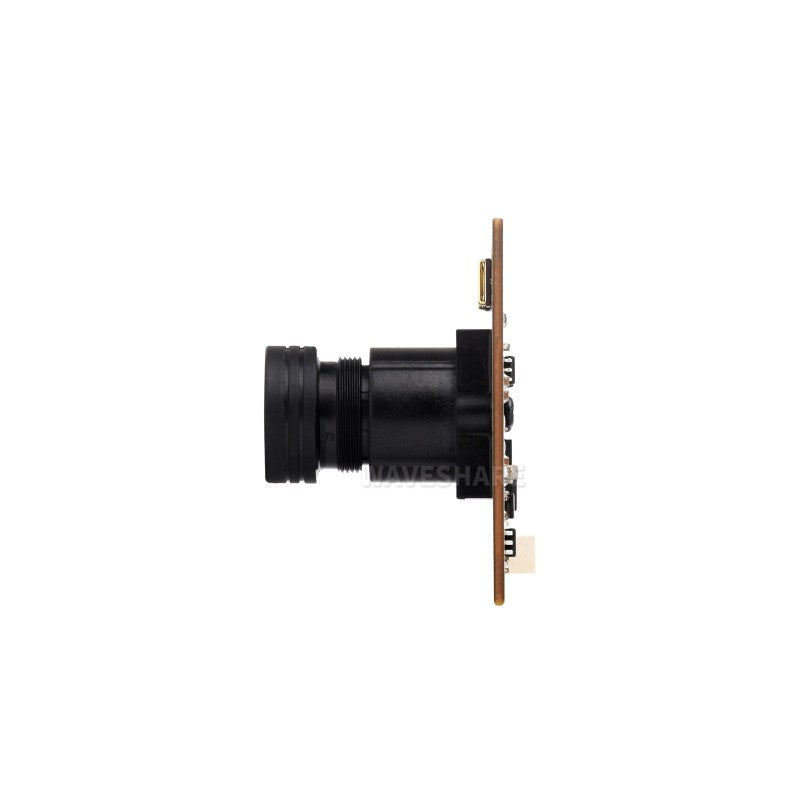

Dimensions
Is this camera plug and play or does it require drivers?
Yes, it is plug and play and driver free.
What video resolutions and frame rates are supported?
Video options include 2592x1944 at 20 FPS, 1920x1080 at 30 FPS, and 1280x720 at 30 FPS.
What are the optical specs and sensor type?
Aperture F1.08, focal length 3.91 mm, manual focusing, and the sensor is IMX335 5MP.
What is the field of view?
Field of view is 106 degrees diagonal, 92.6 degrees horizontal, and 48.6 degrees vertical.
What are the power requirements and physical dimensions?
Operating voltage is 5V plus minus 5 percent. Camera size is 23.50 by 19.50 by 36.94 mm and module size is 38 by 38 mm.
Description
IMX335 5MP USB Camera, Large Aperture F1.08, 30FPS 2K Video Recording, Plug-And-Play, Driver Free
USB Camera, IMX335 sensor. 5 megapixel. Supports UVC protocol.
Specifications
| PIXELS | 5MP | |
|---|---|---|
| SENSOR | IMX335 | |
| INTERFACE | USB (UVC 1.0 compliant) | |
| CAMERA | Sensor size | 1/2.8 inch |
| Aperture (F) | 1.08 | |
| Focal length (EFL) | 3.91 mm | |
| Field of view (FOV) | 106°(D) 92.6°(H) 48.6°(V) | |
| Focusing | manually focusing | |
| IMAGE | Format support | MJPG, YVY2 |
| Static image resolution | 2592 × 1944 | |
| Video recording | 20 FPS 2592 × 1944 30 FPS 1920 × 1080 30 FPS 1280 × 720 |
|
| OPERATING VOLTAGE | 5V ± 5% | |
| CAMERA SIZE | 23.50 × 19.50 × 36.94 mm | |
| MODULE SIZE | 38.00 × 38.00 mm | |
Connecting With USB Cable
Dimensions
FAQ
Is this camera plug and play or does it require drivers?
Yes, it is plug and play and driver free.
What video resolutions and frame rates are supported?
Video options include 2592x1944 at 20 FPS, 1920x1080 at 30 FPS, and 1280x720 at 30 FPS.
What are the optical specs and sensor type?
Aperture F1.08, focal length 3.91 mm, manual focusing, and the sensor is IMX335 5MP.
What is the field of view?
Field of view is 106 degrees diagonal, 92.6 degrees horizontal, and 48.6 degrees vertical.
What are the power requirements and physical dimensions?
Operating voltage is 5V plus minus 5 percent. Camera size is 23.50 by 19.50 by 36.94 mm and module size is 38 by 38 mm.
