RaspRover Open-source 4WD AI Robot for Raspberry Pi
Ask AI about this product

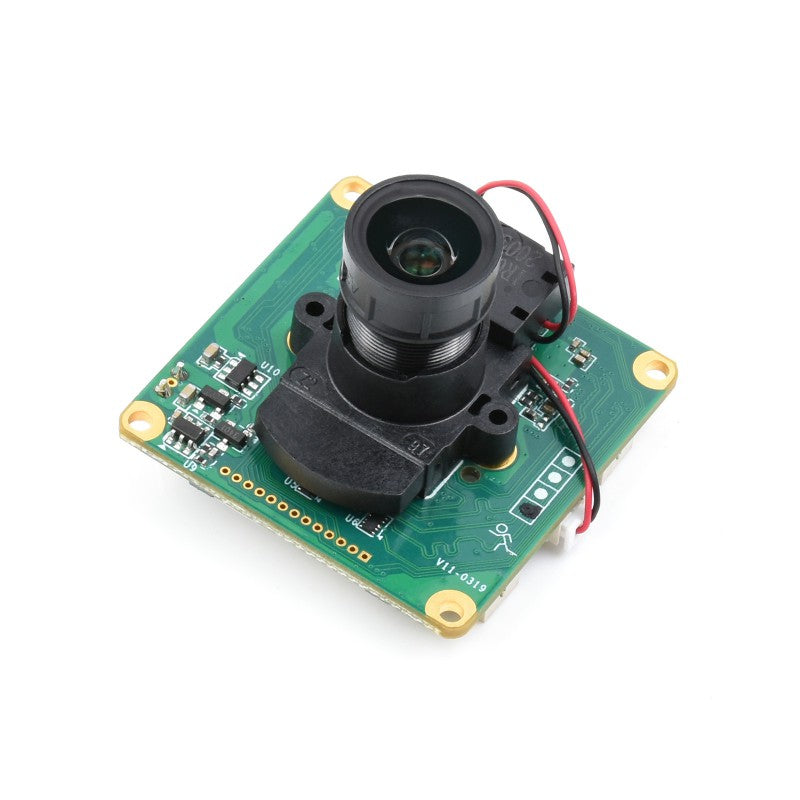

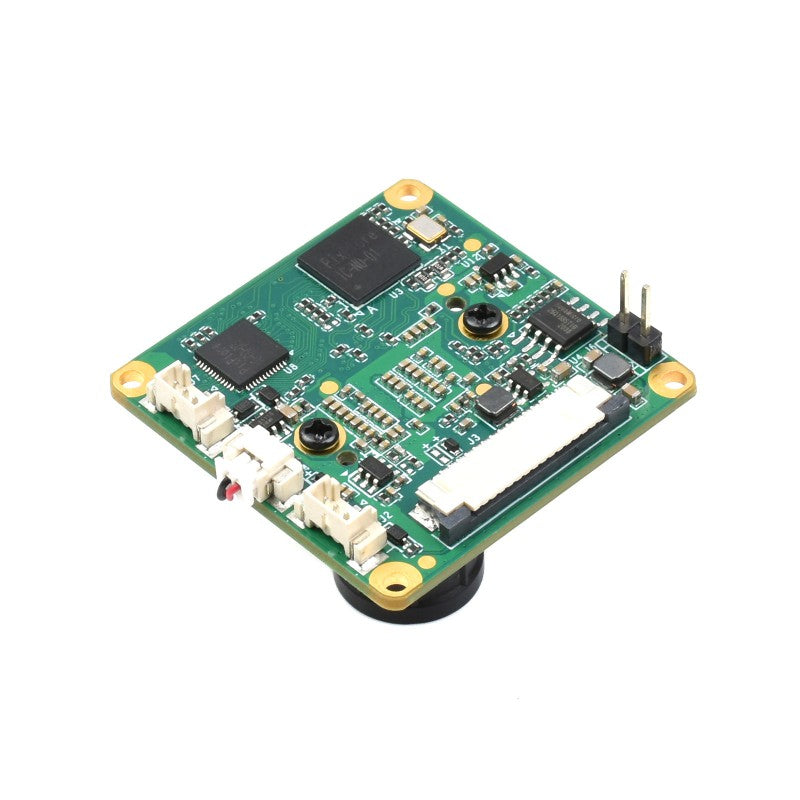

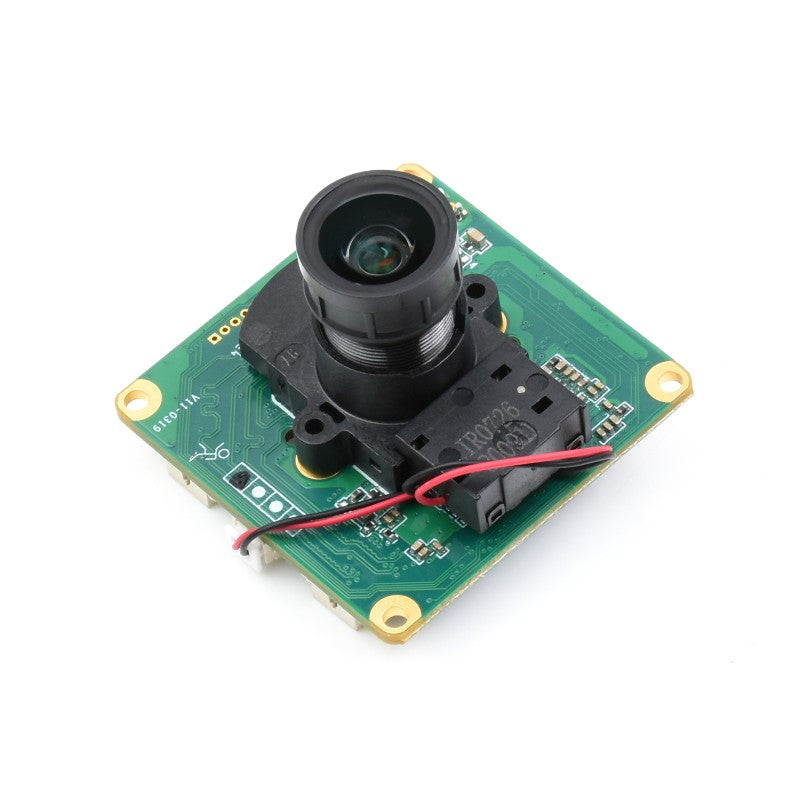

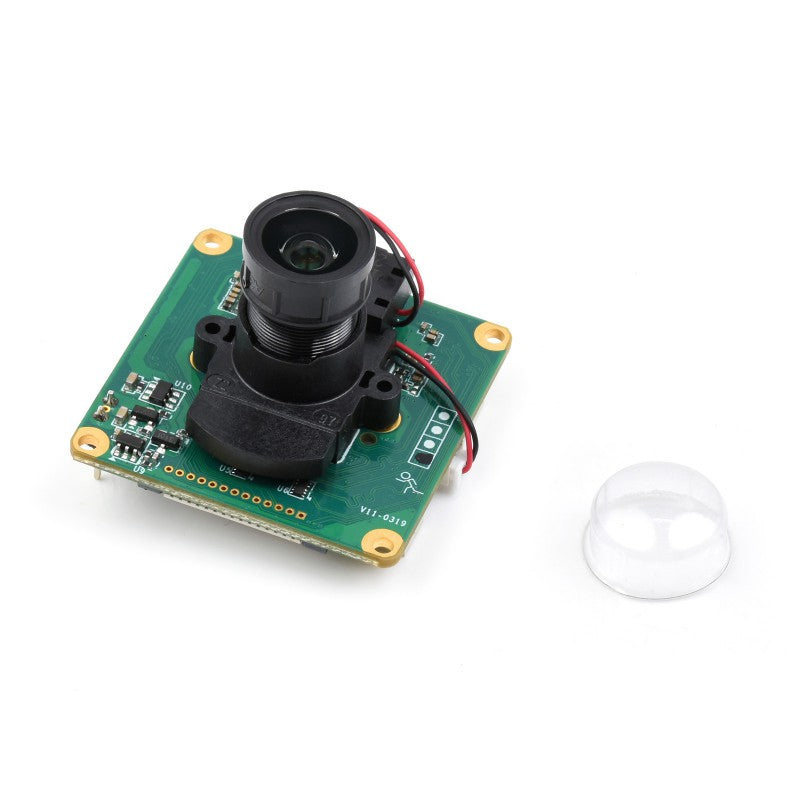

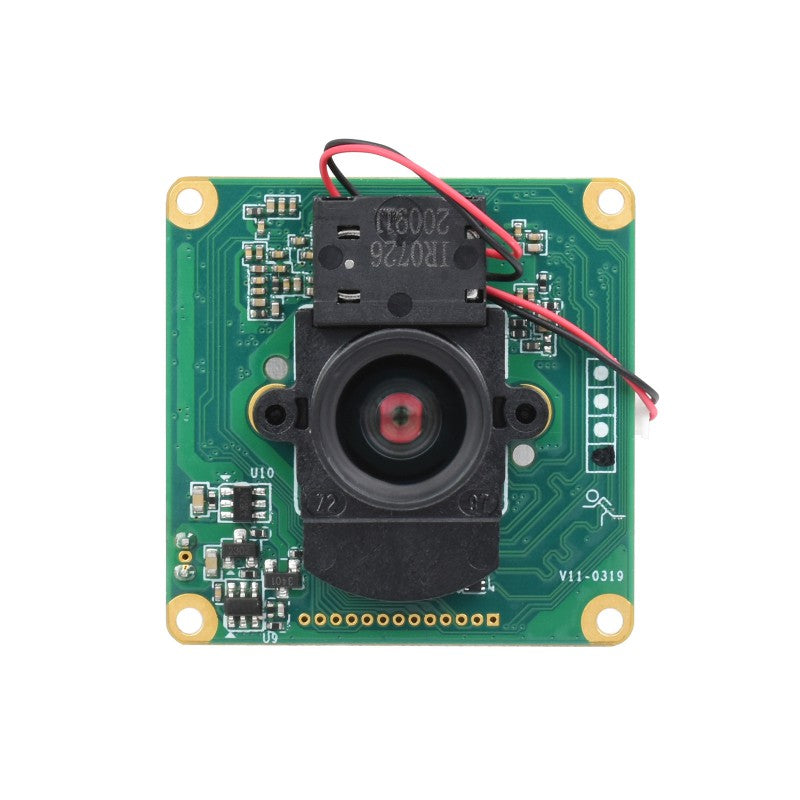

IMX462 Starlight Camera
2MPā|āIR-CUT ā|āISPā
Compatible with Raspberry Pi series boards and Jetson Nano
Ā
Device Support
Ā
-
Raspberry Pi series
Supports 4B / 3B+ / 3A+ / Zero / Zero 2 W, and CM3/3+/4 (extra adapter board required) - Jetson Nano
Ā
Specifications
| SENSOR | IMX462-127 | IMX462-99 |
|---|---|---|
| CMOS SIZE | 1/2.8 inch | |
| PIXELS | 2MP (1920 Ć 1080)Ā | |
| CAMERA TYPE | ColorĀ | |
| FOCUSING | Fixed focus | |
| SHUTTER | Rolling Shutter | |
| APERTURE | F1.61 | F1.0 |
| FOCAL LENGTH | 3.18mm | 4.0mm |
| FIELD OF VIEW | 127.9Ā° | 99.1Ā° |
| DISTORTION | < -51% | < -33.8% |
Starlight Camera
Clear Imaging Even In Low Light Conditions
Built-In IR-CUT
Correct Color Deviation Of Infrared Camera During The Daytime, Better Imaging Effect
Onboard ISP
Integrated Image Signal Processing Circuit, Clearer Imaging Effect
Working With Raspberry Pi
Direct Connect To Raspberry Pi Different Variants Including 4B/3B+/3A+/3B/2B/B+/A+,
Extra FPC Cable Is Required For Zero / Zero 2 W Series
- for reference only, Raspberry Pi 4B and 2W are NOT included.
- Specific driver is required for Raspberry Pi to use the IMX462 camera.
Working With Jetson Nano
Direct Connect To Jetson Nano Developer Kit
for reference only, Jetson Nano Developer Kit is NOT included.
Dimensions
Ā
Package Contains:
- Weight:Ā 35 gram
- 1x IMX462-99 2MP Starlight Camera
Is this camera compatible with Raspberry Pi boards?
Yes. It supports Raspberry Pi series including 4B, 3B+, 3A+, Zero and Zero W, and for CM3/3+/4 an extra adapter board is required. A specific driver is required to use the IMX462 camera with Raspberry Pi.
Can I use it with Jetson Nano?
Yes, it can be directly connected to a Jetson Nano Developer Kit for reference, but the kit is not included.
Do I need extra cables or adapters for Zero or Zero W?
Yes, an extra FPC Cable is required for Zero and Zero 2 W series.
What imaging features does the camera offer?
It includes IR-CUT for better color during the day, starlight imaging for low light, and an onboard ISP for clearer imaging.
What are the key specifications of the sensor and lens?
The camera uses the IMX462 sensor with 2 MP resolution 1920 x 1080, fixed focus, rolling shutter, and focal lengths of 3.18 mm or 4.0 mm depending on variant; field of view is 127.9 degrees or 99.1 degrees.
