LoRa32 ESP32 0.96" OLED SD Card 868Mhz

SKU: ELC8022

ā‚¹ 2,749.99 ā‚¹ 3,499.99

Out of stock

šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
LoRa32 ESP32 0.96" OLED SD Card 868Mhzā‚¹ 2,749.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

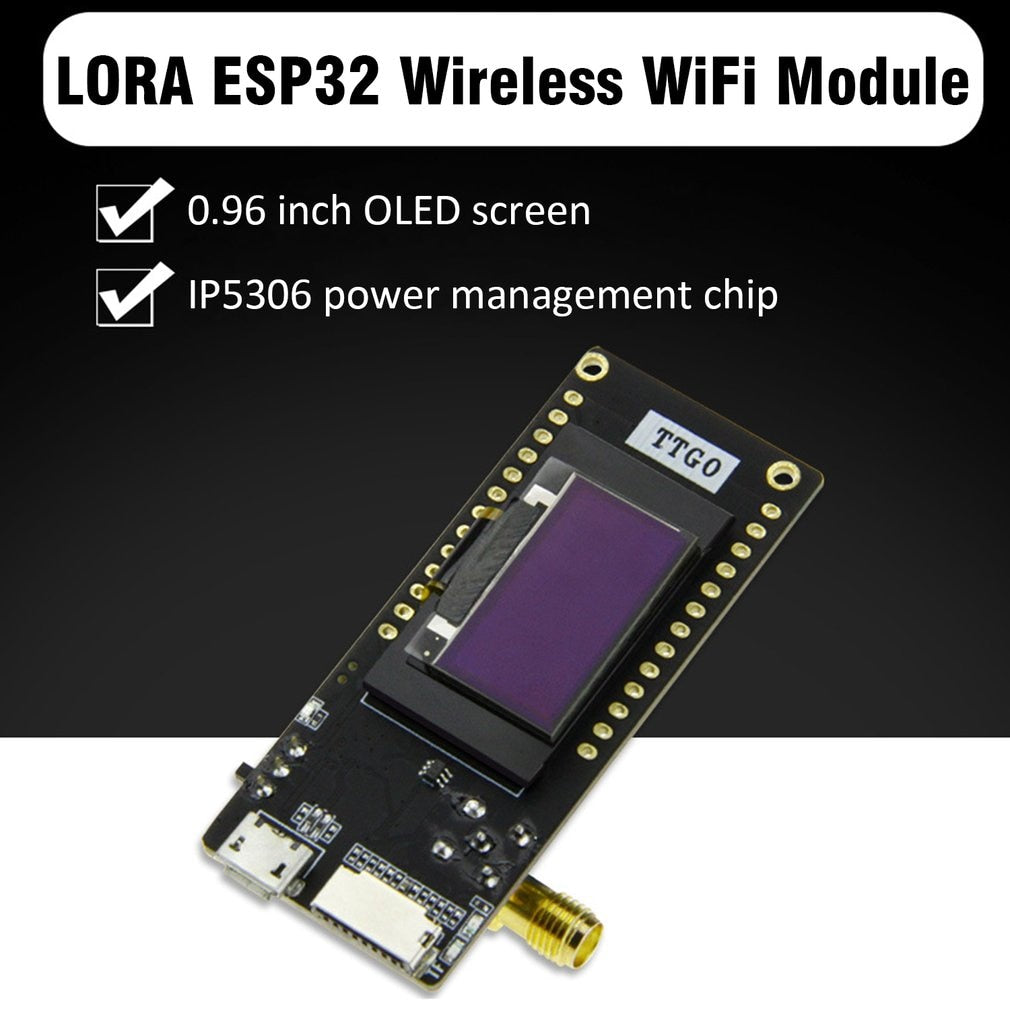

This product is based on the WIFI Kit 32 added IP5306Ā chip, that is, LoRa remote modem, 433MHz frequency, about -139dBm high sensitivity, +20 dBm power output, high reliability, transmission distance (measured open area communication distance 3.6Km).

Onboard 32MByte Flash, Wi-Fi antenna, 0.96-inch blue OLED display, lithium battery charging circuit and interface, CP2102 USB to serial chip, the perfect support for Arduino development environment, can be very simple and fast for program verification and product development.

Features

  • Working voltage: 1.8-3.7v
  • Acceptable current: 10-14mA
  • Transmitting current: 120mA @ + 20dBm,Ā 90mA@+17dBm,Ā 29mA@+13dBm
  • Working frequency: 868MHz
  • Transmitting power: + 20dBm
  • Receiving sensitivity:
    • -139dBm @ LoRaļ¼†62.5Khzļ¼†SF = 12ļ¼†146bps
    • -136dBm@LoRaļ¼†125Khz&SF=12&293bps
    • -118dBm@LoRaļ¼†125Khzļ¼†SF = 6ļ¼†9380bps
    • -123dBm@FSK&5Khz&1.2Kbps
  • Frequency error: +/- 15KHz
  • FIFO space: 64Byte
  • Data rate:1.2K-300Kbps@FSK
  • 0.018K~37.5Kbps@LoRa
  • Modulation mode: FSK, GFSK, MSK, GMSK, LoRa TM, OOK
  • Interface form: SPI
  • Sleep current:0.2uA@SLEEP
  • 1.5uA@IDLE
  • Working temperature: -40ā„ƒ-+ 85ā„ƒ
  • Digital RSSI function
  • Automatic frequency correction
  • Automatic gain control
  • RF wake-up function
  • Low voltage detection and temperature sensor
  • Fast wake-up and frequency hopping
  • Highly configurable packet handler
  • SMA antenna
  • IP5306
What is the operating voltage and current consumption?
It operates from 1.8 to 3.7 V and draws 10-14 mA in regular operation. Transmitting current is 120 mA at +20 dBm, 90 mA at +17 dBm, and 29 mA at +13 dBm.
What frequency band does it use and what range can be expected?
Working frequency is 868 MHz. In open area, transmission distance is about 3.6 km with a sensitivity of -139 dBm for LoRa 62.5 kHz SF12; actual range depends on the environment.

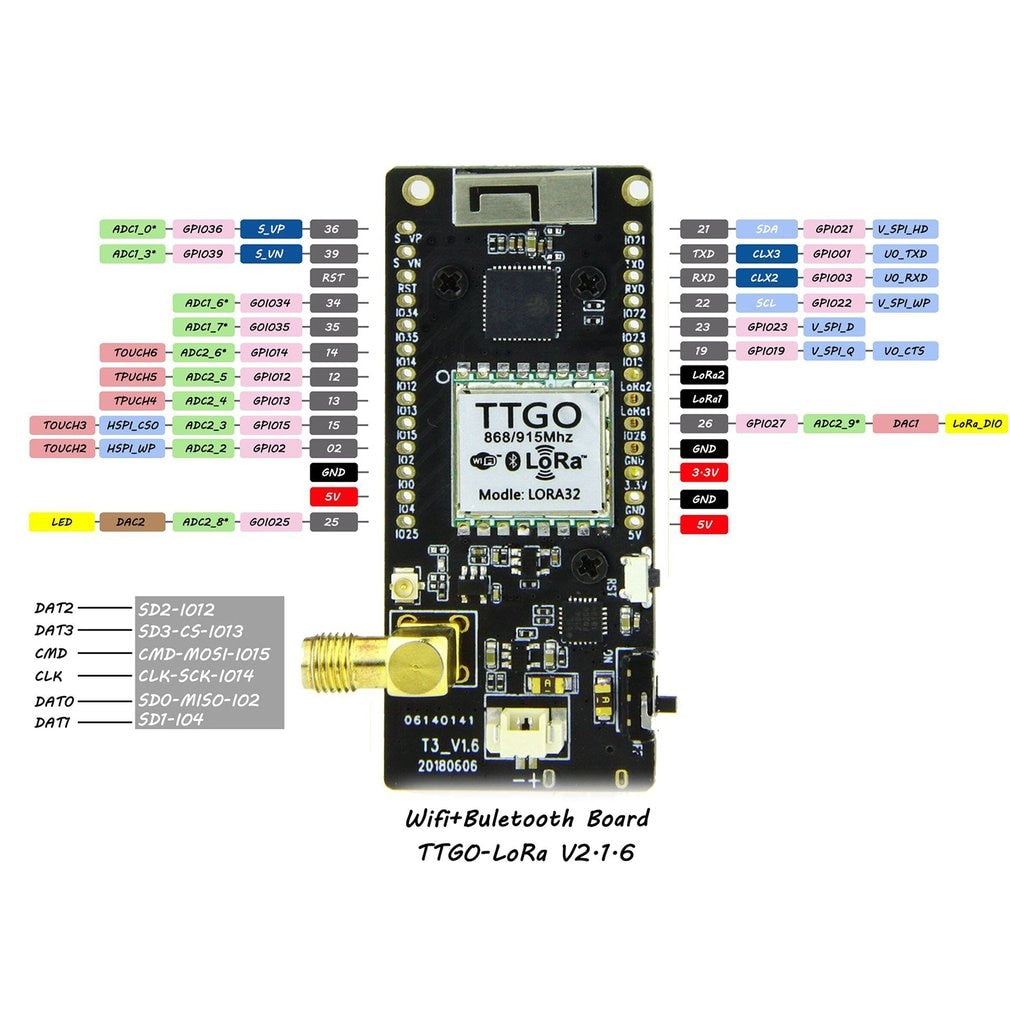

What interfaces and onboard features does this module include for development?
It uses an SPI interface and includes CP2102 USB to serial, a 32 MByte flash, a 0.96 inch blue OLED display, and an IP5306 power management circuit. It also supports Arduino development for easy program verification.
Does it offer power management and battery charging options?
Yes, it includes a lithium battery charging circuit and IP5306 for power management. Sleep current is 0.2 uA in sleep and 1.5 uA in idle.
Is this module compatible with the Arduino IDE and how do I get started?
It is designed to support the Arduino development environment for fast and simple program verification and project development. The CP2102 USB to serial chip helps with easy connection to a computer.
