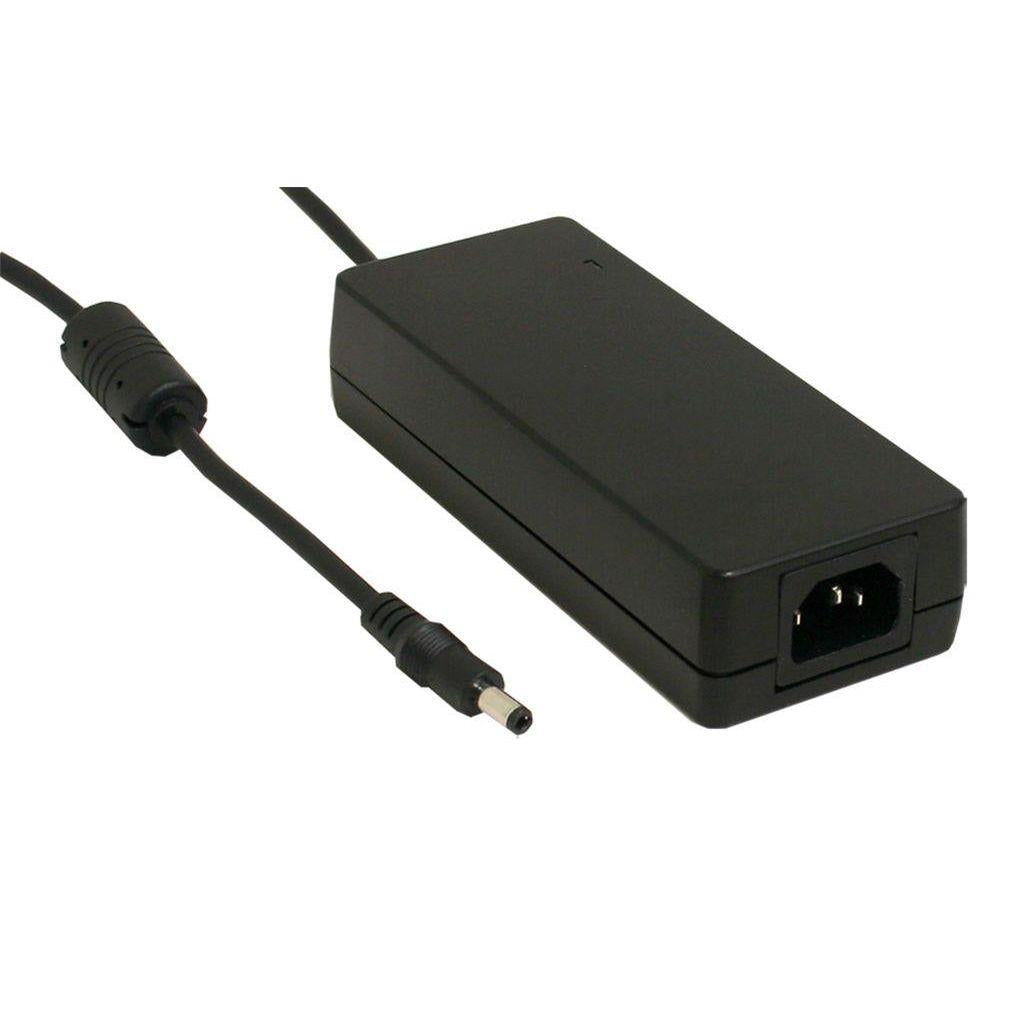

Meanwell GST120A24-P1M AC-DC Industrial Desktop Adaptor 24V 5A

SKU: ELC5075

₹ 4,999.99 ~~₹ 5,999.99~~

Out of stock

Chat with us on WhatsApp We reply quickly! Contact Us

Meanwell GST120A24-P1M AC-DC Industrial Desktop Adaptor 24V 5A₹ 4,999.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

AC-DC Industrial desktop adaptor with 3 pin IEC320-C14 input socket
Output 24VDC at 5A with P1M tuning fork plug OD 5.5mm; ID 2.5mm;
Length 11mm: Class I;
GS120A24-P1M is succeeded by GST120A24-P1M.

Datasheet can be found here

Specifications:

Technical data		Information
Brand	Mean Well	Commodity	8504409090
Item number	GST120A24-P1M
Series	GST120A	RoHS	Compliant
Description	AC-DC Industrial desktop adaptor with PFC; Output 24Vdc at 5A; 3 pole AC inlet IEC320-C14	Packing quantity	20
Application	ITE EN/UL/IEC 60950	Net weight (gram)	580
Technology	AC/DC
Power Format	Desktop
Output Power (W)	120
Output Voltage (V)	24
Output Current (A)	5
Input Voltage (V)	110/230 universal input 85 - 264
IP Rating	No IP assigned
Width (mm)	67
Height (mm)	35
Depth (mm)	167
Dimming Technology	No Dimming

What input voltage does the adaptor support?

It supports a universal AC input of 110/230 VAC with a typical range of 85-264 VAC using a 3 pin IEC320 C14 inlet.

What is the output specification of the device?

The output is 24 V DC at up to 5 A, providing 120 W with no dimming.

What is the DC output connector size and type?

The DC plug is a P1M tuning fork with outer diameter 5.5 mm, inner diameter 2.5 mm, and length 11 mm.

Is this model the successor to a prior version?

Yes, GS120A24-P1M is succeeded by GST120A24-P1M.

What warranty or support information is available?

Warranty details are not provided in the product description; please contact the seller for warranty information.
