RM409B Digital Multimeter

SKU: TOL3011

₹ 3,799.99 ~~₹ 4,999.99~~

Out of stock

Chat with us on WhatsApp We reply quickly! Contact Us

RM409B Digital Multimeter₹ 3,799.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

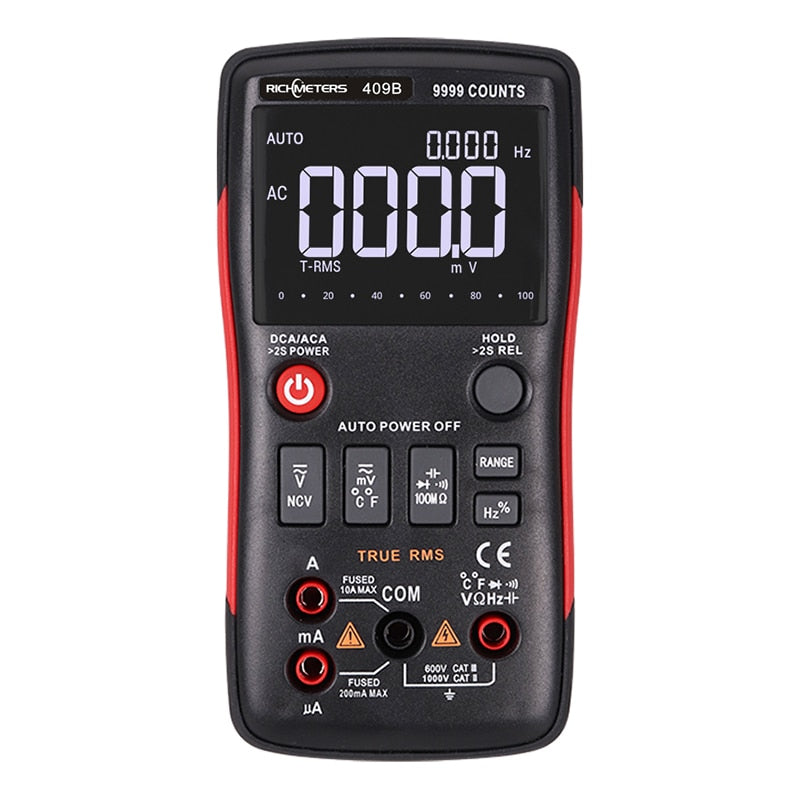

RM409B True-RMS Digital Multimeter Button 9999 Counts With Analog Bar Graph AC/DC Voltage Ammeter Current Ohm Auto/Manual

This RM409B is a handheld digital multimeter easy to use with high reliability and portability, a perfect tool for the laboratory,factory and home.

Specifications:

Brand Name: RICHMETERS
Model Number: RM409B
Operating Temperature: 0 - 40 ℃
Operating Humidity: ≤75%RH
Storage Condition: -20~60℃
Storage Humidity: ≤80%RH
DIY Supplies: Electrical
Operating Mode: Auto/Manual Ranging
Measuring Inductance Range: no
Measuring Temperature Range: -20~1000 C/-4F-1832F
Measuring Capacitance Range: 9.99nF / 99.99nF / 999.9nF / 9.99uF / 99.99uF / 999.9uF / 9.999MF
Measuring Voltage Range: 999.9mV/9.999V/99.99V/999.9V
Measuring Current Range: 999.9uA/99.99uA/999.9mA/10A
Measuring Resistance Range: 99.99/999.9/9.999k/99.99k/999.9K/9.999M/99.99M Ohm
Frequency: 99.99Hz/999.9Hz/9.999KHz/99.99KHz/999.9KHz/5MHz
Display Type: Digital Display
Diode Test: Yes
Continuity: Yes
Duty Cycle: 1%-99%
Sample Rate: 3 times per second
Power: 2 * 1.5V AA batteries (Not Included)

Warnings:

Do NOT exceed the "maximum value" indicated in the Specification;
Do NOT input voltage at the Current Mode, the Resistance Mode, the Diode Mode, the Continuity Mode, or the Temperature Mode;
Do NOT use the product when the batteries or the battery cover is not placed properly;
Turn off the product and remove the test leads from the test points before changing batteries or fuses.
Do not input voltage exceeds 36V DC or 25V AC when you are at the setting of measuring current.

NOTE: These devices are thoroughly tested before being shipped out, and due to the sensitive nature of the equipment, we do not accept return of Multimeters.

What measurements can the RM409B perform and what are the typical ranges?

It measures AC and DC voltage, current, resistance, capacitance, temperature, and frequency, with diode test and continuity checks. Voltage ranges are 999.9 mV, 9.999 V, 99.99 V and 999.9 V; current ranges include 999.9 uA, 99.99 uA, 999.9 mA and 10 A; resistance ranges from 99.99 Ohm up to 99.99 M Ohm; capacitance from 9.99 nF to 9.999 MF; frequency up to 5 MHz; temperature from -20 to 1000 C (-4 to 1832 F).

Does it come with batteries?

It is powered by two AA batteries which are not included.

Are there safety restrictions when using this meter?

Yes, do not exceed the maximum values and do not input voltage when in current, resistance, diode, continuity, or temperature modes. Ensure the batteries are properly installed and turn off the unit and remove test leads before changing batteries or fuses.

What is the return policy for this meter?

These devices are thoroughly tested before shipping and multimeter returns are not accepted.

What are the operating conditions and basic maintenance tips?

Operate in 0 to 40 C and up to 75 percent relative humidity. Storage conditions are -20 to 60 C and up to 80 percent RH. For safety, use auto or manual ranging as needed and always turn off and remove test leads before changing batteries or fuses.
