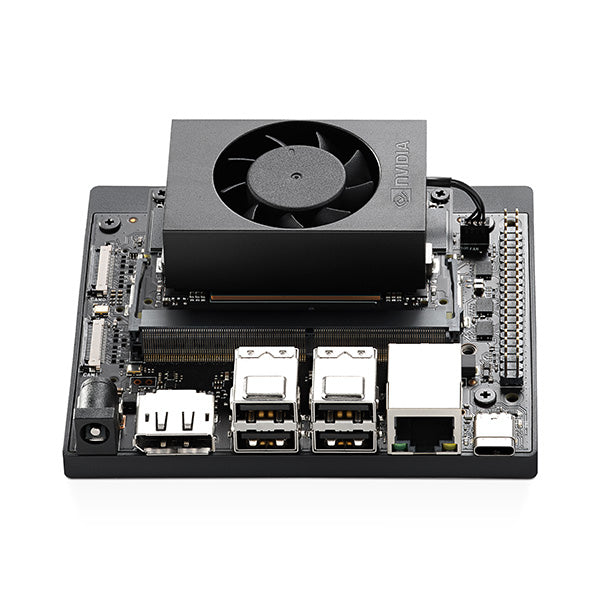

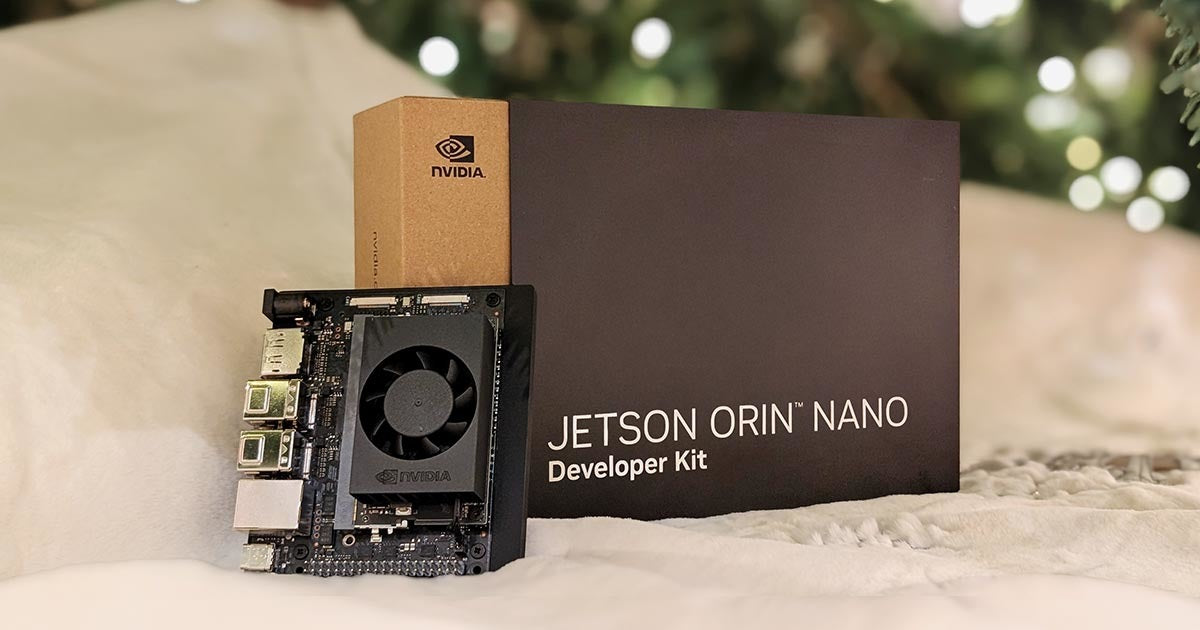

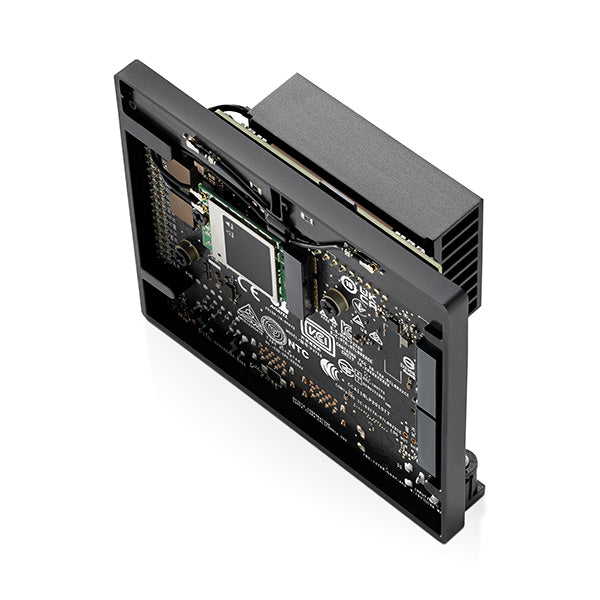

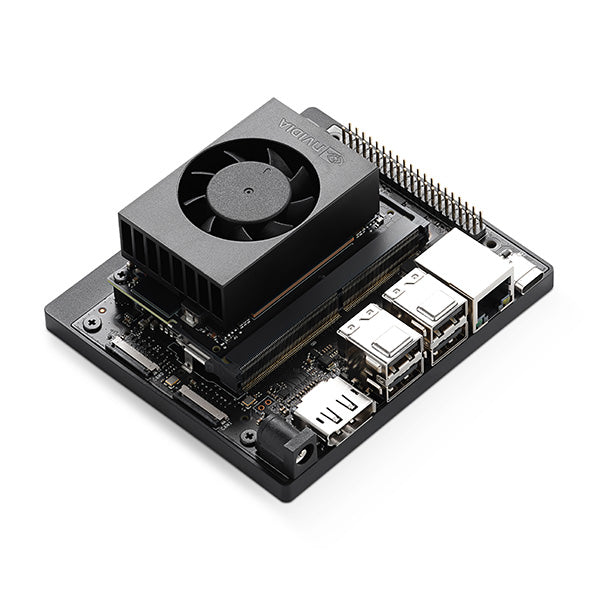

NVIDIA Jetson Orin™ Nano Super Developer Kit
The NVIDIA Jetson Orin Nano™ Super Developer Kit is a compact, yet powerful computer that redefines generative AI for small edge devices. It delivers up to 67 TOPS of AI performance—a 1.7X improvement over its predecessor—to seamlessly run the most popular generative AI models, like vision transformers, large language models, vision-language models, and more.
Note: Limit of four units per customer account for R&D use only. Educational institutions are exempt from this restriction. Power Supply is included in the kit.
For larger quantity needs, NVIDIA Jetson Orin™ Nano Deployment Kits are available.
Features
| AI Performance | 67 TOPS |
| Memory Bandwidth | 102 GB/s |
| CPU Frequency | 1.7 GHz |
| GPU | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU, 1.5MB L2 + 4MB L3 |
| Memory | 8GB 128-bit LPDDR5 @ 68 GB/s |
| Storage | SD Card Slot & external NVMe via M.2 Key M |
| Power | 7W – 25W |
Jetson Orin Nano Super Developer Kit configuration |
||
| NVIDIA Jetson Orin Nano Developer Kit (original) | NVIDIA Jetson Orin NanoSuper Developer Kit | |
|
GPU |
NVIDIA Ampere architecture 1,024 CUDA Cores 32 Tensor Cores 635 MHz |
NVIDIA Ampere architecture 1,024 CUDA Cores 32 Tensor Cores 1,020MHz |
|
AI PERF |
40 INT8 TOPS (Sparse) 20 INT8 TOPS (Dense) 10 FP16 TFLOPs |
67 TOPS (Sparse) 33 TOPS (Dense) 17 FP16 TFLOPs |
|
CPU |
6-core Arm Cortex- A78AE v8.264-bit CPU 1.5 GHz |
6-core Arm Cortex- A78AE v8.264-bit CPU 1.7 GHz |
|
Memory |
8GB 128-bit LPDDR5 68GB/s |
8GB 128-bit LPDDR5 102GB/s |
| MODULE POWER | 7W|15W | 7W|15W|25W |
Is the power supply included with the kit?
Yes, the power supply is included in the kit.
How many units can I purchase per customer account?
There is a limit of four units per customer account for research and development use, educational institutions are exempt.
What AI performance and workloads does this kit support?
It delivers up to 67 TOPS AI performance and can run popular generative AI models such as vision transformers, large language models, and vision language models.
What are the key hardware specifications?
The unit features a 6 core Arm Cortex-A78AE v8.2 64 bit CPU up to 1.7 GHz, a 1024 core NVIDIA Ampere GPU with 32 Tensor Cores, 8 GB of LPDDR5 memory on a 128 bit bus, and a memory bandwidth of 68 GB per second.
Are deployment kits available for larger quantity needs?
Yes, NVIDIA Jetson Orin Nano Deployment Kits are available for larger quantity needs.
Description
NVIDIA Jetson Orin™ Nano Super Developer Kit
The NVIDIA Jetson Orin Nano™ Super Developer Kit is a compact, yet powerful computer that redefines generative AI for small edge devices. It delivers up to 67 TOPS of AI performance—a 1.7X improvement over its predecessor—to seamlessly run the most popular generative AI models, like vision transformers, large language models, vision-language models, and more.
Note: Limit of four units per customer account for R&D use only. Educational institutions are exempt from this restriction. Power Supply is included in the kit.
For larger quantity needs, NVIDIA Jetson Orin™ Nano Deployment Kits are available.
Features
| AI Performance | 67 TOPS |
| Memory Bandwidth | 102 GB/s |
| CPU Frequency | 1.7 GHz |
| GPU | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU, 1.5MB L2 + 4MB L3 |
| Memory | 8GB 128-bit LPDDR5 @ 68 GB/s |
| Storage | SD Card Slot & external NVMe via M.2 Key M |
| Power | 7W – 25W |
Jetson Orin Nano Super Developer Kit configuration |
||
| NVIDIA Jetson Orin Nano Developer Kit (original) | NVIDIA Jetson Orin NanoSuper Developer Kit | |
|
GPU |
NVIDIA Ampere architecture 1,024 CUDA Cores 32 Tensor Cores 635 MHz |
NVIDIA Ampere architecture 1,024 CUDA Cores 32 Tensor Cores 1,020MHz |
|
AI PERF |
40 INT8 TOPS (Sparse) 20 INT8 TOPS (Dense) 10 FP16 TFLOPs |
67 TOPS (Sparse) 33 TOPS (Dense) 17 FP16 TFLOPs |
|
CPU |
6-core Arm Cortex- A78AE v8.264-bit CPU 1.5 GHz |
6-core Arm Cortex- A78AE v8.264-bit CPU 1.7 GHz |
|
Memory |
8GB 128-bit LPDDR5 68GB/s |
8GB 128-bit LPDDR5 102GB/s |
| MODULE POWER | 7W|15W | 7W|15W|25W |
FAQ
Is the power supply included with the kit?
Yes, the power supply is included in the kit.
How many units can I purchase per customer account?
There is a limit of four units per customer account for research and development use, educational institutions are exempt.
What AI performance and workloads does this kit support?
It delivers up to 67 TOPS AI performance and can run popular generative AI models such as vision transformers, large language models, and vision language models.
What are the key hardware specifications?
The unit features a 6 core Arm Cortex-A78AE v8.2 64 bit CPU up to 1.7 GHz, a 1024 core NVIDIA Ampere GPU with 32 Tensor Cores, 8 GB of LPDDR5 memory on a 128 bit bus, and a memory bandwidth of 68 GB per second.
Are deployment kits available for larger quantity needs?
Yes, NVIDIA Jetson Orin Nano Deployment Kits are available for larger quantity needs.
