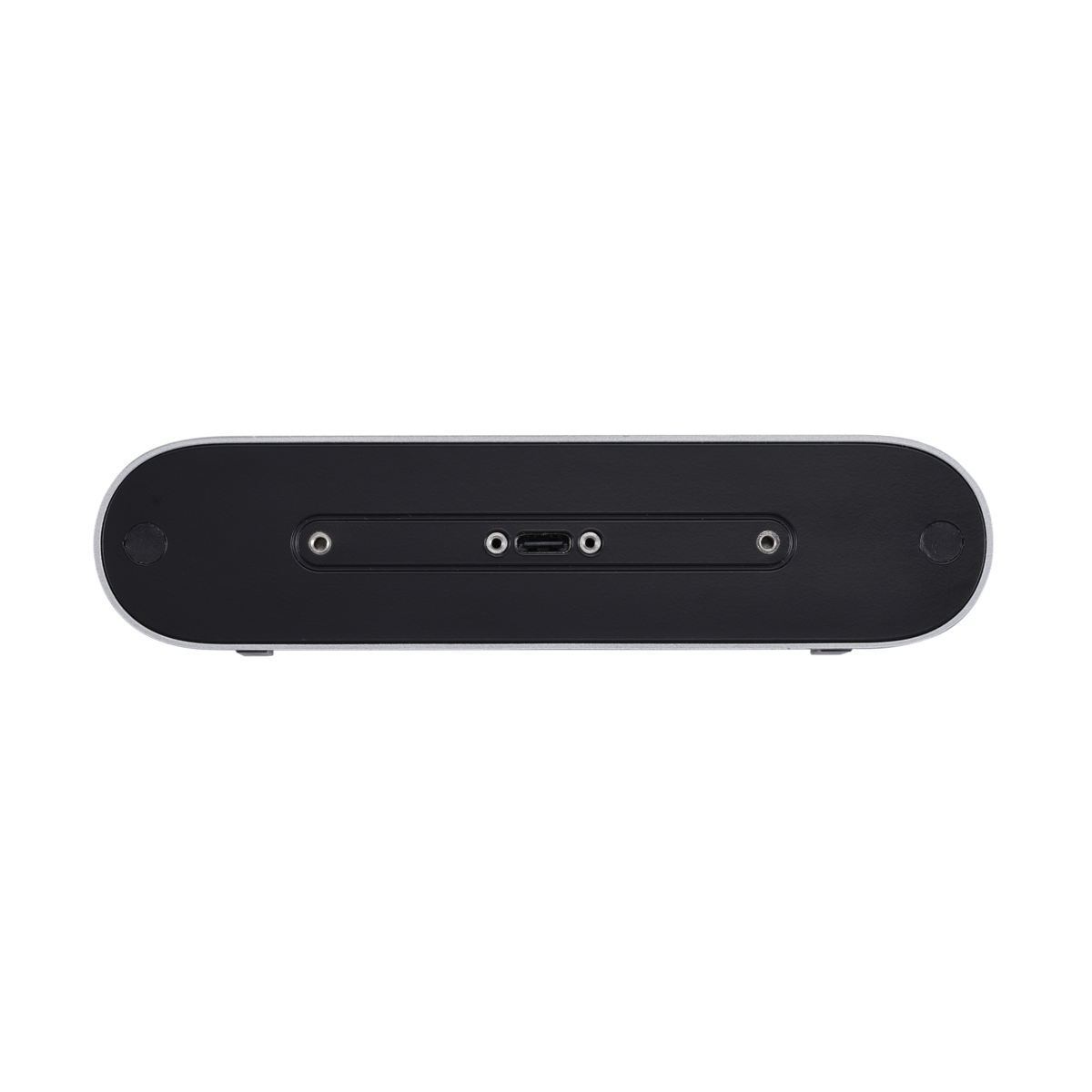

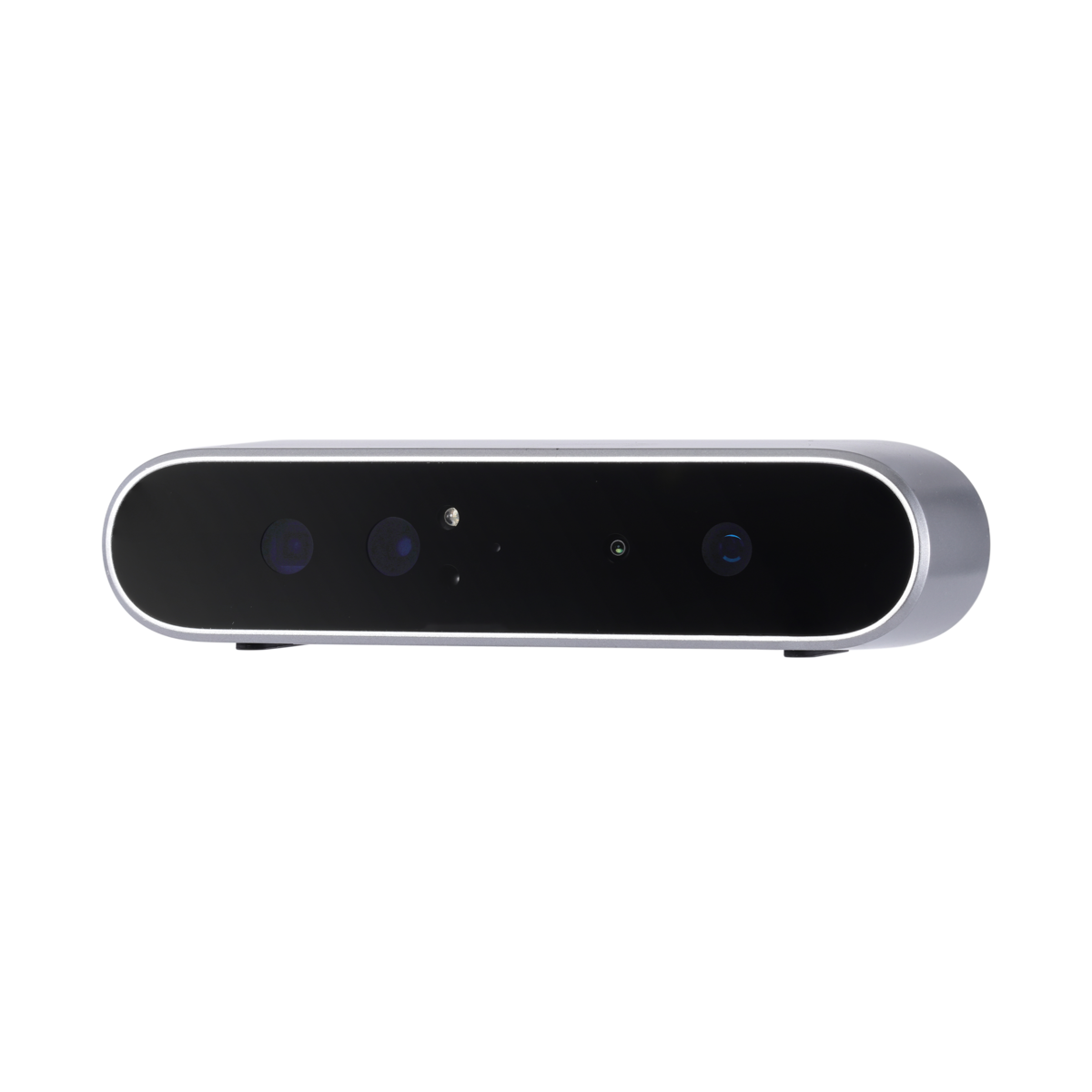

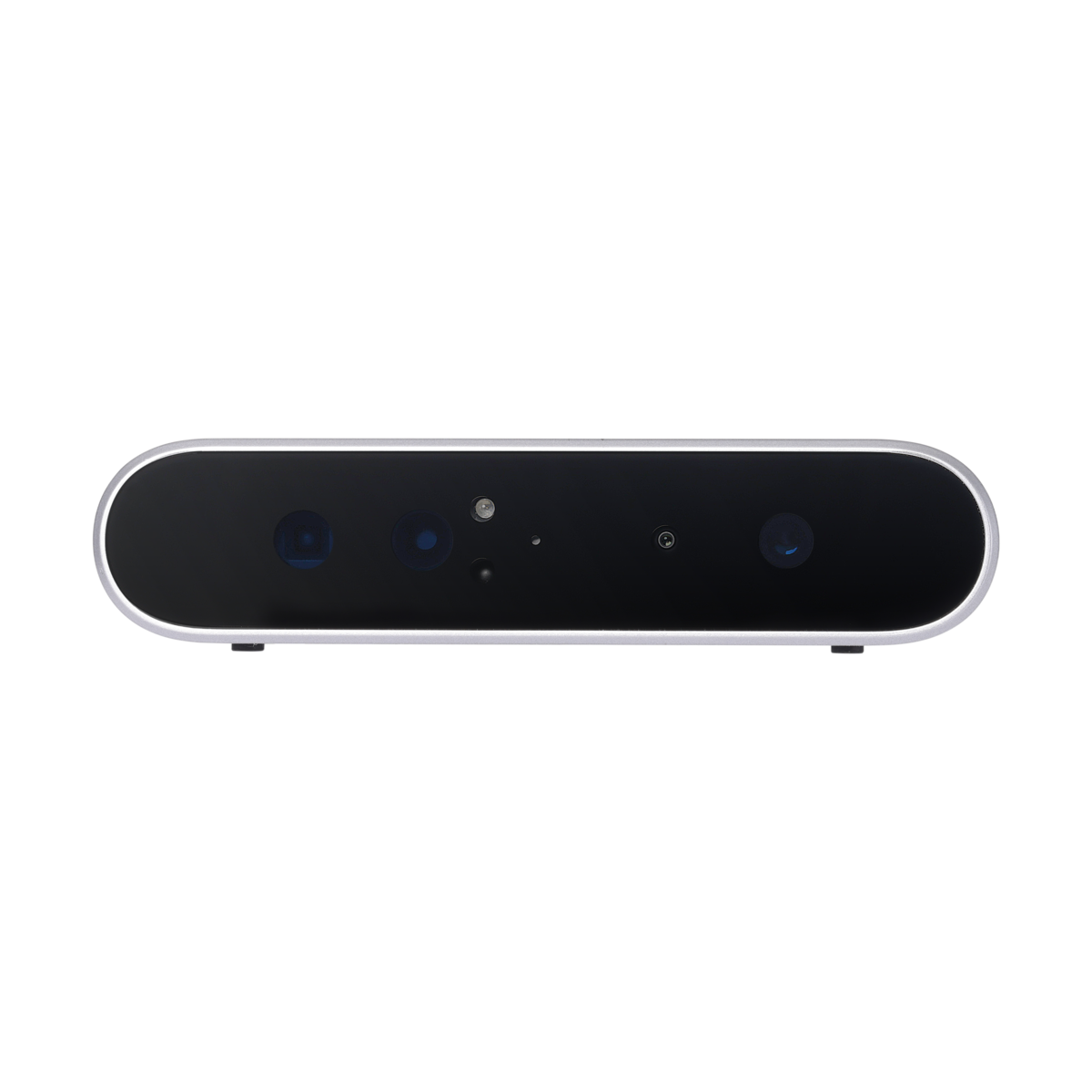

Orbbec Astra Plus Depth Camera

SKU: SBC4003

Regular price ₹ 22,999.99
Sale price ₹ 22,999.99 Regular price ₹ 29,999.99
Sale Sold out
Unit price
/per
Tax included. Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.

Astra+ is a depth camera that is used to obtain the depth image of an object through 3D structured light imaging technology, and to collect color image via the RGB camera. Astra+ is a smart product suitable for 3D object scanning at a distance of 0.6m to 8m, and can measure the depth data of objects within this range.



Features

  • Orbbec Depth Computing Processor MX6000
  • Depth Image: up to 1280 X 1024 pixels @ 30fps
  • Color Image: upto 2048 x 1536 pixels @ 15fps
  • High quality depth data output from 0.6m to 8m
  • Supports multi-resolution alignment of depth images and color images
  • High quality depth output - 3mm@1m relative accuracy
  • USB3.0 Type C interface
  • Supports UVC Protocol



Applications

  • 3D Scanning
  • PC Peripheral
  • Volume Measurement
  • AR/VR
  • Body Sensing Interaction
  • Smart Security
  • Robotics



Technical Specs

Product Name Astra+
Depth Range 0.6m – 8m
Working Distance 0.6m - 8m
Overall Dimensions 178.32mm x 35.32mm x 38.10mm
Overall Weight 250.1g
Power Consumption
(recommended power supply - 5V1A)

Depth: 1280x1024 @ 30fps, RGB: 1920x1080 @ 30fps, fan on

Standby: 1.7W
Avg. : 3.7W
Peak: 4.2W

Depth: 640x480 @ 30fps, RGB: 1920x1080 @ 30fps, fan on

Standby: 1.7W
Avg. : 3.5W
Peak: 3.8W

Baseline 75mm
Interface Type-C
Power Supply USB3.0
Working Temperature 0℃ - 40
Working Humidity 25% - 75% RH
Relative Accuracy 3mm @ 1m
Depth Image
Resolution @ Frame Rate

1280x1024 @ 7/10/15/30 fps
640x480 @ 7/10/15/30 fps
320x240 @ 7/10/15/30 fps
160x120 @ 7/10/15/30 fps

Depth FOV H57.0° V45.2 ° D68.76° @ 1m
Image Format  Y16
Infrared Image
Resolution @ Frame Rate 1280x1024 @ 7/10/15/30 fps
640x480 @ 7/10/15/30 fps
Infrared FOV H58.4° V45.5° D69.8°
Color Image
Resolution @ Frame Rate 2048x1536 @ 3 fps
1920x1080 @ 5 fps
1280x720 @ 7/10 fps

800x600 @ 7/10/15 fps
640x480 @ 7/10/15/25 fps
Color FOV

16:9 - H69.70° V42.80° D77.25°

4:3 - H69.20° V52.0° D80.39°

Image Format

MJPEG & YUYV

Others
Operating System Windows / Linux / Android
Application Indoors
Safety Class 1 Laser
Dustproof & Waterproof Basic Dust Proof
Camera Principle Monocular Structured Light
Certification ROHS 2.0, CE, FCC
