5MP USB CAMERA MODULE
OV5693 Sensor, USB2.0 Port, Auto Focusing
Ā
Specifications
| PIXELS | 5MP | |
|---|---|---|
| SENSOR | OV5693 | |
| INTERFACE | USB 2.0 | |
| CAMERA | Sensor size | 1/4 inch |
| Aperture (F) | 2.0 | |
| Focal length (EFL) | 3.2mm | |
| Field of view (FOV) | 75Ā° | |
| Distortion | <1% | |
| Focusing | Auto focusing | |
| CONSTRUCTION | 4P + IR Filter | |
| IMAGE | Format support | MJPG, YVY2 |
| Static image resolution | 2592 Ć 1944 | |
| Video recording | 15 FPS 2592 Ć 1944 30 FPS 1920 Ć 1080 30 FPS 1280 Ć 720 |
|
| OPERATING VOLTAGE | 5V Ā± 5% | |
| CAMERA SIZE | 8.5 Ć 8.5 mm | |
| MODULE SIZE | 8.5 Ć 60.2mm | |
Ā
Clearer 1080P HD Video Recording
Supports 1080p@30 Video Recording
Ā
Auto Focusing
Onboard Micromotor, Flexible Auto Focus
Ā

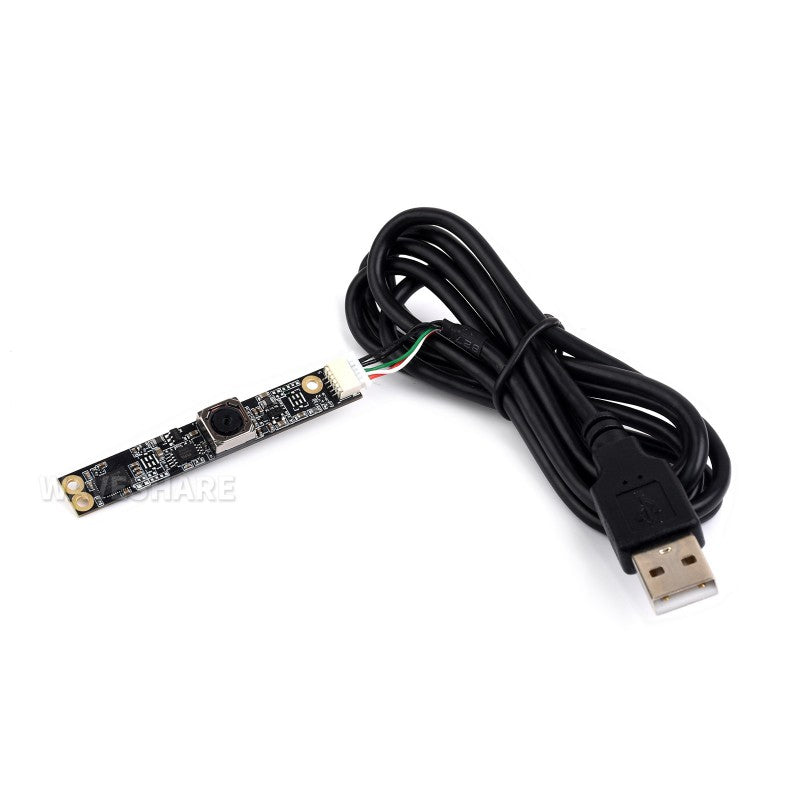

Connecting With USB Cable
Ā

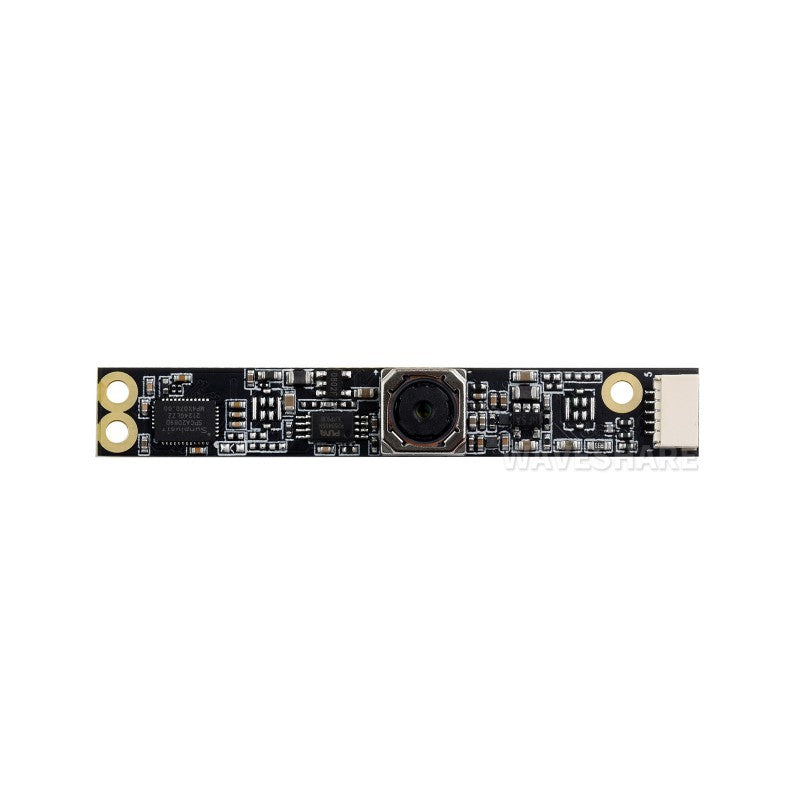

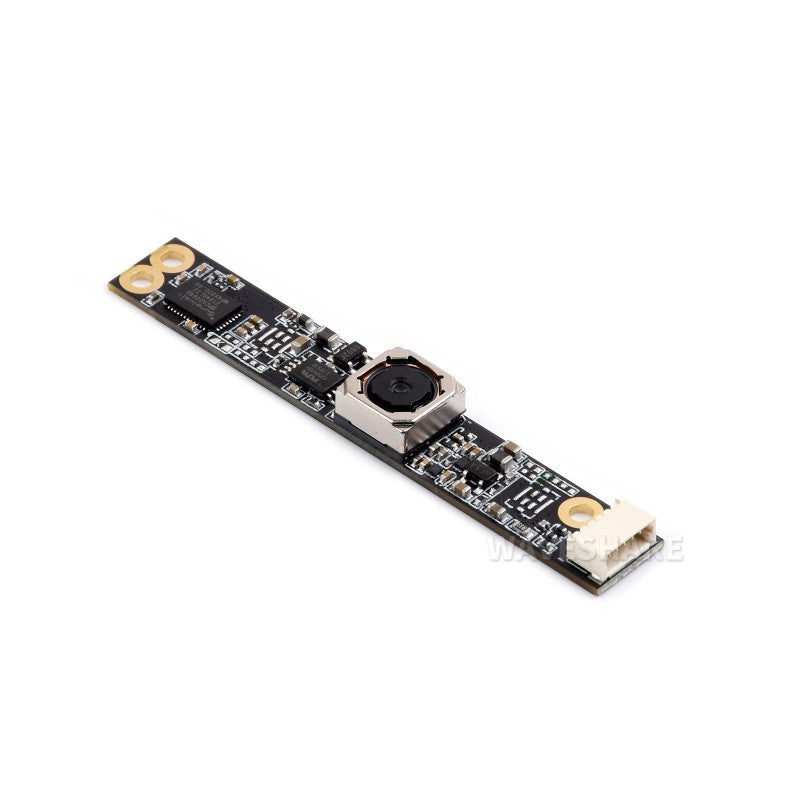

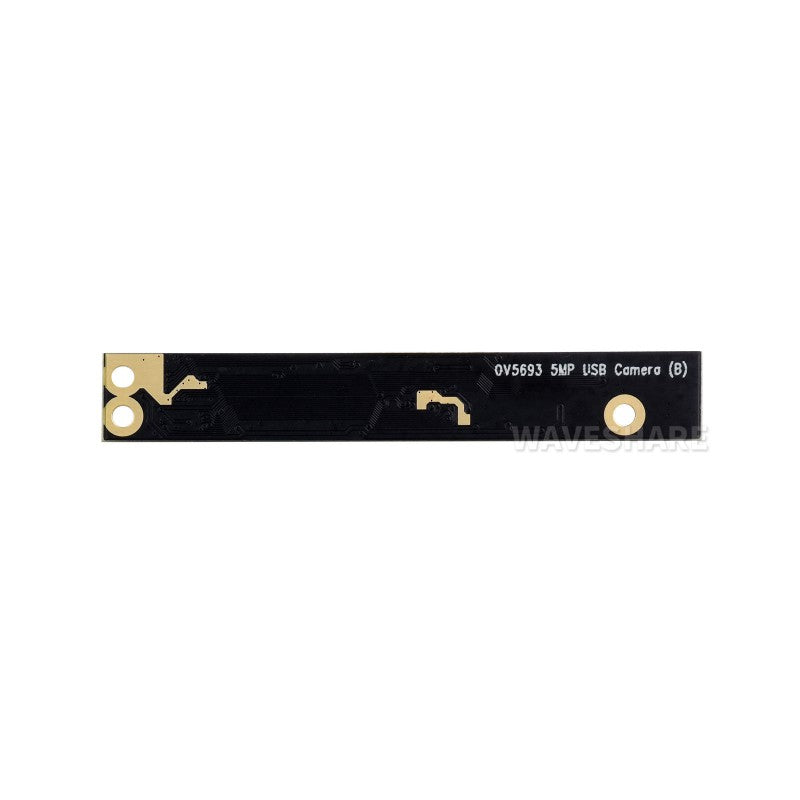

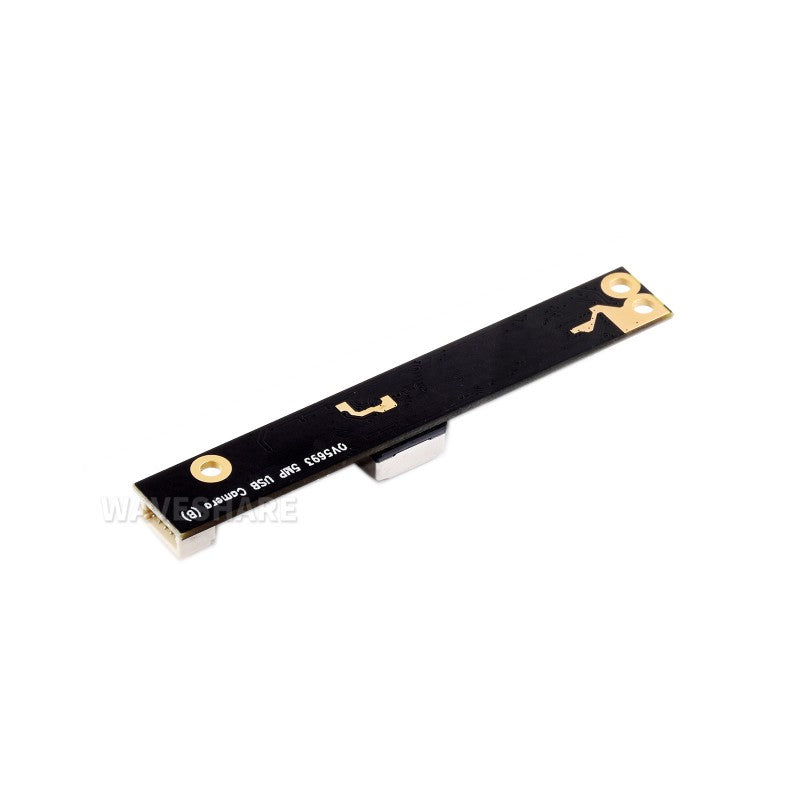

Product Show
Ā
Outline Dimensions
Ā
Resources
Wiki:Ā www.waveshare.com/wiki/OV5693_5MP_USB_Camera_(B)
Ā
Package Contents:
Weight:Ā 0.016 kgĀ
OV5693 5MP USB Camera (B) x1Ā
What are the main specifications of the camera module?
It uses the OV5693 5MP sensor with a USB 2.0 interface and auto focusing. It has a 2.0 aperture, 3.2 mm focal length, 75 degree FOV, distortion under 1 percent, and supports MJPG and YVY2 formats with video up to 1080p at 30 fps.
What are the power and size requirements for installation?
Operating voltage is 5V plus or minus 5 percent. The camera size is 8.5 by 8.5 mm and the module size is 8.5 by 60.2 mm.
What video resolutions and frame rates are supported?
Video recording supports 2592 x 1944 at 15 fps, 1920 x 1080 at 30 fps, and 1280 x 720 at 30 fps. Still images are up to 2592 x 1944.
Is autofocus available and how is it implemented?
Yes, auto focusing is supported via an onboard micromotor providing flexible focus control.
What is included in the package contents?
The package includes one OV5693 5MP USB Camera (B).
