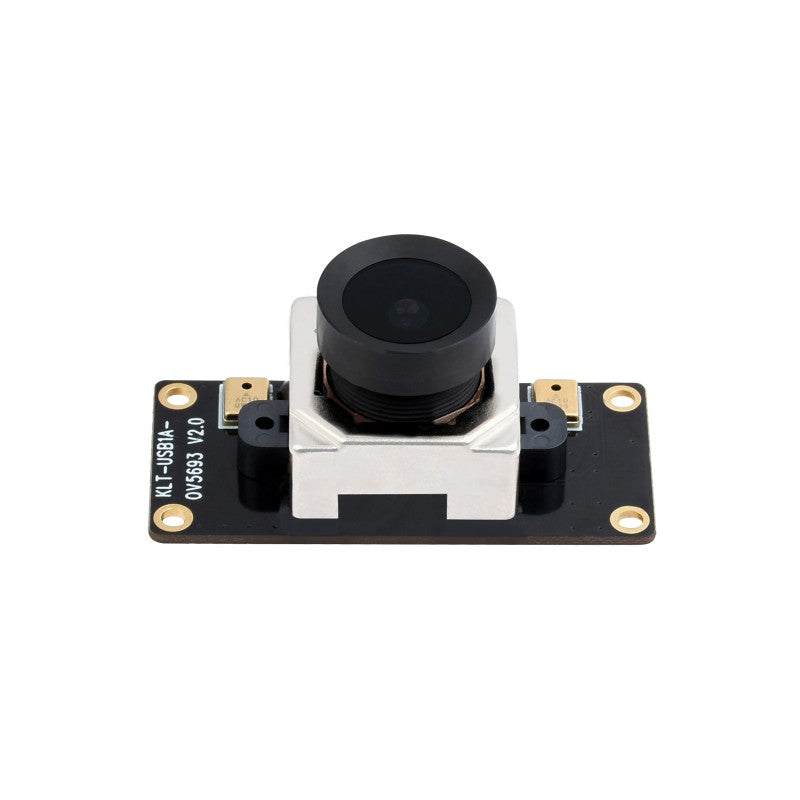

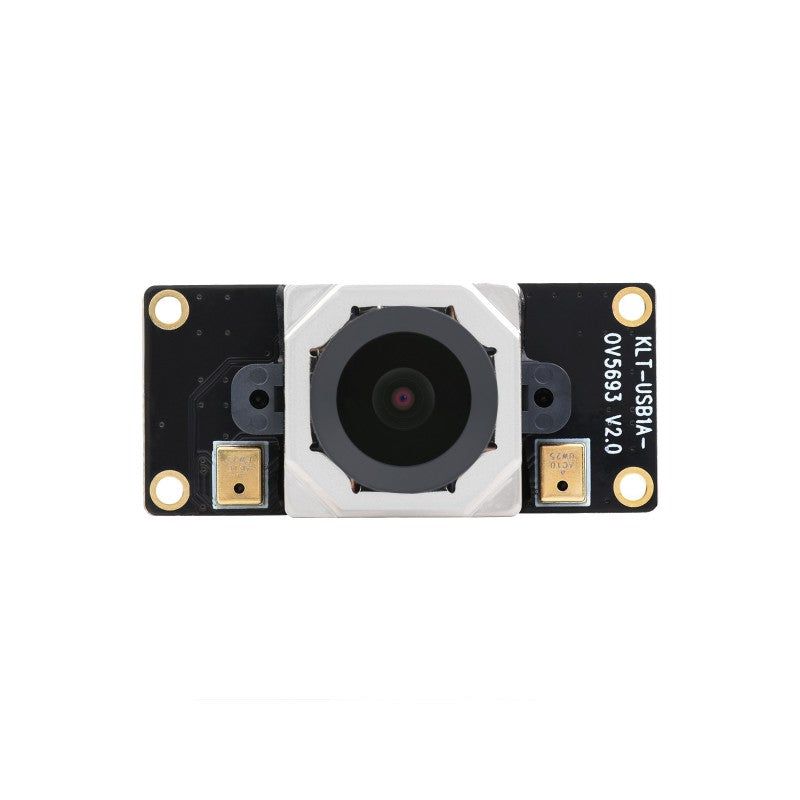

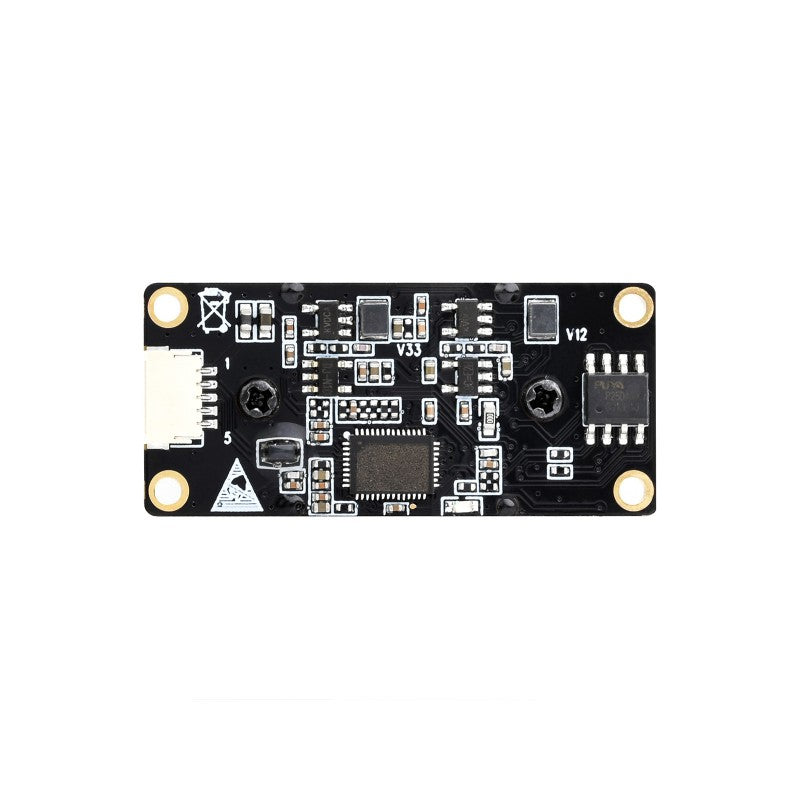

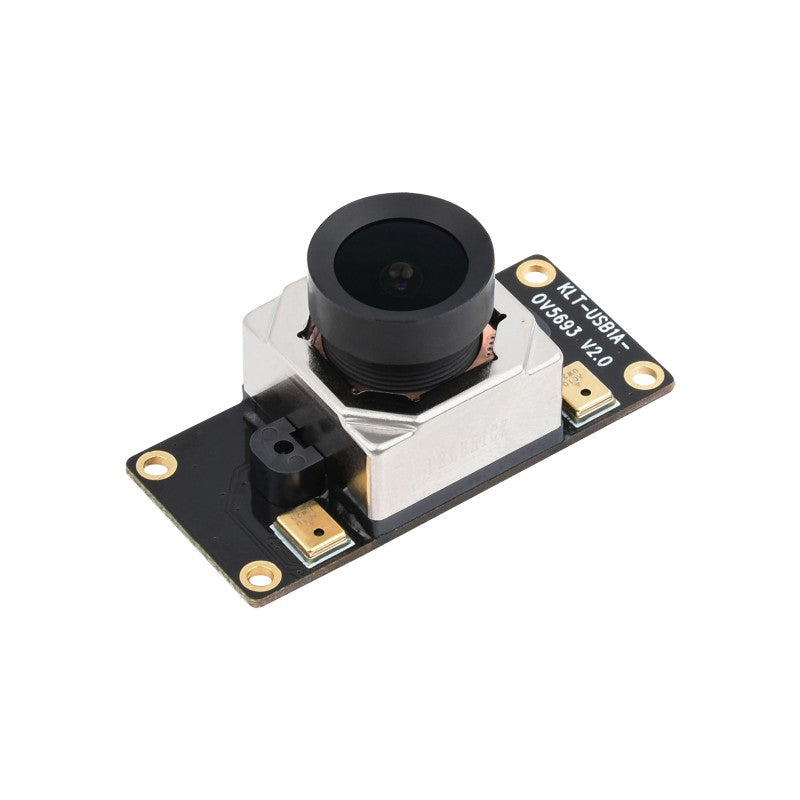

OV5693 5MP USB Camera, Fixed-focus, Auto Focusing, M12 Camera Module

SKU: WVSH0406

₹ 3,849.99 ₹ 3,999.99

Out of stock

📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
⏱ This is a pre-order item. We'll ship it as soon as it's back in stock.
OV5693 5MP USB Camera, Fixed-focus, Auto Focusing, M12 Camera Module₹ 3,849.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

5MP M12 CAMERA MODULE

OV5693 Sensor, USB2.0 Port, Auto Focusing

Specifications

PIXELS 5MP
SENSOR OV5693
INTERFACE USB 2.0
CAMERA Sensor size 1/4 inch
Aperture (F) 2.1
Focal length (EFL) 2.5 mm
Field of view (FOV) 135°(D) 95°(H) 70°(V)
Focusing Auto focusing
IMAGE Format support MJPG, YVY2
Static image resolution 2592 × 1944
Video recording MJPG:
2592 × 1944 15FPS
1920 × 1080 15FPS
1280 × 720 15FPS
640 × 480 15FPS
YUY2:
2592 × 1944 3FPS
1920 × 1080 5FPS
1280 × 720 10FPS
640 × 480 15FPS
OPERATING VOLTAGE 5V ± 5%
OPERATING CURRENT 500mA
CAMERA SIZE 18.00 × 18.00 × 19.69 mm
MODULE SIZE 18.00 × 40.00 mm

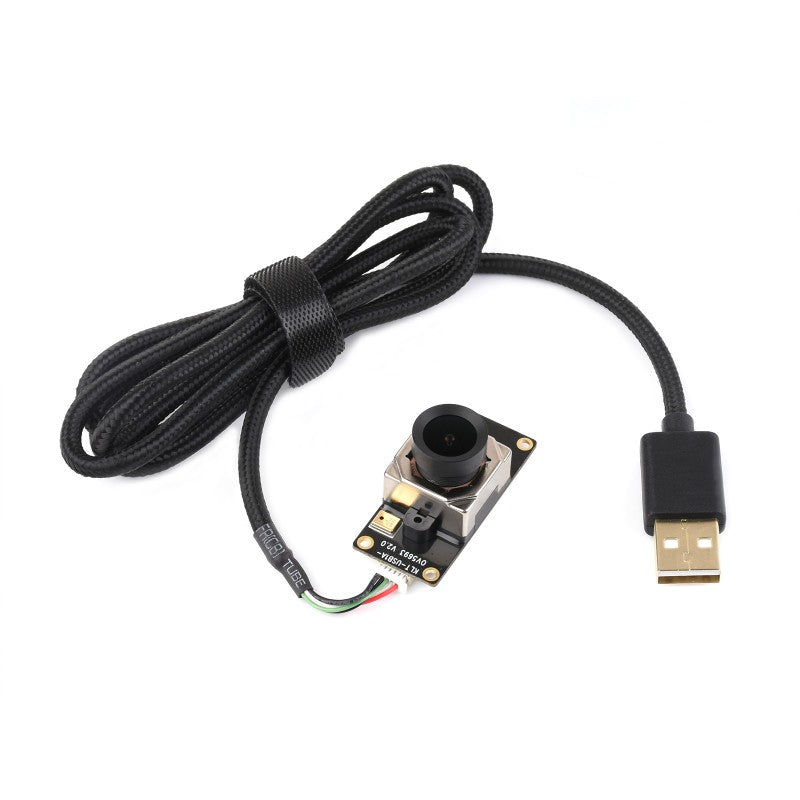

Connecting With USB Cable



Outline Dimensions

What interface and power does this camera require?
It uses a USB 2.0 interface and requires 5V plus minus 5 percent at 500 mA.
What image and video formats and resolutions are supported?
Static images are up to 2592 x 1944. Video options include MJPG at 2592 x 1944 15fps, 1920 x 1080 15fps, 1280 x 720 15fps, 640 x 480 15fps, and YUY2 at 2592 x 1944 3fps, 1920 x 1080 5fps, 1280 x 720 10fps, 640 x 480 15fps.
What is the sensor and field of view of the camera?
The sensor is OV5693 5MP with a 1/4 inch size and a field of view of 135 degrees diagonal, 95 degrees horizontal, and 70 degrees vertical.
What are the physical dimensions of the camera and module?
The camera body measures 18.00 x 18.00 x 19.69 mm and the module measures 18.00 x 40.00 mm, suitable for compact embedded projects.
Where can I find more information and documentation?
See the Waveshare product wiki at www.waveshare.com/wiki/OV5693_5MP_USB_Camera_(A) for details and support.
