OV9281 1MP Mono USB Camera
1MP | Global Shutter | 120° FOV | 120 FPS Support
Specifications
| Pixels | 1MP (Mono) |
| Sensor | OV9281 |
| Interface | USB2.0 Type-C |
| Sensor Size | 1/4 inch |
| Aperture (F) | 2.2 |
| Focal Length (EFL) | 1.65mm |
| Field of View (FOV) | 120° |
| Distortion | <10% |
| Focusing | Fixed-focus |
| Mount | M12 |
| Construction | Without IR Filter |
| Image Format Support | MJPG, YVY2 |
| Static Image Resolution | 1280 × 720 |
| Video Recording | 120 FPS @ 1280 × 720 120 FPS @ 800 × 600 120 FPS @ 640 × 480 |
| Dynamic Range | 52dB |
| SNR | 46dB |
| Operating Voltage | 5V ± 5% |
| Operating Temperature | 0°C ~ 50°C |
| Module Size | 25.00 × 25.00 (mm) |
Connecting with USB cable

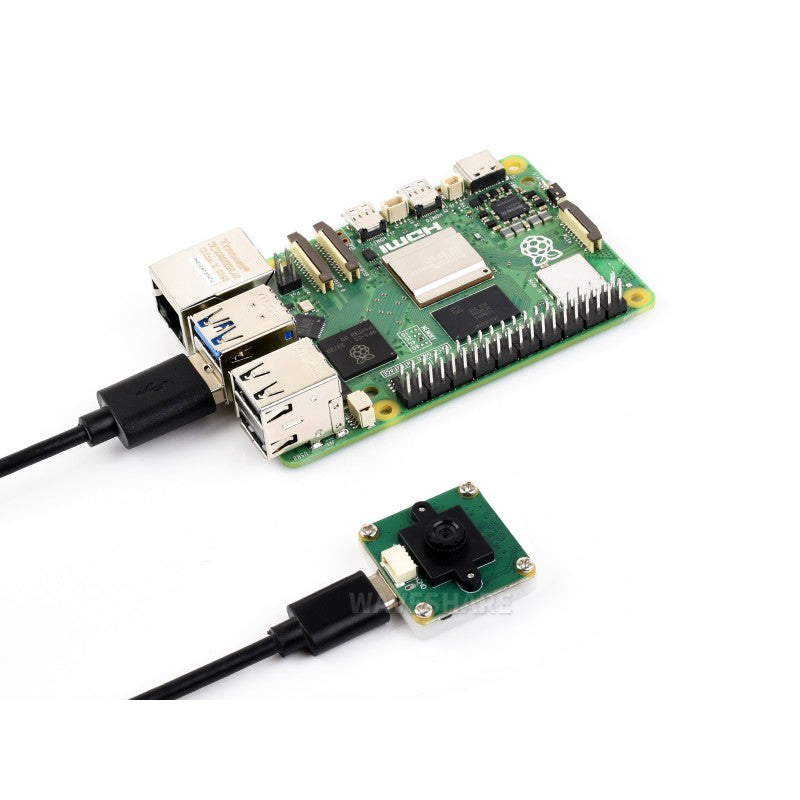

 Connecting to Raspberry Pi 5 |
 Connecting to Jetson Orin kit |
 Connecting to RDK X5 Development Board |
* for reference only, the Raspberry Pi 5, Jetson Orin kit and RDK X5 Development Board are not included
Global Shutter, More Clear Imaging
the global shutter eliminates Jello-Effect while shooting fast moving objects
more suitable for high frame rate capturing
High Frame Rate Recording
Supports 120 FPS high frame rate recording to capture every dynamic scene detail

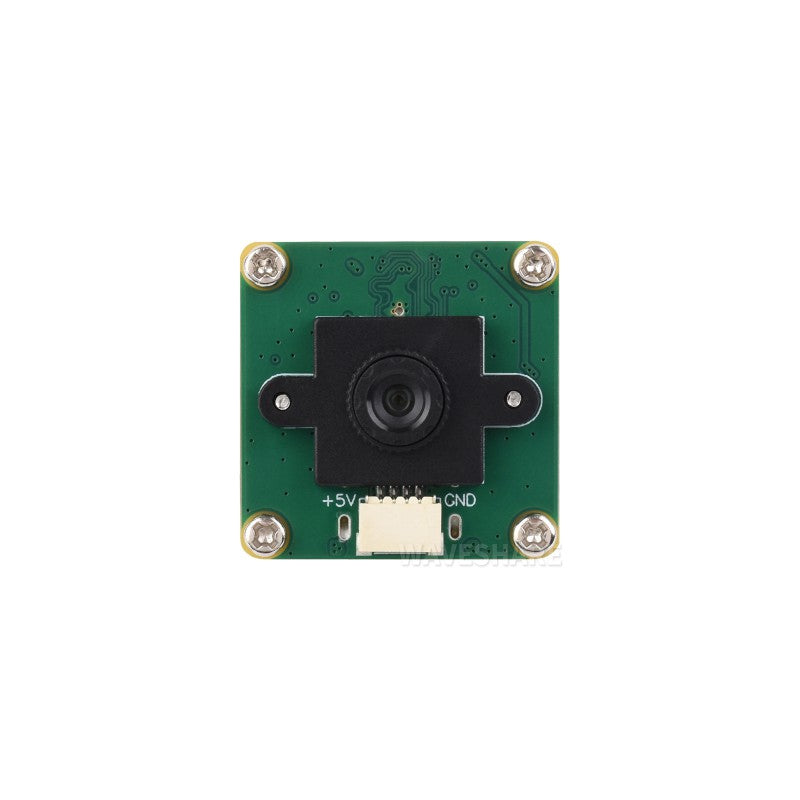

Pinout Definition

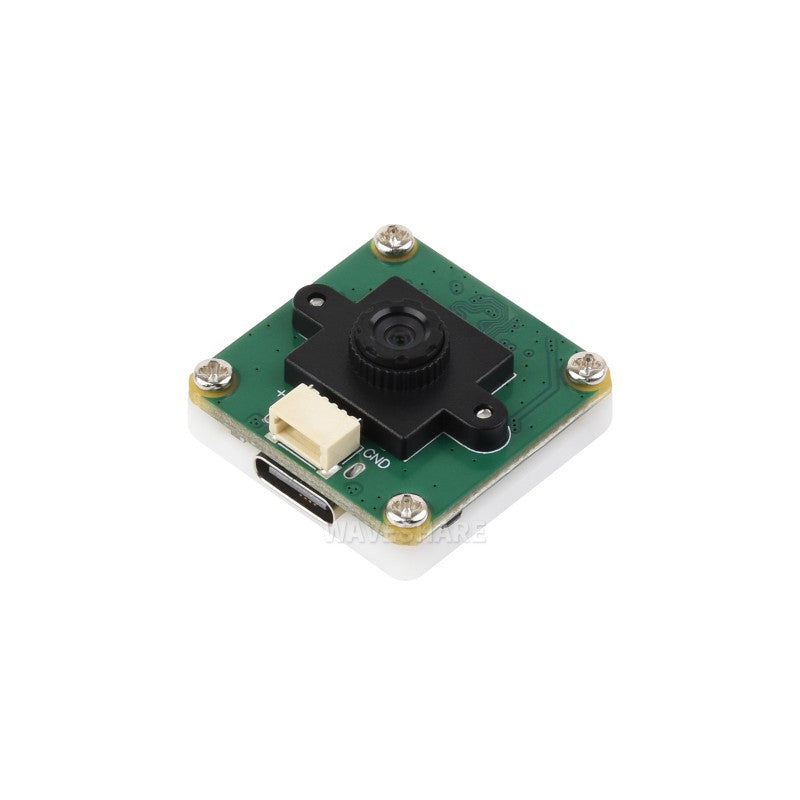

Onboard Two Types of Connectors
 Connecting via USB Type-C port |
 Connecting via 1.0mm pitch 4PIN connector |
Outline Dimensions
Resources
Wiki: www.waveshare.com/wiki/OV9281_1MP_USB_Camera_(A)
Package Content
Weight: 0.018 kg
OV9281 1MP USB Camera (A) x1
SH1.0 4PIN dual plug cable x1
What are the main imaging and video specs of this camera?
It uses a 1 MP mono OV9281 sensor with a global shutter, supports 120 FPS at 1280x720 as well as 800x600 and 640x480, and offers image formats MJPG and YVY2.
How is the camera connected and what connectors are available?
The device supports USB connectivity via two options: a USB Type-C interface and a 1.0 mm pitch 4PIN connector, with the included cable for connection.
What are the power and operating environment requirements?
Operating voltage is 5V plus or minus 5 percent, with an operating temperature range of 0 to 50 degrees Celsius.
What is included in the package?
Package contents are the OV9281 1MP USB Camera (A) and an SH1.0 4PIN dual plug cable.
Is this product compatible with popular development boards like Raspberry Pi or Jetson?
The camera connects via USB and is shown with reference to Raspberry Pi 5 and Jetson Orin kits. Actual compatibility depends on the host system and drivers.
